316 (CF8M) фитинги из нержавеющей стали под заказ со стеклянной

Product Name

POINT SUPPORT FITTINGS STAINLESS STEEL GLASS SPIDER
SPIDER FITTINGS FOR STRUCTURAL GLASS CURTAIN WALL

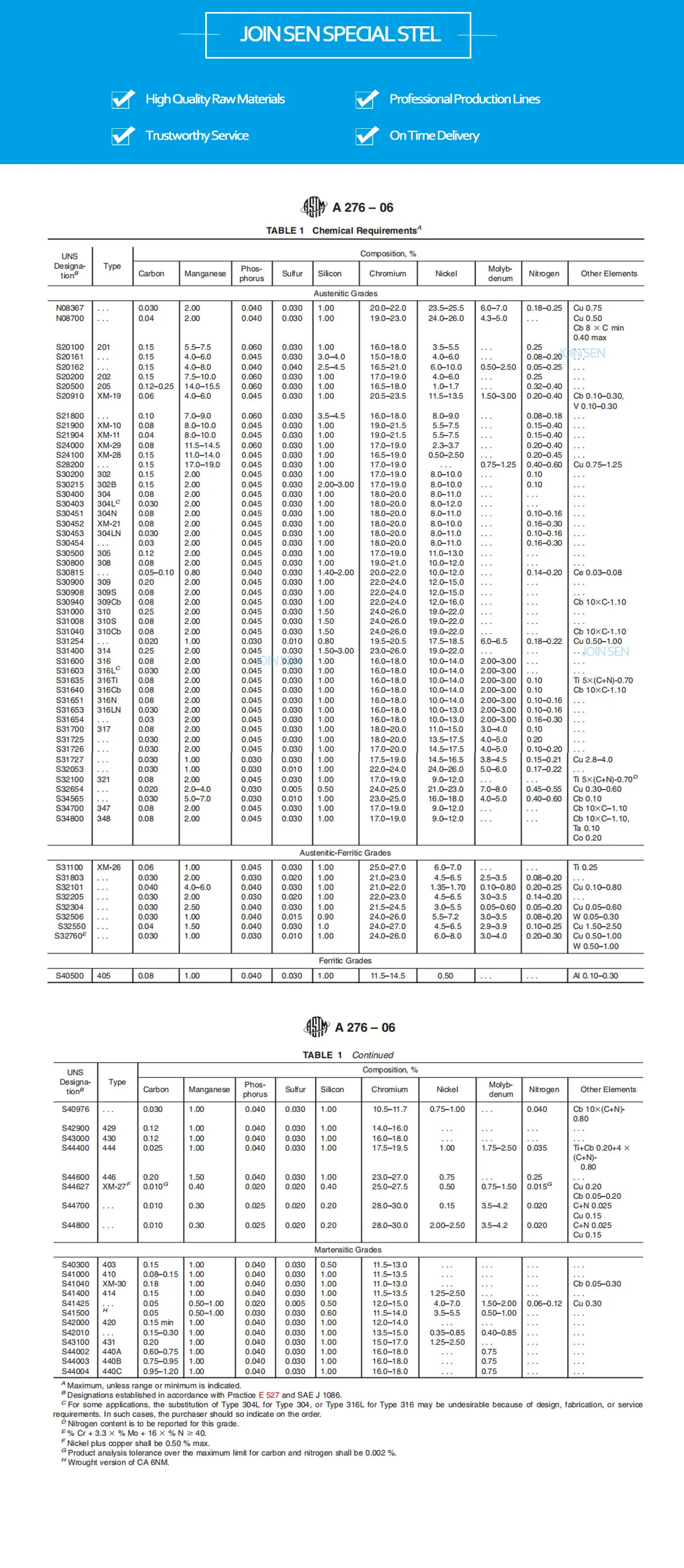

Material

304 (CF8) :  C≤0.08   Cr:18.00-20.00   Ni: 8.00-11.00    Si≤1.00   S≤0.030   P≤0.045

316 (CF8M):  C≤0.08   Cr:16.00-18.00   Ni:10.00-14.00   Si≤1.00   S≤0.030  P≤0.045 Mo:2.00-3.00

Duplex 2205:   C:≤0.03    Si:≤1.00    Mn:≤2.50   P:≤0.030    S:≤0.020
                        Cr:22.0-23.0    Ni:4.5-6.5 Mo:3.0-3.5    N:0.14-0.2

Model

100 series,120 series,150 series,160 series,200 series,210 series,220 series,250 series,300 series,250S series,L250 series…

Arm Details

Single Arm Spider Fitting used to attach a single glass panel to a structural end post, to a wall or structural fin
Single Long Arm Fitting used to attach a single glass panel to a structural end post and match over "V" fittings arms
Double Arm Spider Fitting used to attach two in-line glass panels to a structural center post,  to a wall or structural fin
Double Arm "V" 90 Degree Fitting used to attach two 90 degree glass panels at the top or bottom of a structural corner post
3-Way Arm Fitting used to attach 3 in-line glass panels to a structural center post where they abut to a soffit corner
4-Way Arm 90 Degree Fitting used to attach two 90 degree glass panels in the middle to a structural corner post

Type

Heavy Duty Spider Fittings, Regular Duty Spider Fittings, Mini Spider Fittings

Surface

Brushed, Mirror, Fluorocarbon Coating(white, red, yellow, green)

Thickness

normally for 8-18mm glass thickness
Glass must be tempered glass (do not use with annealed, float, or raw glass)

Application

Glass Railings, Glass Entrances, Awnings, Glass Storefronts,Curtain Wall And Storefront Systems

Packing

Standard Export Carton Packing Protected with Bubble Bag Inside

Related Accessories

Glass Spider, Routel ,Connector,Tension Rod, Hinge, Latches , Standoff, Handrail Fittings,Handrail,Balustrade, Banister,Wire Rope ,Glass Spigot,  Railing,   Glass  Clamp,   Bracket,  Bar Fitting,   Road Stud,  End Cap,   Tactile Strips Indicators,  Balustrade Flange

MOQ

50 Pcs

Price Terms

FOB, CNF, CFR, CIF, EXW

Payment Terms

30% deposit by T/T, balanced should be paid before shipment

Delivery Time

Normally 10 days , depend on order details

Shipment Term

by LCL or FCL

Monthly Capacity

100 Tons

HS CODE

73089000

Sample

Free sample

Quality Assurance

Mill Test Certificate is provided, Third Party Inspection is acceptable , Free Sample is available for Testing and welcome to our factory for personal inspection .
