Горячая Распродажа Reprap Ramps 1 4 LCD 12864 панель управления ЖК-модулем
- Категории: >>>
- Поставщик: Guangzhou,Fude,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Descriptions
Product Manual
The smart controller contains an SD card reader, rotary encoder and a 20-character × 4 line LCD display.

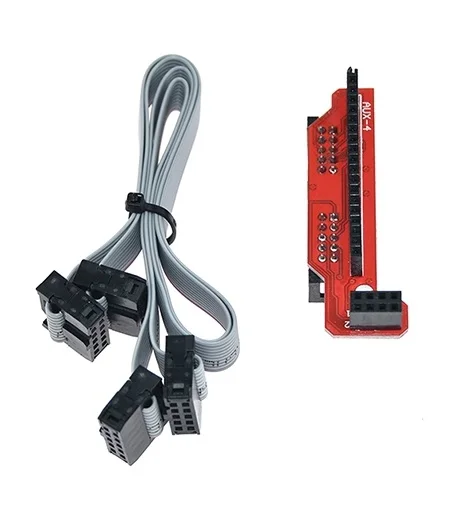

You can easily connect it to your RAMPS 1.4 board using the "smart adapter" included.
After this panel is connected to your RAMPS 1.4, you do not need your computer, your SD card smart controller is powered.
All further operations, such as calibration, axis movements can be done using the intelligent controller of the rotary encoder.
No need to print 3D design on computer, just use G code to design and store on SD card.
Features
1. Adopt large screen LCD 12864: 4 lines, 20 characters per line;
2. The SD card holder is integrated on the back. After the slice file is placed in the SD card, the corresponding file can be printed on the LCD to print;
3. The product comes with an encoder, which can realize parameter adjustment and file selection printing;
4. Plug and play on RAMPS, but need to modify the firmware to support.
Take Marlin as an example, uncomment the two lines that have been commented out, compile and download them to the board and use them.
Search in the Configuration.h file
// # define REPRAP_DISCOUNT_SMART_CONTROLLER
Remove the first two slashes and become
#define REPRAP_DISCOUNT_SMART_CONTROLLER
Recompile and download it.
Disply
Company Information

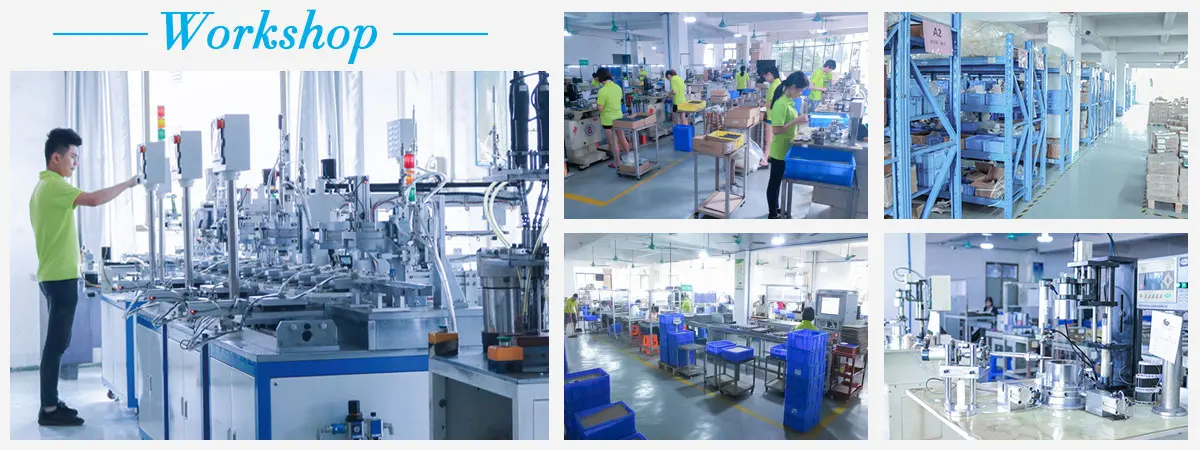

Guangzhou Fude Electronic Technology Co., Ltd., established in 2011, engaged in stepper motor research , development, production and sales , are one of the hi-tech enterprises. After several years of technology researching and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and meet customer's requirements , we all try our best to customize the motor and provide solutions.
Our company has numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.
Business Type | Manufacturer |
Location | Guangdong,China (Mainland) |
Year Established | 2011 |
Total Revenue | US$1 Million - US$2.5 Million |
Registration No. | 440111000339089 |
Product Certifications | A MEMBER OF ALIBABA GOLD SUPPLIER CLUB |
FAQ
Q: How to choose a motor to match my machine
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
Q: If I need a special motor , can you manufacture
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
Q: Can I order samples first
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please let us
Company Information

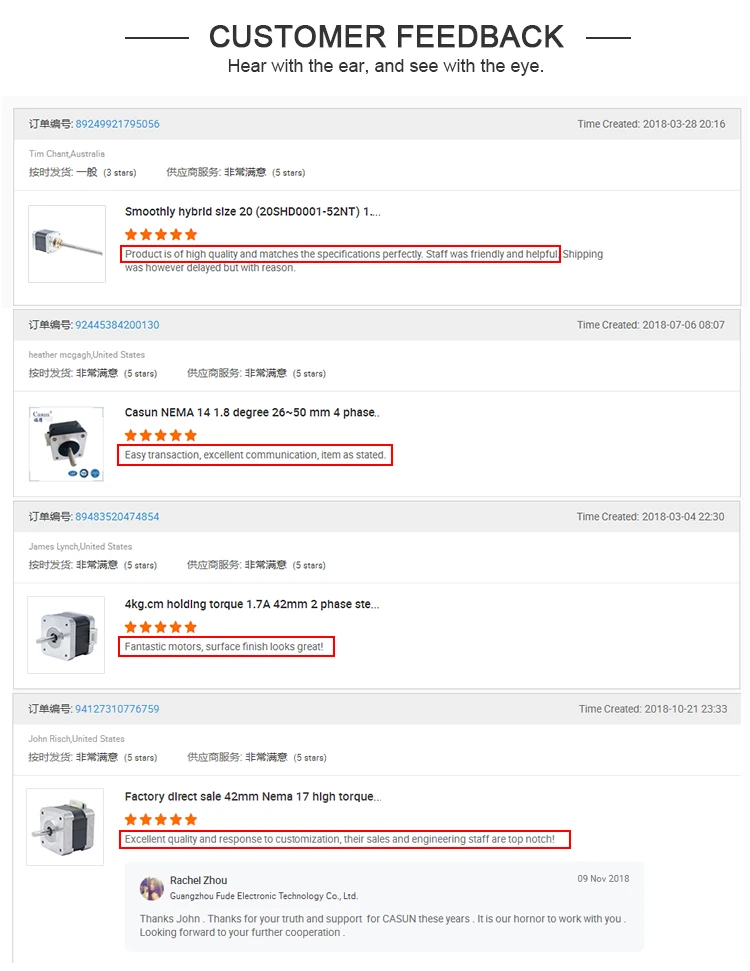

Customer feedback
