Carbon Steel Black Slotted Spring Tension Pins Split Dowe Roll Pin
Product Description
Slotted Spring Pins also known as roll, tension, split, and expansion pins, these pins have a slot along one side that you squeeze closed to install them into unthreaded holes.
Once installed, they expand slightly, creating outward tension that holds them tight against the hole wall. These pins absorb shock and vibration in your system, and keep parts from loosening.
They are often used as hinge pins, or to hold springs and power transmission components in place.
Material:
18-8 stainless steel pin
316 stainless steel
Carbon steel Zinc-Plated,Black-Phosphate ,Plain
Pins that meet ASME B18.8.2 specifications are made to ASME standards for material and dimensions.
Pins that meet MS16562 conform to military standards for material and dimensions.
Pins that meet specificationsfor ISO 8752 (formerly DIN 1481) or ISO 13337 (formerly DIN 7346)
adhere to international standards for pin dimensions.
| Size: |
| 1/16x3/16,1/16x1/4,1/16x1/16,1/16x3/8,1/16x7/16,1/16x1/2,1/16x9/16,1/16x5/8 |
| 1/16x11//16,1/16x3/4,1/16x13/16,1/16x7/8,1/16x5/16,1/16x1’’ |
| Size: |
| 5/64x3/16 ,5/64x1/4,5/64x5/16,5/64x3/8,5/64x7/16,5/64x1/2,5/64x9/16,5/64x5/8,5/64x11//16 |
| 5/64x3/4,5/64x13/16,5/64x7/8,5/64x1,5/64x1 1/4,5/64x1 1/2 |
| Diameter:3/32" |
| Length:3/16, 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1,1 1/8,1 1/4,1 3/8,1 1/2, |
| Diameter:1/8" |
| Length: 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1,1 1/8,1 1/4,1 3/8,1 1/2, 1 5/8, 1 3/4, 1 7/8,2, 2 1/4,2 1/2. |
| Diameter:9/64" |
| Length:1/2, 3/4,1, 1 1/2. |
| Diameter:5/32" |
| Length,3/8,7/16,1/2,9/16,5/8,3/4,7/8,15/16,1,1 1/8,1 1/4,1 3/8,1 1/2, 1 5/8, 1 3/4, 2, 2 1/4,2 1/2. |
| Diameter:3/16" |
| Length,3/8,7/16,1/2,9/16,5/8,11/16,13/16,3/4,7/8,1,1 1/8,1 1/4,1 3/8,1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/4,2 1/2, 2 3/4, 3. |
| Diameter:7/32" |
| Length,1/2,5/8,3/4,1 ,1 1/4,1 1/2, 1 3/4, 2, 2 1/4,2 1/2, 2 3/4, 3 |
| Diameter:1/4" |
| Length,1/2,9/16,5/8,11/16,3/4,7/8,1 ,1 1/8,1 1/4,1 3/8,1 1/2,1 5/8, 1 3/4, 1 7/8,2, 2 1/4,2 1/2, 2 3/4, 3, |
| 3 1/4, 3 1/2,4” |
| Diameter:5/16" |
| Length:3/4,1 ,1 1/4,1 1/2, 1 3/4 ,2, 2 1/4,2 1/2, 2 3/4, 3, 3 1/4, 3 1/2, 3 3/4,4” |
| Diameter:3/8" |
| Length:3/4,1 ,1 1/4,1 1/2, 1 3/4 ,2, 2 1/4,2 1/2, 2 3/4, 3, 3 1/4, 3 1/2, 3 3/4,4” |
| Diameter:7/16" |
| Length:1 3/4 ,2 ,2 1/2,3 ,4” |
| Diameter:1/2’’ |
| Length:1 1/4,1 1/2, 1 3/4 ,2, 2 1/4,2 1/2, 2 3/4, 3, 3 1/4, 3 1/2, 3 3/4,4” |
| Diameter:5/8’’ |
| Length:3’’, 4’’ |

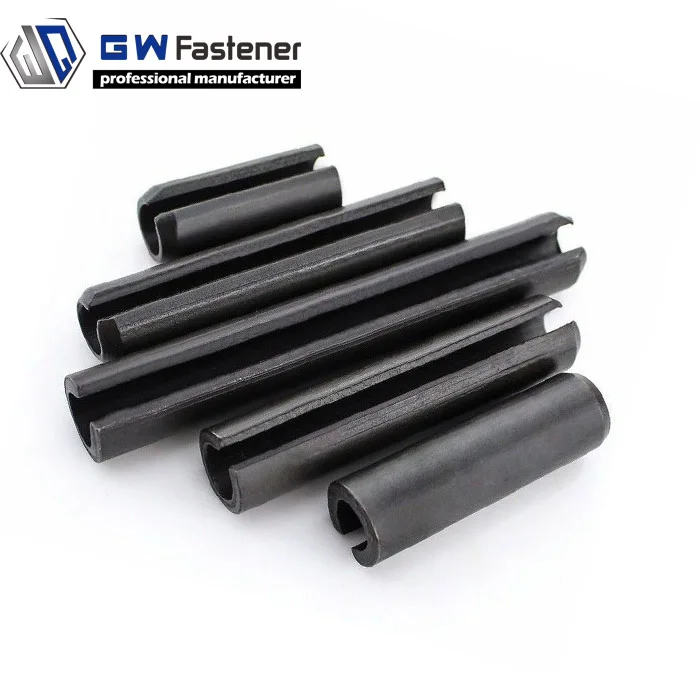

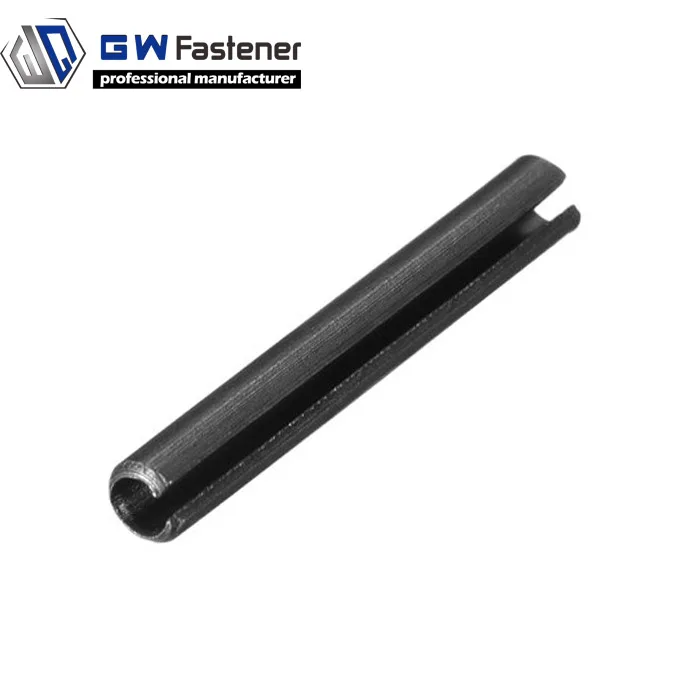

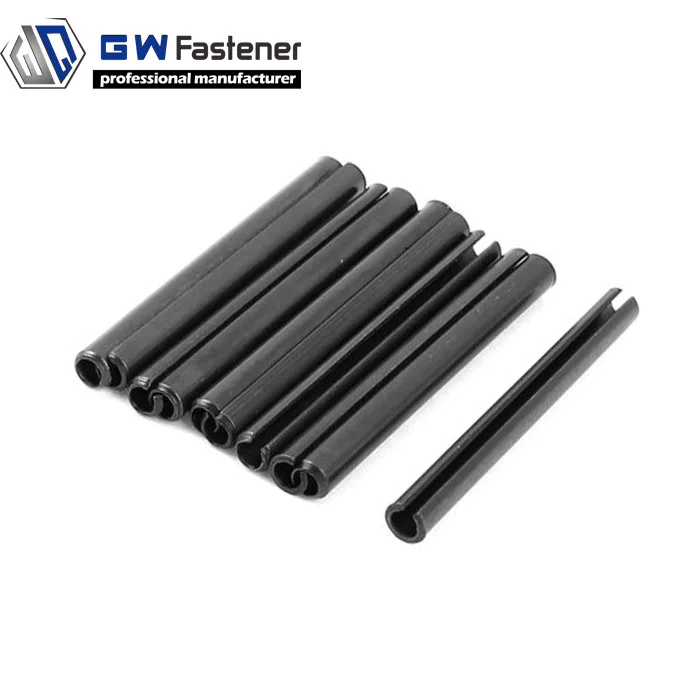

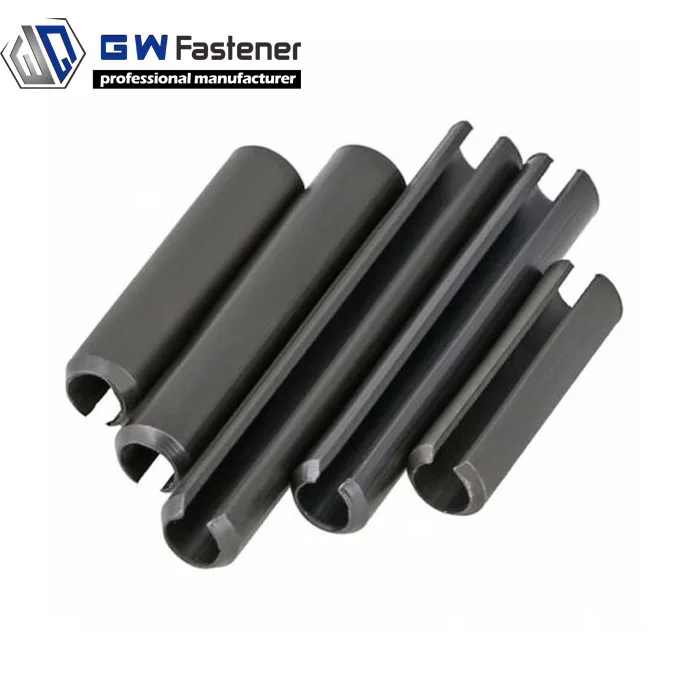

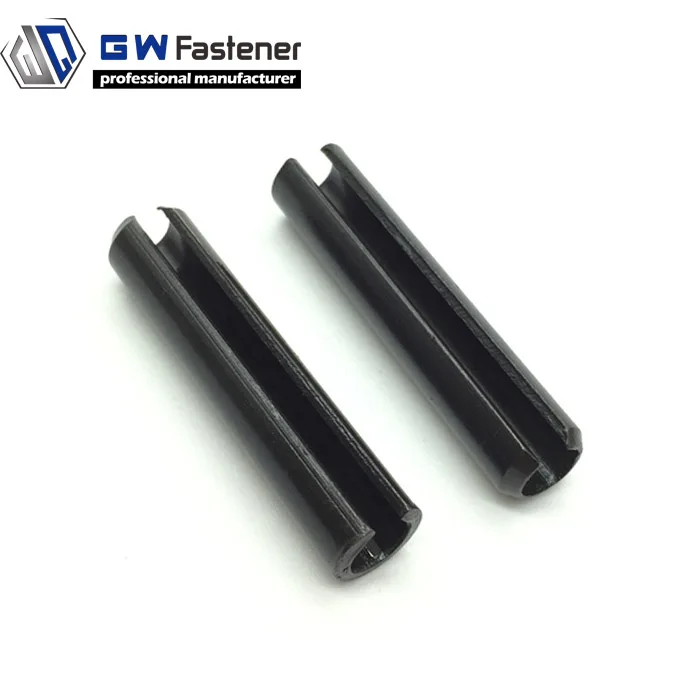

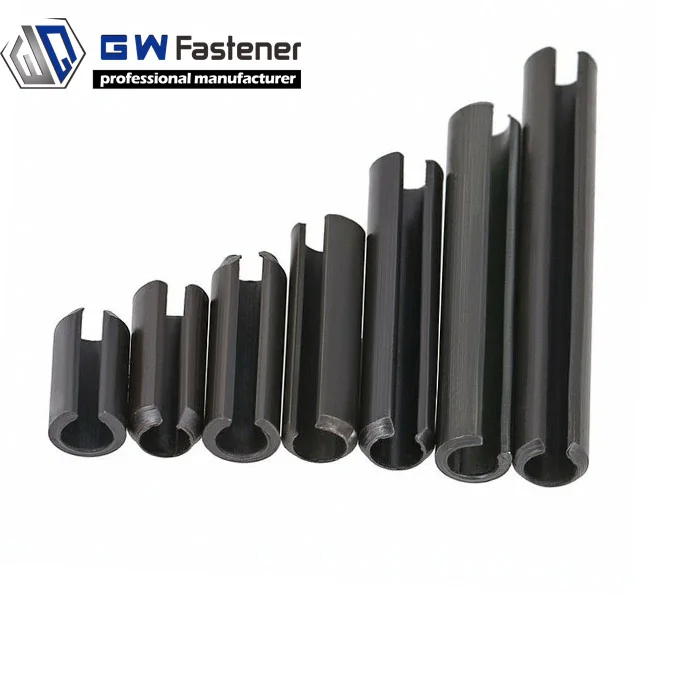

Product Photos
