Клеммные колодки JUK10N DIN-Rail 0 5-10
- Категории: Клеммники >>>
- Поставщик: Wenzhou,Puzhu,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Supply Ability
Supply Ability: 380000 Piece/Pieces per Week
Manufacturer CHFRPU TERMINAL BLOCK CO., LTD
Model Number JUK 10N
Model Number JUK 10N
Type Screw Terminal

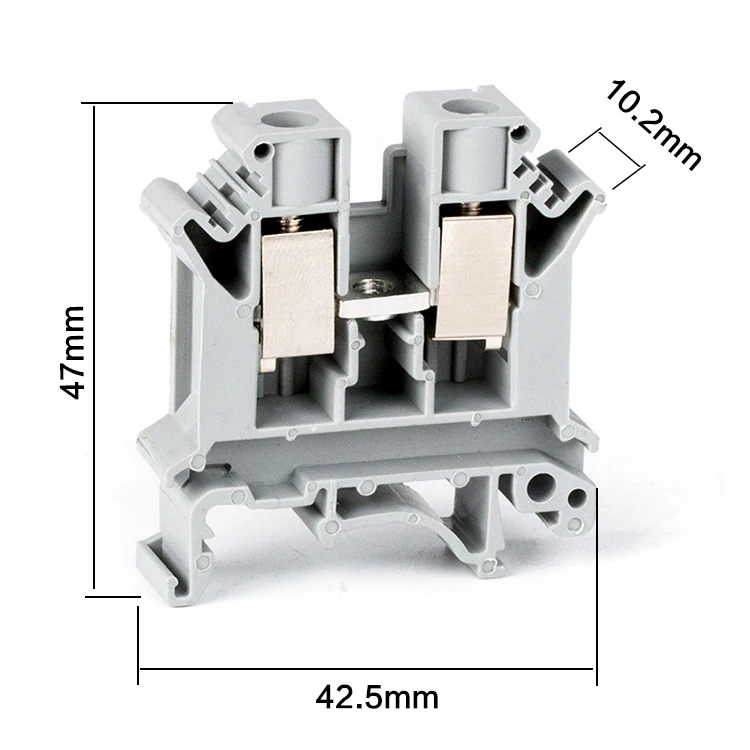

Length/Height/Wide（mm） 42.5/47/10.2
Current 76A
Voltage 800V
Application Wire Connecting
Length/Height/Wide（mm） 42.5/47/10.2
Current 76A
Voltage 800V
Application Wire Connecting
Applicable Solid cable cross section 0.5-16mm²
Applicable Soft cable cross section 0.5-10mm²
Conductor Size 20-6 AWG
Color Gray /Blue/Yellow/Green/Black/wine Red/Orange red/ Customized
a fixed way NS 35 / 7.5 rail fixed
Standard IEC 60947-7-1
LOGO Customized logo are supported
Certificate ISO9001/CE/ROHS/CQC
Conductor Size 20-6 AWG
Color Gray /Blue/Yellow/Green/Black/wine Red/Orange red/ Customized
a fixed way NS 35 / 7.5 rail fixed
Standard IEC 60947-7-1
LOGO Customized logo are supported
Certificate ISO9001/CE/ROHS/CQC

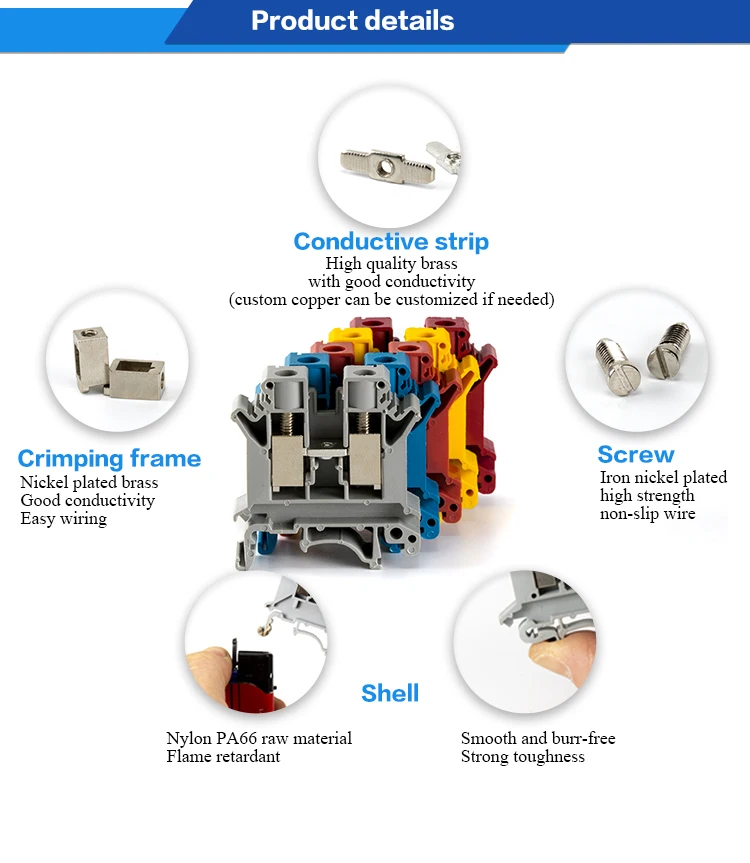

Product details

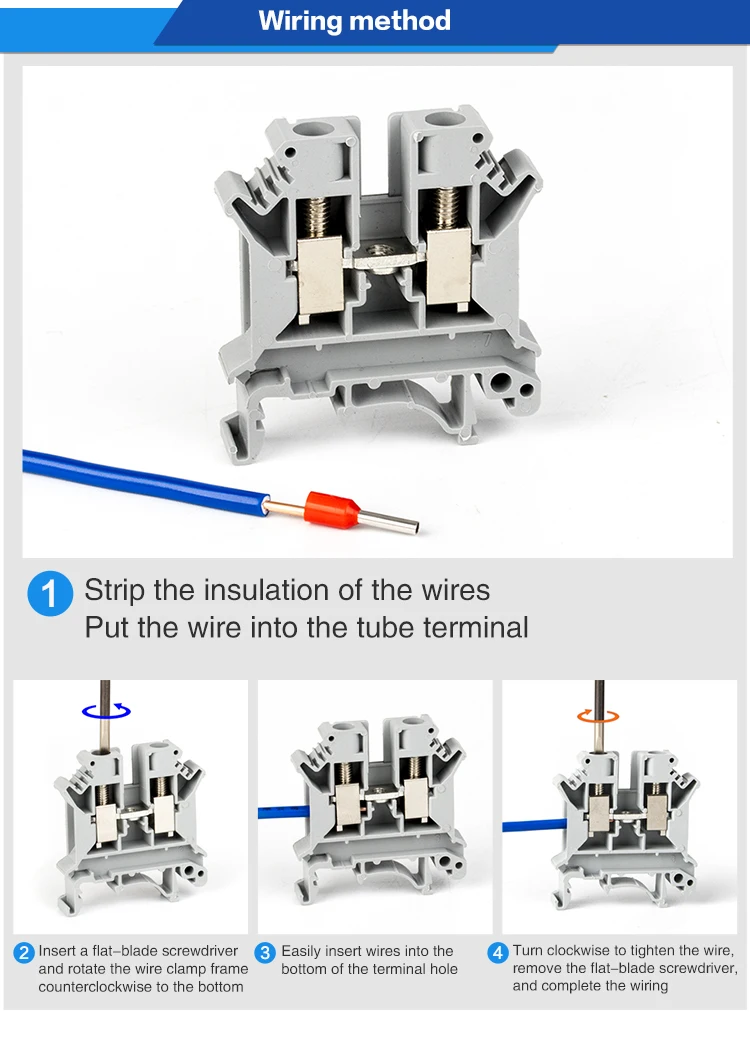

Wiring method
Packaging display
Certifications
Production line display
