Высокоскоростной мобильный USB-кабель для передачи
- Категории: Cable Manufacturing Equipment >>>
- Поставщик: Shanghai,Swan,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
GSB-2 24-carrier high speed braider | ||
Number of bobbin | 24 | |
Bobbin size | Ø75XØ22X70 | |
Speed | 100r.p.m.(Max.) | |
Braiding pitch | 13.3-134.5mm | |
Max. braiding diameter | 24mm | |
Braiding material | 0.08-0.18mm , 4-12 lines | |
50 core wire extruder machine | ||
1 | 50PVC wire extruder | |
2 | straightener | |
3 | 50PVC extrusion host + adjustable nose | |
4 | 25kg dryer, automatic feeder | |
5 | 50 main control box | |
insulation and sheath extruding lines | ||
1 | Manufacturing line for electronic wire and cable , power cable core wire, building wire and cable insulation and sheath extruding | |
2 | Extrusion materials: PVC, PE plasticization degree 100%. | |
3 | Extruding line speed: 400m/min (depending on the outer diameter) | |
4 | Applicable conductor: 1.0mm2-10.0mm2. | |
5 | Finished wire diameter specification: 1.0-10.0mm. | |
6 | Center height: 1000mm | |

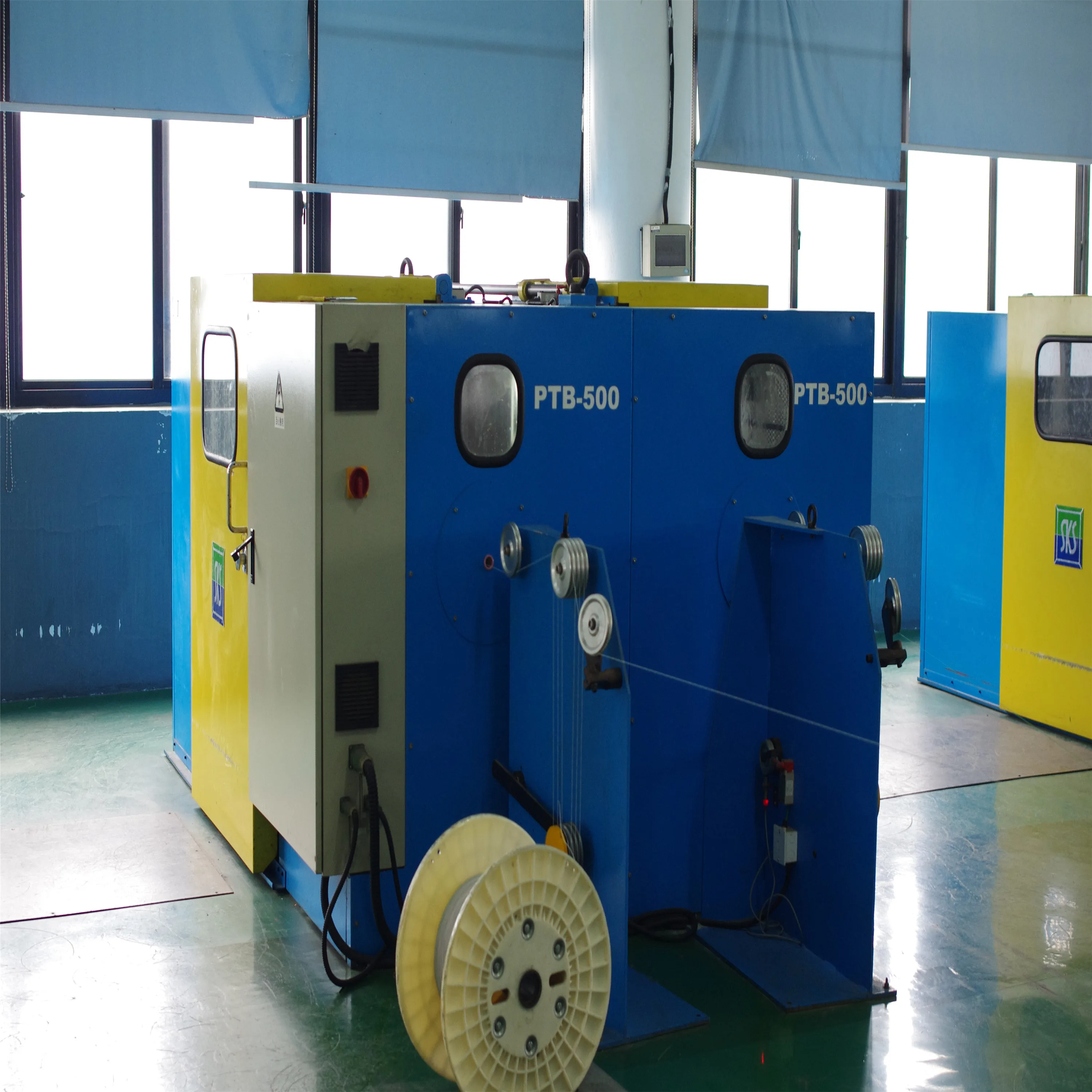

500 pairs of winches+ Vertical Torsion Removal Machine | ||
1.1 | Equipment type:500 pairs of winches | |
1.2 | Maximum Speed 3000RPM (Rotation) or 6000TPM | |
1.3 | Outer diameter of feeder core is 0.8-2.6 mm | |
1.4 | Maximum external diameter of stranding 5.2mm | |
1.5 | Copper loading MAX250kg | |
2.1 | Detorsion rate: Max. 40% stepless adjustable | |
2.2 | Feed Line Diameter: Max*2.0 | |
2.3 | External diameter of stranding: Max*4.0 | |
2.4 | Line Speed: 120M/min | |
2.5 | Maximum rotation speed: Max. 1000rpm/min | |
SJ800Cabling machine | ||
1 | Size of feeder shaft: 500mm-630mm | |
2 | Applicable diameter: 1.0mm-4.0mm | |
3 | Maximum outside diameter of stranding: 12mm | |
4 | Strand: 18mm-143mm sectional gear change pitch | |
5 | Rotary speed: 600 rpm (maximum) / 1200 winches per minute | |

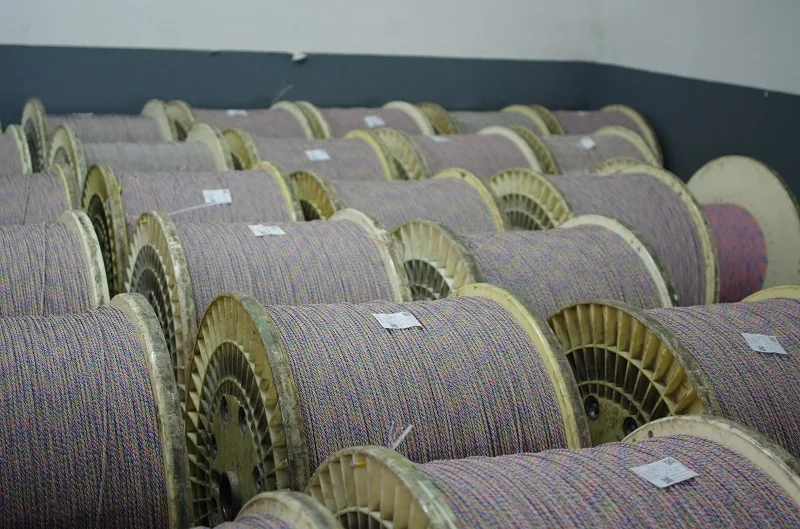

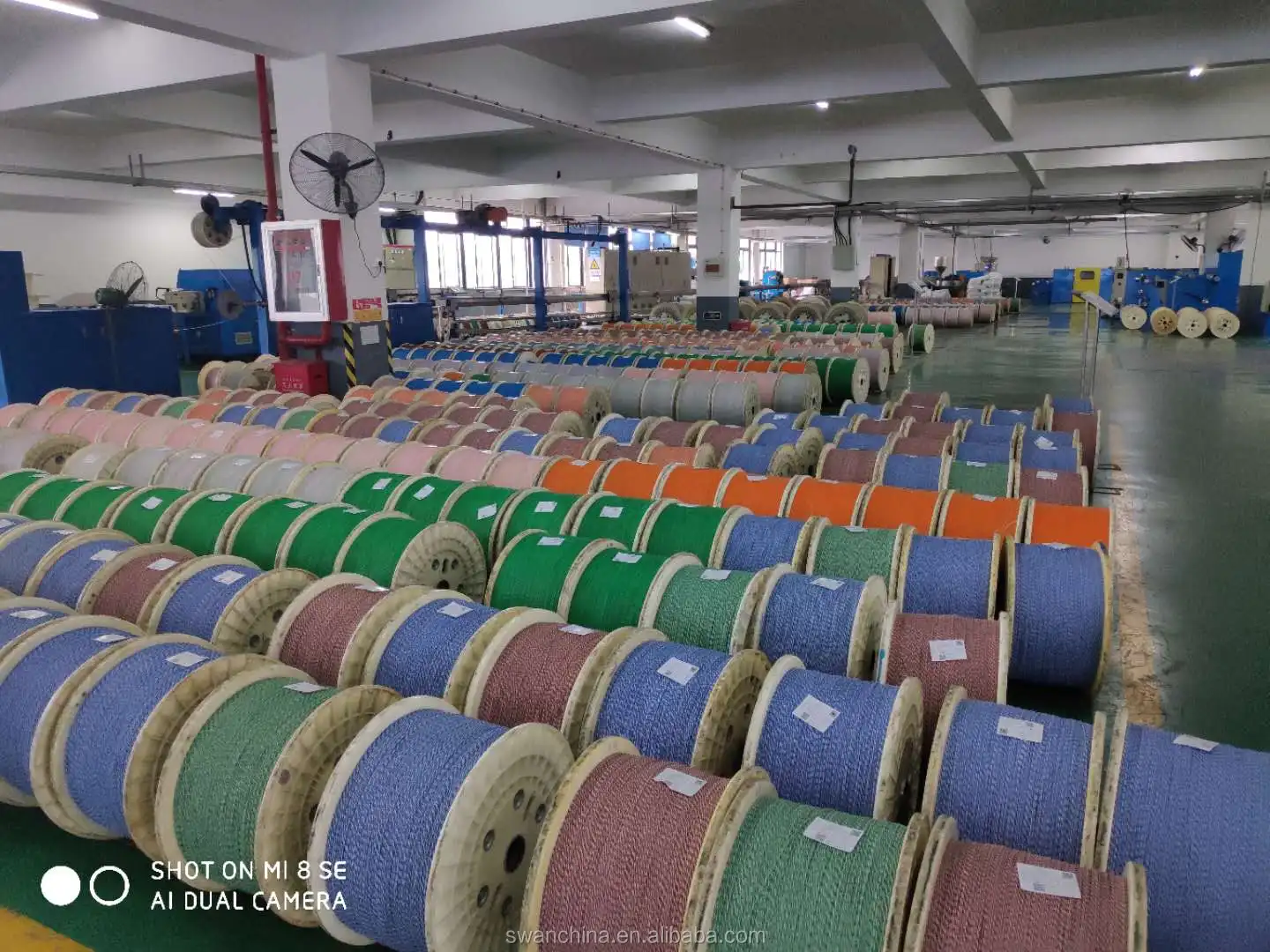

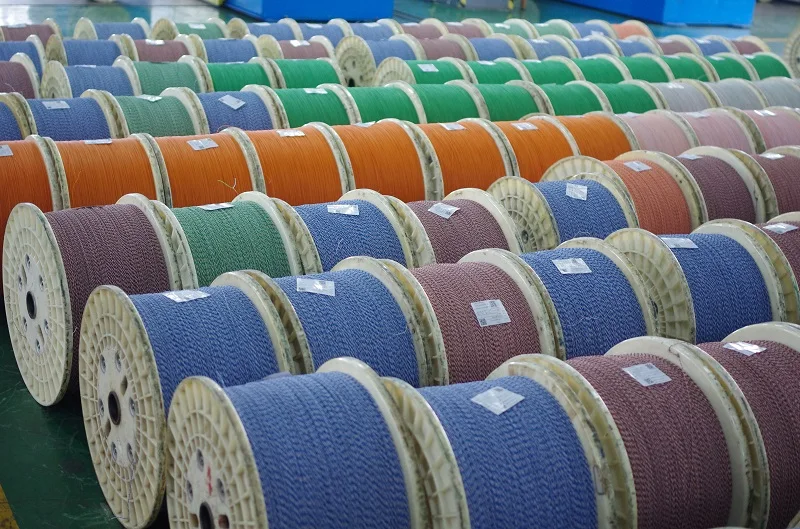

Factory finished product display
