Automatic Band Saw Steel Bar Cutting Machine

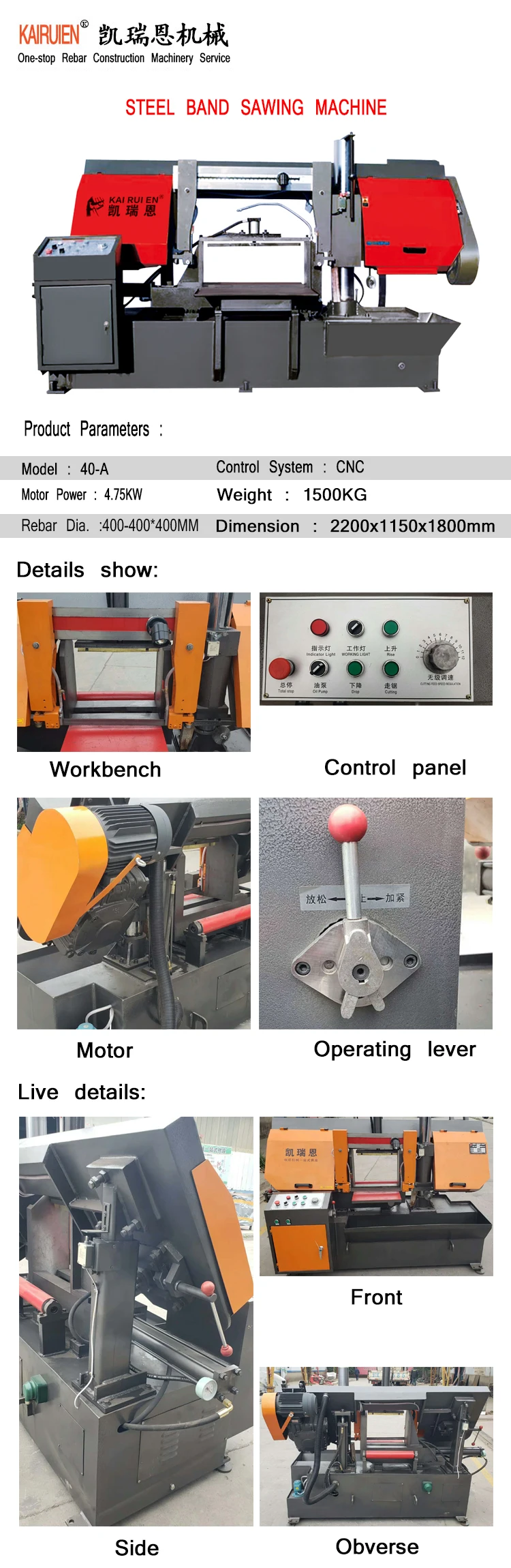

Main Parameters
Model: 40-A (For 30 or 50 model, please contact us.)
Max. Sawing Size: 400-400*400mm
Main Motor Power: 4KW
Hydraulic Motor Power: 0.75KW
Saw Band Linear Speed: 40/60/80m/min

Working Way: Hydraulic
Weight: 1500KG
Dimension: 2200*1150*1500mm

Automatic Band Saw Steel Bar Cutting Machine
Product Description
1. The machine adopts double-column structure, Φ100mm, chrome-plated column and cast iron sliding sleeve guide to ensure the accuracy of the guide and reliable sawing hardness.
2. The saw band guide device adopts hard alloy rolling bearing guide, which has a reasonable design and effectively extends the life of the saw band.
3. It is equiped with high-performance turbo reducer, strong power, high reliability, accurate balance correction, reducing noise and vibration.
4. The unique hydraulic system design of this machine, stable descent speed, which can prevent the saw blade from abnormal damage and achieve the ideal sawing effect.
5. The machine can be equipped with electric roller material rack, which can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of handling, and improve the work efficiency.

Automatic Band Saw Steel Bar Cutting Machine

Related Items

Model	GQ-42	GQ-52	GQ-62	GQ-72
Rebar Dia.	6-32mm	6-36mm	4-40mm	4-50mm
Motor Power	3KW	4KW	5.5KW	7.5KW
Cutting Frequency	32 times/min	28 times/min	28 times/min	28 times/min
Weight	380KG	520KG	675KG	900KG
Dimension	1260*400*700mm	1410*480*900mm	1500*610*950mm	1800*700*950mm
Remarks	380V 50Hz 3phase or customized.

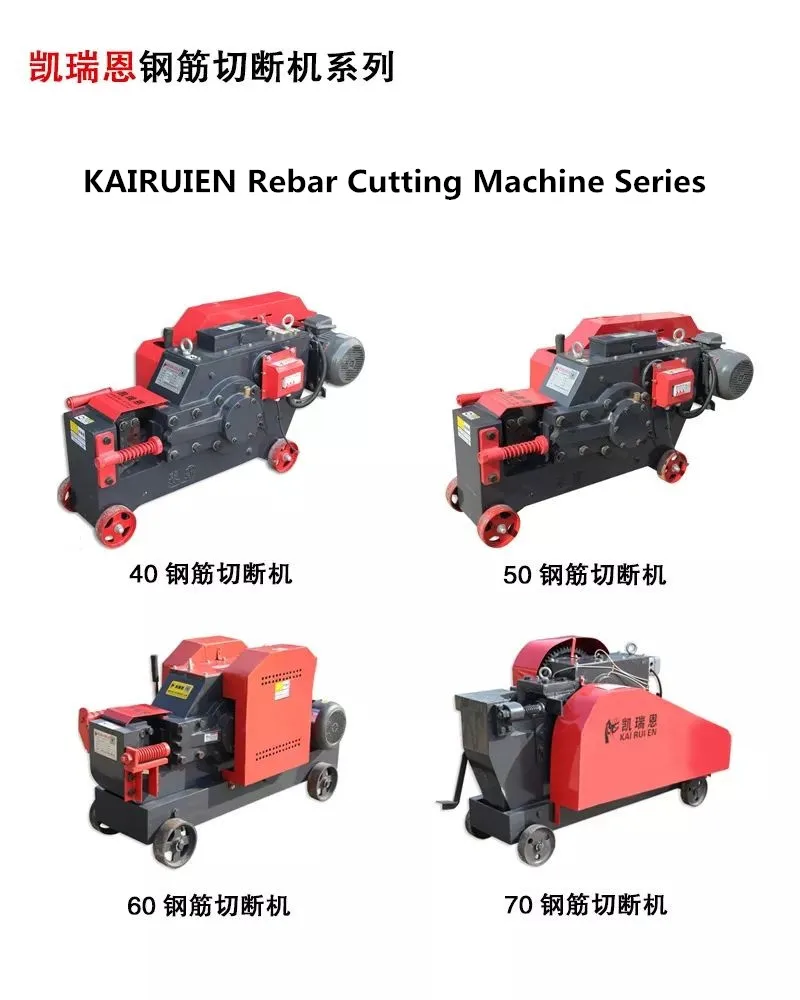

Click the following picture for rebar cutting machine.
