What is Foam Filled Fender
Polyurethane Foam Filled Fender is a floating type compression fender that is highly versatile and suitable for a wide range of applications. It consists of an outer Polyurethane protective layer, a reinforced rubber nylon cord fabric, as well as an internal space that is filled with foam as a medium to absorb collision.
Foam fenders outer layer has an extremely low frictional resistance and is highly resistant to wear due to its strength. Impact force is efficiently absorbed by the foam fender, reducing the resultant force acted upon the wharf/vessel at the point of contact.
Florescence polyurethane foam filled fender is the perfect solution for storm conditions, having the potential to outperform pneumatic units during severe weather. Additionally, since the internal construction consists of a solid foam core, there is no need to maintain air pressure, inflation, valves as pneumatic fenders.They are idea for existing structures and certain hull types such as catamarans and cruise ships.
Item | Key Attributes |
1 | High energy absorption and low reaction force |
2 | Many bright colors and shape available |
3 | Ultra-tough, unsinkable design |
4 | Remains fully functional even if skin is punctured |
5 | Low maintenance |
6 | Easy installation |
Florescence Foam Filled Fender has so many size and we can provide you to choose you want.
Specification | Compression Deflection at 60% | ||||
Diameter/mm | Length/mm | Reaction Force /KN | Energy Absorption/KN/M | ||
400 | 800 | 56 | 26 | ||
500 | 1000 | 72 | 26 | ||
1000 | 1500 | 205 | 49 | ||
1000 | 2000 | 274 | 64 | ||
1200 | 2000 | 337 | 93 | ||
1500 | 3000 | 624 | 216 | ||
2000 | 3500 | 990 | 456 | ||
2500 | 4000 | 1680 | 918 | ||
3000 | 6000 | 2460 | 1695 | ||
4500 | 9000 | 19650 | 7860 | ||

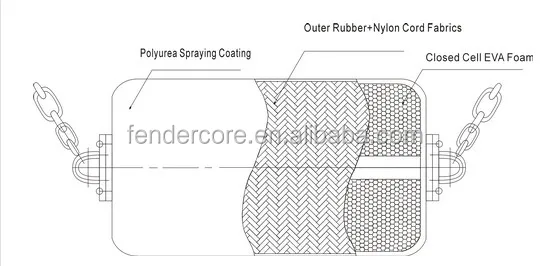

1.Foam Core
The closed cell polyurethane foam core used inside offers un-sink ability during operation.
2.Outer Nylon Cord Fabrics
The outer nylon cord fabrics is specifically designed to seal polyurethane foam inside and to prevent any leakage.
3.Polyurea Sparying Coating
Polyurea coating is permanent spary on coatings that the surface of fender body. It is more durablethan rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold. Dent, scratch and chemical resistant
