Product Description
| MODEL | F4L912 | |
| NUMBER OF CYLINDERS | 4 Cylinders | |
| CHAMBER TYPE | Direct injection | |
| BORE / STROKE | 100/120 | |
| DISPLACEMENT | 3.770 | |
| VEHICLEMENT | 59(80) / 2800 | |
| NET EFFECTIVE LIMITED AMOUNT OF OIL BY POWER | LONG INTERMITTENT MOST POWERFUL | 59(80) / 2800 |
| SHORT INTERMITTENT MOST POWERFUL | 51(69) / 2500 | |
| ISO STANDARD OIL A MOUNT LIMIT POWER | BIGGEST | 46(63) / 2300 |
| MINIMUM | 30(41) / 1500 | |
| MAXIMUM TORQUE ACCORDING TO | 230 / 1600 | |
| QUALITY | 300 | |
| DIESEL ENGINE SUPPORT SPACING | 575 | |
| STANDARD FLYWHEEL SHELL TYPE | 2+3+4 | |
| WARRANTY | 1 year | |
| PACKING | iron frame | |
| CERTIFICATION | ISO | |
| ADVANTAGE | (1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect (2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating equipments, medium and small ship ect. (3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area and low pollution requested working environment | |

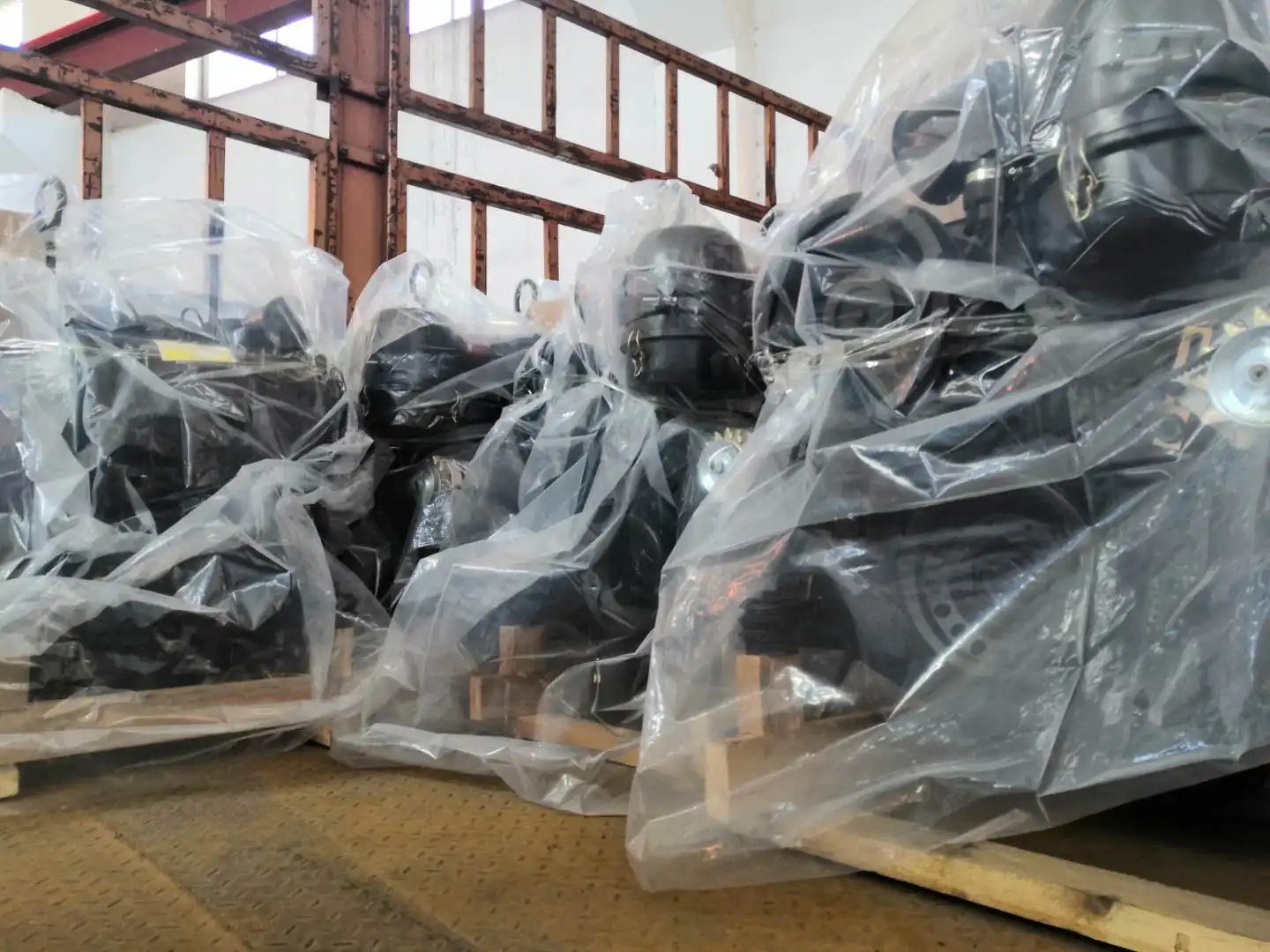

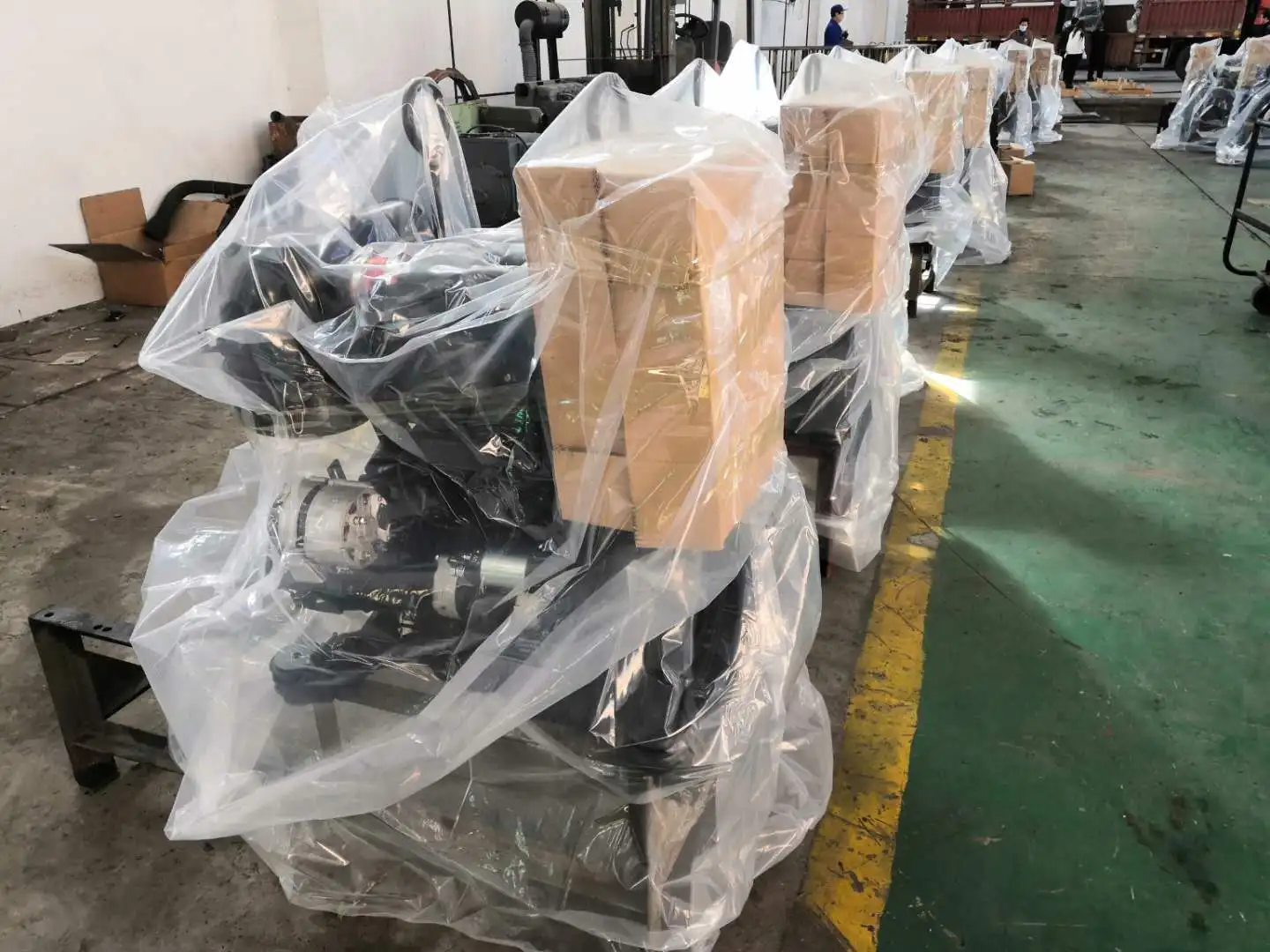

Packaging & Shipping
THE FLYWHEEL SHELL CONNECTION SIZE (MM)
Part Number (combination Part Number) : 2242071(SAE2)(027 0749) / 2242050(SAE3)(027 0748) / 2102308(SAE4)(027 0747)
Stop Mouth Aperture : ∅447.7H7 / ∅409.58H7 / ∅361.95H7
Stop Mouth width : 12
Flywheel Shell width : 122-0.3
Threaded Hole Distribution Round : ∅466.7±0.3 / ∅428.6±0.3 / ∅381±0.3
Bolt Quantity : 12×M10
Part Number(combination Part Number) : 2160698 / (0270395) / 2240165 / (0270403) / 2244250 / (0270396)
Connection Plate Hole (PHI) (∅A1)(∅A2) : ∅314.4H7 / ∅352.4H7 / ∅263.5H7 / ∅314.4H7 / ∅314.4H7 / ∅352.4H7
Threaded Hole Distribution Round (∅B1)(∅B2) : ∅295.3±0.3 / ∅333.4±0.3 / ∅244.5±0.3 / ∅295.3±0.3 / ∅295.3±0.3 / ∅333.4±0.3
Screw Hole Depth / Thread Length : 22/17.5
Bolt Quantity : 8×M10
From The Booy Joints Size (C1)(C2) : 67.8 / 82.3 / 59.8 / 67.8 / 67.8 / 82.3
Our Services
with a long period developing,our company owns professional technical testing persionnel and professional sales team, we have a sound managerment system and quality assurance system, which can provide our clents with high quality products and efficient service. with the aim "Not only what we have, but also what you need" welcoming your inquiry and your plans or smaple.

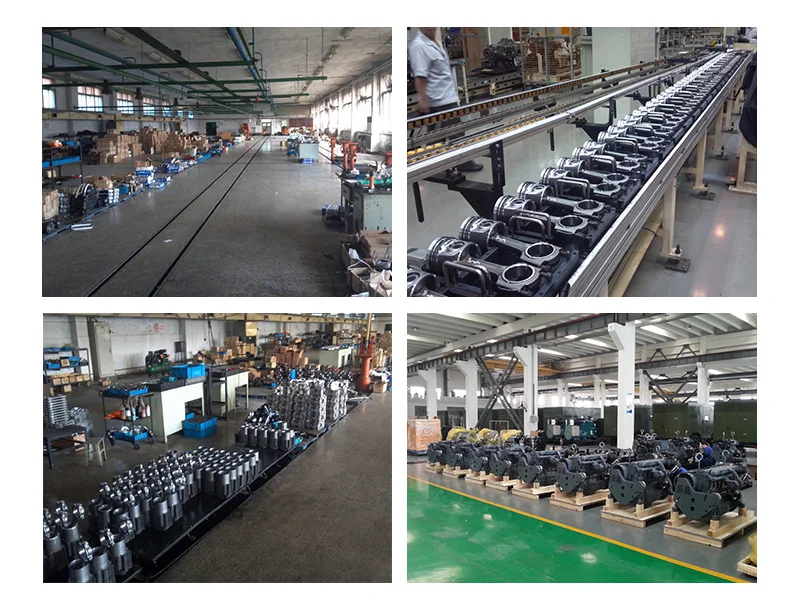

Company Information
As a professional manufacturer and supplier in the field of Deutz, HAUHEN's products cover DEUTZ engines, DEUTZ generator sets, DEUTZ engine accessories, etc. HAUHEN has been committed to providing one-stop solutions for domestic and foreign customers. HAUHEN continues to develop in a highly competitive market with high quality products, competitive prices and professional services. Because we can fully understand and meet customer needs, we have established cooperation and business relationships with many foreign countries and regions.
FAQ
1. Payment
30% TT advance and balance 70% before shipment.
2. Shipping
By sea or by rail.
3. MOQ Alibaba metal oil pipe
MOQ varies for different product, some products have no request on MOQ.
4. Lead Time
In general, 45 days.
5. Samples
We can offer samples according to customer requirement.
6. Quality
We have engineers and technicians carry out quality control.
7. Packing
Normally, our products are packed with neutral carton box. We will arrange wooden pallet packaging
for LCL products.
