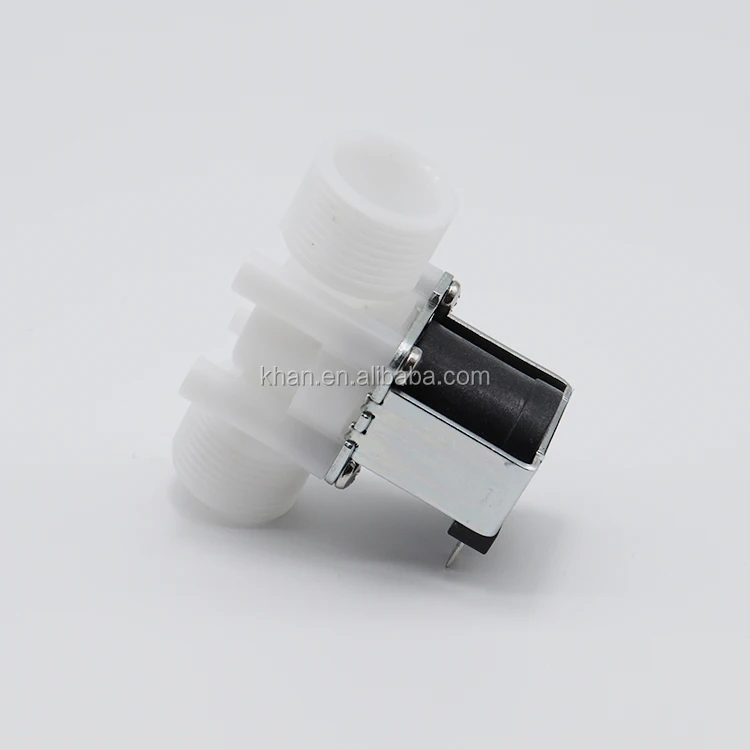

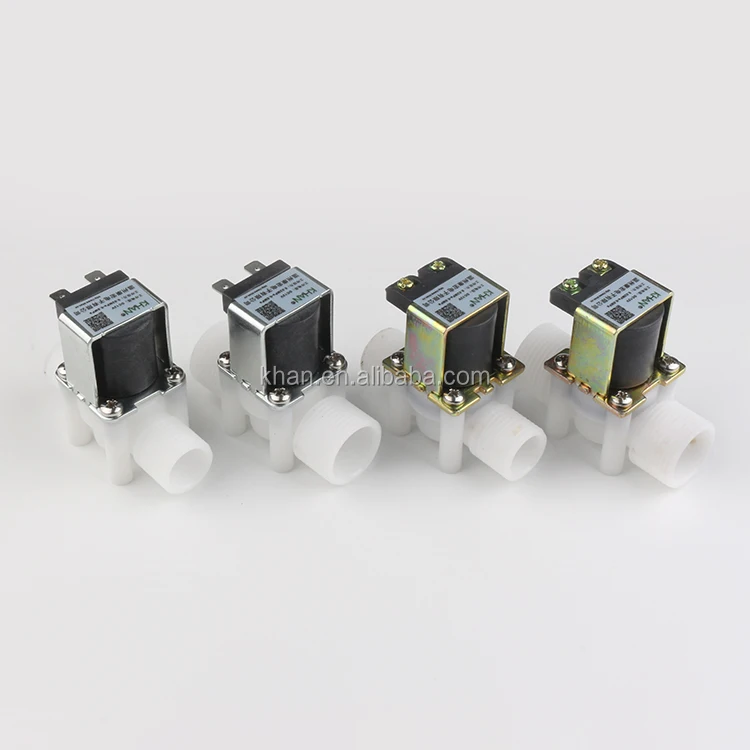

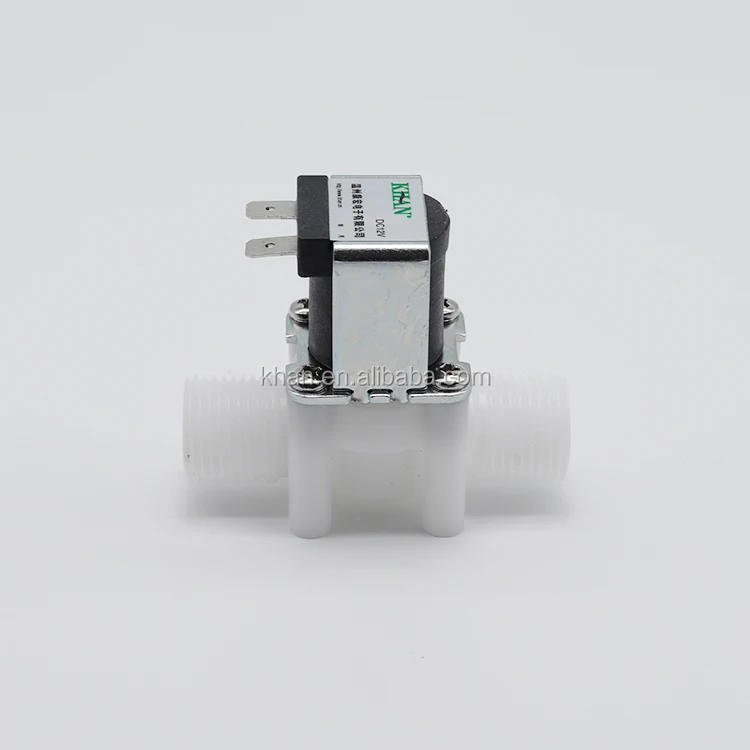

KHAN FPD-0A07 нормально закрытый односторонний водяной электромагнитный клапан 6 в 9 12 В 24 постоянного тока 1/2 переменного

Valve body material

Plastic valve body

Environment temperature

0-50℃

Non-return function

Power supply connection way

Guarantee Period:

Under the normal use conditions,the quality warranty period for our goods is 12 months

Variable voltage of supply supply voltage:

-10%~+10%

Insulation resistance:

Tested by DC500V megohmmete for 1 min,the insulation resistance should≥100MΩ

Watertight performance:

Hydrostatic pressure 0.02Mpa, leakage ratio<0.1mL/min

                                  0.03-0.8Mpa, leakage ratio 0mL/min

Hydraulic pressure withstand:

withstand hydrostatic pressure of 1.2 Mpa for 5 min,no unbroken,deformation or outside leakage

Reliability:

0.02-0.8Mpa,make and break for 10s respectively, lasting 1 hour, thecheck valve should be undblocked

Flow characteristic:

Pressure 0.02Mpa,Flux 3L/min;Pressure 0.1Mpa,Flux 8L/min;Pressure 0.3pa,Flux 12L/min;Pressure 0.8Mpa,Flux 25 L/min

Across layers insulation:

Withstand high voltage pulse for 2s,it should be normal

Continuously energized:

Energize for 12^th,but not connect through the water,the valve should be deformation,and the coil should not be burned
