Product Description

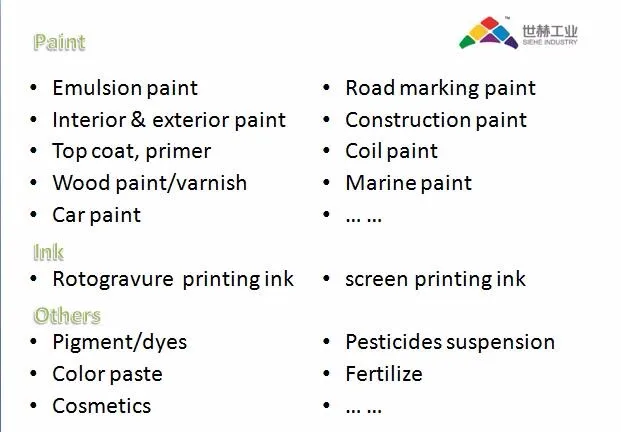

Application:
Capacity: 1-2000L
Viscosity range: ≤5000cps

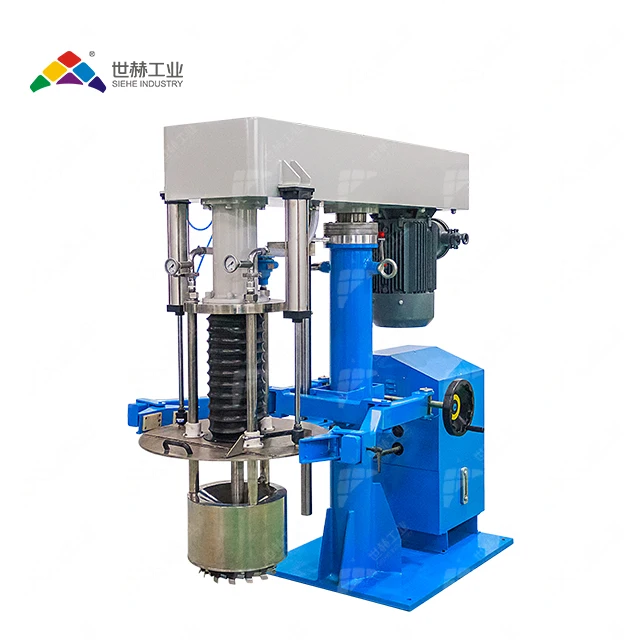

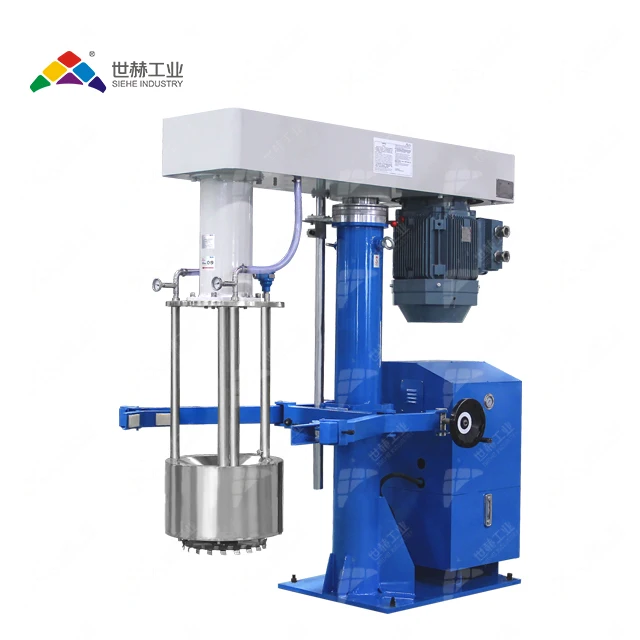

Hydraulic lifting series
new design of grinding chamber, less beads crushing at the shaft end, and chamber with cooling jacket

Hydraulic lifting, stable and no oil leakage
VFD / frequency conveter control
Working head is processed by CNC machining center

Shaft went through dynamic and static test
Manual rotation clamping to fix tank well

Button control, independent control cabinet, inverter placed inside, with Ampermeter, Voltmeter, pointer speed indicator

Bolted to the ground
With pneumatic lifting cover
Lifted cover is suitable tanks with various height and environmental friendly
cover can be folded to add powders during production process

Contact part SS304 / SS316L
Frame coated with anti-corrosion paint (can specify color number of paint)


Optional:
Speed digital display
PLC + touch screen control
Explosion-proof (ATEX)
Conductive device

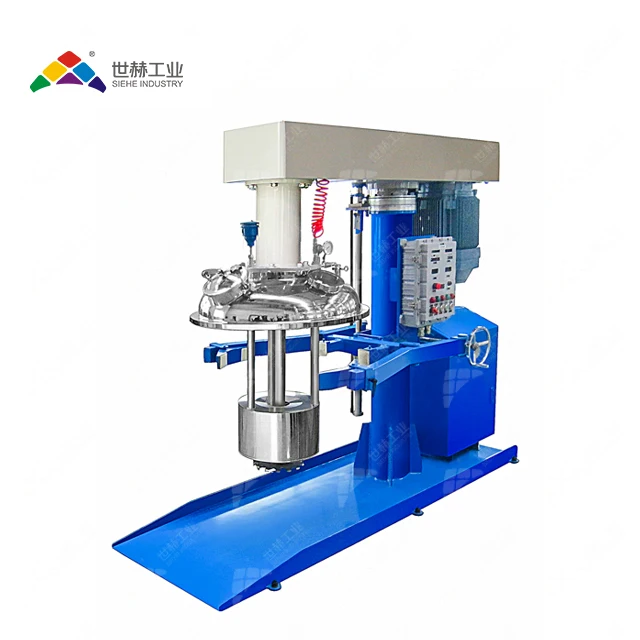

Closed / vacuum type
To prevent solvents from volatilation
Vacuum defoaming

With on-site explosion-proof operation box, with independent control cabinet, inverter placed inside

optional:
auto powder dosing & feeding
shaft coated with chrome

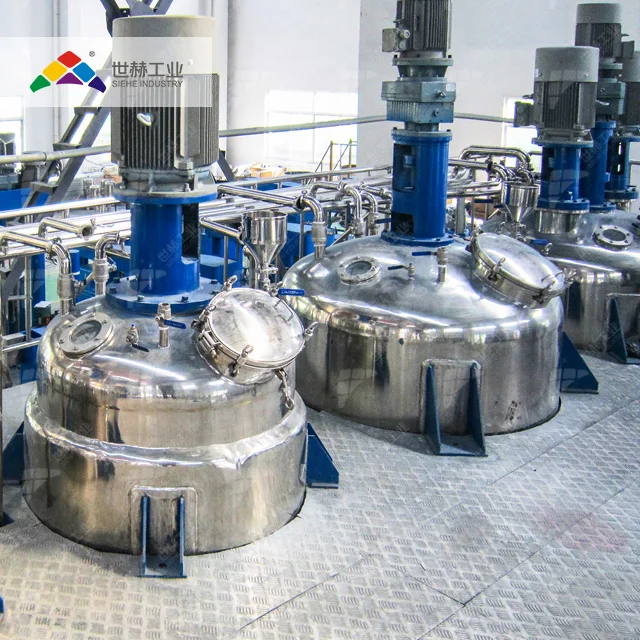

Kettle type
for mass production
fixed on the platform through support lugs
stainless steel mirror polished

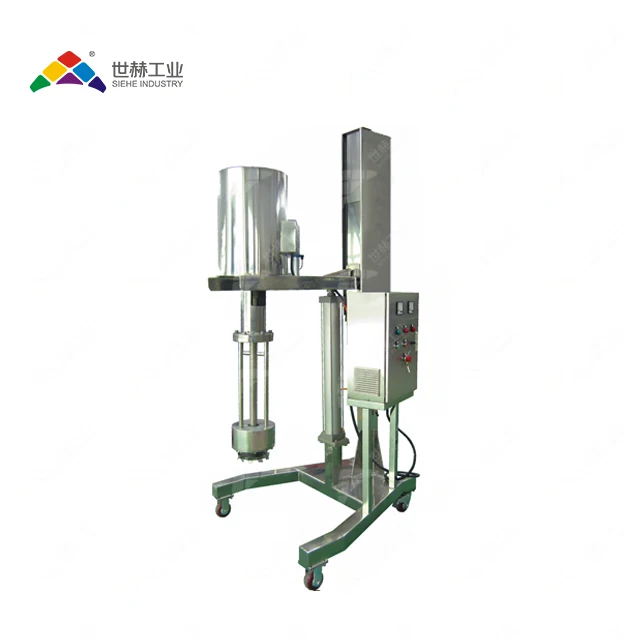

Pneumatic lifting type
SFSQ series
Pneumatic lifting
With castors, movable design for small batch

VFD / Electric control cabinet control
Lab SFYR-1.1 Lab multi-function machine
Working heads
Basket mill, mixing mill, disperser, emulsifier, and vacuum mixer;
Lifting
Electrical lifting, stroke 300-500mm
Control
PLC + Touch screen
note: receipes input & record optional
Tank
1.5L, 2.5L and 5L, jacketed
Size
600*590*900mm

Detail Images

Inner structure
Real-time monitor the temperature & pressure
Electric control cabinet

Main Features:

1) World famous components, such as ABB/ Siemens motor, Schneider/ Delta inverter,  NSK bearing, Schneider electric components, etc.

2) Lifting stable and without oil leakage,  adopting intergrated industrial hydraulic station, three casing structure;
3) High effiecienty, high precision, mixing agitator went through static and dynamic balance test; mixing shaft processed by grinding machine;

4) Manual rotation to fix mixing container well, to prevent displacement during operation and injuries;

5) Intergrating dispersing and grinding together, enhancing production efficiency and reducer materials waste;

6) Easy to clean and to change colors or product category;

Model Select
Model
Power (KW)
Speed (rpm)
Basket (L)
Capacity (L)
Lift stroke (mm)
Beads Dia.(mm)
SYM-4
4
0-2880
3.5
20-40
800
1.6-2.2mm
zirconia oxide beads (95%)
SYM-7.5
7.5
0-1440
4,8
50-80
900
SYM-11
11
0-1440
6.5
70-160
900
SYM-15
15
0-1440
9
100-200
900
SYM-18.5
18.5
0-1440
17
130-240
900
SYM-22
22
0-1440
20
200-320
900
SYM-30
30
0-1440
32
250-400
900
SYM-37
37
0-1440
39
400-640
900
SYM-45
45
0-1440
52
500-800
900
SYM-55
55
0-950
65
600-720
900
SYM-75
75
0-950
85
750-1200
900
Remarks
1. Not all products included, to learn more just connect us.
2. If any update of the data, without notice and subject to the official quote.
Auxiliary Devices
Water ring vacuum pump
Water chiller
Auto powder feeding
Related Products
FAQ
Q 1: Payment terms?
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
