Aluminum Alloy MXH6 MXH10 MXH16 MXH20 SMC Air Compact Pneumatic Slide Cylinder MXH Series Cylinder

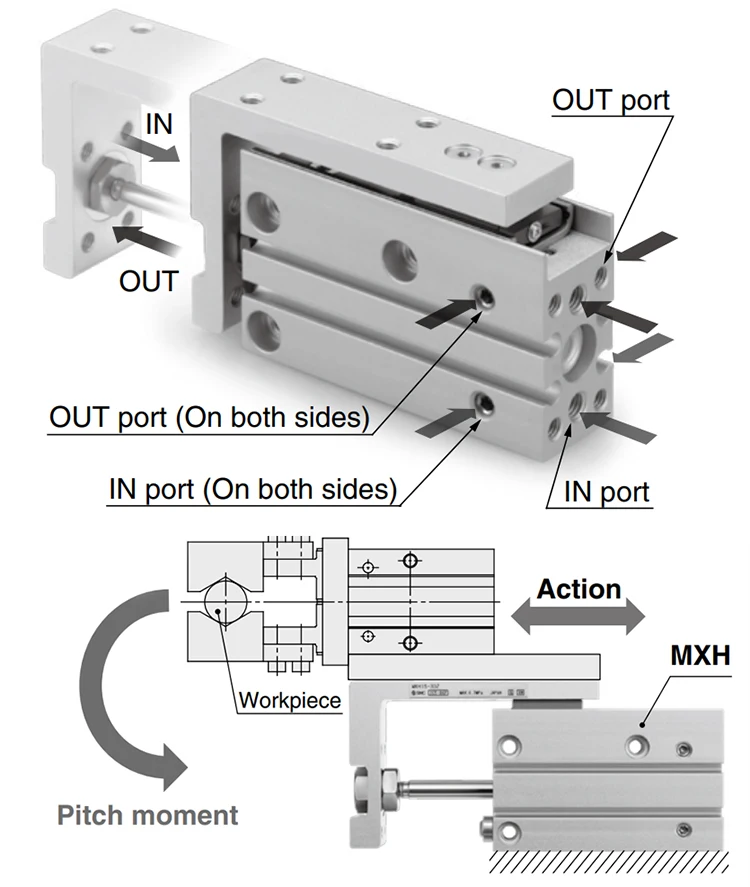

Product Description

-Product Description.jpg

Ordering Code

MXH 10×60

Model Bore x Stroke

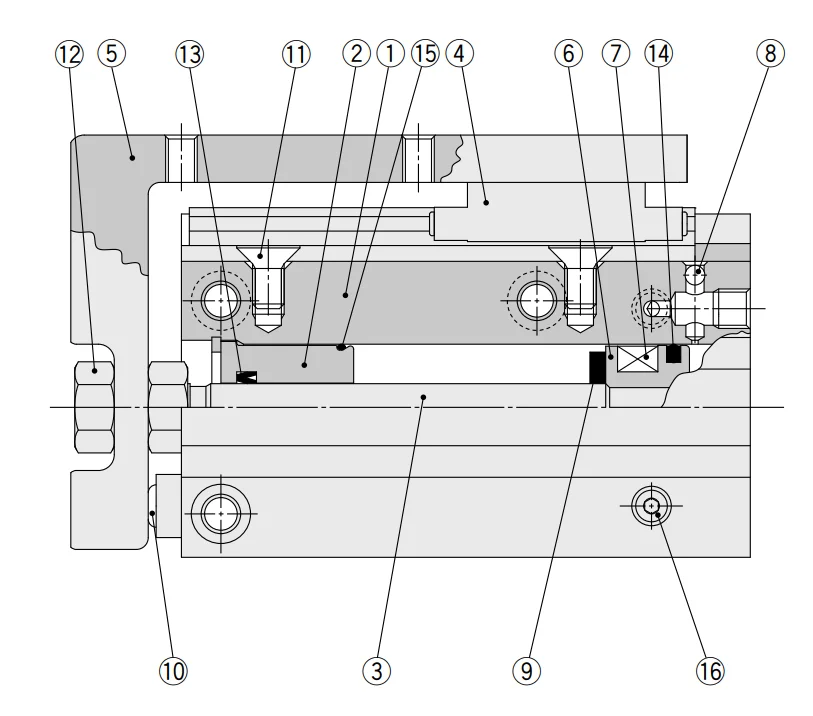

Construction

No	Description	Material
1	Cylinder tube	Aluminum alloy
2	Rod cover	Aluminum alloy
3	Piston rod	Stainless steel
4	Guide	The main parts are made of stainless steel
5	Table	Aluminum alloy
6	Piston	Aluminum alloy
7	Magnet	Magnetic material
8	Steel ball	Carbon steel
9	Bumper	Urethane
10	Bumper	Urethane
11	Countersunk head screw	Carbon steel
12	Nut	Brass
13	Rod seal	NBR
14	Piston seal	NBR
15	Gasket	NBR
16	Plug	Carbon steel

Specifications

Bore size	6	10	16	20
Acting type	Double acting
Fluid	Air(to be filtered by 40 µm filter element)
Piping port size	M5 × 0.8
Minimum operating pressure	0.15MPa	0.06MPa		0.05MPa
Maximum operating pressure	0.7MPa
Ambient & fluid temperature	-10~60℃
Piston speed	Without auto switch: -10 to 70℃ With auto switch: -10 to 60℃
Piston speed	50 to 500 mm/s
Lubrication	Non-lube
Cushion	Rubber bumper on both ends

Stroke

Bore size(mm)	Standard stroke(mm)
6, 10, 16, 20	5, 10, 15, 20, 25, 30, 40, 50, 60

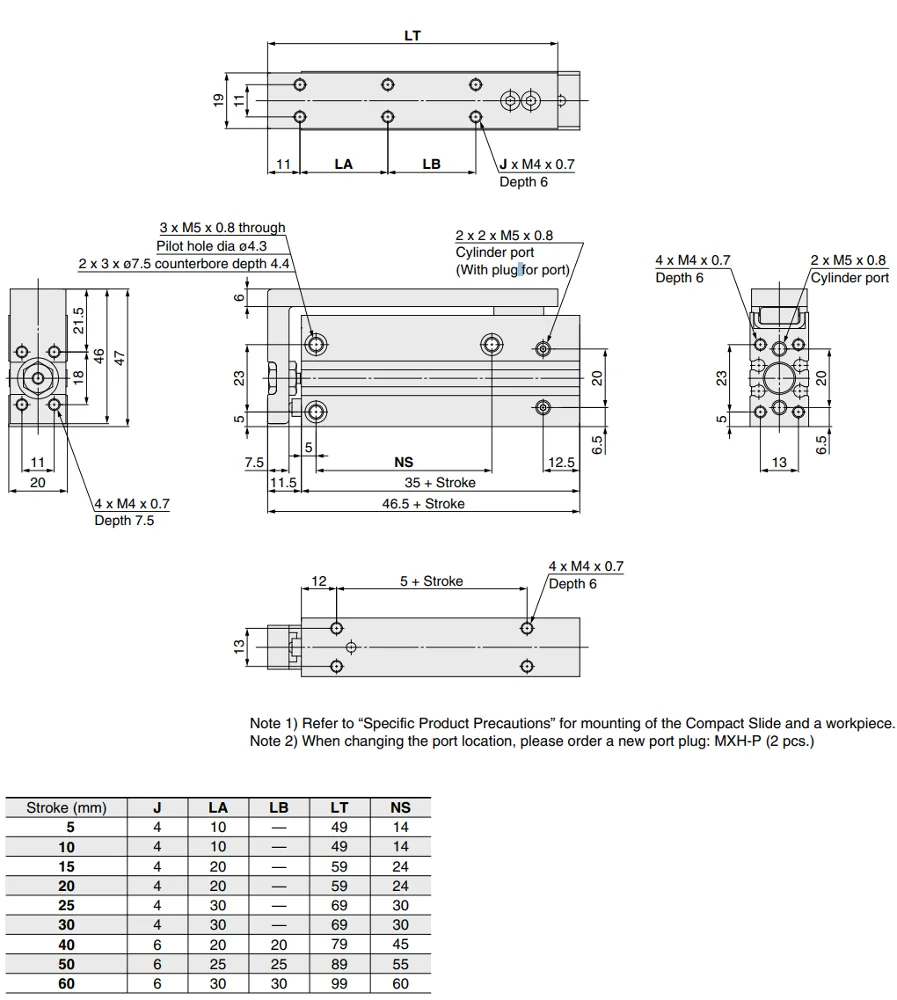

Dimensions

Product Details

-Product Details.jpg .jpg
