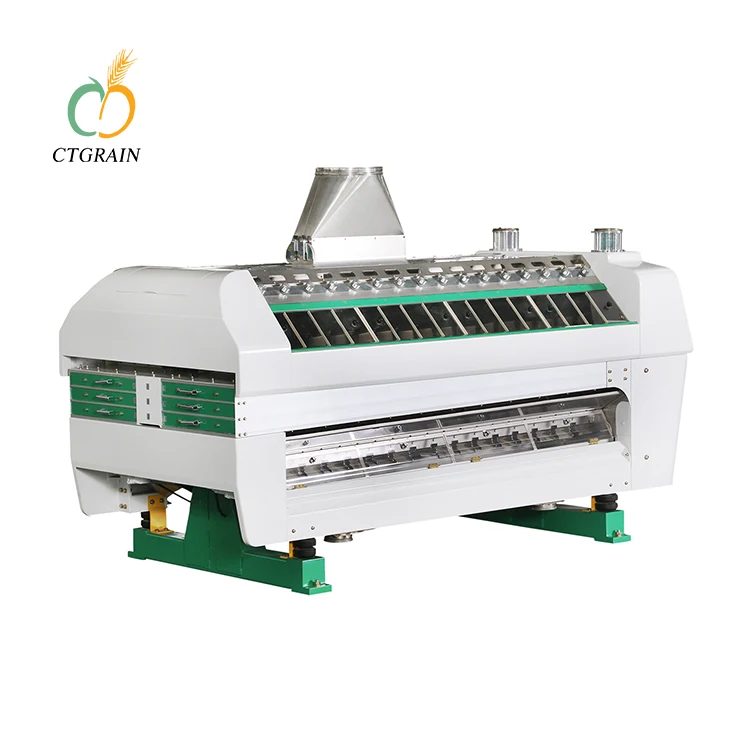

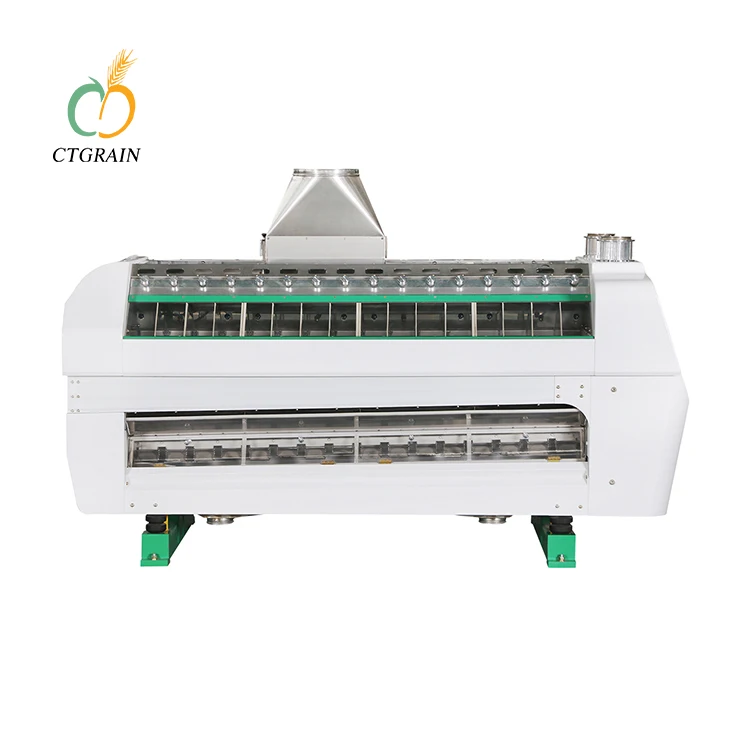

Wheat flour semolina mill line purifier flour mill machine part price
The purifiers (purifier for middlings in maize mills) through methods of vibrate, wind, sieve, with small inclination of sieve surface and the sieve covering set gradually sparse from the materials in way to materials out way, to make the material in the screening surface is flowing and thin gradually, half suspended state fluid. This makes it grade automatically according to the different bulk specific gravity, thus form different materials level with unobvious line.
The materiel is divided into three parts by purifier processing:
a. The under materiel: Majority is pure wheat heart, the front part of undersize materiel is pure and thin, the tail part of undersize materiel includes little bran. They should be delivered into heart or dregs of roller mill to process.
b. Over materiel: Majority is wheat dregs bonding bran or thin bran including albumen. They should be delivered into thin husk or tail of roller mill to process.
c. Airflow pick-up: Majority of materiel is thin bran and dust.
| Type |
Capacity(kg/h)
|
Amplitude (mm) | Screen Angle (°) | Aspiration Volume (m3/min) | Power (KW) | Weight (kg) | Shape Size LxWxH(mm) | |
| Coarse | Fine | |||||||
| FQFD49x2x3 | 1200-2600 | 800-1600 | 8.5-9 | 1-2 | 40-70 | 2x0.18 | 970 | 2700x1290x1675 |
| FQFD59x2x3 | 1800-3500 | 1200-2000 | 55-90 | 2x0.25 | 1100 | 2700x1490x1675 | ||
Working Principle:
This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it's flowing to the end of the machine. The materials then are separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to different next passage.
Product Features:
1. Advanced design and excellent fabricating.
2. Sieve size:490mmx490mm, 590mmx590mm.
3. Aluminum inlets, conveying and collecting trough for durable working.
4. Imported rubber spring bushes, reliable.
5. Imported SEFAR cloth.
6. High quality vibration motor.
Application:
1. Widely applied in modern flour mills for high quality flour.
2. Successfully used for semolina flour in durum flour mills.
3. Please feel free to contact us if more information is needed.
Chinatown Grain Machinery Co., Ltd. which is focusing on the grain processing techniques and machinery development, has more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on. Our products include conveying equipment, cleaning equipment, flour milling equipment, etc, which passed ISO9001:2000 international quality manage-ment system, European Union CE quality certification and other international quality management system certification.
We could supply a range of machines and technical solutions for the whole grain, edible oil and food processing industry chain, such as collecting, storing, cleaning, grading, sieving, grinding, mixing, production, shape forming, and packing, and provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.
1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
