Автоматический комбинированный шлифовальный станок для дверного шкафа фанеры
- Категории: Другое деревообрабатывающее оборудование >>>
- Поставщик: Shandong,Guandiao,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Parametes
Type | GD630 | GD1000 | GD1300 |
Working width | 30-630mm | 30-1000mm | 30-1300mm |
Working thickness | 2-100mm | 2-100mm | 2-100mm |
Feed speed | 5-25m/min | 5-25m/min | 5-25m/min |
Size of abrasive belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
Working air pressure | ≥0.55Mpa | ≥0.55Mpa | ≥0.55Mpa |
Speed of sucked air | ≥25m/s | ≥25m/s | ≥25m/s |
Overall dimensions | 1862*1240*1995mm | 1862*1635*2040mm | 2262*1983*2130mm |
Product Specification
The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard,insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.
1.This model applies to: door panels, relief, furniture, etc. it can work on convex shape grinding, broken ammonia, white stubble and painting polishing.

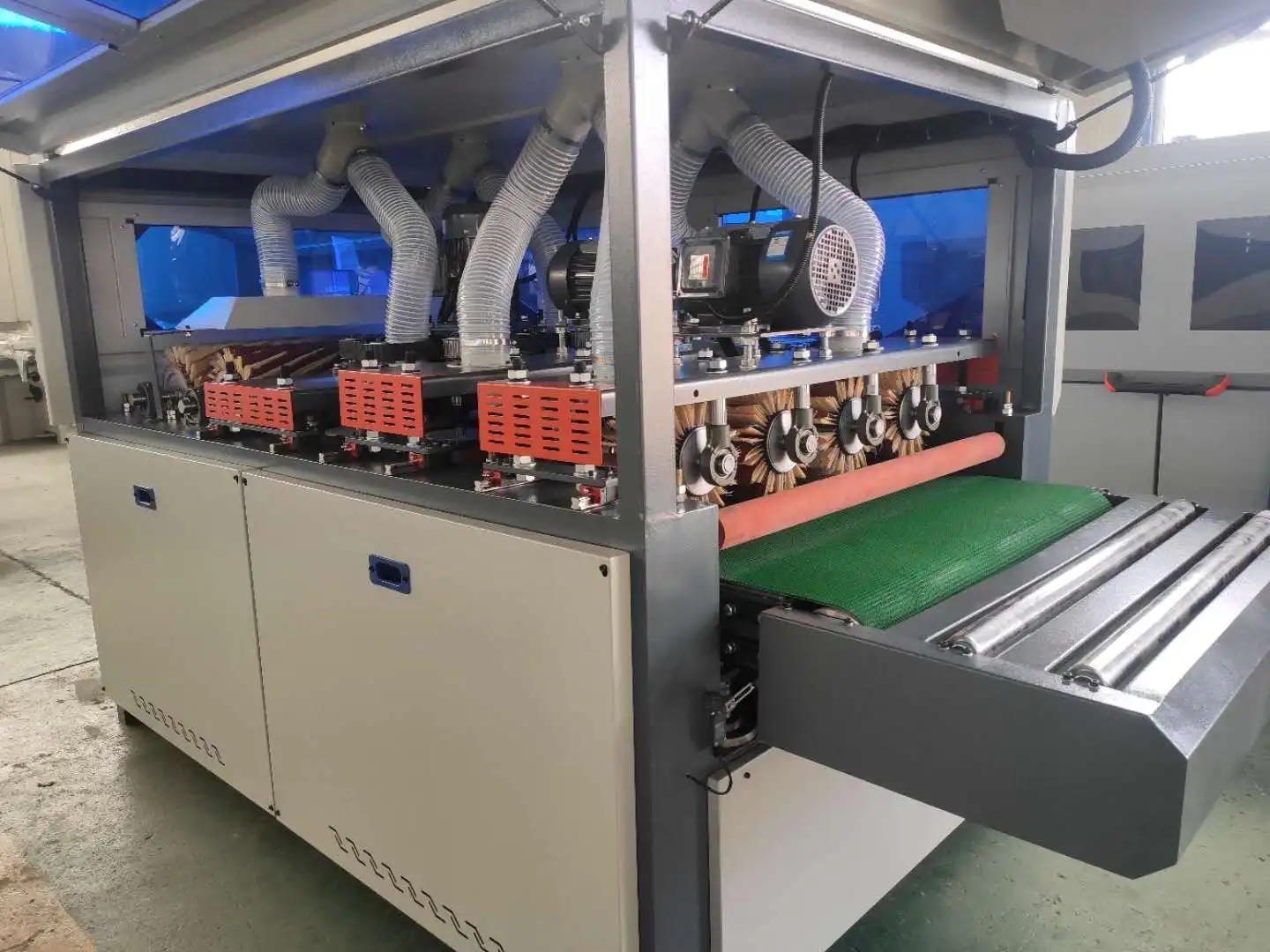

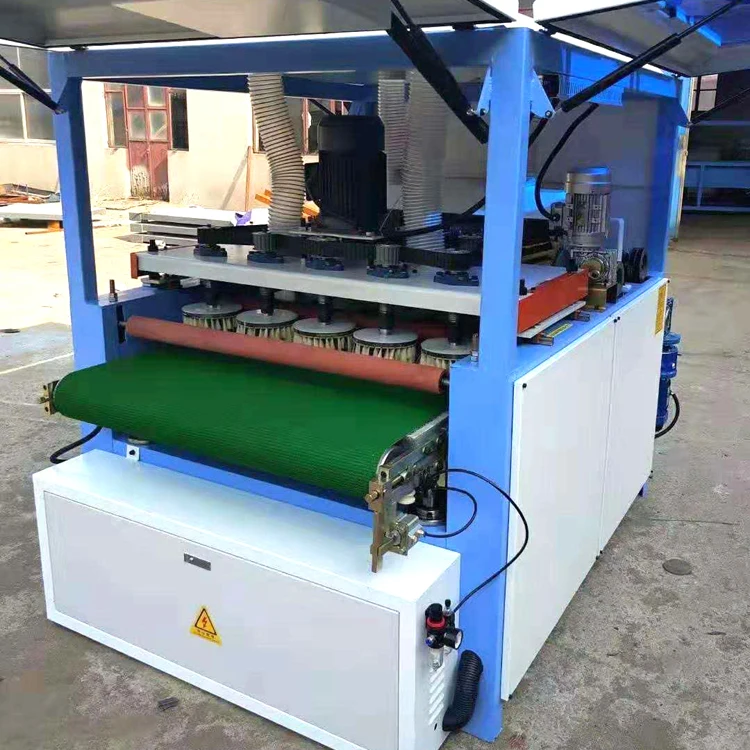

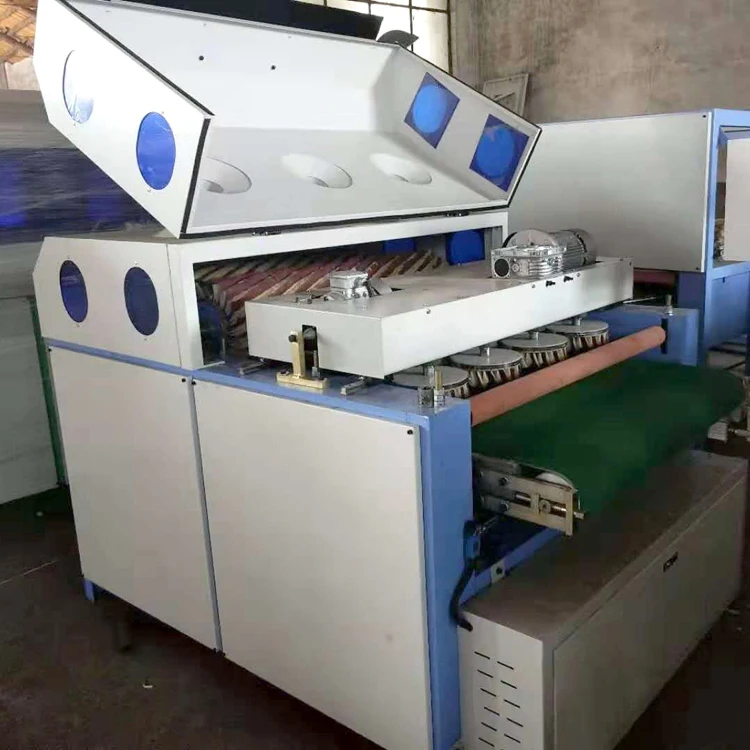

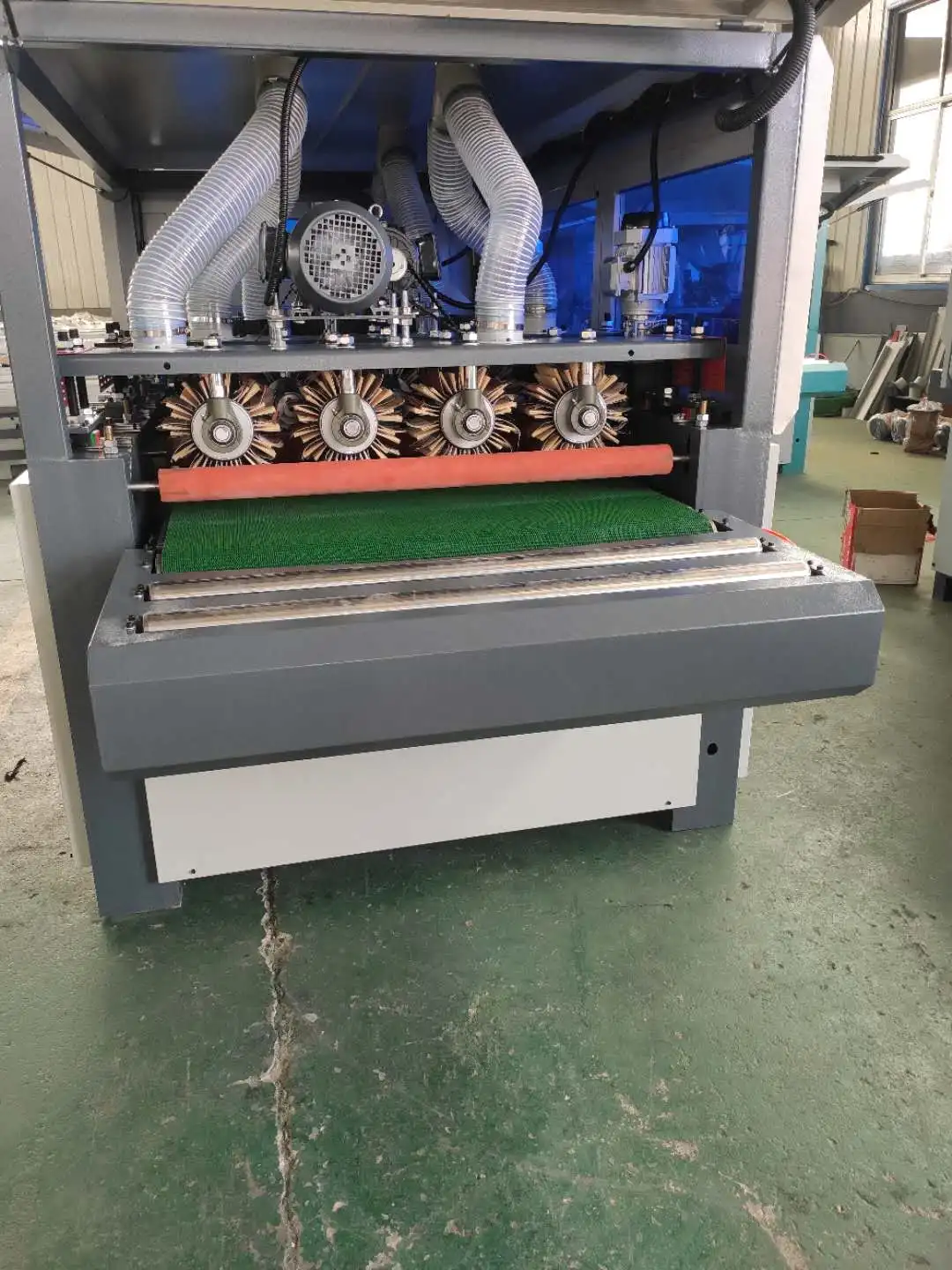

2.This Profile Brush Sander has four brush rollers at the back and 9 disc brushes in the front.
3.The Profile Brush Sander with 2 brushes can also be customized. The total length of the Profile Brush Sander is 2500mm for 2 rollers and 3000mm for four rollers.
4.The wood holding device is 500mm long. This wood sander can be used on solid wood, MDF, veneer board which can make Door line,Door frame, Baseboard, Frame, Blinds and other L type standard or non standard wood surface.
5.This wood sander can rough sand or fine sand, grind, and polish the surface for primer doors, cabinet doors with curves on the surface.
1.This model applies to: door panels, relief, furniture, etc. it can work on convex shape grinding, broken ammonia, white stubble and painting polishing.
2.This Profile Brush Sander has four brush rollers at the back and 9 disc brushes in the front.
3.The Profile Brush Sander with 2 brushes can also be customized. The total length of the Profile Brush Sander is 2500mm for 2 rollers and 3000mm for four rollers.
4.The wood holding device is 500mm long. This wood sander can be used on solid wood, MDF, veneer board which can make Door line,Door frame, Baseboard, Frame, Blinds and other L type standard or non standard wood surface.
5.This wood sander can rough sand or fine sand, grind, and polish the surface for primer doors, cabinet doors with curves on the surface.

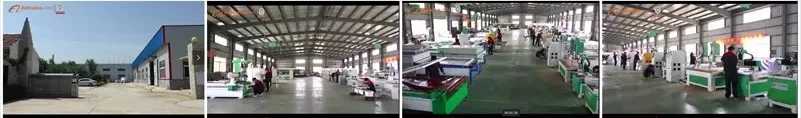

Company Profie
Shandong Guandiao CNC Equipment Co., Ltd
The main idea is "Condense spirit of craftsman,Creat delicate quality"
The main idea is "Condense spirit of craftsman,Creat delicate quality"
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc.
Packing and Shipping
(1):Wood case or plywood.
(2):Packing as your requirement.
(2):Packing as your requirement.
Certifications
Why Choose Us
1.Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM
If you have other needs, please let me know.
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM
If you have other needs, please let me know.
