Электрическая регулируемая по высоте подиумная Мобильная тележка для презентаций передвижной компьютерный

Product Name

Parts No.

Specification & feature

Remarks

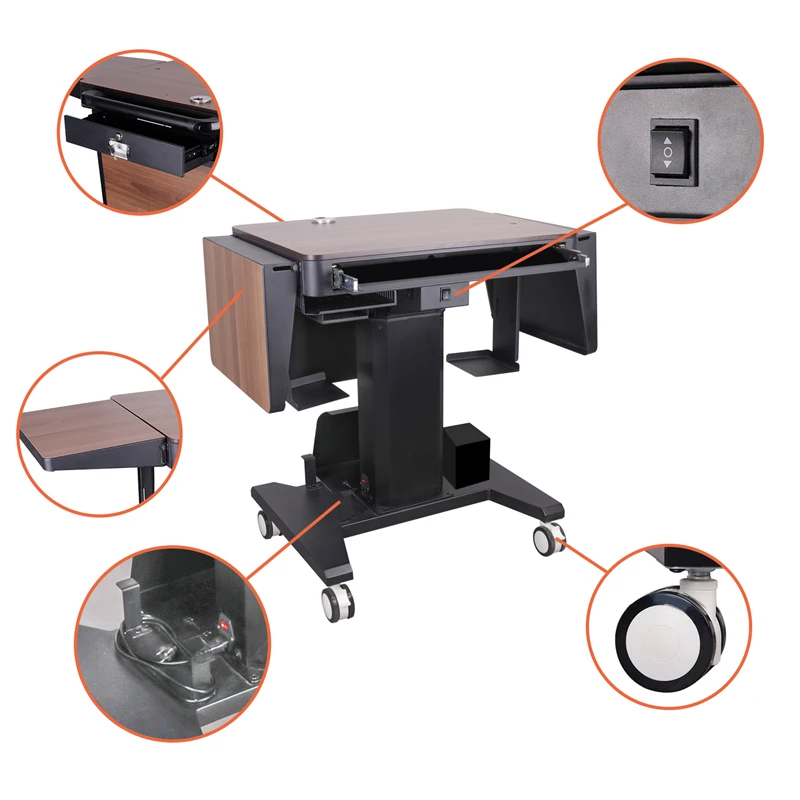

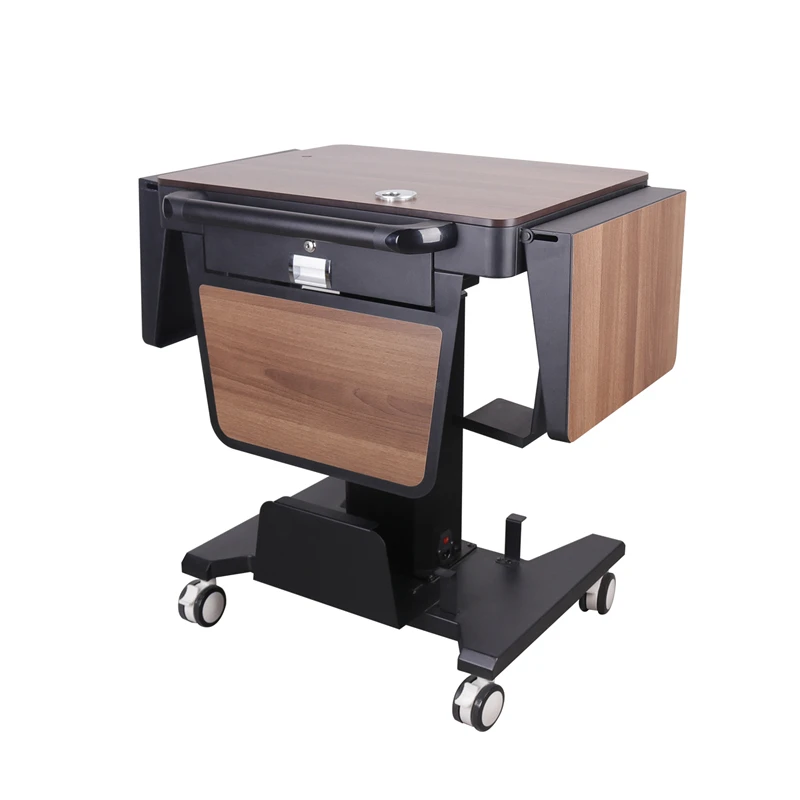

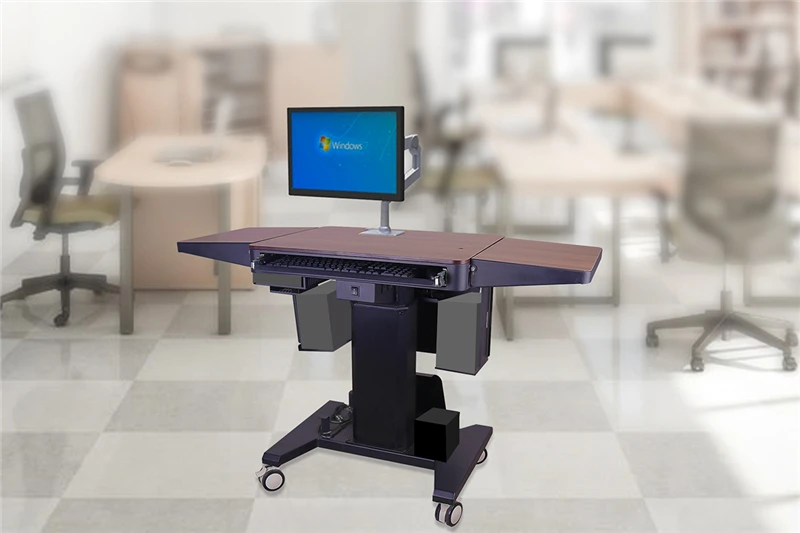

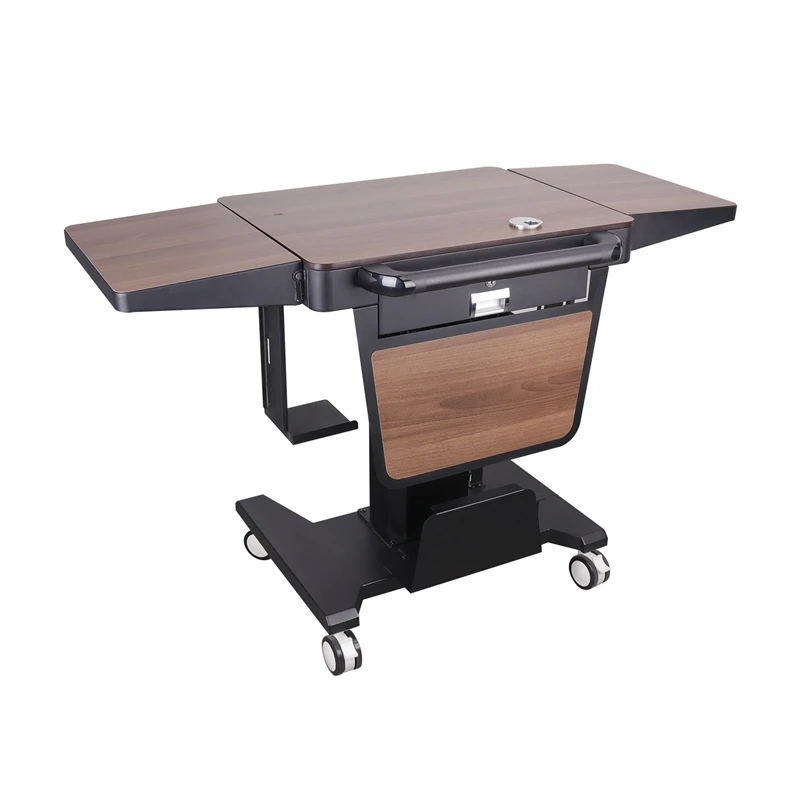

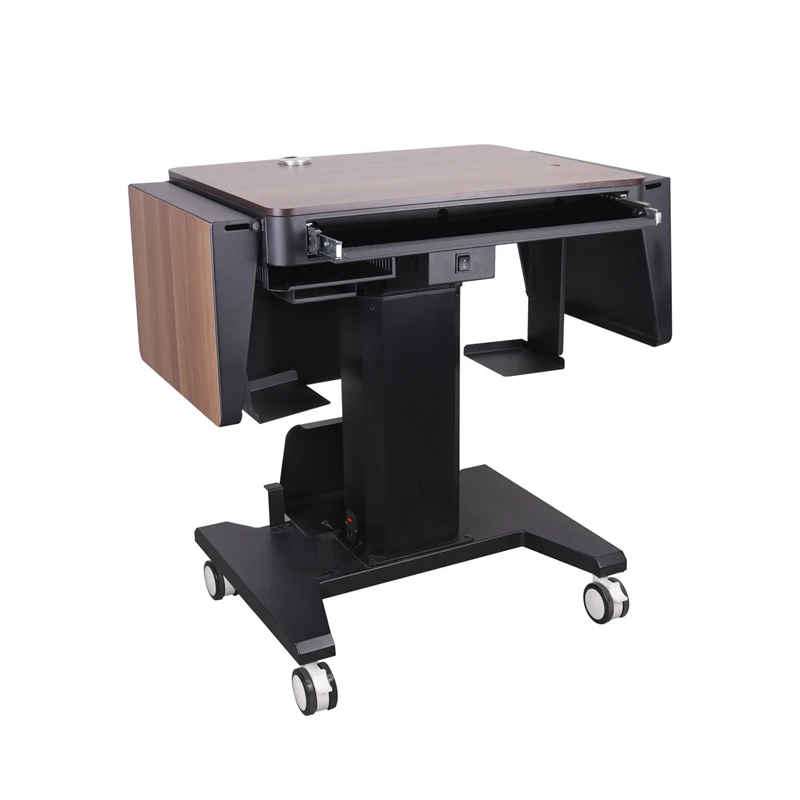

Multi-media podiumAV-T

Podium body

1.       The desktop adopts the integrated design of brushed aluminum plate

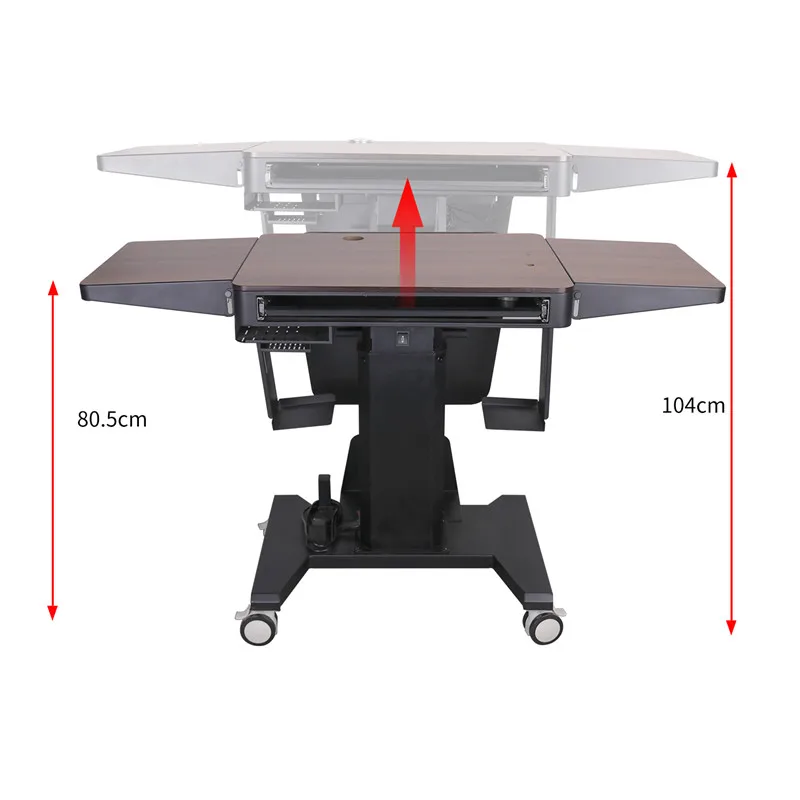

2.       The height of the desk is electrically adjusted, and the lifting height of the desk is 805-1040mm

3.       Adjust the Angle of 21.5”-24 "wide screen LCD display electrically, with the maximum adjustment Angle of 35 degrees;

4.       Hidden drawing board provides users with laptop placement position;

5.       Draw-out cable box design (built-in USB cable, HDMI cable), convenient for users to connect to the laptop;

6.       Interface: USB3.0*2;

7.       The bottom is equipped with 2.5 "mute casters *4;

Podium body is a standard configuration, the rest is optional

Built-in battery

Built-in battery provides power for outdoor use;

220V input

220V output

300W power

Universal display bracket arm

Universal rotating aluminum alloy display stand

Speaker & Amplifier

Wooden Speaker (one pair)

System: 2-way FULL RANGE

Speaker Size: single 6.5”

Frequency response: 45hz-18khz

Low-pitch unit configuration:

LF: 1 * 6 "(165 mm) / 1.38" (35 mm) voice coil

HF: 1*3" paper basin treble

Impedance: 8 Ω

Sensitivity: 90db

Power: 70 w

Maximum sound pressure: 110db paint surface treatment: Paint plate material: MDF

Wall hanging speaker: yes

Overall dimension: 365*205*235MM

Visualizer/ Document camera

1.       Product structure: built-in fixed installation, vertical folding twice, you can turn it upside down when not in use;

2.       Image resolution: 2592x1944(8 million HD pixels);

3.       Image color: 24 bits;

4.       Scanning speed: one touch, instant scanning;

5.       Scanning media: physical objects, examination papers, documents, books, magazines, certificates, business CARDS, etc.

6.       Scanning element: 1/2.5CMOS photosensitive chip;

7.       Image control: brightness, contrast, saturation adjustment, color selection, automatic adjustment exposure;

8.       Interface: USB2.0 data line interface power supply, no external power supply;

9.       Working voltage: 4.75v-5.25v

10.   Light source: natural light, supplemented by LED light.

11.    Computer imaging software;

21.5” Touch Screen

1.       Dimensions 21.5inch  (16:9)

2.       Display area 476.64(horizontal) 268.11(vertical) mm

3.       Resolution 1920 (RGB) *1080 [FHD]

4.       Contrast 1000:1 (Typ.) (transmission)

5.       Response time 14 (Typ.)(Tr+Td) ms

6.       The frame frequency is 60 hz

7.       Touch technology projection capacitor technology (capacitive touch screen)

8.       Response time < 3ms

9.       The standard number of touch points is 10, which can realize multi-touch functions such as zooming in and out pictures

10.   Touch effectively identifies > 1.5mm

11.   The scanning frequency is 200Hz

12.   The scanning accuracy is 32767x32767

Embedded ALL-IN-ONE PC (MINI computer )

1.       The CPU INTEL I5 2520U

2.       Intel HM65 high speed chipset

3.       Memory DDR3 4 GB / 8 GB

4.       SSD hard disk 250GB

5.       The network card integrates 10/100/1000m adaptive network card and wireless network card 802.11a/b/g/n

6.       Input power 220V AC 50/60hz

Application

Detail

Colleges, Universities

e-Lecturing, Multimedia Presentation

Hospitals

Seminar, Conference, Medical  training

Military

Conference for strategy and tactics

Government

Presentation or lecture

Enterprise

Presentation or lecture
