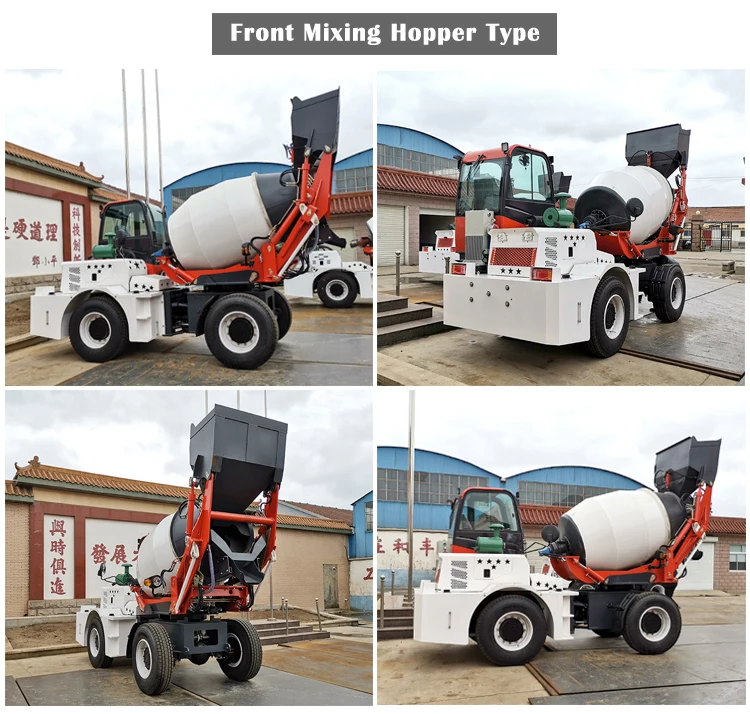

Fully Automatic Self Loading Concrete Mixer Truck
Product Description
Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. The automatic loading mixer truck can load concrete materials such as stones, sand, cement, and water into the mixing tank by itself. It can intelligently and accurately calculation, precise control of water intake and feed volume. The mixing tank can be rotated 180 ° or 290 ° or 360 °, making the discharge more accurate and convenient.
This machine has upgraded the bucket down function to truly realize the function of a multi-purpose loader. at the same time, the brake caliper increases the braking performance and is eauipped with high-pressure car washing to keep the equipment clean. the enlarged water tank increases the output.
the machine truly realizes the multi-purpose function of the loader, mixing function of the mixer, transportation function, car wash and so on.
Most Popular Machine Type Parameter
| Model | NS1200 | NS2000 | NS2400 | NS3500 |
| Mixing bucket capacity | 1.2cbm | 2.0cbm | 2.4cbm | 3.5cbm |
| Mixing bucket tilt angle | 16° | 20° | 20° | 20° |
| Stirring direction | Clockwise feeding, Counterclockwise Unloading | |||
| Max. load | 2400kg | 5000kg | 3500L | 7500Kg |
| Engine model | YUNNEI 27GBZ | YUNNEI 33GBZ | YUNNEI | YUCHAI4105 |
| Power | 55KW | 65KW | 76KW | 85KW |
| Tyre | 12-16.5-12PR | 750-16/12-16.5 | 16/70-20 | 1200-R22.5 |
| Travel speed | 30KM | 30km | 30km | 35km |
| Mini. turning radious | 3.5m | 3.5m | 4.5M | 4.5m |
| Water tank capacity | 540L | 280L | 540L | 850L |
| Total Weight | 4500kg | 6200kg | 7600kg | 8200kg |
| Overall Dimension | 6000*2440*2460mm | 6550*2270*2970mm | 5770*2420*2900mm | 5900*2900*3300mm |

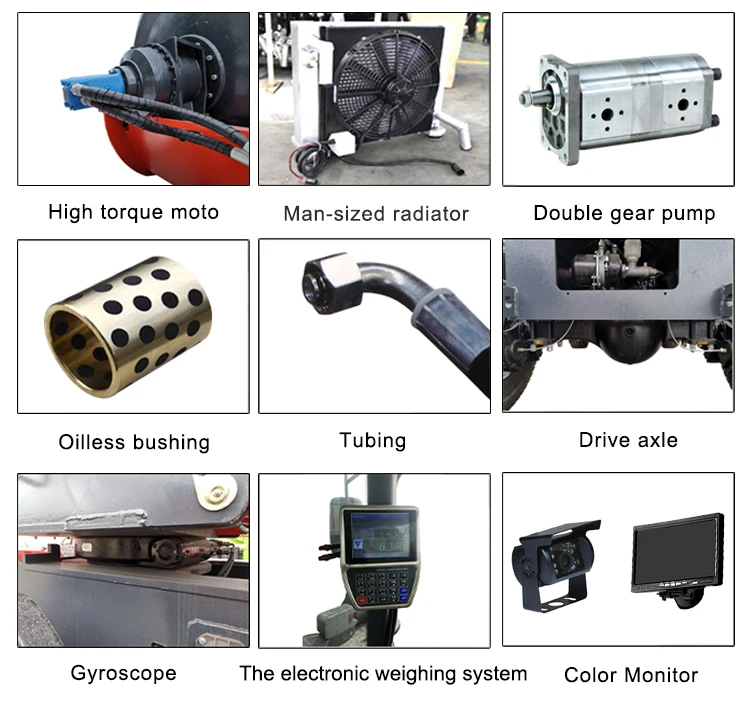

Product Features
1. High torque motor
Adopting BM5 high torque motor, the reducer is a reasonable ratio of two-stage high torque and higher efficiency
2. Man-sized radiator
Independent cooling system to ensure the control of oil filtration quality and temperature.
3. Double gear pump
High pressure, not easy to wear, increase the oil inlet and outlet to ensure the flow of the whole machine
4. Oilless bushing
Use oilless bearings, only need to inject butter once a year,wear resistance is 100 times that of ordinary sleeves.
5. Tubing
The whole vehicle's oil pipe adopts the 24 °international standard H-type joint, which has no oil leakage and oil leakage, and has a large flow.
6. Drive axle
The driving shaft adopts medium and large wheel side bridge, which is stable Low operating noise.
7. Gyroscope
The slewing bearing has a five-year warranty and uses a well-known domestic gyrator (imported worm motor)
8. The electronic weighing system
The Load cells are acting on the drum and technical data are displayed on the shovel loader weigher inside the cab.Two sets of joystick control system are situated on the two sides of driver's seat.
9. Color Monitor
The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety.
