Стабильный жилой Лифт OTSE домашний лифт панорамный
- Категории: Elevators >>>
- Поставщик: Hangzhou,OTSE,Elevator,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Technical Parameters
Capacity Load | 250kg/3 | 320kg/4 | 400kg/5 | ||
Rated Speed | 0.25m/s | ||||
Shaft Size | 1200x1200mm | 1300x1300mm | 1300x1500mm | ||
Platform Size | 800x1100mm | 900x1200mm | 900x1400mm | ||
Max. Stops | 5 stops(floor height is 3m) | ||||
Door Open Type | Manual Door/Automatic one side open | ||||
Door Size | 800*2000mm | ||||
Overhead | ≥1300mm | ||||
Lifting Height | ≤12000mm | ||||
Pit Depth | 200mm | ||||
Product Features
Extreme size:950*950mm,it can be installed in any place.
New Concept Electric Home Appliance Leads A New and Fashion Life
Function Table
No. | Item | No. | Item |
1 | Emergency lighting | 11 | Alarm bell |
2 | All selective collective control | 12 | Light curtain door protection device |
3 | Cabin digital position indicator | 13 | Cabin call erase |
4 | Hall&Cabin calling/register | 14 | Parking |
5 | Dispaly of cabin travel direction | 15 | Digital landing position indicator |
6 | Full-load none stop | 16 | Display of landing travel direction |
7 | Running times display function | 17(option) | Intercom amid monitor room |
8 | Overload non-start(warning light and buzzer) | 18(option) | UPS |
9 | Automatic lighting control | 19(option) | Cabin arrive gong |
10 | Automatic detection function to any troubles |

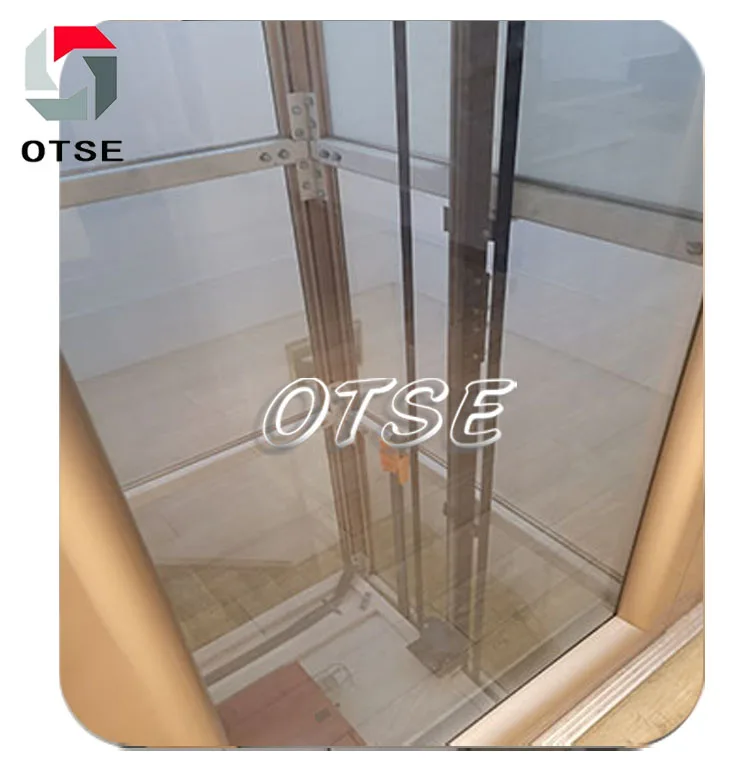

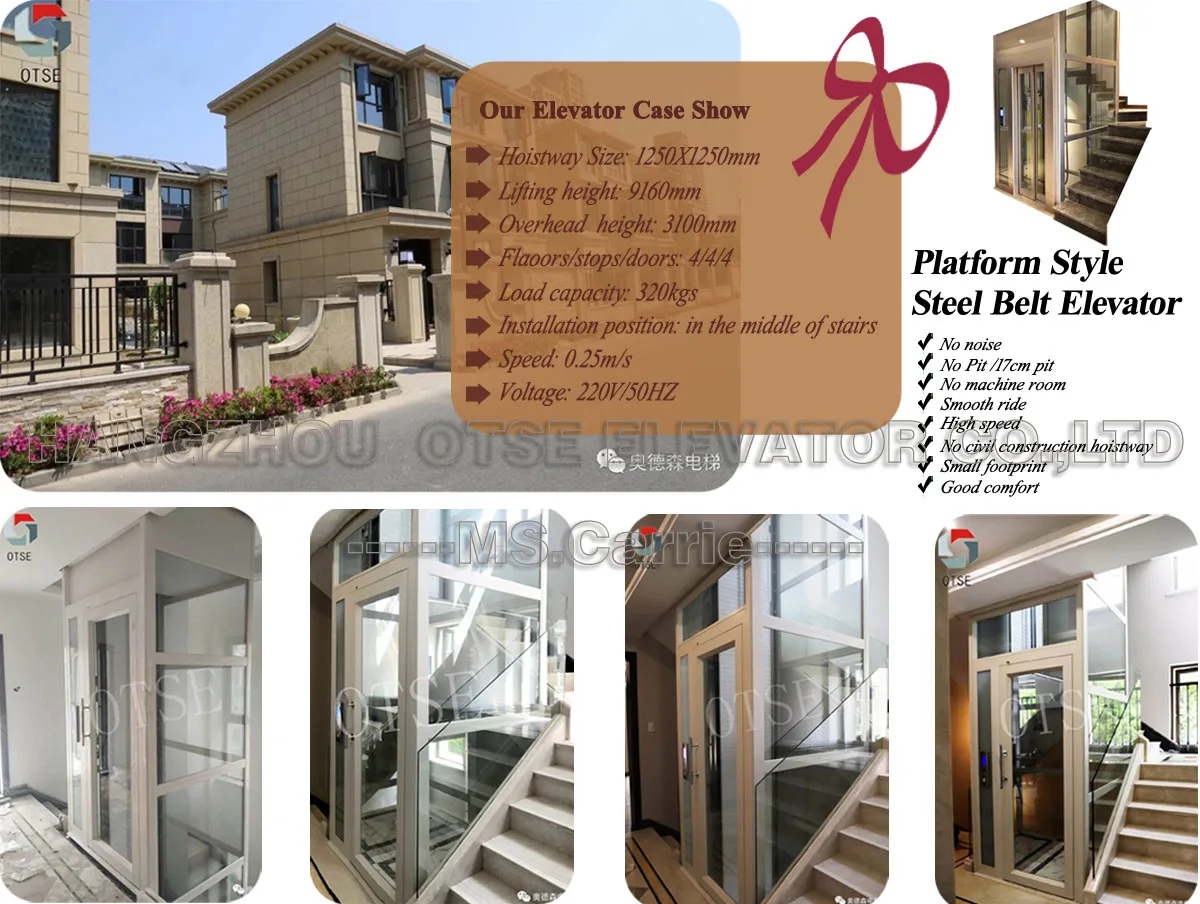

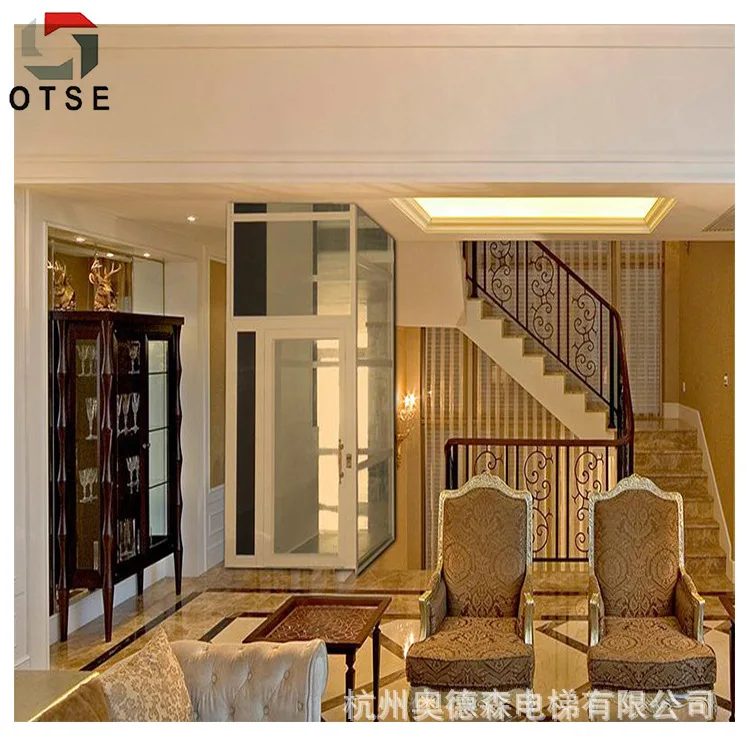

Best Match Of Modern Villa
Product Details
Gearless machine features
Energy conservation:about 30% than other generic host.
Environmental protection:no oil pollution, maintenance-free.
Low-noise:about 52-58db,8-10db lower than normal.
Small size:meet MRL application structure.
Speed control of high accuracy.
Frequency door system
OTSE villa lift applies vvvf frequency elevator door and curtains combined to ensure the switch out of the door staff safety and reliablility.Intellectual control system
Adopts the international integration of sophisticated computer control system, the highly integrated intellectual and fully somputerized control system to ensure the more prompt lift data processing and the more complete functions.
Decorated Option

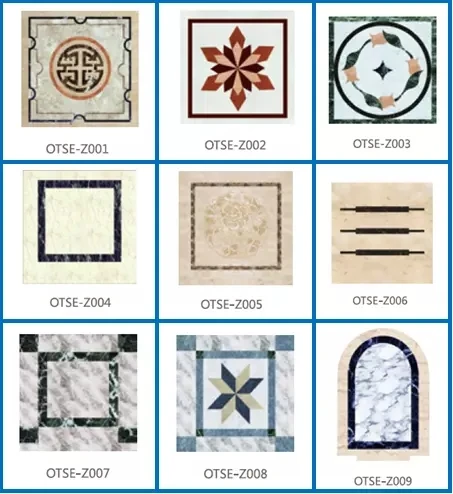

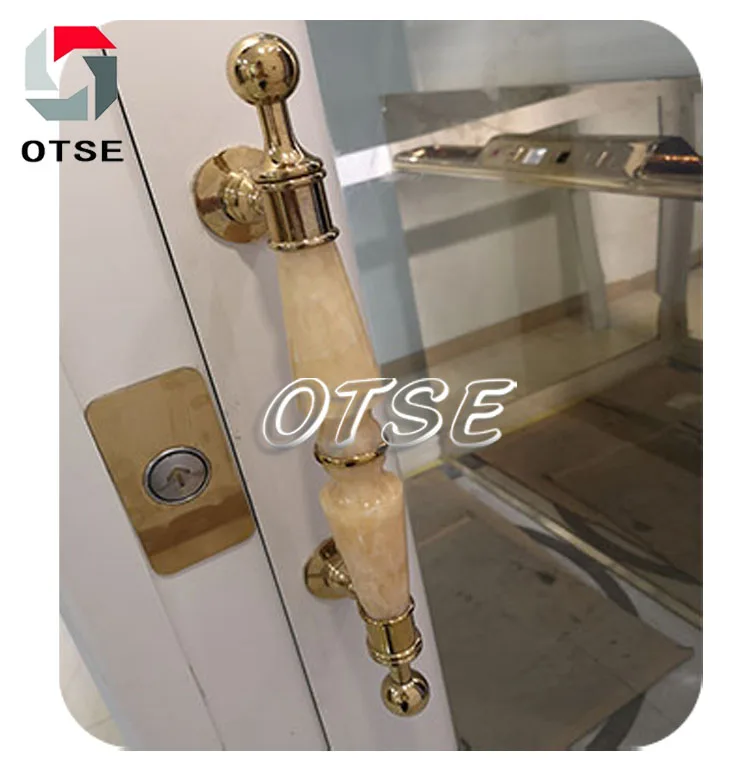

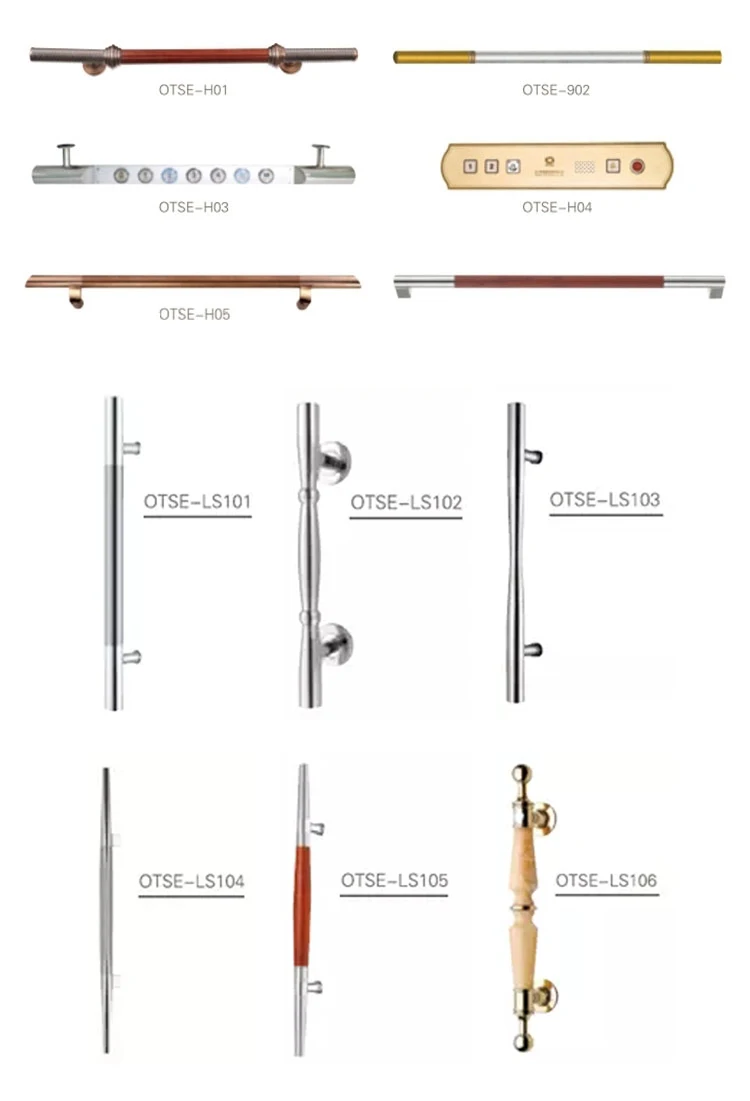

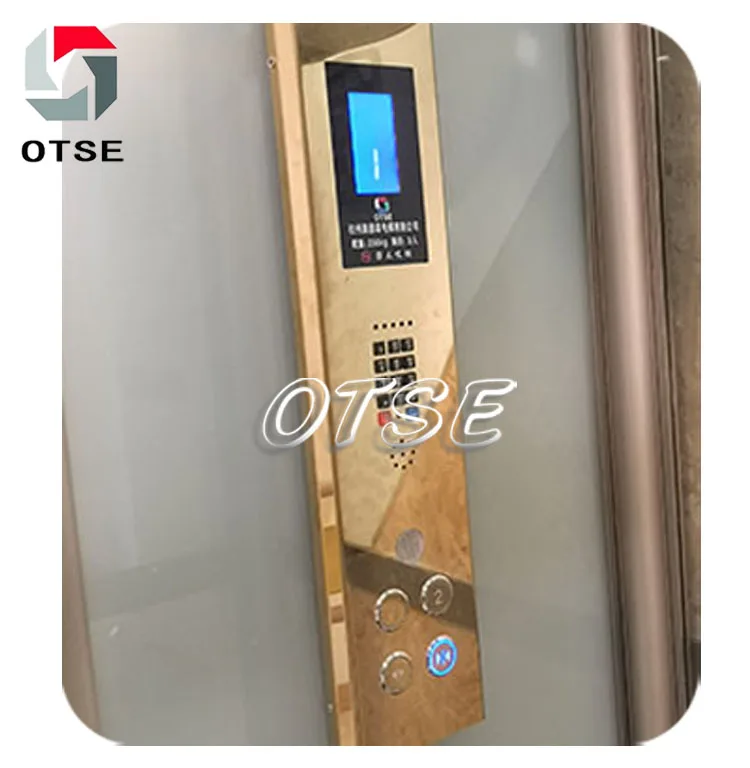

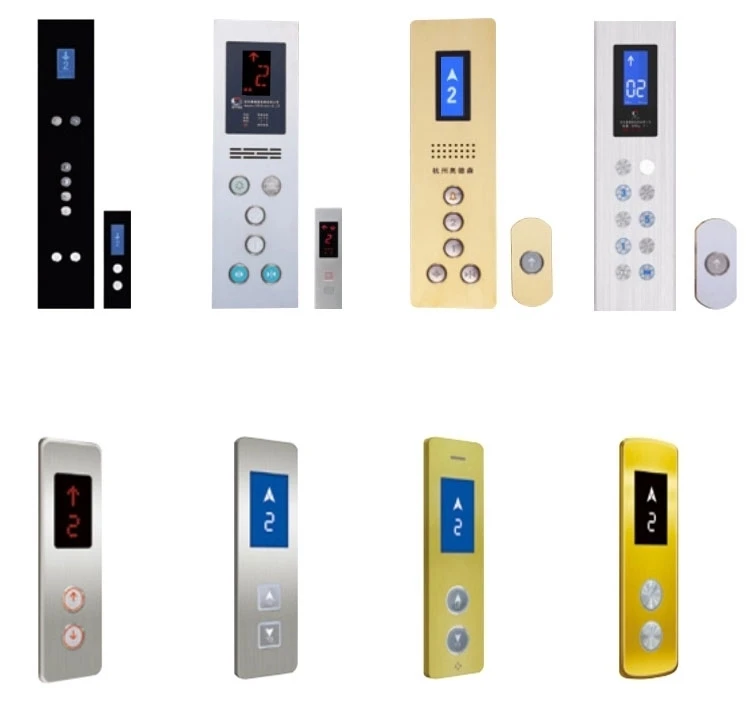

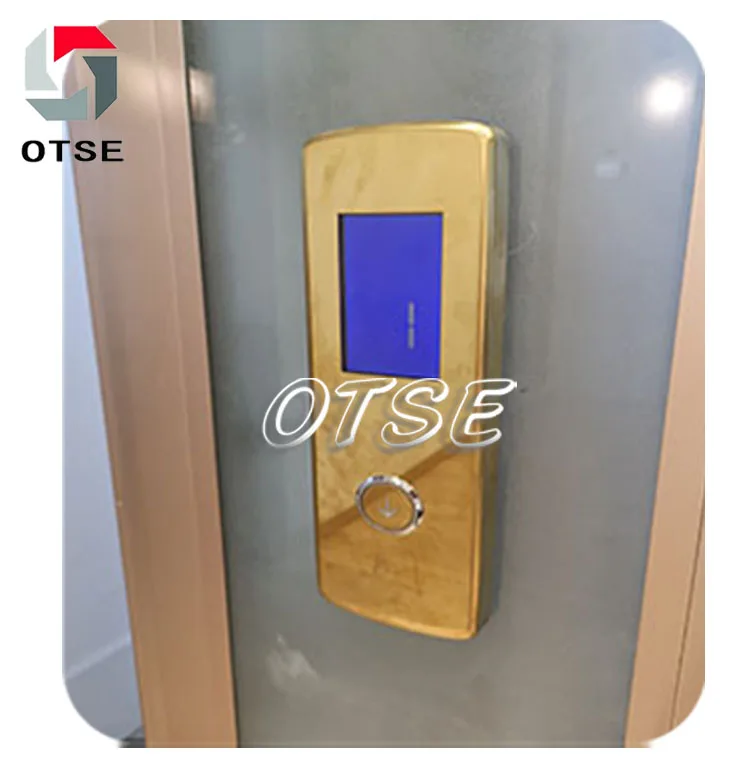

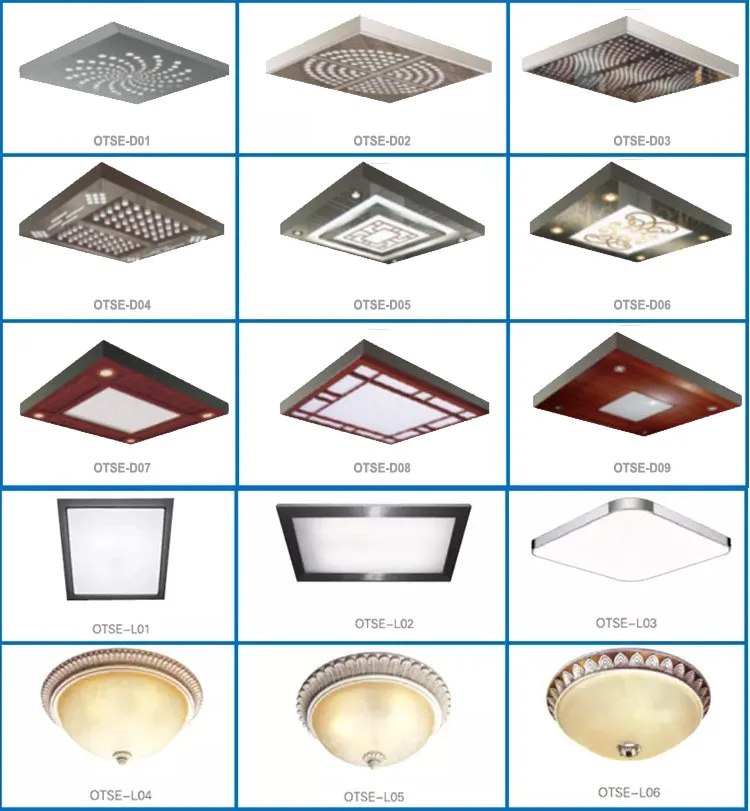

Floor Ceiling Armest & Handle Indicator

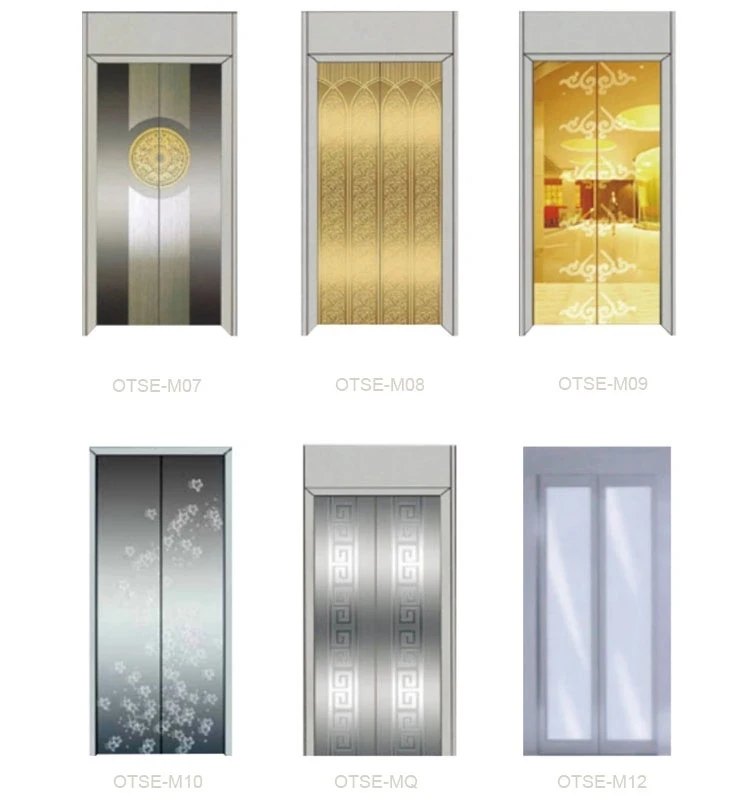

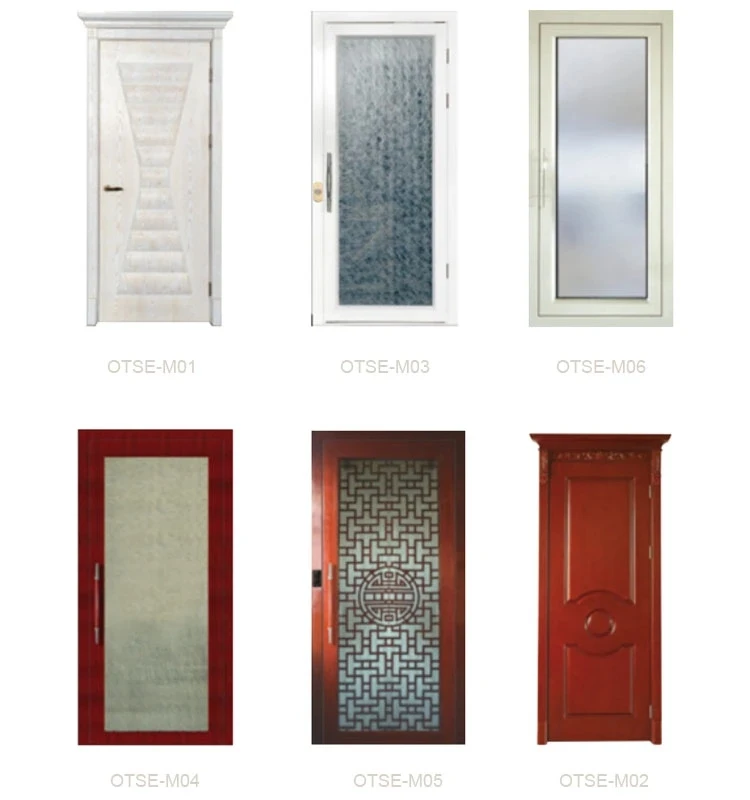

Door and door frame

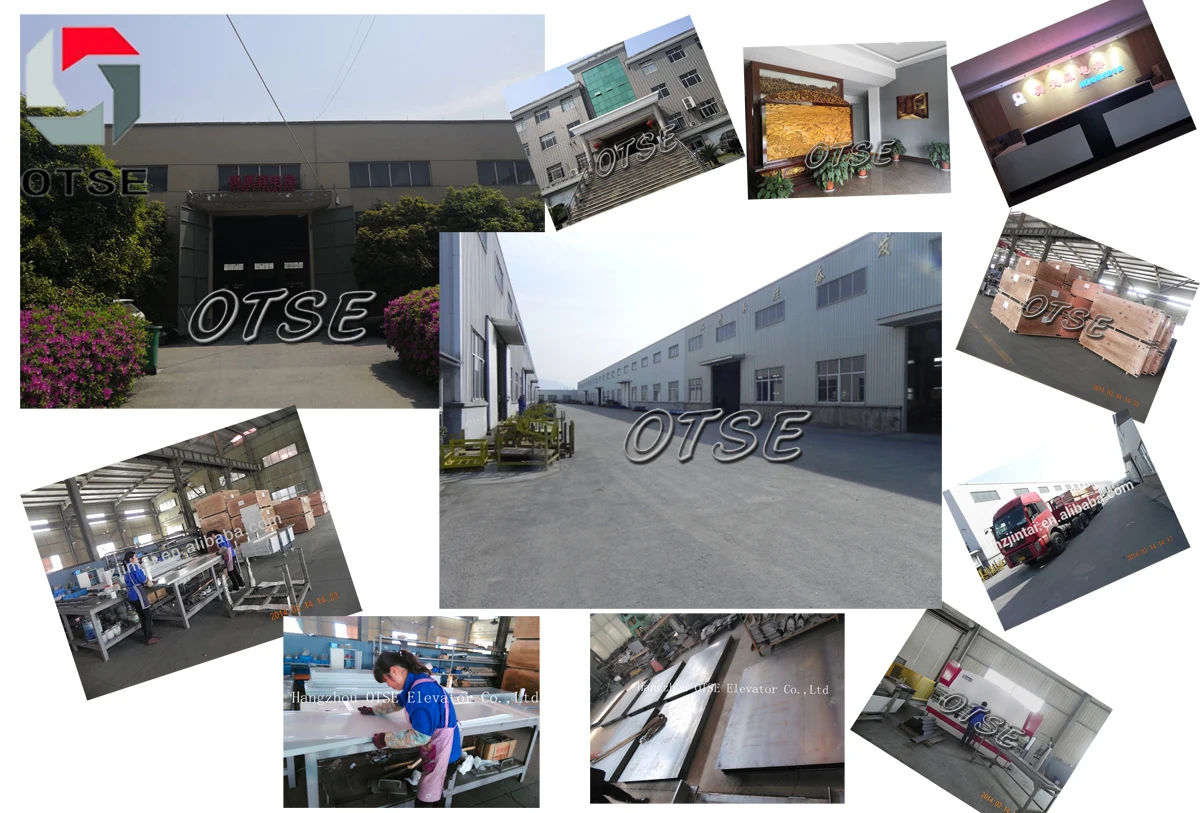

Company Information
Hangzhou OTSE evelator Co., Ltd. is Founded in 2011, As a company specialized in research & development , manufacturing and the installation of elevators. OTSE has introduced the most advanced elevator manufacturing technology, ensuring the whole process, including the elevator parts manufacturing and assembling, is compliant with the standard of ISO9001 Quality Management System. Besides, OTSE's elevator parts are imported from Germany, aiming to
manufacturing elevators with the best quality. At present, the factory of OTSE is one of the large-scale elevator manufacturing bases in China. OTSE elevator has a high reputation in Asia because of its high security standard, durable quality, elegant appearance, advanced craft and the technology used in manufacturing.
OTSE can design and make OEM/ODM products according to personal requirements. Meanwhile, quality control is under strict supervision in order to guarantee every customer's safety. Holding a national invention patent and 11 utility model patents, OTSE dedicates to create a brand with good innovation and reliable quality. Keep innovation; keep high quality; keep good reputation; hope OTSE can also keep you as our long-term customers. OTSE looking forward to your inquiries.
manufacturing elevators with the best quality. At present, the factory of OTSE is one of the large-scale elevator manufacturing bases in China. OTSE elevator has a high reputation in Asia because of its high security standard, durable quality, elegant appearance, advanced craft and the technology used in manufacturing.
OTSE can design and make OEM/ODM products according to personal requirements. Meanwhile, quality control is under strict supervision in order to guarantee every customer's safety. Holding a national invention patent and 11 utility model patents, OTSE dedicates to create a brand with good innovation and reliable quality. Keep innovation; keep high quality; keep good reputation; hope OTSE can also keep you as our long-term customers. OTSE looking forward to your inquiries.
Contact Us
FAQ
Q1. Our Advantages
A1: Our factory was established in 2000, over 18 years of experience in home elevator, for the first few years we do the OEM for some famous brand, then we use our own brand. We have professional technical, production and sales teams.
Q2. About quotation
A2: Please send us inquiry from Alibaba, we will reply to you within 24 hours. It would be highly appreciated if you offer us all elevator details so that you can get our quotation as soon as possible.
Q3. Payment Terms & Trade Terms
A3: T/T before and L/C at sight are approved. FOB/ CFR/ CIF are workable with the help of our reliable forwarder. If you have your own forwarder, you can handle the shipment part by yourself.
Q4. What information is absolutely needed before asking for price?
A4: A. How many persons? ( 3 persons for 250kg,4 persons for 320kg, 10 persons for 800kg etc..)
B. How many floors/ stops/ doors? (according to the customer's data)
C. What's the hoistway size? (width by depth) (according to the customer's data)
D. What's the dimension of overhead and Pit (according to the customer's data)
Q5. What about the packaging?
A5: All elevator parts will be packed into solid wooden cases. Generally, 1*20' container is enough to load 1 set of elevator.
Q6. How to do with the elevator installation and maintenance?
A6: We can send engineers to your country (customers bear all charges) to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customer. Of course, you can get support from our factory at any time.
A1: Our factory was established in 2000, over 18 years of experience in home elevator, for the first few years we do the OEM for some famous brand, then we use our own brand. We have professional technical, production and sales teams.
Q2. About quotation
A2: Please send us inquiry from Alibaba, we will reply to you within 24 hours. It would be highly appreciated if you offer us all elevator details so that you can get our quotation as soon as possible.
Q3. Payment Terms & Trade Terms
A3: T/T before and L/C at sight are approved. FOB/ CFR/ CIF are workable with the help of our reliable forwarder. If you have your own forwarder, you can handle the shipment part by yourself.
Q4. What information is absolutely needed before asking for price?
A4: A. How many persons? ( 3 persons for 250kg,4 persons for 320kg, 10 persons for 800kg etc..)
B. How many floors/ stops/ doors? (according to the customer's data)
C. What's the hoistway size? (width by depth) (according to the customer's data)
D. What's the dimension of overhead and Pit (according to the customer's data)
Q5. What about the packaging?
A5: All elevator parts will be packed into solid wooden cases. Generally, 1*20' container is enough to load 1 set of elevator.
Q6. How to do with the elevator installation and maintenance?
A6: We can send engineers to your country (customers bear all charges) to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customer. Of course, you can get support from our factory at any time.
