Product Description

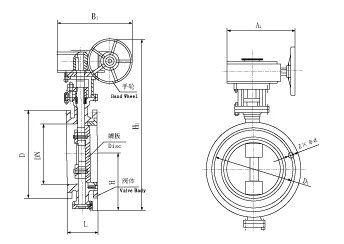

1. The structure of D343H-10C large size double flange butterfly valve gear operated butterfly valve
2. The Material of D343H-10C large size double flange butterfly valve gear operated butterfly valve
| Parts name | Materail |
| Valve body,Disc | WCB |
| Stem | 2Cr13 |
| Seal ring | Stainless steel |
| Shifting fork, Hysteresis loop | WCB |
3. The Function and Specification of D343H-10C large size double flange butterfly valve gear operated butterfly valve
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| D343H-6C D393H-6C | 0.6 | 0.9 | 0.66 | -29~425 | Water, Vapour, oil |
| D343H-10C D393H-10C | 1.0 | 1.5 | 1.1 | ||
| D343H-16C D393H-16C | 1.6 | 2.4 | 1.8 | ||
| D343H-25 D393H-25 | 2.5 | 3.8 | 2.8 | ||

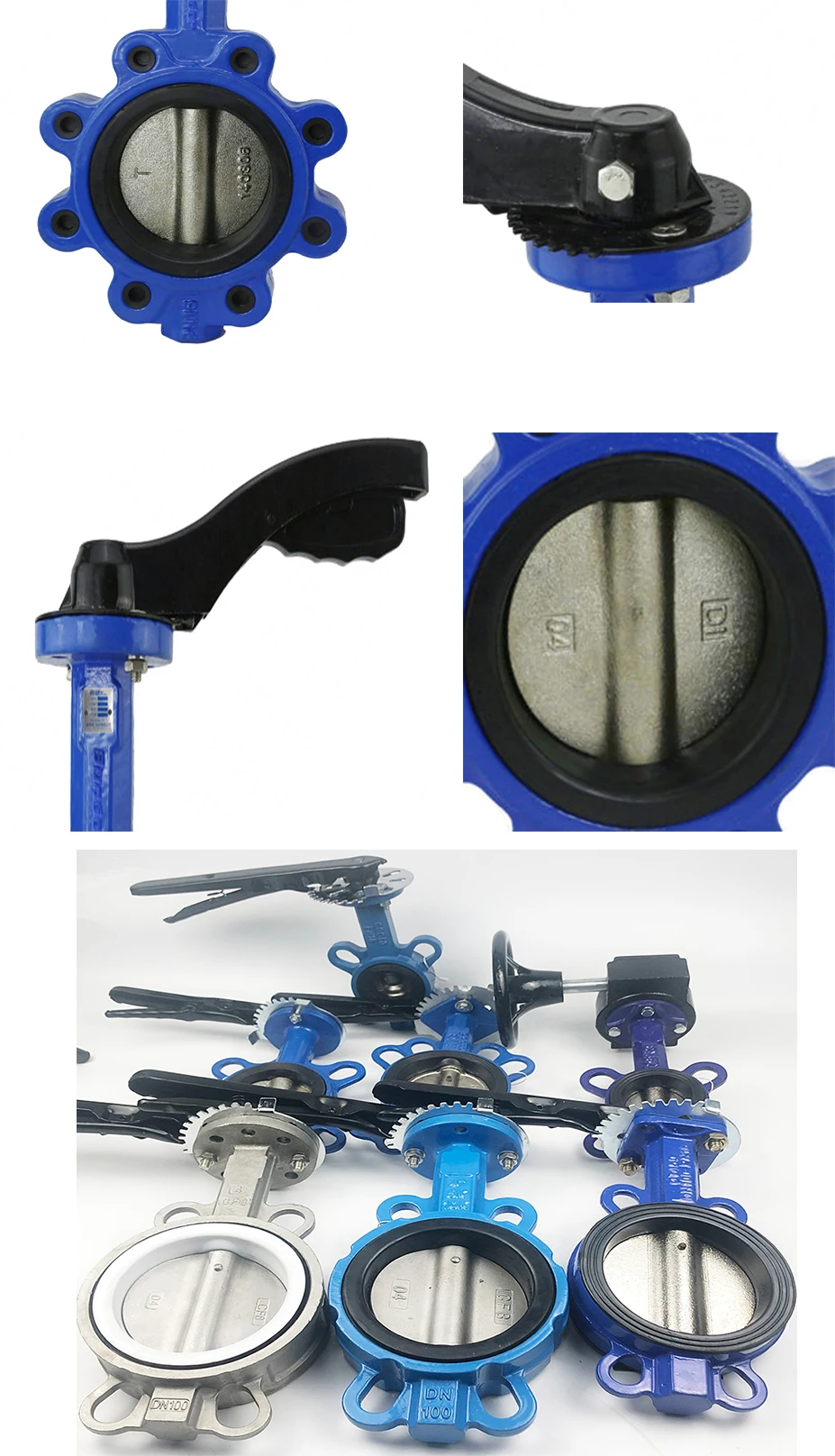

4. More product details
