Product Overview
Brine refrigeration block ice machine is a kind of ice making method using salt water as heat exchange medium. it uses shell-tube or coil evaporator as a tool for heat exchange between refrigerant and salt water. it uses the circulation of salt water in the brine pool to take away the temperature of the fresh water inside the ice bucket and turn the fresh water into ice. Traditional brine type piece of ice machine need civil salt pond, In recently years ICEMA company in order to market demand, launched an integrated brine block ice machine, daily production brine under 20 ton type piece of ice machine can not civil salt pond, at ice machine factory assembly is completed, the machine arrived at the customer site, only need to put away the ice machine, driving, installation and connection between the unit and the cooling tower of pipe
Feature
1. The tradition craft of brine heat ice, ice making machine running stable, low failure rate;.
2. According to customer requirements, design suitable block ice machine for customer request;
3. The ice mold can be made of galvanized sheet or stainless steel;
4. The machine process of ice is full automatic control; don't need a professional people with certificates;
5. Production capacity: 1~20T/24hrs, with block ice weight of 5kg, 10kg, 15kg, 20kg and 25kg.
6. Shortest installation and commissioning time, loved by the users.
7. Ice size can be customization.
Suitable Industry
1. The fruits and vegetables preservation transportation industry,
2. Ice sculptures, ice exhibition,
3. The meat processing plant, live poultry slaughter plant, seafood processing,
4. Mine cooling, plant cooling,
5. The chemical industry.
Technical Parameter
| Model | Output (T) | Refrigerate Capacity (Kw) | Total Power (Kw) | Rated Current (A) | Ice Temperature (ºC) | Compressor Power (Kw) | Refrigerant | Cooling Way | Unit Size L*W*H(mm) |
| BMSB10 | 1T | 8.6 | 4.9 | 9.6 | -8 | 4.15 | R22/R404A | Air cooling/ Water cooling | 4200*1600*1500 |
| BMSB20 | 2T | 15.78 | 8.04 | 16 | -8 | 7.11 | R22/R404A | Air cooling/ Water cooling | 5000*1600*1500 |
| BMSB30 | 3T | 21.5 | 12.37 | 24.3 | -8 | 9.74 | R22/R404A | Air cooling/ Water cooling | 5600*1900*1600 |
| BMSB50 | 5T | 38.5 | 21.56 | 43.12 | -8 | 17.43 | R22/R404A | Water cooling/ Evaporative cooling | 6400*2600*1600 |
| BMSB100 | 10T | 77.3 | 44.6 | 88.8 | -8 | 36.7 | R22/R404A | Water cooling/ Evaporative cooling | 7600*2600*1750 |
| BMSB150 | 15T | 115 | 62.7 | 125 | -8 | 53.3 | R22/R404A | Water cooling/ Evaporative cooling | 9600*2600*1750 |
| BMSB200 | 20T | 147 | 90.5 | 181 | -8 | 75 | R22/R404A | Water cooling/ Evaporative cooling | 10400*3000*1800 |
| BMSB250 | 25T | 194 | 97 | 194 | -8 | 85.5 | R22/R404A | Water cooling/ Evaporative cooling | 9200*4100*1800 |
| BMSB300 | 30T | 234.8 | 125 | 250 | -8 | 103 | R22/R404A | Water cooling/ Evaporative cooling | 10300*4500*1800 |
| BMSB400 | 40T | 308 | 147 | 294 | -8 | 121.5 | R22/R404A | Water cooling/ Evaporative cooling | 12300*4500*1800 |
| BMSB500 | 50T | 368 | 185.6 | 378 | -8 | 150 | R22/R404A | Water cooling/ Evaporative cooling | 12300*5400*1800 |
| BMSB600 | 60T | 455.8 | 215 | 428 | -8 | 181.5 | R22/R404A | Water cooling/ Evaporative cooling | 13800*5400*1800 |
*Ice making capacity would be changed depending on installation place, refrigerator's freezing capability, or surrounding usage environment such as outside temperature.
*Specification will be changed without any notification.
*In addition to the above models, ICEMA company can customize according to customer requirements of other types of direct refrigeration block ice machine
*All models are available with ice storage, if customers need it, please tell us in advance.

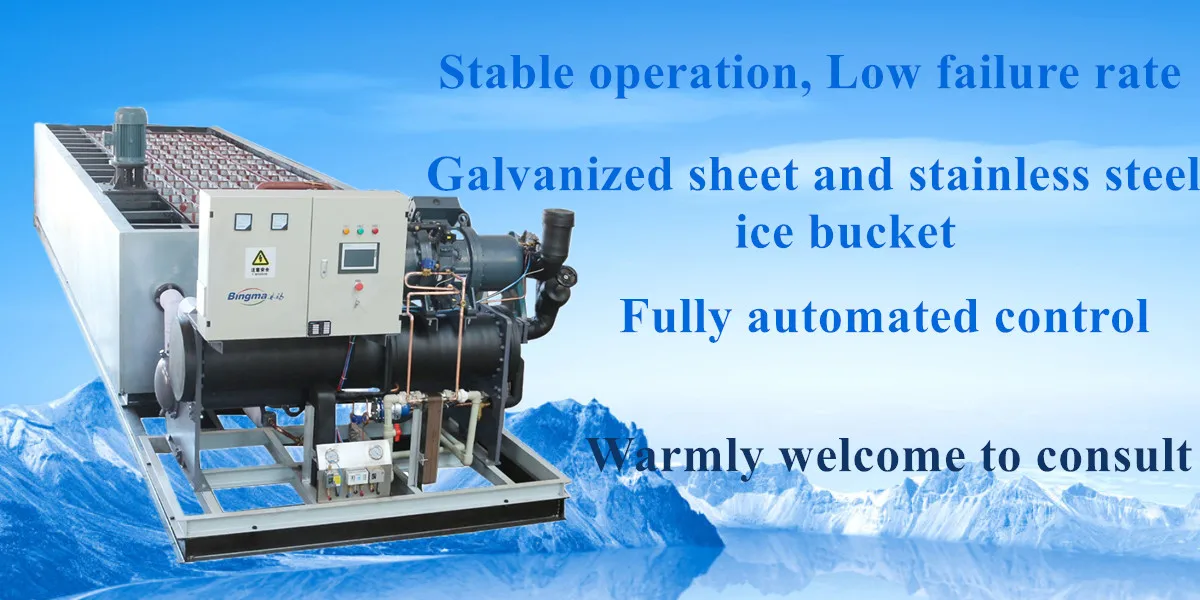

PRODUCT DISPLAY

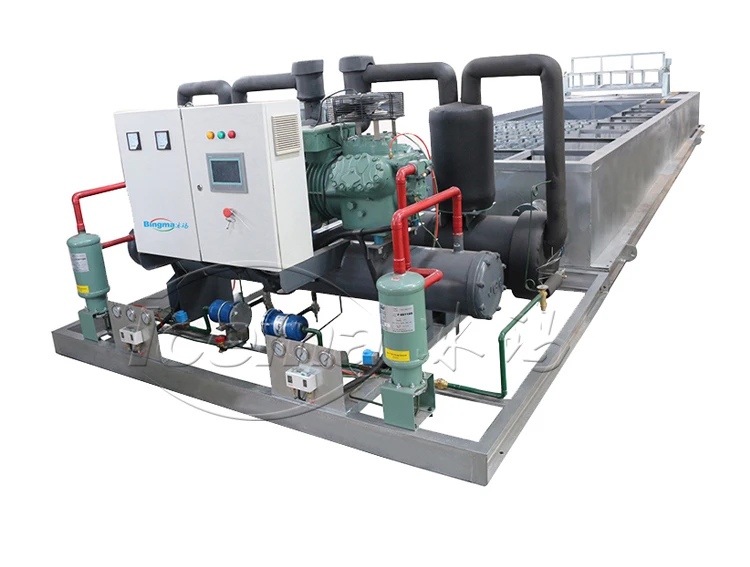

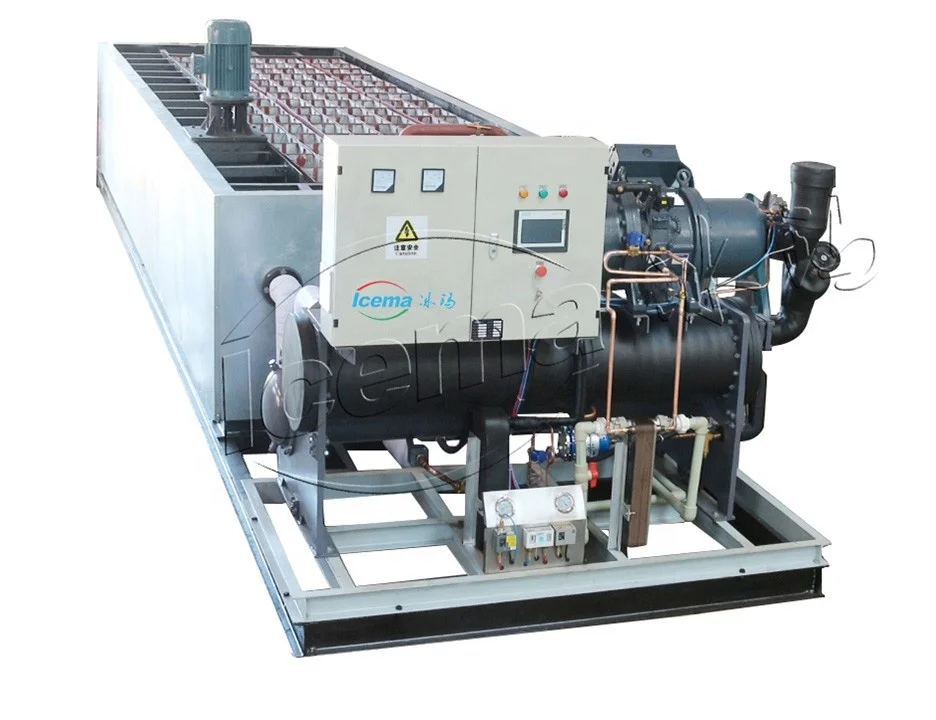

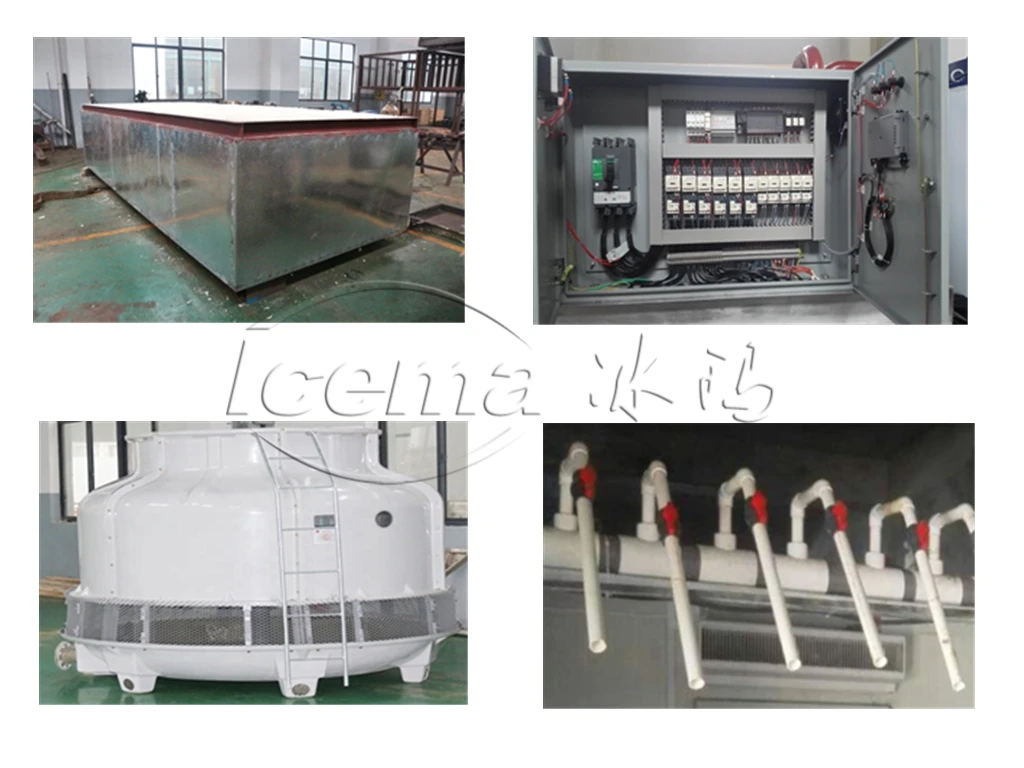

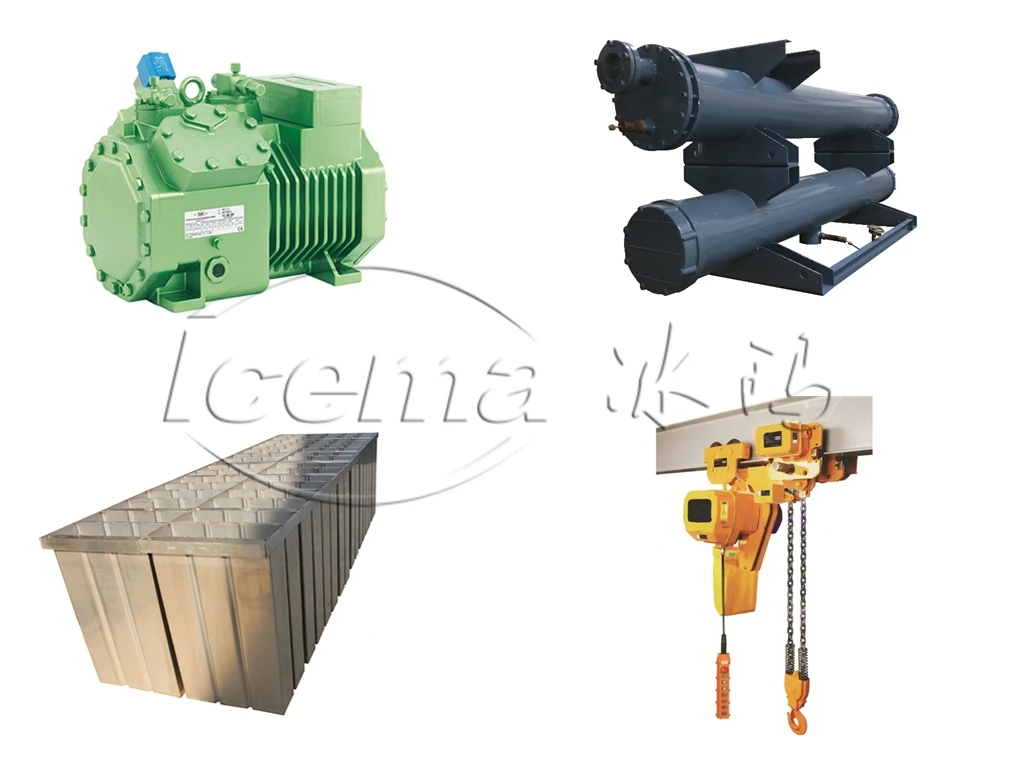

Main parts display
Shape of ice

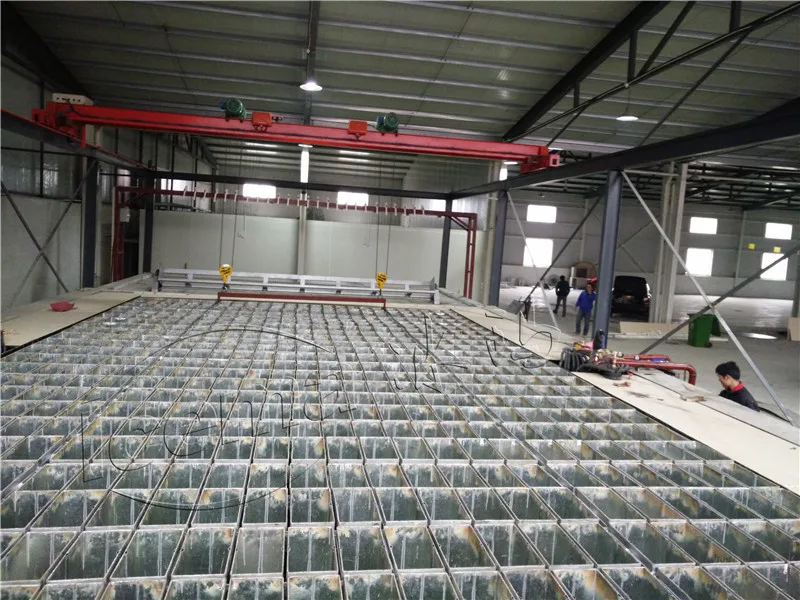

Product apptication
Company profile
Customers visit
Certifications
FAQ
1. What should i do before i get the price?
Please provide some information with our salesman, such as how many tons of ice do you want to produce/consume per day? .what is the voltage, phase and frequency in your side and do you have any requirements about the size of the ice? after we konw these, According to all your requirements ,we can make a quotation sheet to you that is completely belong to you.
2.How can i konw your factory is ture?
If it is convenient for you, we warmly welcome you to visit our factory in china, but if it is not convenient for you to come to our factory, Don't worry! please tell our salesmen your whatsapp number, she will show your our factory and machines by video, and show you everything what can prove we are a real factory.
3.When can I get the price?
Because the time is different between us, if our salesmen is online, she will reply you in 5 minutes. If she is not online, she will reply you in 6 hours.
4.If i want you to send the machine in my side, what should i do ?
Please tell our salesman the nearest port in your side, she will consult the best price for you about the shipping fee or air fee. Before the machine arrives at your port, we will prepare all the customs clearance materials for you. You only need to find the customs clearance company and leave the rest to us.
5. What is your price?
Our FOB price is based on quantity, material and size you required. The more machines you order, the lower price we will give!
6.Can i get specific details about how the whole machine processing will go?
After we get all the machine's requirements from you, first our engineers will make a specific quotation sheet to you, which will include all the machine's information, and engineers will also draw a three-dimensional drwaing to you to let you know the structure of the machine. After you pay us the deposit, we will start to produce the machine and our salesman will show you the progress of machine's production by video, the purpose is to let to participate in this progress. if you want to know more details, please feel free to contact us.
