Uncoiling, leveling and cutting to length line Machine
Products Parameter
Main technical parameters | ||
1. Thickness of steel coil | δ0.5~3mm | |
2. Width of steel coil | 800mm-1500mm | |
3. Inner diameter of steel coil | Ф510mm | |
4. Outer diameter of steel coil | Ф1200mm | |
5. Weight of steel coil | ≤10t | |
6. Steel coil material | Q235 | |
7. Cutting accuracy | ≤±1.0 mm (L=2000 mm) | |
8. Diagonal error | ≤±1mm | |
9.Plate flatness | 1 mm/m2 | |
10. Stacking weight | ≤±5t | |
11. Whole line power | 50KW | |
12.Maximum cutting length | ≤4000 | |
13. Working power | 50KW | |
14. Unit footprint (length × width) | 16m×5 m | |
Production line equipment configuration | ||
1. Loading frame | 1 set | |
2. Roller feeder | 1 set | |
3. Deviation correcting device | 1 set | |
4. Leveling machine | （0.5-3）mm ×1500mm × 13Rows rollers | |
5. Shearing machine | 1 set / set | |
6. Conveyor | 1 set / set | |
7. Palletizer | 1 set | |
8. Hydraulic system | Pressure 16Mpa | |
9. Electronic control system | PLC computer control, AC numerical control system | |

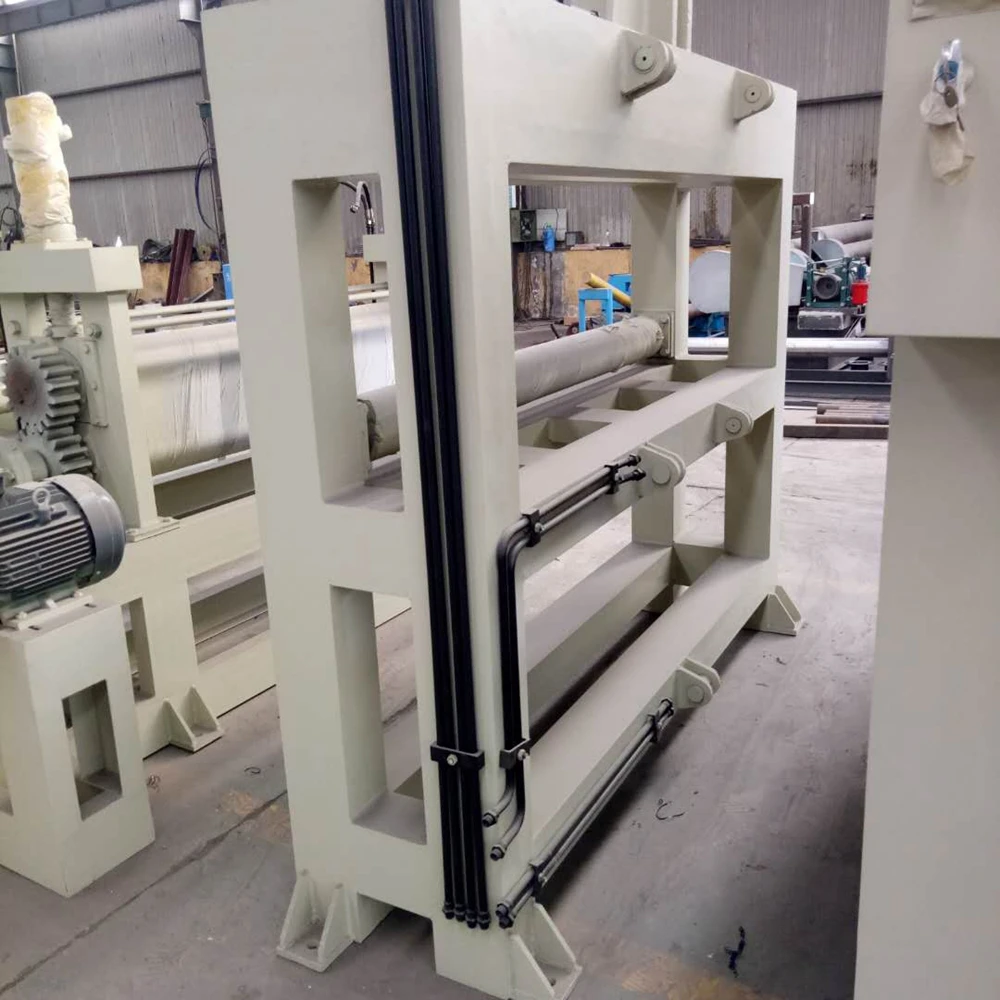

Product Picture
Rolled Curved or Straight, Punched or Slotted
Applications
Rolled Curved or Straight, Punched or Slotted
Recommend Products
Steel Silos Making Machine | Stone-coated roof tile production line |
Pallet rack rollformed machine | Scaffold board rollformed machine |
Layer cage frame rollformed machine | Pipe Arch Machine |
Cable tray rollformed machine | K type Arch Span Roof Machine |
Ceiling Furring rollformed machine | Sheet Crimping Machine |
Container House Profile making machine | Shutter door rollformed machine |
Standing seam panel rollformed machine | Mudguard/Fender machine |
Drywall stud and track partition machine | Wheel Rim rollformed machine |
Floor deck rollformed machine | Leveling/slit & cut to length line |
Gutter & downspout rollformed machine | Vineyard post rollformed machine |
Wall panle rollformed machine | |
About Us
Contact Information
Packaging and Shipping
Q: How to maintain the machine?
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
