Цена:98,00 $ - 115,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

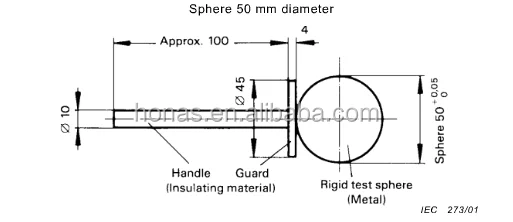

Test probe A
Instruction: Test probe HNS-A with 50mm diameter sphere for IP1X, which is necessary appliance for household and electrical appliance of against electric shock protection test.
Standard:
According to IEC60529: Degrees of protection provided by enclosures(IP Code)
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.


Sphere Diameter
50mm
Baffle Plate Diameter
45mm
Baffle Plate Thickness
4mm
Handle Diameter
10mm
Handle Length
100mm
Standard
IEC60529，IEC61032，IEC60335，IEC60950
IEC60065，IEC61029

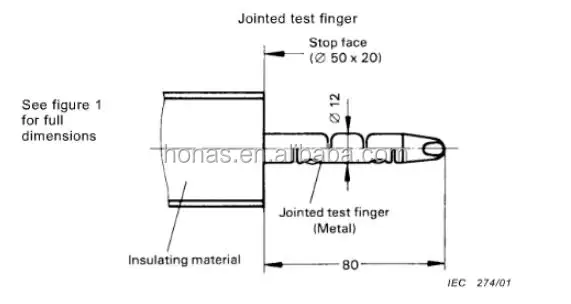

Test probe B
Application: household and electrical appliance ,protective test for preventing finger touch or electric shock proof.The standard test refers to this jointed finger that simulates a person's finger ,it is consists of a finger, a middle finger, a finger seat, and an insulated handle. Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to +10° tolerance.

 jointed finger probe  is mainly manufactured for testing the protection against access to hazardous parts. It is a high-precision probe, which simulates human finger movement.it can be with 10±3 N force if necessary.


Model Number
HNS-P2B
Knurled Finger Length
80mm
Knurled Finger Diameter
12mm
Baffle Plate Diameter
100mm
Baffle Thickness
20mm
Materials
metal, except where otherwise specified.
on linear dimensions
up to 25 mm: 0- 0,05 mm; over 25 mm: ± 0,2 mm.
Standard
IEC61032 Fig2, IEC60950 ,IEC60529 ,IEC60335,IEC60884

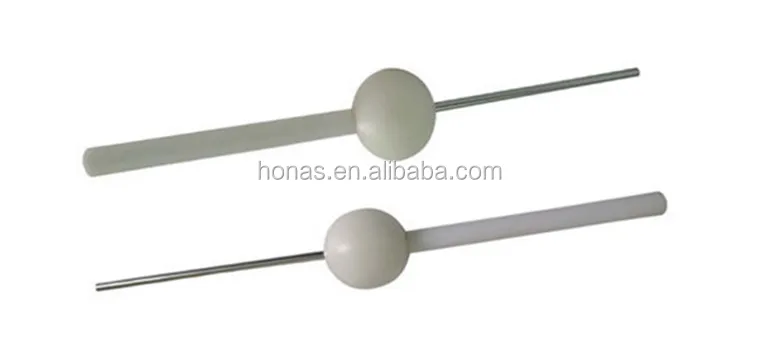

Different from test probe C and test probe D :






Model Number
HNS-P3C
HNS-P4D
Materials
Nylon+ Stainless Steel
Nylon+ Stainless Steel
Test Probe Length
100mm
100mm
Test Probe Diameter
2.5mm
1.0mm
Dam-sphere Diameter
35mm
35mm
Handle Diameter
10mm
10mm
Handle Length
100mm
100mm
Standard
IEC61032 figure 3, IEC60529
IEC61032 figure 4,IEC60529


Recommend Products

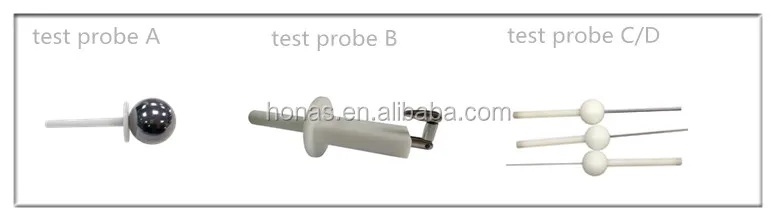

1. HNS-P1A Type A probe (test probe A)
Product Overview: In accordance with IEC61032 Figure 1 test tool A, GB16842 test tool A, GB4208IP1, IEC60529IP1, IEC60065 and other standards.
Protective test to prevent back contact.
● Can be customized with 50 ± 5N thrust.

2,HNS-P2B Type B probe (standard test finger B)
Product overview: in line with GB4706, GB2099, GB4943, GB4208IPX2, GB3883 Figure 1, IEC61032 Figure 2 test tool B, IEC950 Figure 2A, IEC60884, IEC60335, GB/T16842 test tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards .
Protective test for preventing finger touch or electric shock proof.
● Can be customized with 10 ± 1N thrust.

3, HNS-P3C Type C probe (test probe C)
Product Overview: Comply with IEC61032 Figure 2 test fixture C, IEC60529IP3, GB4208IP3, GB/T16842 test fixture C, GB8898, IEC60065, IEC60598, GB7000 and other standards.
A protective test to prevent access by hand tools.
● Can be customized with 3 ± 0.3N thrust.

4,HNS-P4D Type D probe (test tool probe D)
Product Overview: Comply with IEC61032 Figure 4 test fixture D, IEC60529IP3, GB4208IP4, GB/T16842 test fixture D, GB8898, IEC60065, IEC60598, GB7000 and other standards. ,
Protective test to prevent hand-held wire touch.
Can be customized with 1 ± 0.1N thrust


Shipping & package


Shipping by air or by sea

1.By sea: slow but conomy for large equipment, and long times shipping (most about 30days),

2.By air :faster and more expensive for large equipment.

Shipping with express

DHL/UPS/FEDEX/TNT/EMS ECT





FAQ


1.What’s the shipping way?
Via air , sea or express like DHL, UPS, TNT, FedEx and so on.


2.What’s your after-sales service ?
One year warranty and life long tech support.



3.Can I book a factory tour?

Yes. Please contact us to arrange it.



4.Can I get a sample from you?

Currently we don’t  provide free samples, but you can get a paid one.



  1. What is your equipment warranty?

1year,if you need more ,welcome to contact us get more details .



  1. What’s the payment term?
    T/T, Western Union, Money gram ,PayPal ,Ali assurance etc .



7.What’s the lead time?
Normally in store is 3-7days,if need calibration is about 15days.please confirm from us first.



8.What’s your working hours?

8:30~12:00  13:30~18:00 (from Monday to Friday)
