Products Description

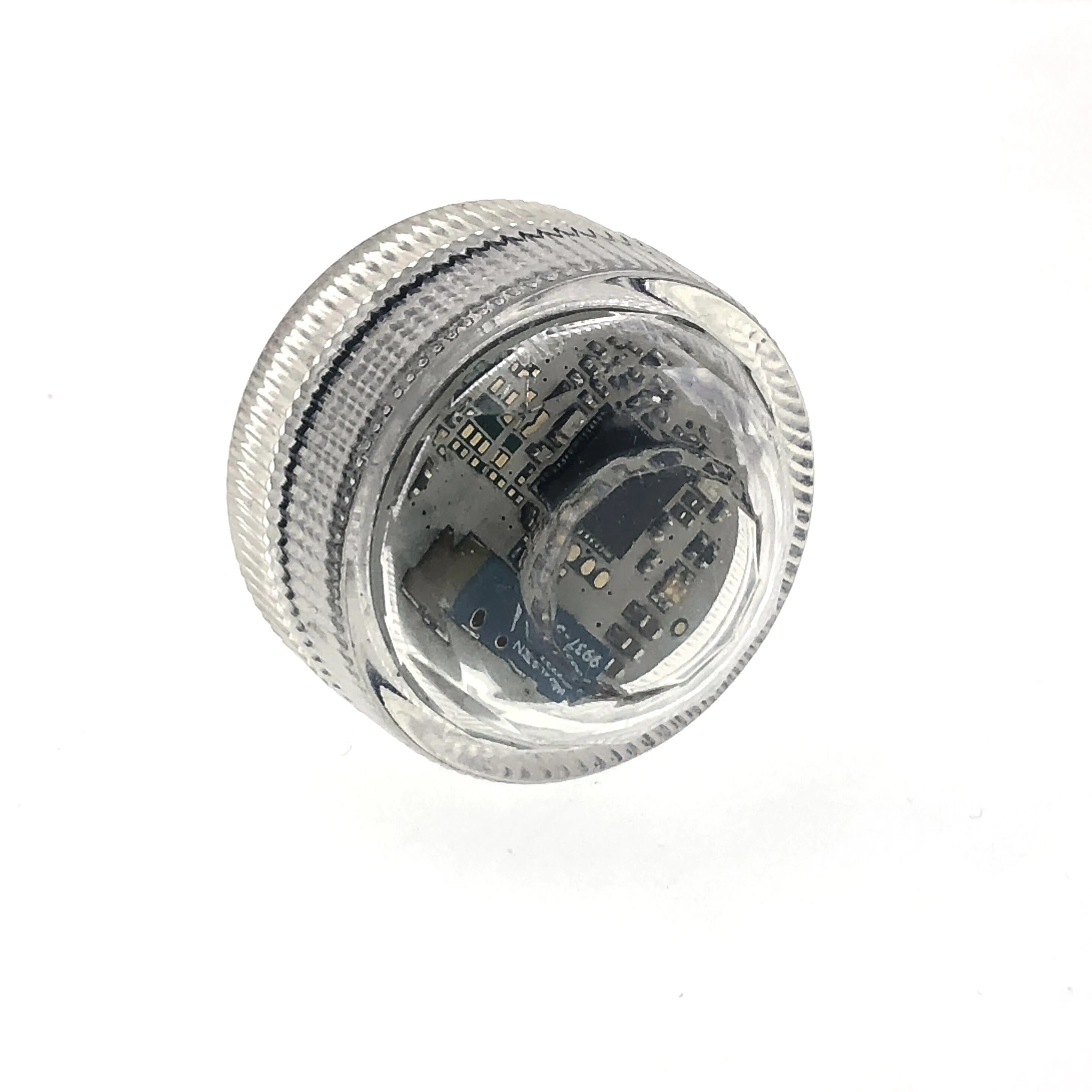

Jinou Beacon uses Bluetooth5.0 BLE technology; it can help you locate indoor. The searching range is up to 50m. Its small size like a coin that can be easily placed indoors. Users can detect its UUID signal RSSI signal,and battery life signal with smart phones. Users can change its paring code, transmitted power, and other customized functions. It has a virtue of quick respond and less Latency. We have made one special type for Apple standard and we can provide test app for Android (version 4.3 and up).
Beacon Waterproof
IP67 Waterproof with 50m Longer range.
Additional temperature&humidity sensors SHT30 available.
Compatible with iBeacon™ and Eddystone™ (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.
Item
Value
Remarks
Firmware
iBeacon
Version 5.0
Battery model
CR2032
Coin battery, 3.0Vdc, 1 pc
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Modulation
Q-QPSK
Standby current
0.05mA
Depends on duty cycle/broadcasting frequency
Output Power
0 dBm
Default setting, programmable
Broadcasting Frequency
2S
Duty cycle
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
25 -45meters
BER<0.1%, Open space
Antenna
50ohm
On board/ PCB Antenna
Case Size
34.00mm*10.00mm
Operation Voltage
2.7-3.3V
DC
Applications:

- advertising and positioning
- supports nrf52180 BLE module 5.0
- Built-in pairing password preventing others to modify Settings
- UUID, Major and Minor values can be amended by the users
- Broadcast cycle can be modified by the users
- The battery intelligent detection and notification
- Names shown on the IOS device can be modified by the user
- Free iBeacon firmware upgrade services
