Китай прицеп материал 5083 алюминиевый сплав танкер размеры

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

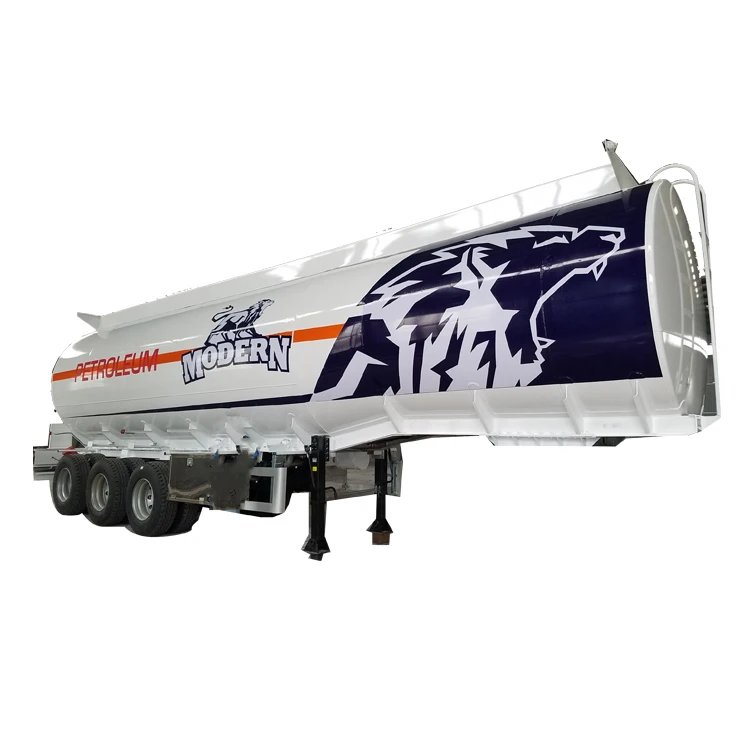

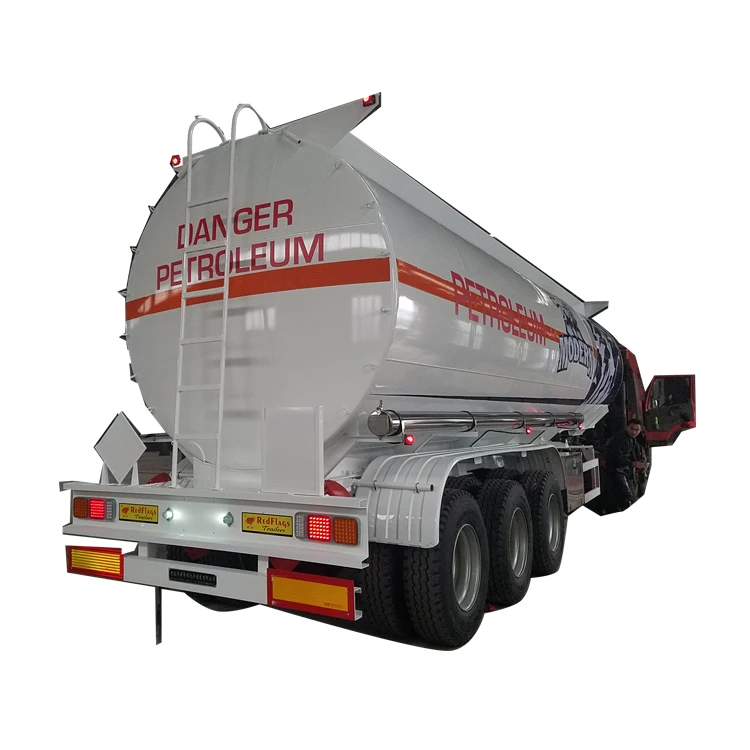

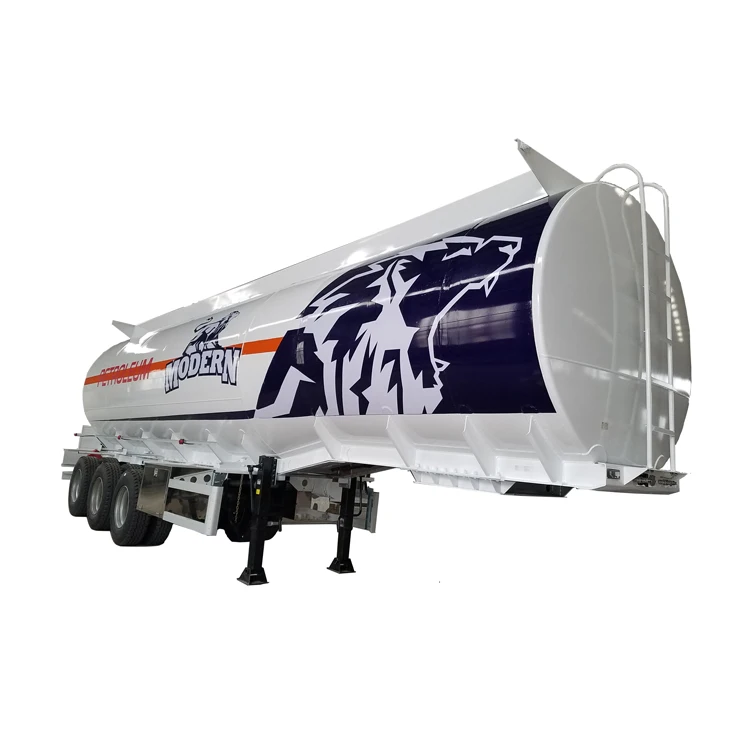

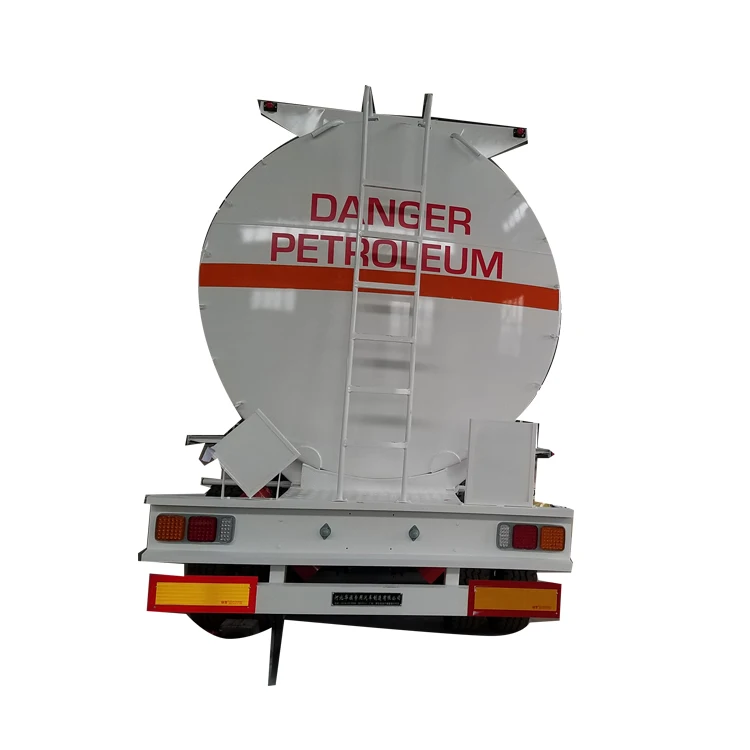

Product Description

Specification

Brand	Qi Lin
Model	QLG9404GYY
Usage	Load fuel /diesel
Total weight	40000kg
Tare weight	6800kg
Max payload	40000kg
Tank volume	43cbm
Tank material	Aluminium alloy
Overall dimension	11800mm2500mm3800mm
Tank dimension	11500mm2400mm2400mm
Side protective device	Q235 steel,screw bolt connection
Rear protective device	Q235 steel,welding connection
Bottom edge height	530mm
Axle	24000kg payload/3pcs
Tire	11.00R20 12PR,12R22.5 12PR/12pcs
Leaf spring number	-/10/10/10,-/9/9/9,-/13/13/13
Wheelbase	4580mm+1310mm+1310mm
Rear tread	1840mm/1840mm/1840mm
Rear suspension	1300mm
Departure angle	23°
Braking system	With ABS system(CM2XL-4S/2M)
Electrical system	24 voltage,7 wire harness.
Light	LED type
Painting	With shot blasting and 4 layers painting,color is optional.
Remark	The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

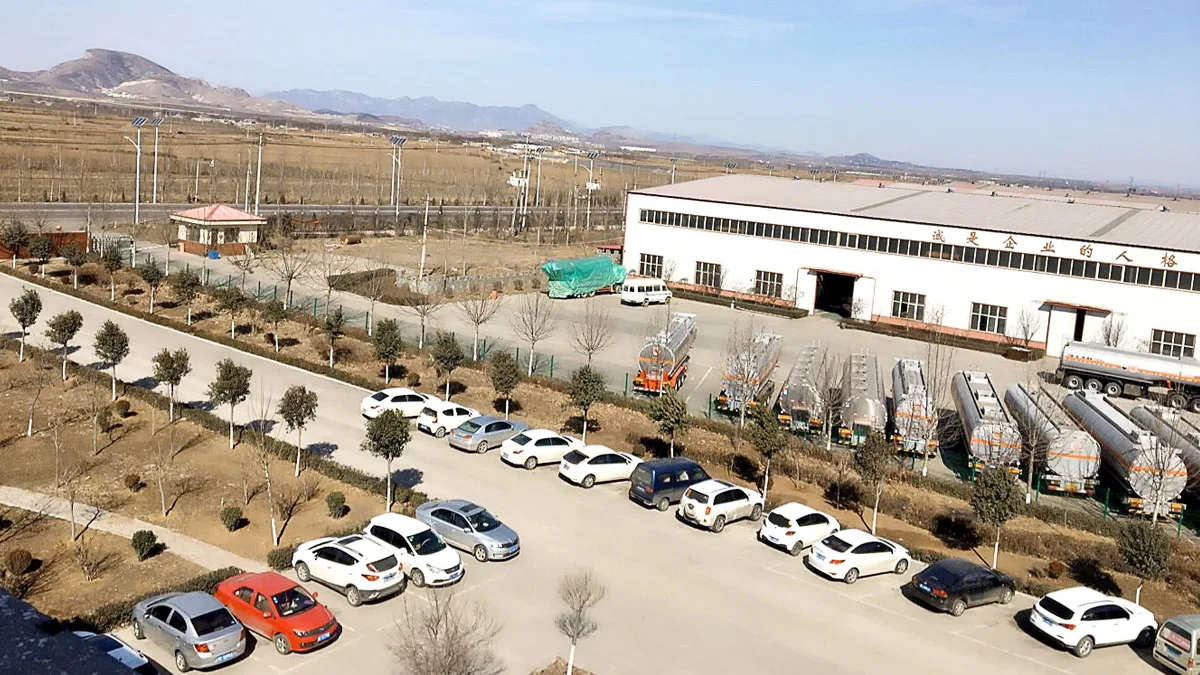

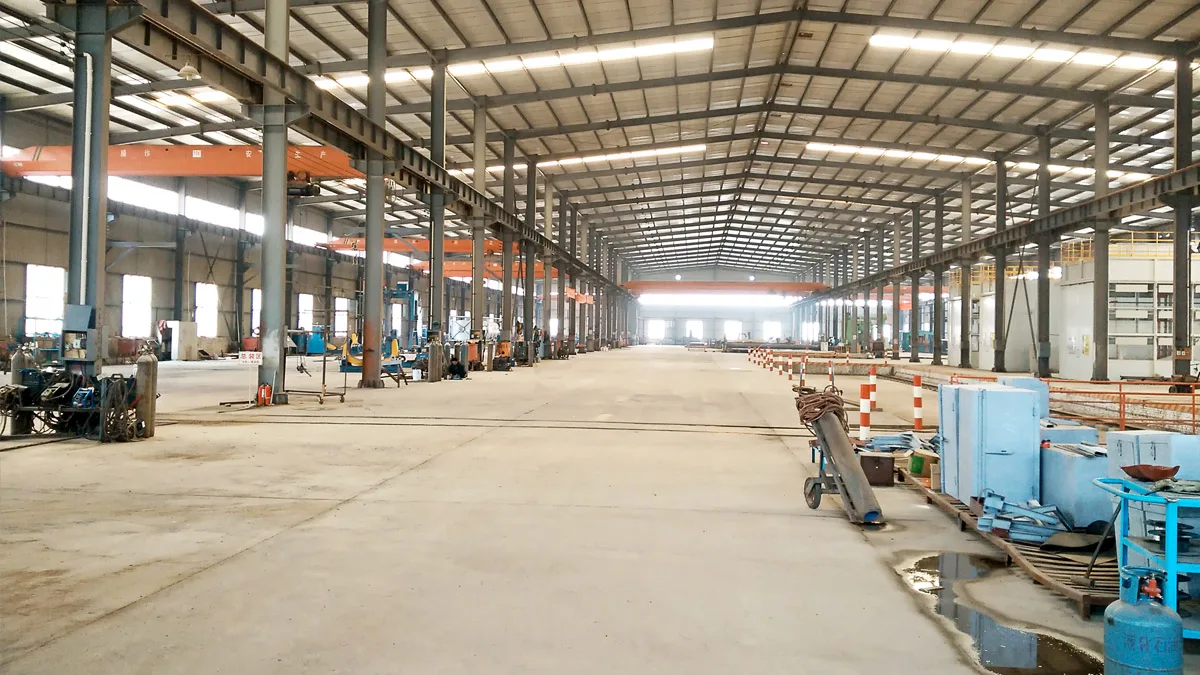

Company Profie
