 Hot sale Ultrasonic Lace Machine with Mask mould

Features:

1.Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding
2.Eliminating traditional needle and thread.,reduce material cost and more high speed
3.No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.Continuous working for mass production
5.No smoke, spark and danger during operation
6.Easy operation realizes lowest labor cost;double motors structure
7.Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.Thousands of pattern roller designs available,easily to replace


Parameters:

Commodity	Ultrasonic lace machine
Specification	TC-60
Output(W)	1500~2000W
Frequency(KHz)	20KHz
Voltage(V)	220V
Mould size	Width:0-60mm; Diameter:50-60mm
Working speed	0-20m/min
Welding area (mm)	Ø60mm
Dimension(L×W×H)	1270*600*1270mm
N.W (kg)	90kg







Functions:

 1. Trimming: Straight or curvilinear edge cutting  and edge treatment for melting,so smooth, no rough edges;

2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.



Suitable material:

All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PU, PE, PP, PS, etc.

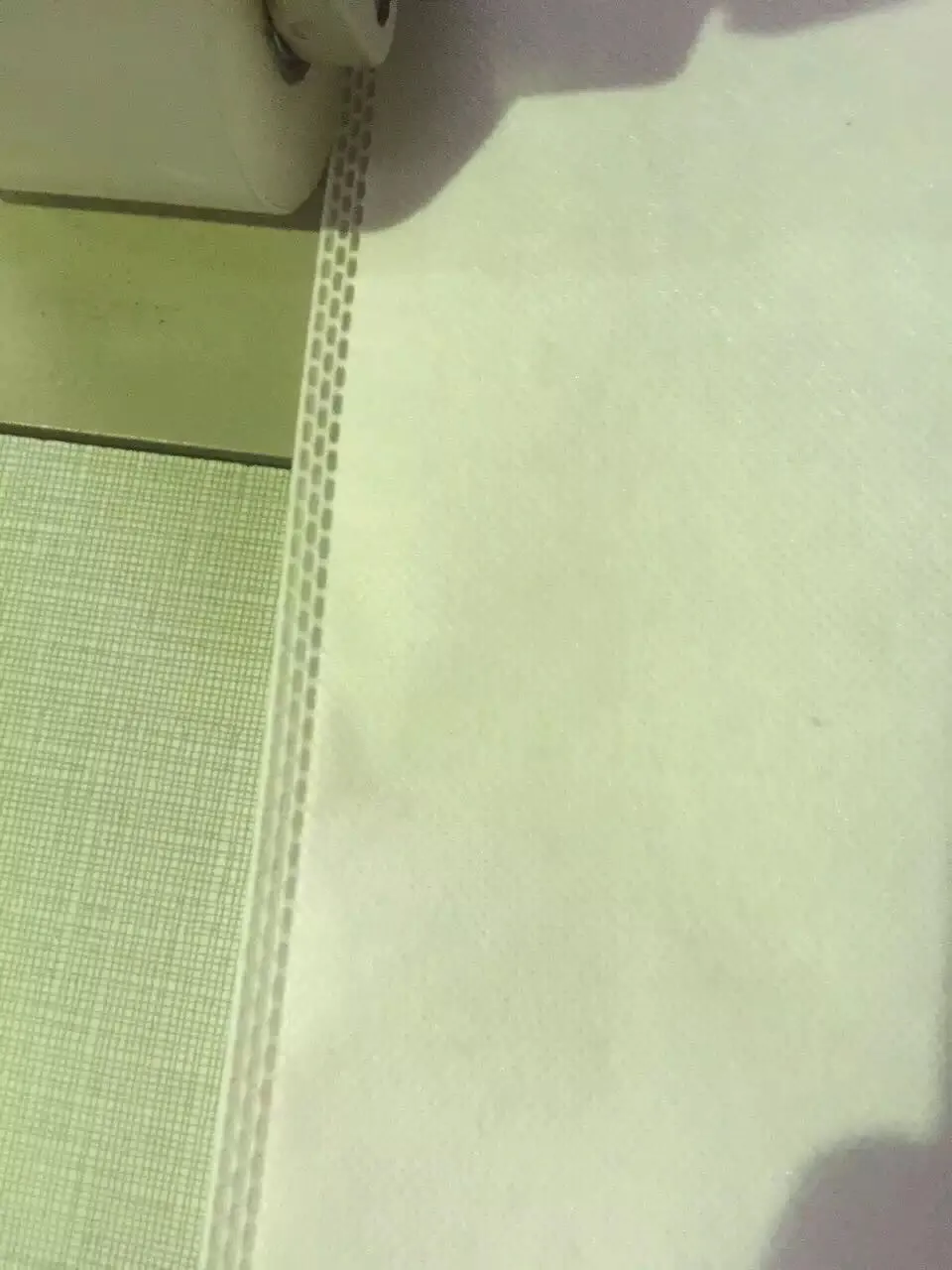

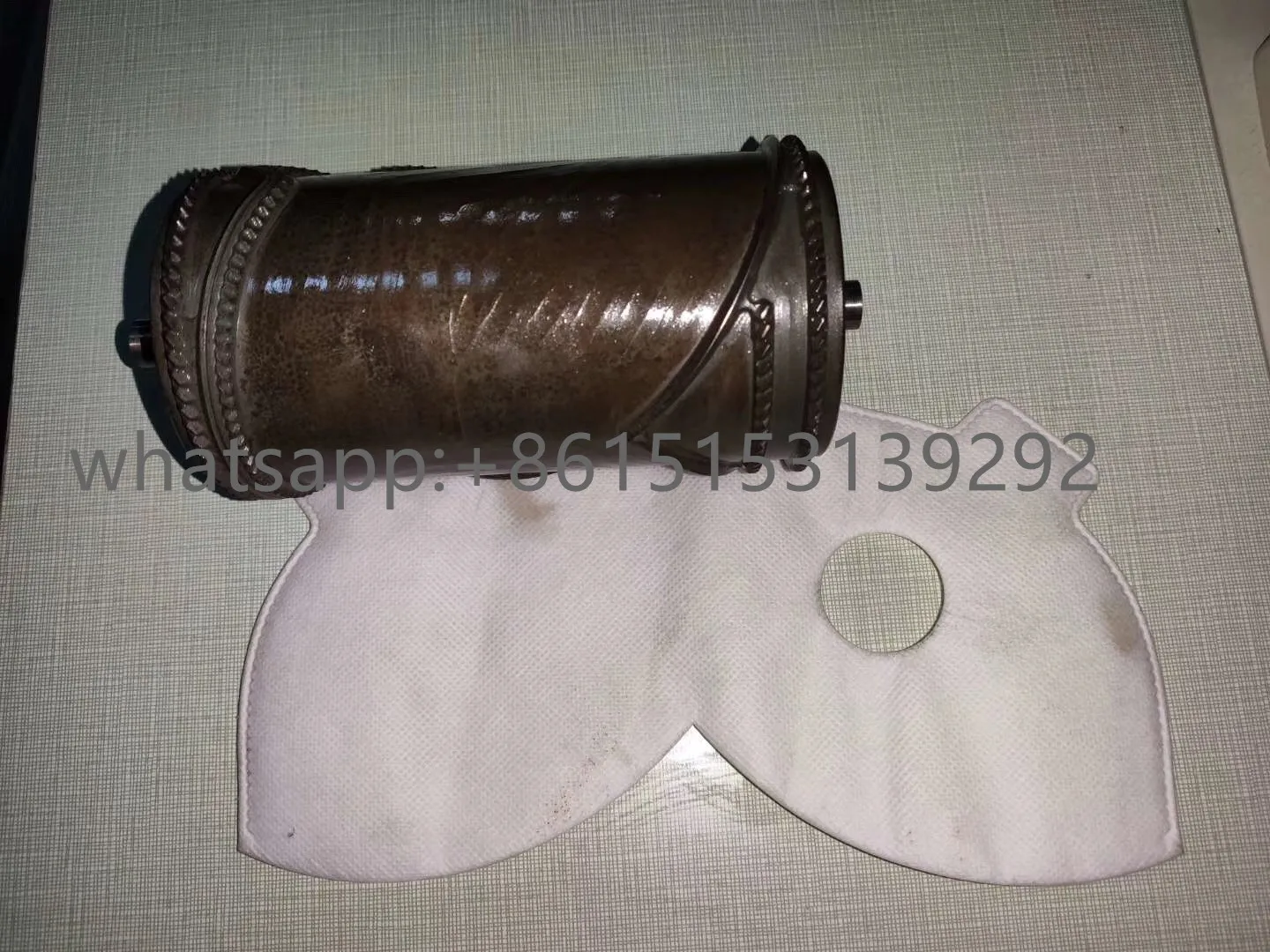

Samples:
