Product Description
SDLG pilot control wheel loader 5ton lg953 on sale
LG953 is a mid-long wheelbase loader which is suitable for handling bulk materials and hard materials.It features moderate wheelbase,high breakout force,small turning radius,combination of heavy load and flexibility,wide range of operations,strong applicability,and is widely used in sand yards,ports,construction sites,mines and other occasions.
Detailed Images
Product Paramenters
L*W*H | 7920*3024*3423mm | |||||
Wheel base | 3000mm | |||||
Min. ground clearance | 534mm | |||||
Max. dumping height | 3080mm | |||||
Dumping distance | 1105mm | |||||
Dumping angle | 45 | |||||
wheel tread | 2250mm | |||||
steering angle | 35 | |||||
horizontal crossing radius | 6980mm | |||||
Min. turning radius | 6040mm | |||||
Overall parameters | ||||||
Backet capacity | 2.8m3 | |||||
Rated load | 5000kg | |||||
operating weight | 16800kg | |||||
Max. tractive force | 152kN | |||||
Max. breakout force | 175kN | |||||
Tipping load | 110kN | |||||
Engine | ||||||
Model | WD10G220E21 | |||||
Type | Inline, watercooled, dry cylinder liner, direct injection | |||||
Rated power | 162kW | |||||
Rated speed | 2200r/min | |||||
Engine displacement | 9726ml | |||||
Max. torque | 860N.m | |||||
Emission standard | GB 20891-2007(China Phase II) | |||||
Min. fuel-consume ratio | 215g/kw.h | |||||
Transmission system | ||||||
Torgue converter | single-stage four-element double-turbine hydraulic torque converter | |||||
Transmission type | Planetary power shift | |||||
Gears | Forward 2 reverse 1 | |||||
Hydraulic system of working device | ||||||
Type | pilot control | |||||
total time | 9.3s | |||||
Brake system | ||||||
Service brake type | Air over hydraulic disc type | |||||
Parking brake type | Manual control internal expanding shoe brake | |||||
Steering system | ||||||
Type | Load sensing full hydraulic articulated steering | |||||
System pressure | 16 Mpa | |||||
Fill capacity | ||||||
Fuel | 260L | |||||
Hydraulic oil | 240L | |||||
Engine | 20L | |||||
Transmission | 44L | |||||
Drive axle | Forward 26L+ reverse 26L | |||||
Braking system | 4L | |||||
Related Production To Choose
Online Service

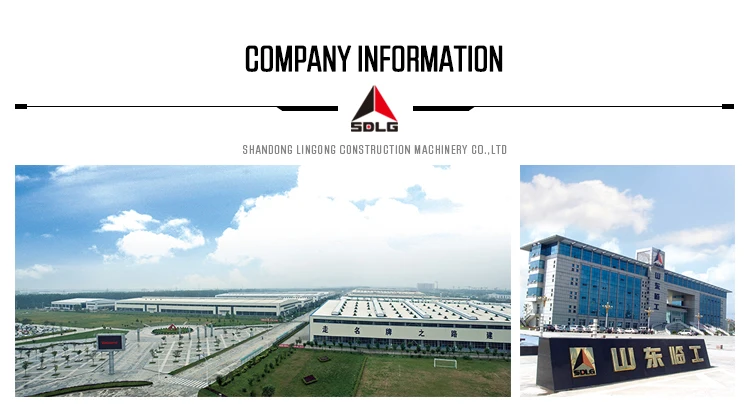

Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
