Description:
The M230T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive
Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

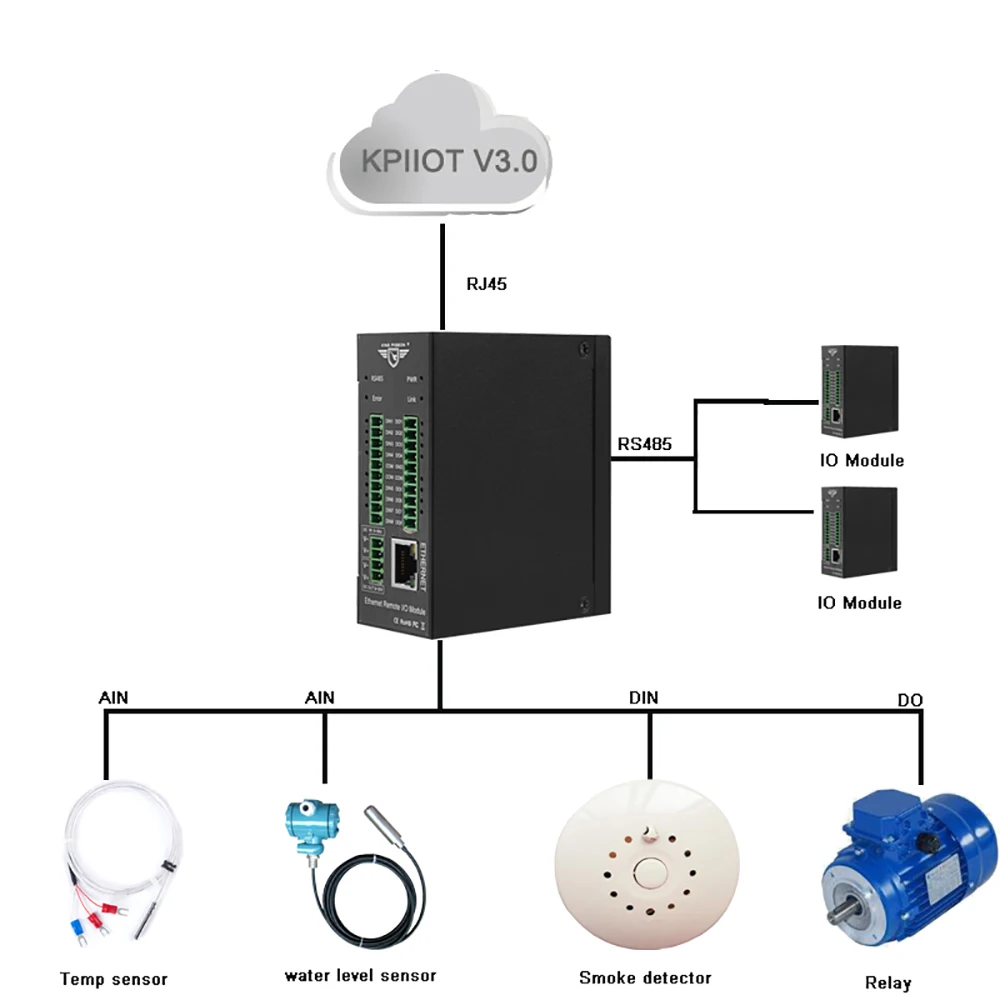

The M230T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade
Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting thencan get a quick response to meet the industrial timely requirements.
The M230T Ethernet Remote I/O module provides 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.
Features:
Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
Wide range power supply 12~36VDC with over voltage and phase-reversal protection;
Support Web realtime monitoring and Web debugging;
Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;
4 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;
High sampling frequency and special filtering strategy to ensure reliability;
1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;
Supports register mapping function and extend I/O inquiry strategy;
Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;
LED instructions work status, with reset button to reset, easy on-site installation and commissioning;
Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
Package:
M230T*1
