Растягивающаяся сетка с ручным экраном 24 дюйма X для шелкографии Hanze MSR
- Категории: Форпресс оборудование >>>
- Поставщик: Hebei,Hanze,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

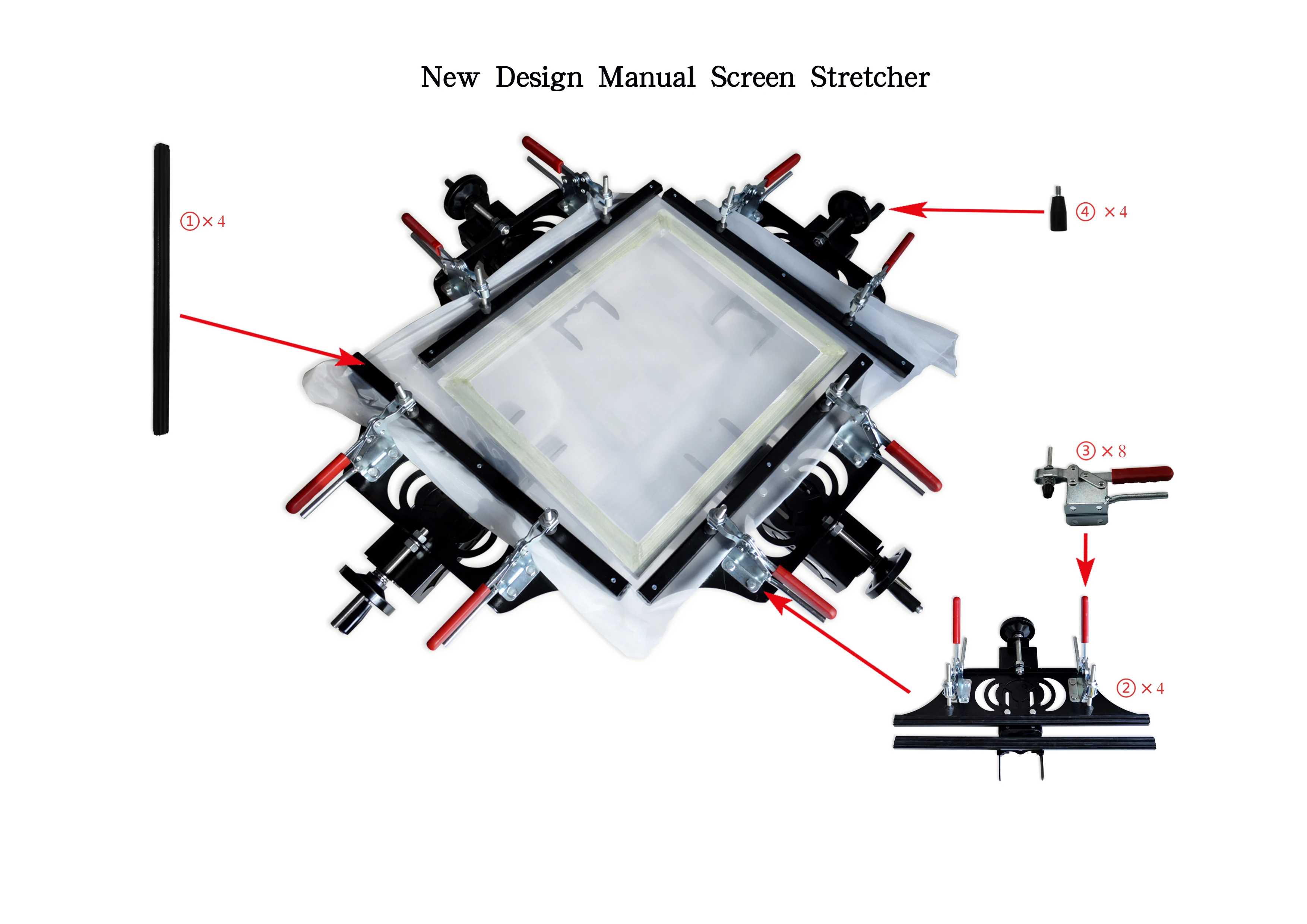

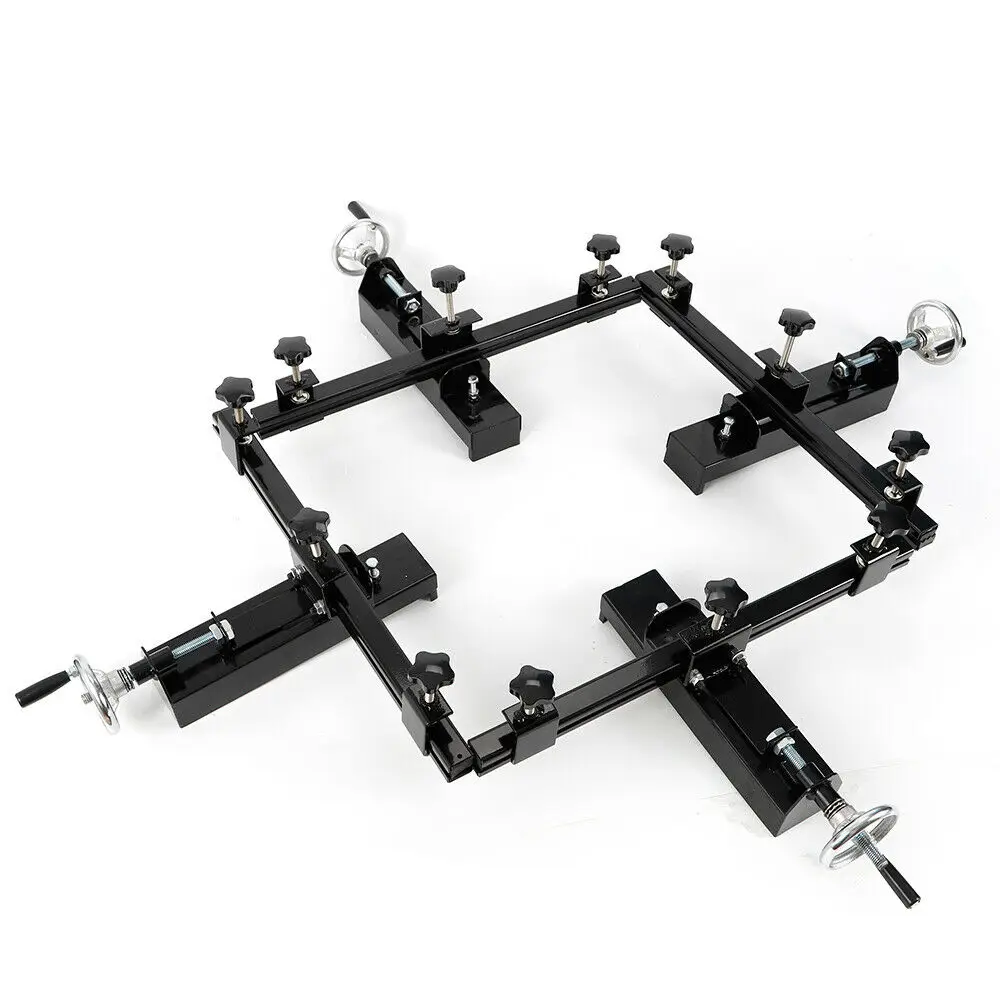

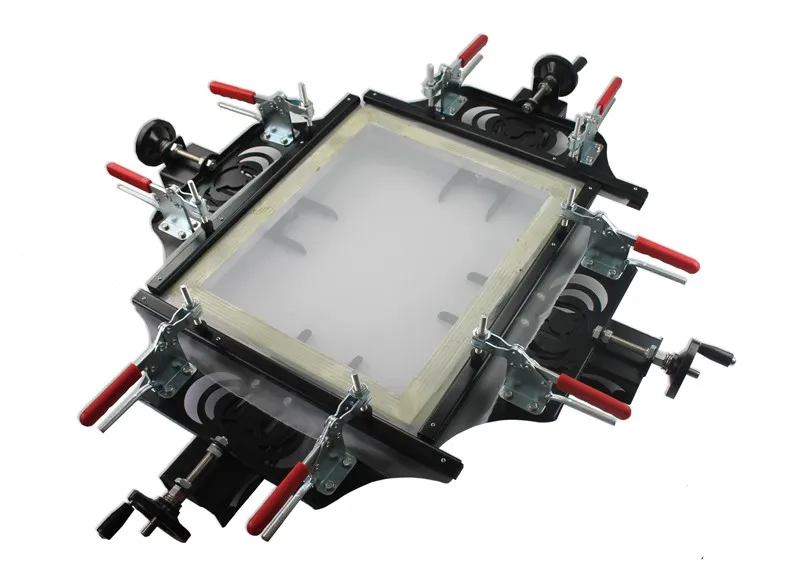

This manual screen stretcher was composed of 4 pcs 60cm width single piece,can be placed directly on the desktop.

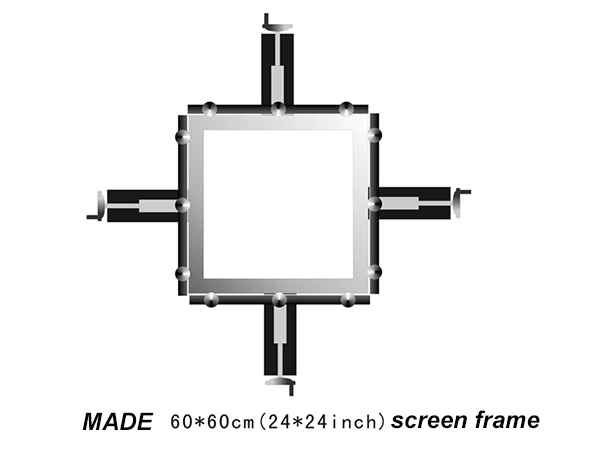

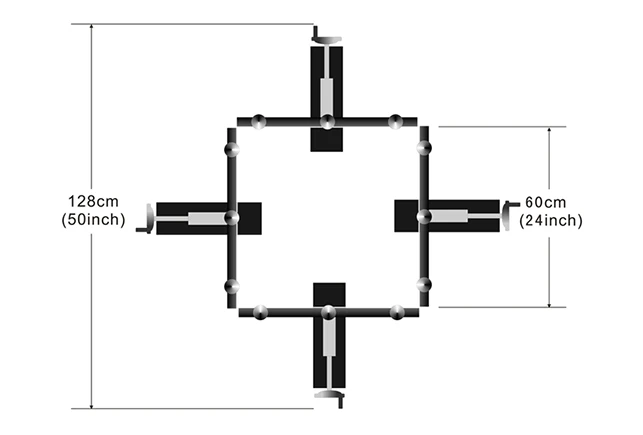

The single set(4 pcs) which can hold the frame within 60*60cm.

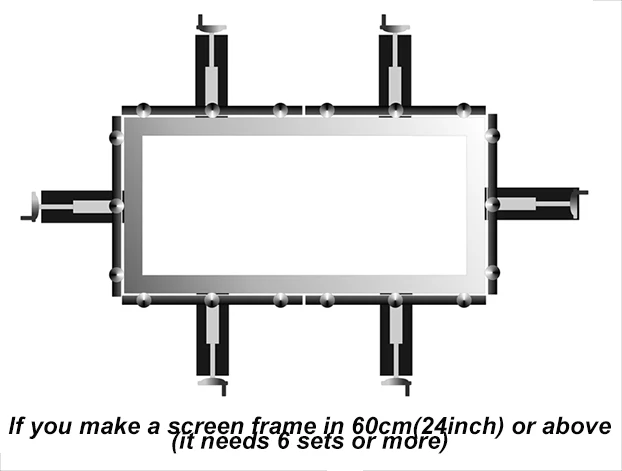

Six pcs which can hold the frame within 60*120cm.
Eight pcs which can hold the frame within 120*120cm.
Use the machine can reach the tension within 24N.
The functions and features of this machine:
1.The rubber layer is concave convex; using tasteless and resistant to aging rubber.
2.The rubber layer is completed ,without seams or butt joint, that ensure the screen is equal.
3.The hardness of rubber is reasonable,make the mesh is not loosen.

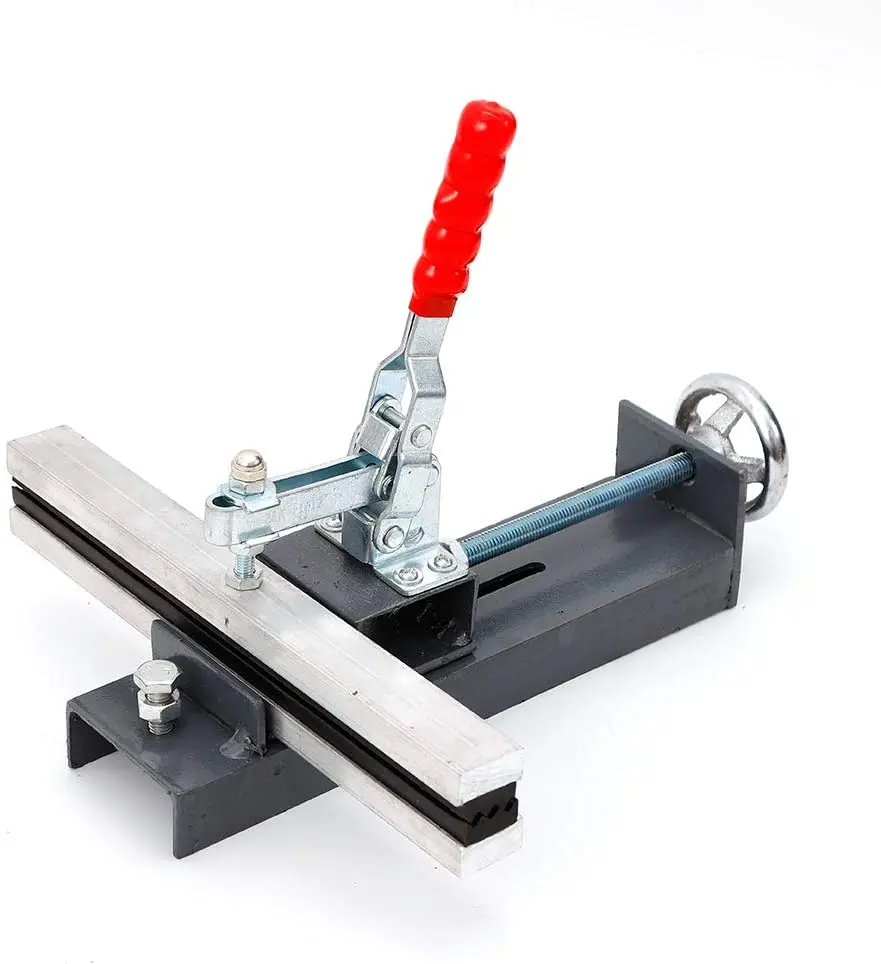

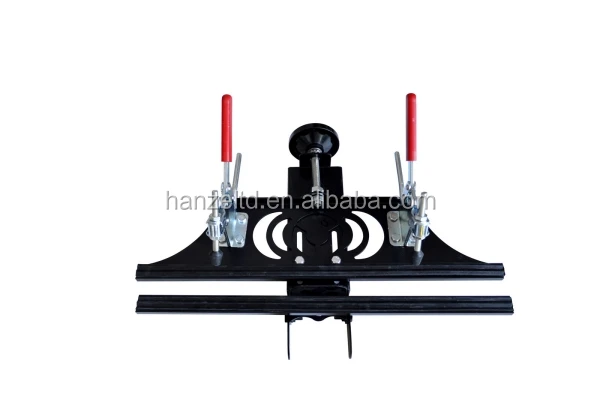

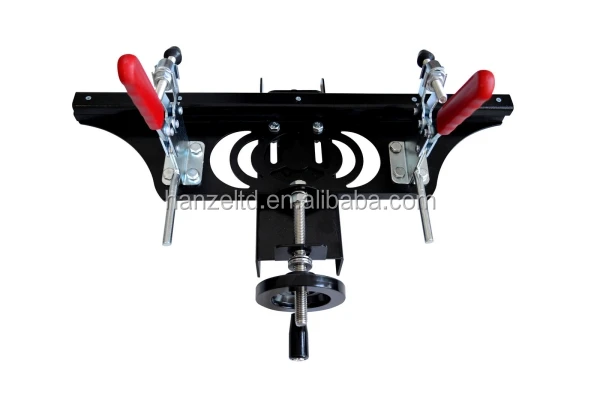

4.The top rubber and fast fixture adopts split structure,place the top rubber is more convenient.
5.The fast fixture uses auxiliary handle,buckle and loose are more effort.
6.Suitable for the thickness of different frame by adjust the screws.

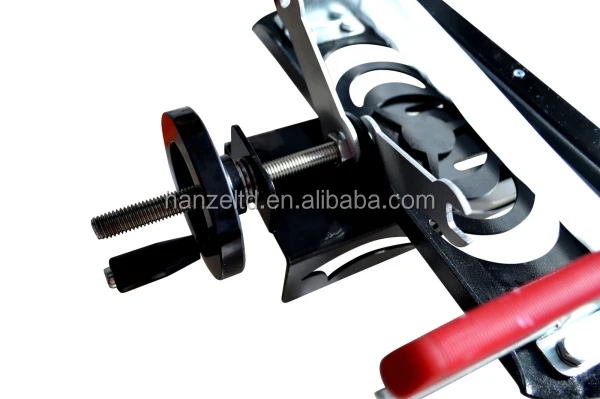

7.Tighten the handle wheel, rotate the handle wheel more easily.

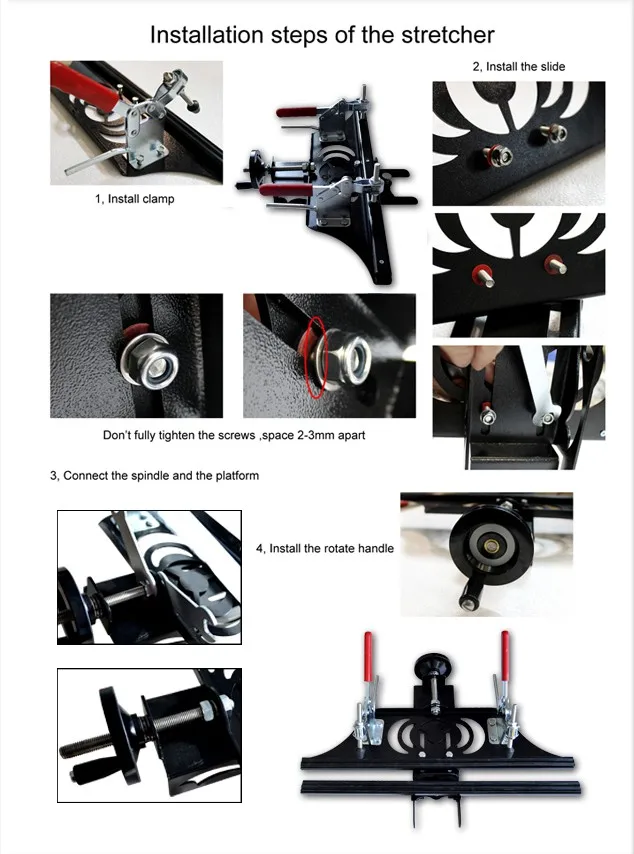

8.Equipped with whole set installation tools and installation instruction.
The single set(4 pcs) which can hold the frame within 60*60cm.
Six pcs which can hold the frame within 60*120cm.
Eight pcs which can hold the frame within 120*120cm.
Use the machine can reach the tension within 24N.
The functions and features of this machine:
1.The rubber layer is concave convex; using tasteless and resistant to aging rubber.
2.The rubber layer is completed ,without seams or butt joint, that ensure the screen is equal.
3.The hardness of rubber is reasonable,make the mesh is not loosen.
4.The top rubber and fast fixture adopts split structure,place the top rubber is more convenient.
5.The fast fixture uses auxiliary handle,buckle and loose are more effort.
6.Suitable for the thickness of different frame by adjust the screws.
7.Tighten the handle wheel, rotate the handle wheel more easily.
8.Equipped with whole set installation tools and installation instruction.
Specification
Min. stretching area | 250*250 MM |
Max. stretching area | 600*600 MM |
Max. stretching tension | 50N/CM |
Package size | 67x64x22cm(27x26x9inch) |
Feature
Easy Frame Size Adjustment
Corner Softening Capabilities While Under Tension
Compatible with Essentially all Frame Types
Stretches Directly from the Bolt of Fabric
Utilizes a Wide Locking Bar for Easy Use
No Special Training or Tools Required
Maintenance-free Design
Corner Softening Capabilities While Under Tension
Compatible with Essentially all Frame Types
Stretches Directly from the Bolt of Fabric
Utilizes a Wide Locking Bar for Easy Use
No Special Training or Tools Required
Maintenance-free Design
Details Images
Operations:
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled.
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled.
