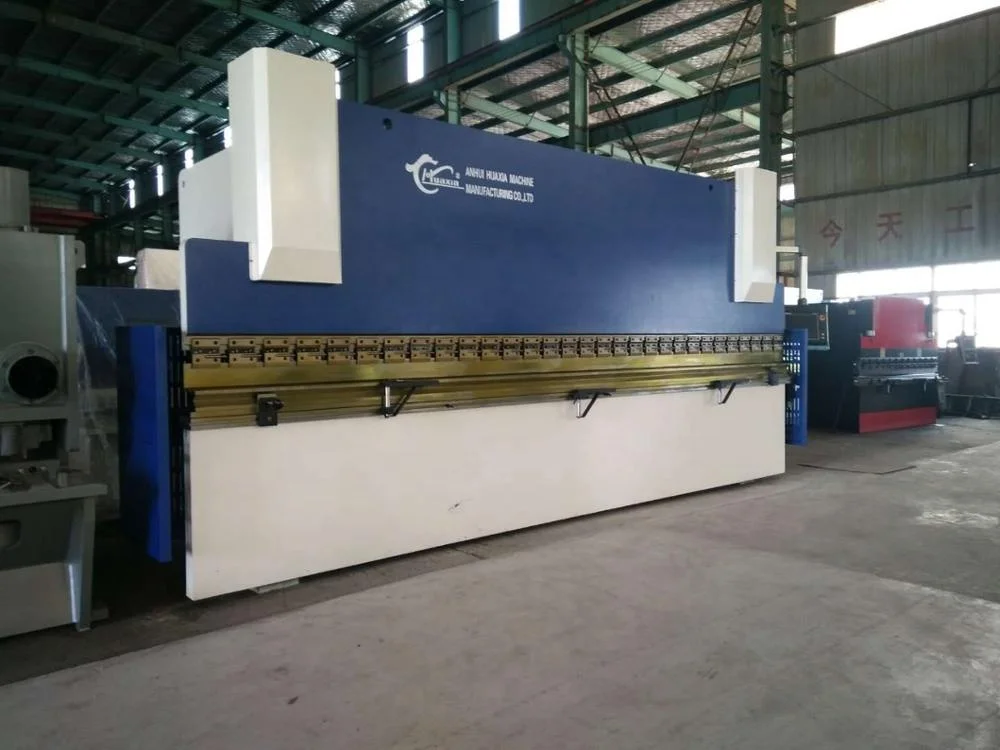

Листогибочный станок с ЧПУ WD67K800T6000 контроллером
- Категории: Оборудование для обработки металлических листов >>>
- Поставщик: Anhui,HuaXia,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
electro hydraulic servo CNC press brake machine WD67K-800T/6000 with DA66T system (3+1 axis) | ||||||
FEATURES: |
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment 2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany. 3. Electro-hydraulic servo CNC, Y1, Y2,for Oil cylinder stroke X, R for back gauge , Z1,Z2 for back gauge fingers, V for Hydraulic compensation. 3 + 1 axis 4. The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by DA66T. 5. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays. 6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety |
Table compensation device---- Vera workbench |
The V axis is the axis of CNC control table and convex amount, can obtain the deflection compensation precise on the working table length. With convex wedge convex table by a group with an inclined plane each with convex wedge slope deflection curve designed according to the sliding work table vertical plate, finite element analysis and. CNC system according to the load force of the workpiece bending size (the force causes the slider and the work table vertical plate deflection deformationi), compensation calculation required, automatic control and relative displacement of convex wedge block, so as to effectively compensate the deflection slider and table upright plate deformation, bending workpiece can get the ideal. |

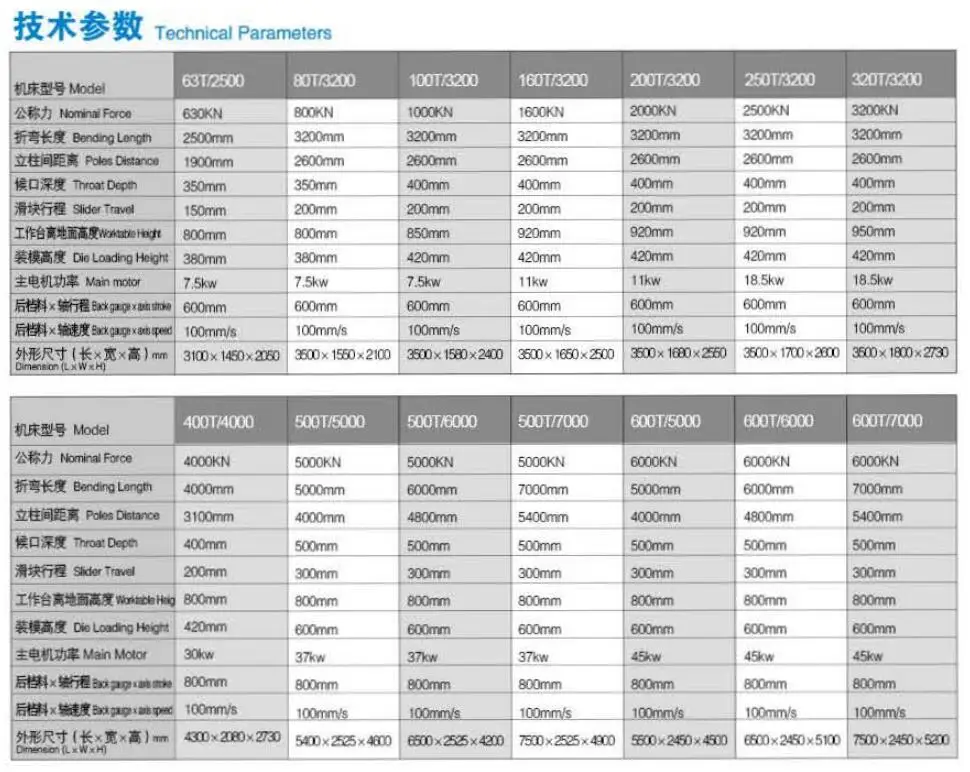

Technical parameters

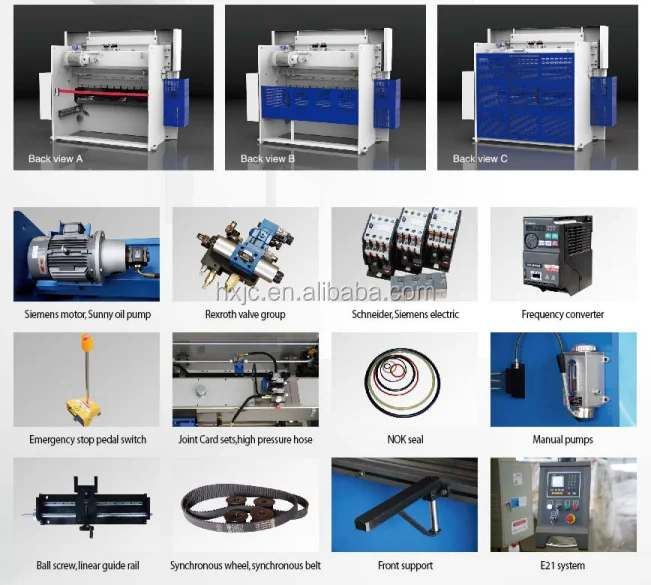

Detailed Images

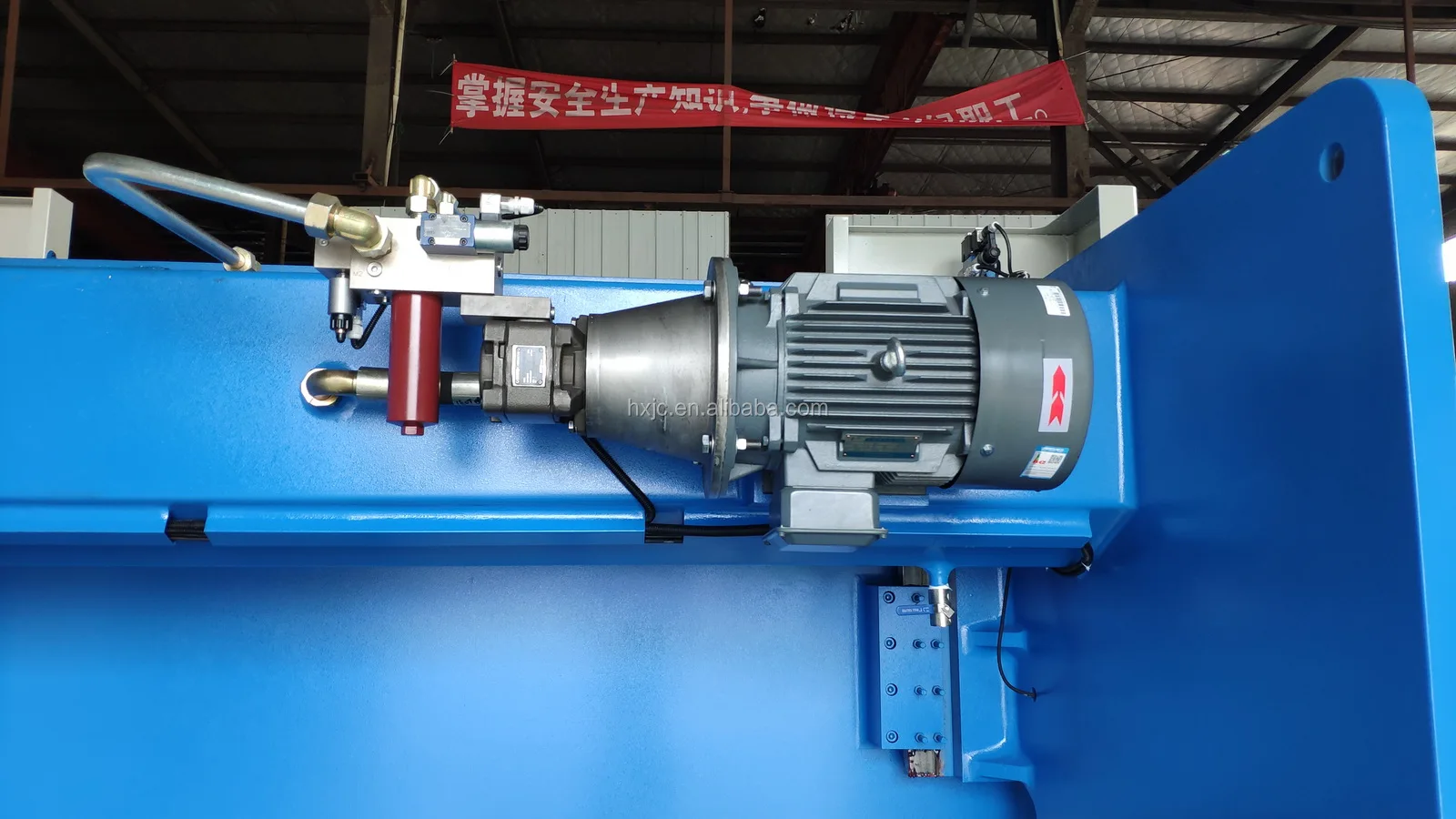

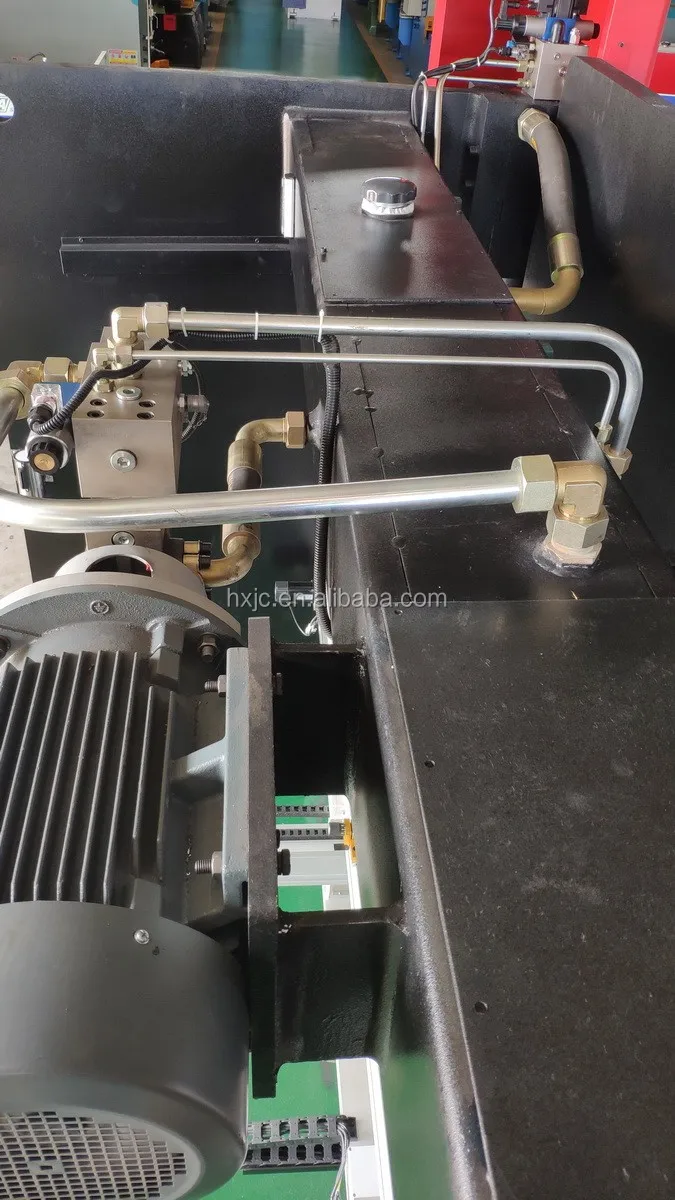

1.Germany Bosch Rexroth oil pump:Low noise, long service life, excellent power
2.Germany Siemens motor :
Siemens motor has a high efficiency level to reduce energy consumption, which can help users save costs.At the same time,it can ensure the safety and reliability of customers.This motor has high cost performance and long service life.

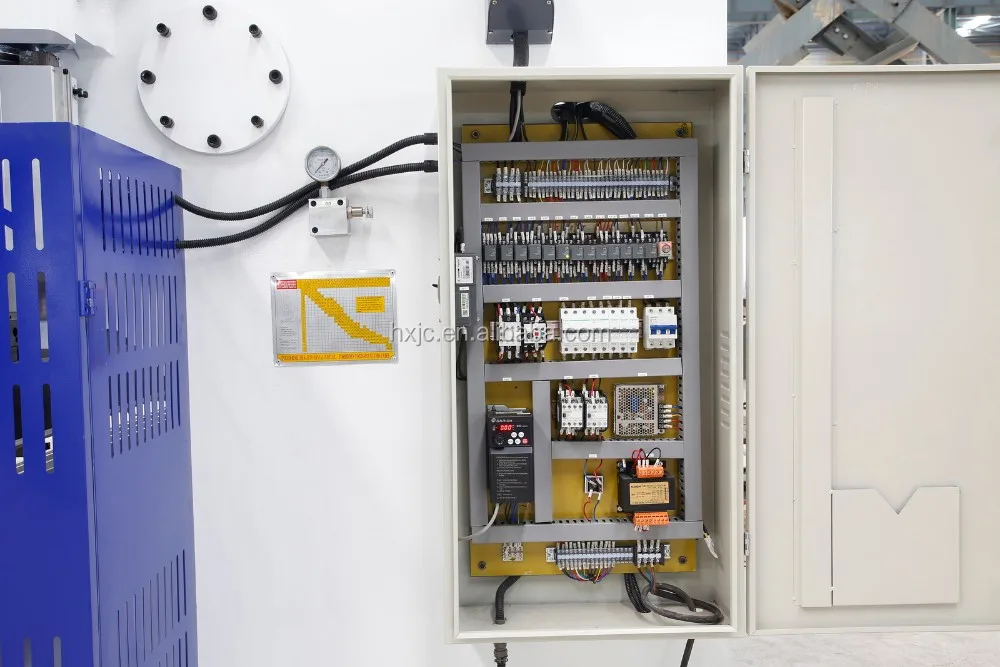

Brand:France Schneider
1.Modular design, flexible extension
2.Install anti-harsh environment accessories, effectively extend the service life in damp and harsh environment
3.Easy to operate, reliable interlock and safe to use
Material:42CrMo
42CrMo is alloy tempered steel with high strength, good strength and toughness. It can work under 500 degrees.
Brand:EMB,Germany
Installation and disassembly is convenient, the connection is firm, the sealing is good, the appearance size is small, the oil transmission ability is big, the pressure loss is small, the processing technology is good.

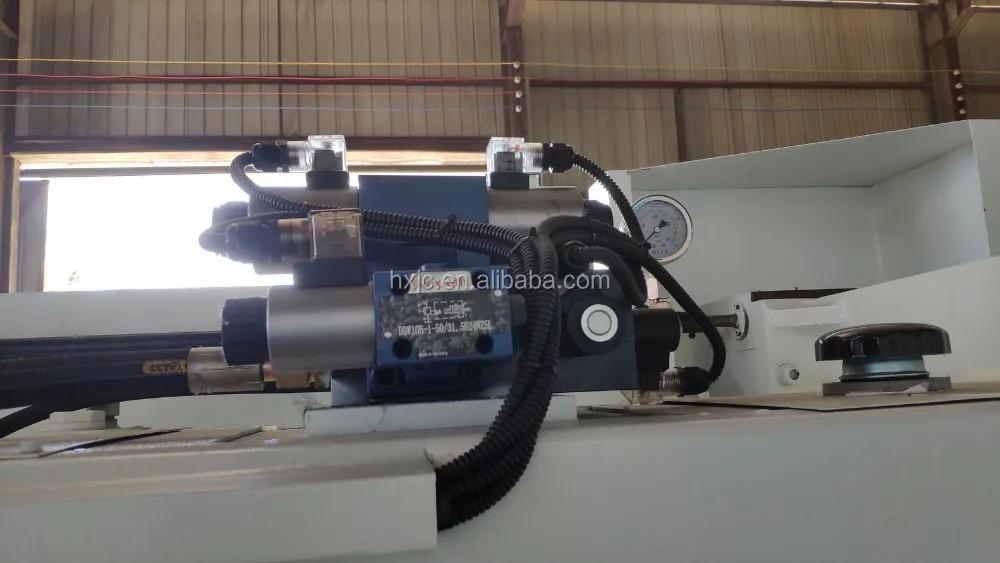

Brand: Rexroth Germany
Flexible action, reliable action, small shock and vibration, low noise, long service life.
Certifications
Our factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

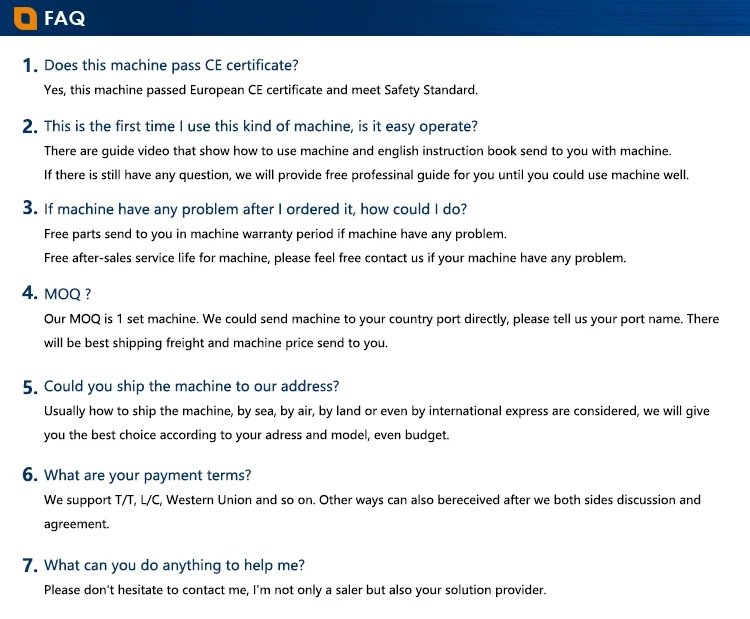

FAQ
