6 inch 8 inch 10 inch 12 inch diesel water pump high capacity



6 inch 8 inch 10 inch 12 inch diesel water pump high capacity



 The casing is axially split, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor.Pumps generating high heads have double volutes to reduce radial forces.



 Replaceable wear ring protect the casing at the impeller running clearances. Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing is optional according your working conditon, and so as electric motor or diesel engine driver.



6 inch 8 inch 10 inch 12 inch diesel water pump high capacity Application

The split casing pump is widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...



Type QS,QSH pumps are single stage, double suction with horizontally split casings.

Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.

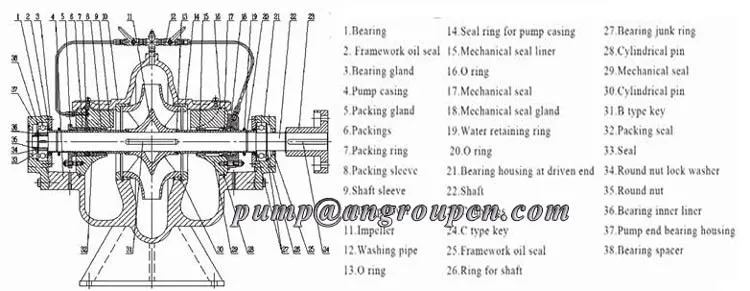

Constructure drawing of 6 inch 8 inch 10 inch 12 inch diesel water pump high capacity







6 inch 8 inch 10 inch 12 inch diesel water pump high capacity

performance parameters





Model	Flow rate (m3/hr)	Head (m)	Speed (rpm)	Power (kw)	Eff (%)
QS150	110~220	35~84	2900	30~55	67~80
QS200	160~351	31~100	2900	37~110	67~85
QS250	324~612	8.6~71	1450	22~132	72~86
QS300	504~972	8~98	1450	30~300	70~84
QS350	745~1663	10~140	1450	55~680	70~88
QS400	900~1620	32~98	980~1480	155~500	71.5~84
QS500	1150~2450	10.6~108	740~970	110~800	70~89
QS600	2304~4000	13~80	730~970	185~900	70~91
QS700	2111~4896	39.5~99.5	740~980	560~1250	72~92
QS800	3960~7200	23.5~84	600~740	450~1600	77~92
QS1000	6000~9900	32~52	600~990	1250	79~87
QS1200	5832~14400	6~95.7	500~745	710~3450	80~90
