Product Description

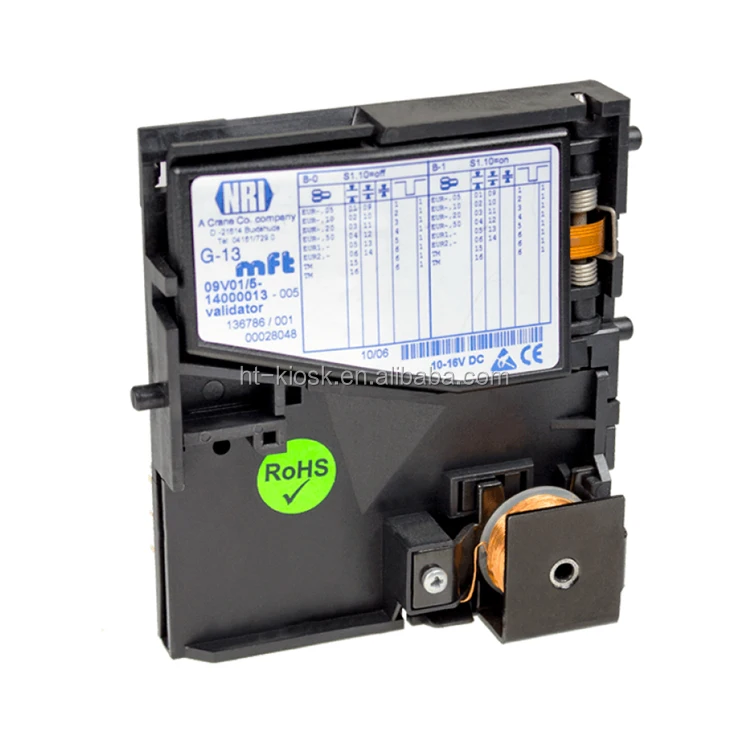

G-13 coin acceptor for self service terminal kiosk with coin validator
Specifications
Coin Insertion
Single coin, top or front entry
Coin Speed (coin/s)
2 - 6 Coins per second
Dimensions (H x W x D in mm)
Dimensions (HxWxD) 102mm x 89mm x 52mm
Industry Format
3.5 inch
Coin Sorting
Optional / external 3-way
Operating Temperature
-25°C to +70°C
Coin Processing
32 coins max. in 2 x 16 or 1 x 32 channels Coin Diameter: 15 – 31.5mm (optional up to
32.5mm) Coin Thickness: 1.5 – 2.5mm (optional up to 3.3mm)
Front Plate
Available for front entry
Interfaces Supported
Parallel: Standard version
Parallel: SGI 16/49/46/62/33/80/100 versions as Simple Gaming Interfaces
Parallel: Casino version for high-speed coin acceptance
Parallel: AMU version for AWP Spain
Parallel: With totalizer function as 1/2-price totalizer, Timer, TV totalizer
Parallel: BDTA-compatible 16-pole interfaces
Parallel: ECV-totalizer
Serial: ccTalk, also in combination with USB
Serial: MDB and S1
Supply Voltage
10 V DC – 27 V DC ±10%, Optional: 10 V DC – 48 V DC
Single coin, top or front entry
Coin Speed (coin/s)
2 - 6 Coins per second
Dimensions (H x W x D in mm)
Dimensions (HxWxD) 102mm x 89mm x 52mm
Industry Format
3.5 inch
Coin Sorting
Optional / external 3-way
Operating Temperature
-25°C to +70°C
Coin Processing
32 coins max. in 2 x 16 or 1 x 32 channels Coin Diameter: 15 – 31.5mm (optional up to
32.5mm) Coin Thickness: 1.5 – 2.5mm (optional up to 3.3mm)
Front Plate
Available for front entry
Interfaces Supported
Parallel: Standard version
Parallel: SGI 16/49/46/62/33/80/100 versions as Simple Gaming Interfaces
Parallel: Casino version for high-speed coin acceptance
Parallel: AMU version for AWP Spain
Parallel: With totalizer function as 1/2-price totalizer, Timer, TV totalizer
Parallel: BDTA-compatible 16-pole interfaces
Parallel: ECV-totalizer
Serial: ccTalk, also in combination with USB
Serial: MDB and S1
Supply Voltage
10 V DC – 27 V DC ±10%, Optional: 10 V DC – 48 V DC
