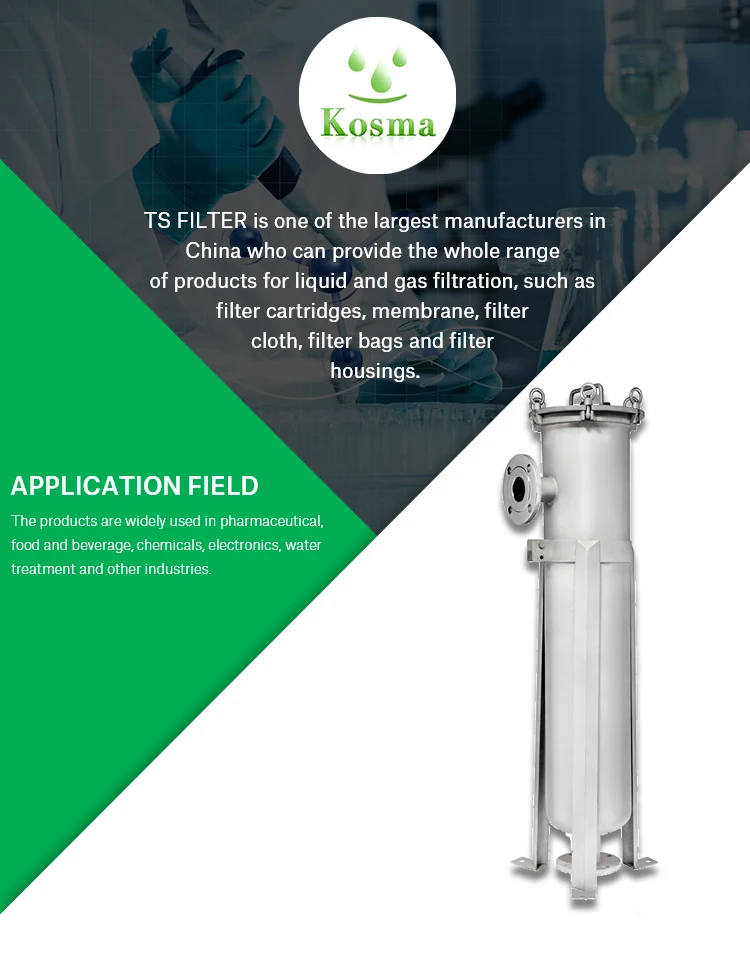

 TS Filter Supply Hot Sale Customized Stainless Steel Bag Filter Housing for Beer Wine Juice Nut Milk Filtration





Features & Benefits:

• High flow rates


• Complete stainless steel 304,316L structure


• High temperature & High pressure design are available


• Wide range of bag size for choice


• Easy to clean

Specifications:

Type	Model	Dimension(mm)		Connection	Bag		Flow rate(m3/h)
		Diameter	Height		Size	Q'ty(pc)
Single Bag Filters	BJD1	220	550	2''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)	#1	One	20
	BJD2	220	950		#2		40
	BJD4	130	650		#4		12
Muti-Bag Filters	BJD2-2	400	1550	3'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)	#2	Two	80
	BJD2-3	500	1550		#2	Three	120
	BJD2-4	550	1550		#2	Four	160
	BJD2-5	600	1550		#2	Five	200

Operating Conditions(Bag Filter):

Max.Operating Pressure: 6 bar(87psi) ,  10.34bar(150psi)

Max.Operating Temperature: 120°C

Applications(Bag Filter Housing):

Processing Chemicals	Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils	Pharmaceuticals
Sugar Syrup	Cleaning Fluids

Table 1: BAG FILTER HOUSING SPECIFICATIONS
Type	Model	Dimensions (mm)		Connection		Bag		Flow Rate
		D	H			Size	Q'ty (pc)	(m3/h)
Single bag filters	BJD1	220	550	2" Female Pipe Thread / Tri-Clamp / Flange		#1	One	20
	BJD2	220	950			#2		40
	BJD4	130	650			#4		12
Multi-bag       filters	BJD2-2	400	1550	3" Female Pipe Thread / Tri-Clamp / Flange		#2	Two	80
	BJD2-3	500	1550			#2	Three	120
	BJD2-4	550	1550			#2	Four	160
	BJD2-5	600	1550			#2	Five	200
	BJD2-6	650	1620			#2	Six	240
