Product Description


BAQ3809C Four Point Angular Contact Ball Bearing BAQ-3809C




Product Application



BAQ-3809C  angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.


Type
Angular Contact Ball Bearing
Model
BAQ-3809C
Brand
YNR/OEM
d (mm)
40mm
Material
Chrome steel
D (mm)
85mm
Seal type
Open/seal
B (mm)
16mm
Precision rate
P0, P6, P5, or as requested
Mass(kg)
0.339kg




PS: Please contact us if you need other bearings!

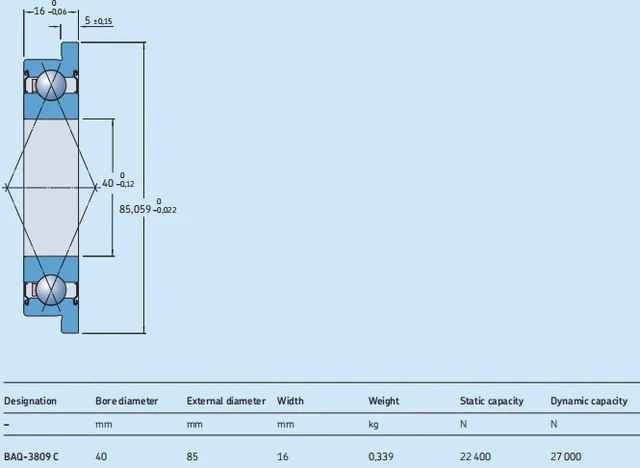

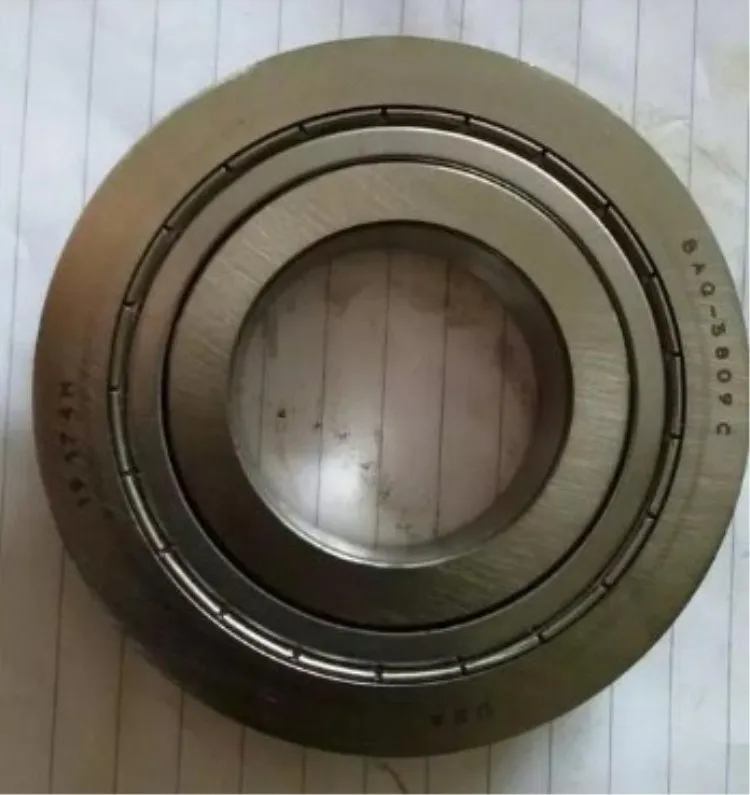

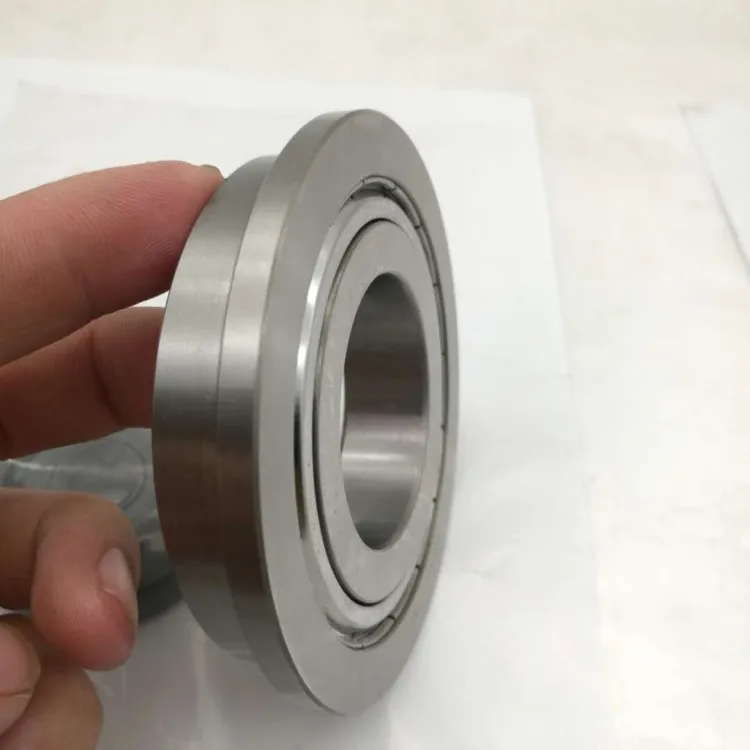

Detailed Images




More Choices


Deep Groove Ball Bearing

Taper Roller Bearing

Needle Roller Bearing



Cylindrical Roller Bearing


Spherical Roller Bearing

Angular Contact Ball Bearing



Thrust Ball Bearing

Wheel Hub Bearing

Spherical Plain Bearing



Cross Roller Bearing

Insert Bearing

Self-aligning Ball Bearing



Packing & Delivery






1. Normally use default industrial package with our own logo, customerized logo and marking is also acceptable.


2. Make special plywood box for big bearing or small bearing big order.



Our Service


Leading time

--Normally we have most bearings in stock with plenty quantities, so we are able to ship the goods immediately once confirm your payment.
-- For big order or special new design bearing, we need around 20 days for production then ship out.

Payment terms

-- 30% paid in advance as deposit, the balance shall be cleared before shipping.

-- other payment methods: Paypal, WestUnion, etc.



FAQ


1,What about the MOQ?Can you accept sample order?
------Our company MOQ is 1pc,we can accept sample order.

2,Can you accept OEM/ODM?
------Yes,we can.Customizing according to your requirement or drawing.


3,Do you supply door to door service?
------By air or express(DHL,FEDEX,EMS etc.)


4,Could you tell me the materials of your bearings?
------ Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.

5, Your company is a factory or trading company?
------ We have our own factory,also doing trade.
