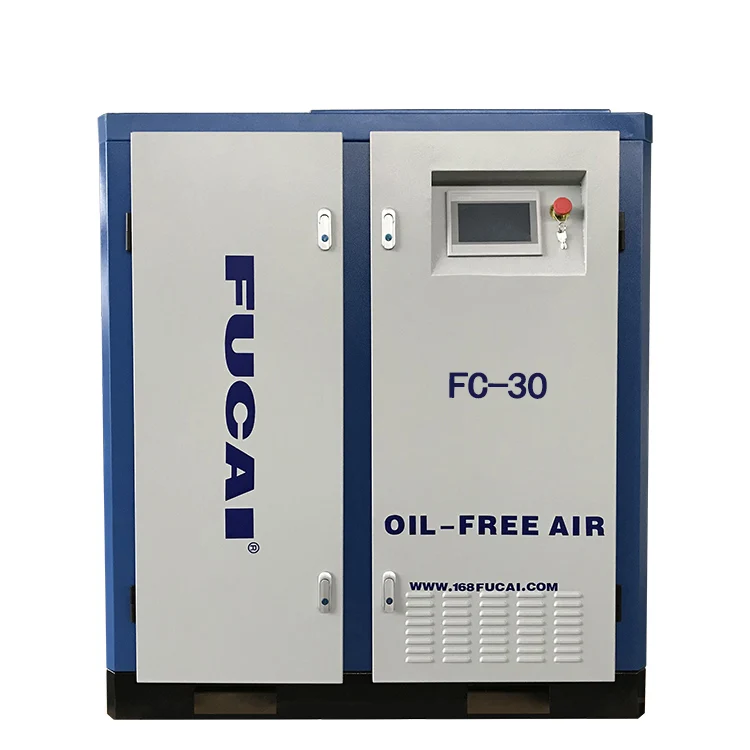

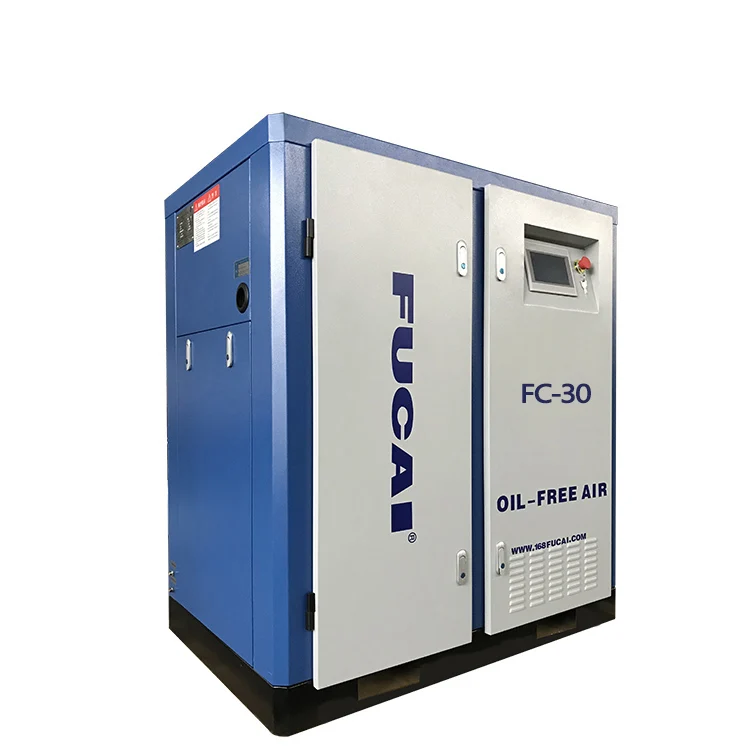

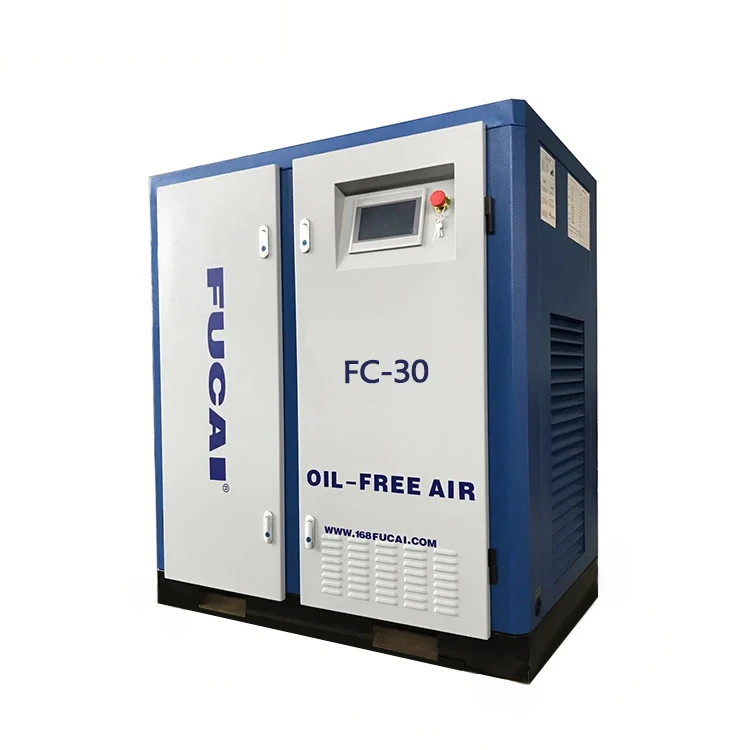

FUCAI китайский поставщик воздушные компрессоры без
- Категории: Industrial Compressors >>>
- Поставщик: Jiangsu,Fucai,Air,Compressor,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

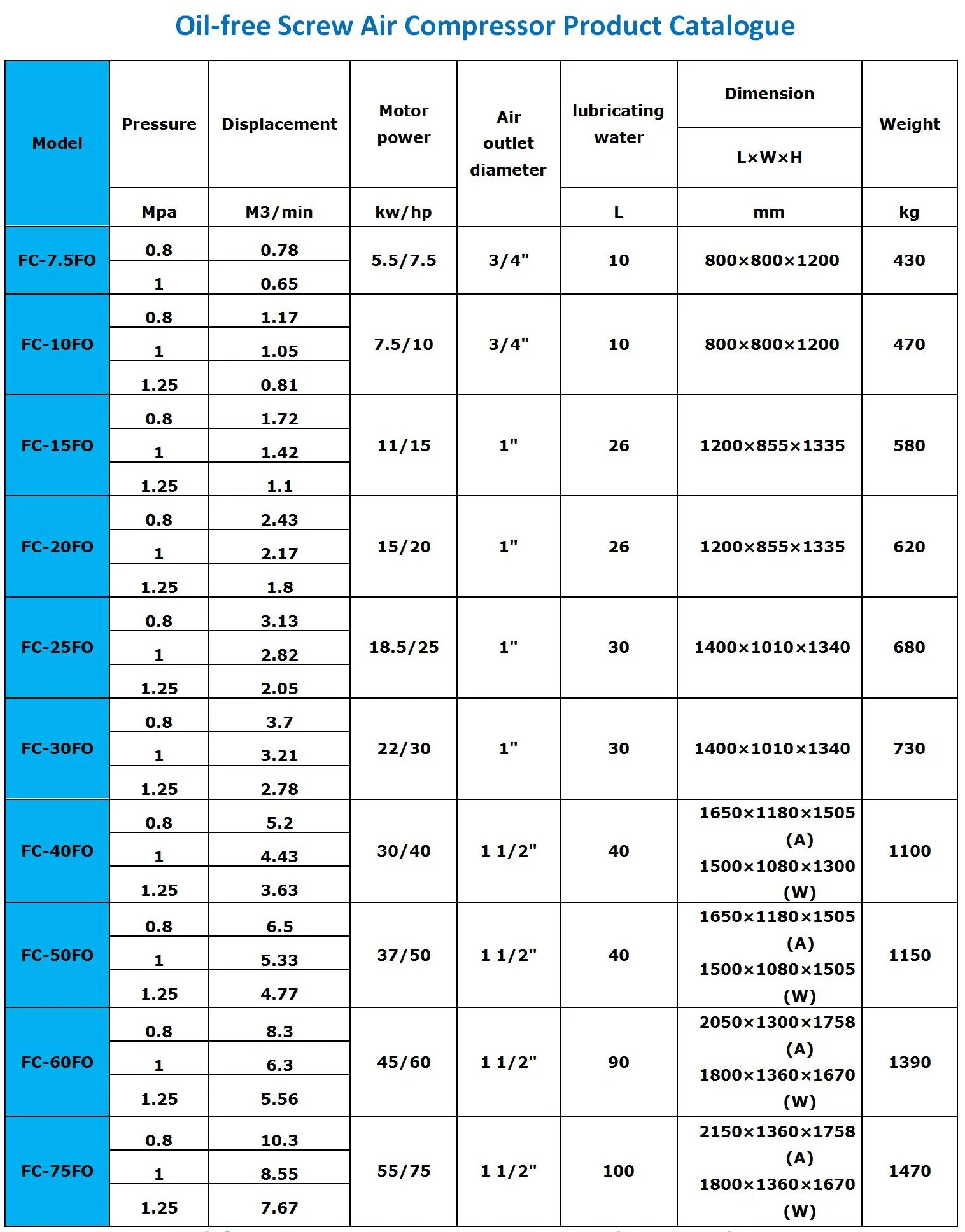

Product Paramenters
Model | FC-30FO |
Power | 22kw/30hp |
Discharge Pressure | 8/10/12.5bar |
Free Air Delivery | 3.7/3.21/2.78 m³/min |
Noise Level | 63 db |
Electricity | 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements |
Lubricating water | 30 L |
Air Outlet Diameter | 1" |
Dimension | 1400*1010*1340 mm |
Weight | 1100 kg |

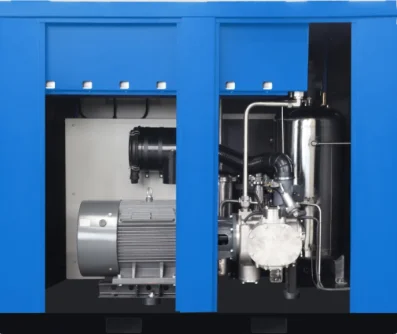

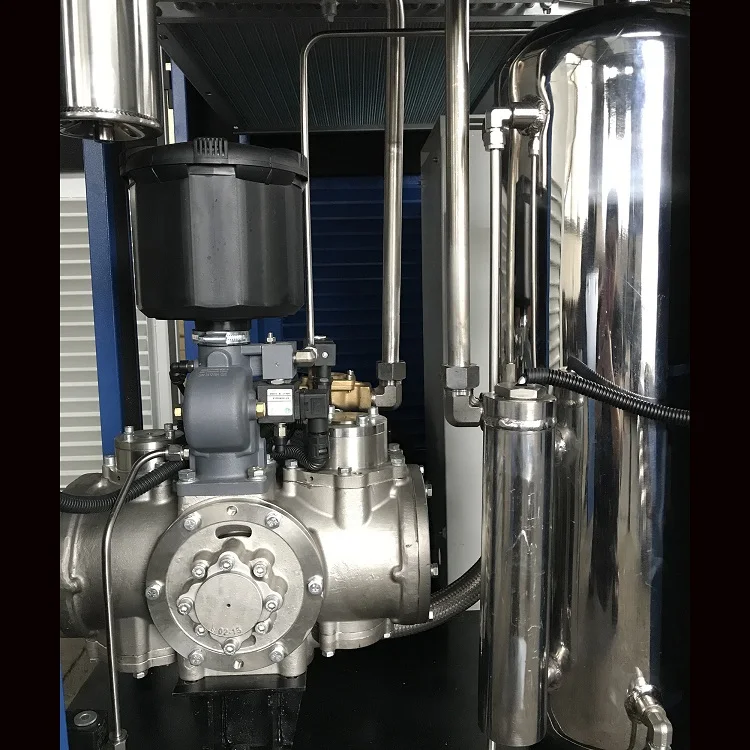

Products Description
Product Details&Feature

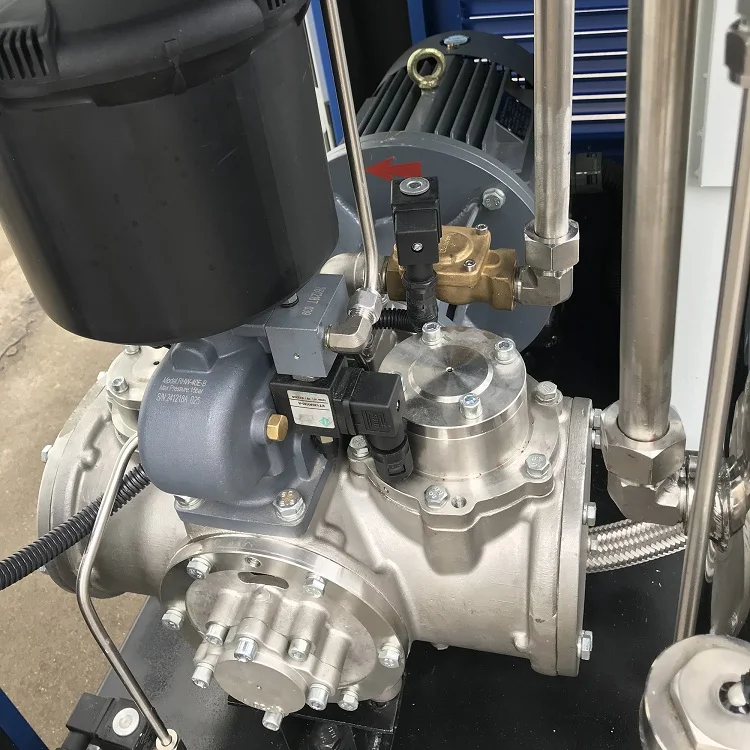

1. With the fifth generation of oil-free screw airend technology. The compressor airend and system adopt stainless steel alloy, thus the technological transcendence from the copper airend to the stainless steel airend is realized.
2. Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.
3. Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs;
4. There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.
5.Volumetric efficiency is more higher based on isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil- free screw air compressors, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50 C and there is no risk of being burned.
2. Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.
3. Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs;
4. There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.
5.Volumetric efficiency is more higher based on isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil- free screw air compressors, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50 C and there is no risk of being burned.
6.Wider pressure ranges: 2-40 Bar.
7. The full intelligent CNC precise machining technology keeps the airend working smoothly, which can ensure lower noise, smaller vibration, and longer service life.
8. Averagely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry type oil-free screw air compressor.
9. More simple and convenient operation. PLC intelligent control is adopted. Automatic fault detection, fault warning, maintenance reminder, fault reminder, automatic protection function. It can realize 24 hours unattended and remote control function.
10. Compressed air is more clean through cleaned by lubricating water, it can be directly used for breathing. The dew point of saturated compressed air is lower, and the water content of compressed air is lower by more than 25% than that of an ordinary dry type oil-free screw air compressor.
11. The airend patent (patent number: ZL 2014 20251586.4) optimized design, large rotor, low rotary speed (within 3000r/min), without gearbox, direct connection drive, it has lower rotary speed and longer life compared with dry oil-free screw air compressor (10000r/min~20000r/min).
12. The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is more clean and sanitary.
12. The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is more clean and sanitary.

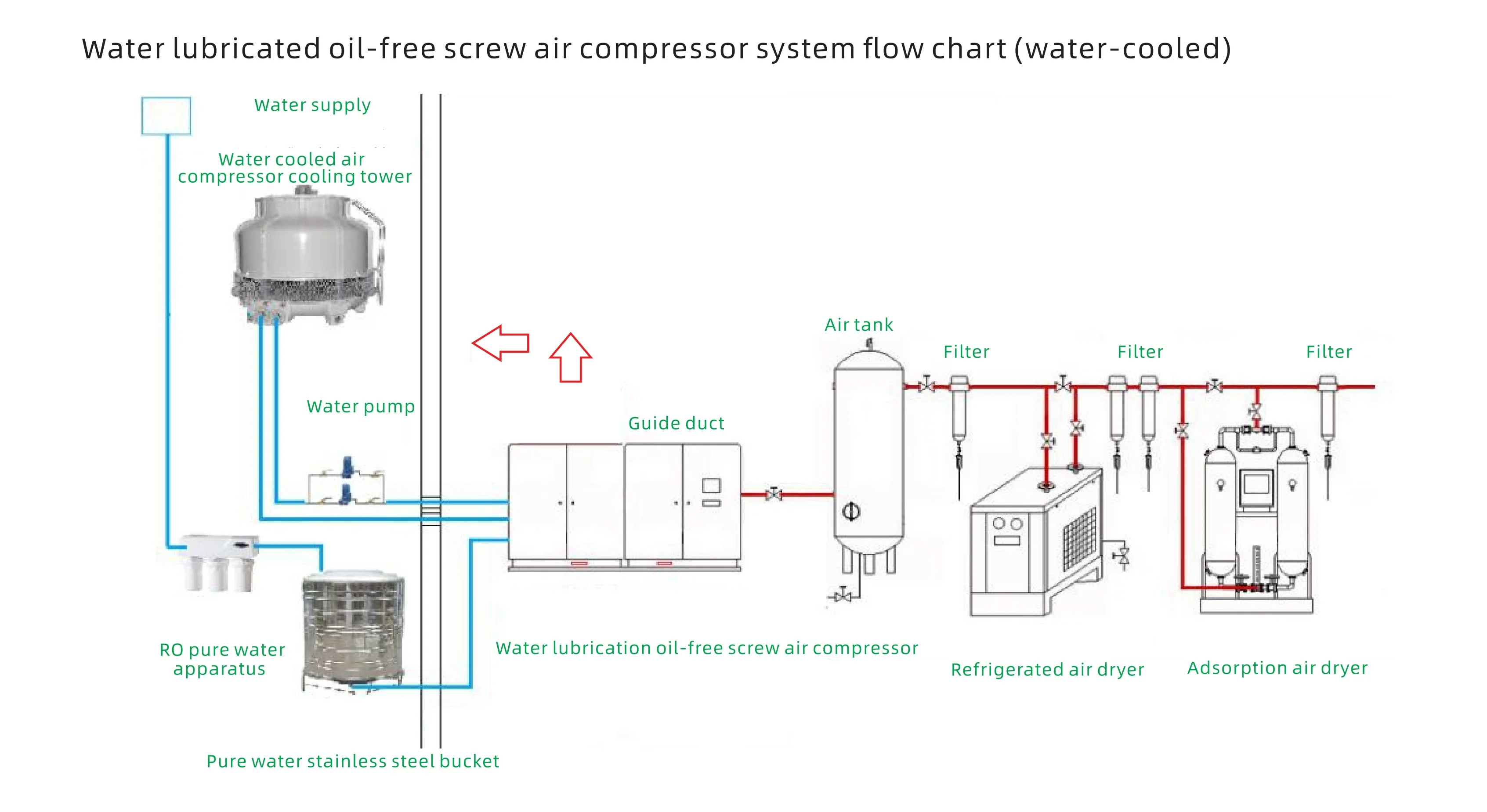

System Flow Chate
Company Profile
FUCAI company is integrated with the ability of air compressors researching, producing, selling and trading. In the same time, it is one of the air compressor companies with the most varied types and complete specifications. The products are featured by original and unique, energy-saving and efficient characters, so that bring our company at a leading position in the same industry.
FUCAI company is one of the national points of air compressor production bases, which got self-supported import and export right. It was certified by the national production license, national energy saving & consumption identity authentication, and ISO9001 quality management system.Our company can undertake the production of air compressor with ASME, CEZ KC, UL, GCCA, and other international certifications, also can undertake a variety of customized air compressors and related supporting equipments. Our products are popular throughout the whole country, and being exported to Asia, USA, Europe, and other countries & regions, also are trusted by customers at home and abroad due to excellent quality and good technical services.
Welcome new and old customers come to visit our company and make guidance !
FUCAI company is one of the national points of air compressor production bases, which got self-supported import and export right. It was certified by the national production license, national energy saving & consumption identity authentication, and ISO9001 quality management system.Our company can undertake the production of air compressor with ASME, CEZ KC, UL, GCCA, and other international certifications, also can undertake a variety of customized air compressors and related supporting equipments. Our products are popular throughout the whole country, and being exported to Asia, USA, Europe, and other countries & regions, also are trusted by customers at home and abroad due to excellent quality and good technical services.
Welcome new and old customers come to visit our company and make guidance !
1. Easy for Maintenance, Low cost for Maintenance
All the pipe and spare parts is standardized, they can be changed fast.
2. 5000sets capacity for each month.
As one of the largest Air compressor Manufacture, with Advanced Automatic Production Line, 5000sets air compressor can be produced for each month. The production cost is greatly reduced by the production scale production. Providing the most cost-effective product for you.
3. One stop service and provide air compressor system design
We can provide one- stop solution. We can not only provide the air compressor, but also high quality air treatment equipment, such as air tank, air dryer, air filter, air pipe, valves and air compressor spare parts. Save your time and cost greatly.
4. Strong R&D Capability
Annual Increasing R&D investment. Study German GU technology and the Japanese Military technology.
All the pipe and spare parts is standardized, they can be changed fast.
2. 5000sets capacity for each month.
As one of the largest Air compressor Manufacture, with Advanced Automatic Production Line, 5000sets air compressor can be produced for each month. The production cost is greatly reduced by the production scale production. Providing the most cost-effective product for you.
3. One stop service and provide air compressor system design
We can provide one- stop solution. We can not only provide the air compressor, but also high quality air treatment equipment, such as air tank, air dryer, air filter, air pipe, valves and air compressor spare parts. Save your time and cost greatly.
4. Strong R&D Capability
Annual Increasing R&D investment. Study German GU technology and the Japanese Military technology.

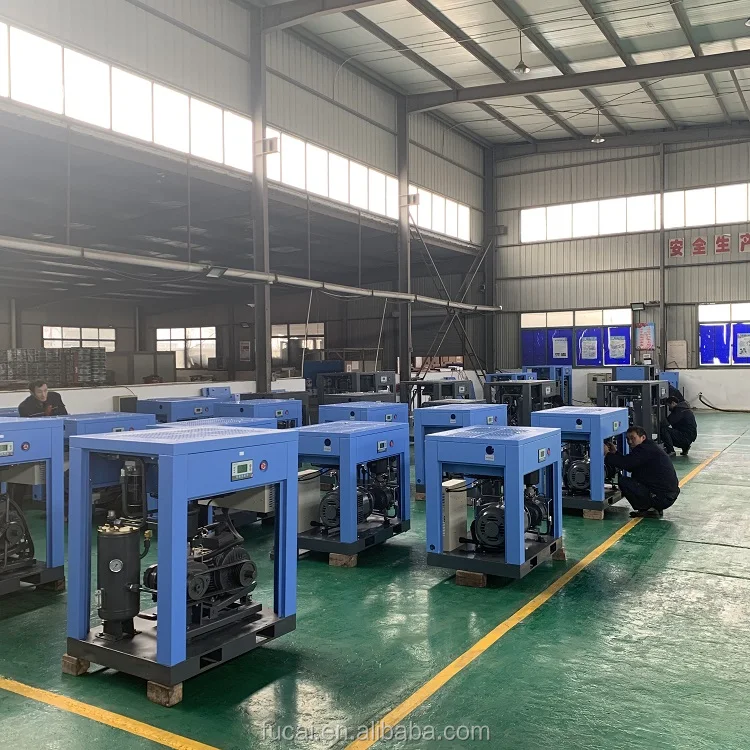

Work Shop

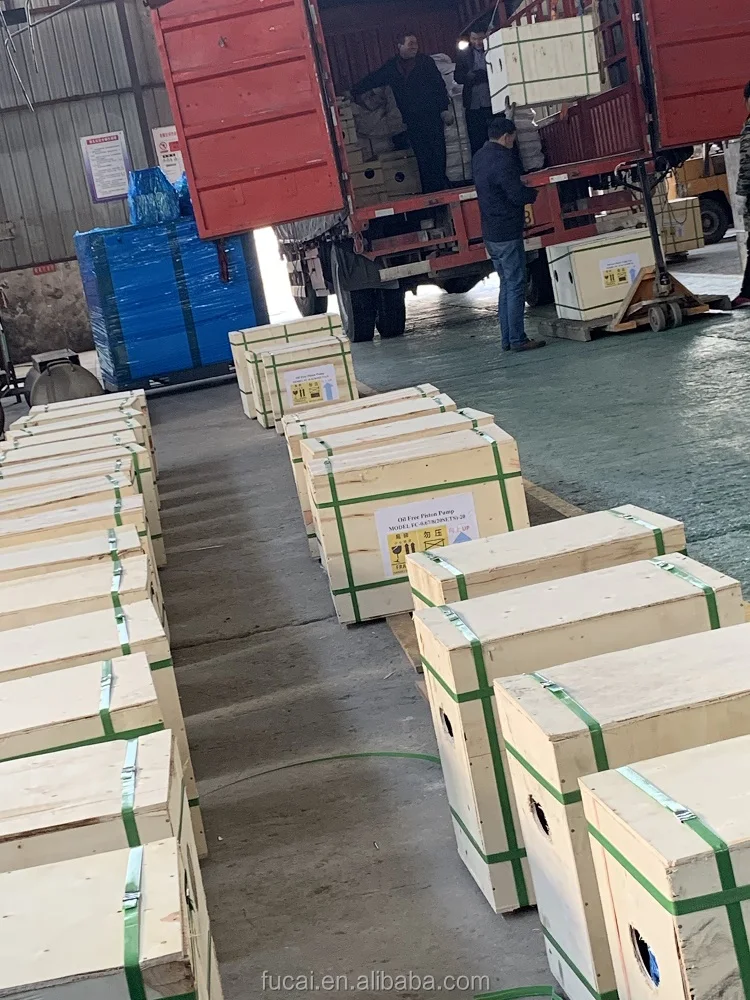

Product packaging
Exhibition
Certifications
FAQ
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor more than 12 years.
Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, RMB
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwid agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider
the actual environment.
Q8. How do you control quality ?
A: 1.Raw- material in checking.
2.Assembly.
3.Worldwid after service available.arrange our engineers to help you training and installation.
Q9. Do you offer OEM service ?
A: Yes.
A: We are professional manufacture of screw air compressor more than 12 years.
Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, RMB
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwid agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider
the actual environment.
Q8. How do you control quality ?
A: 1.Raw- material in checking.
2.Assembly.
3.Worldwid after service available.arrange our engineers to help you training and installation.
Q9. Do you offer OEM service ?
A: Yes.
Contact Us
If you are interested in any type, please send the details to us by email or online. We will quote you the best price with the
superior standardknowledge.
If you are interested in our cooperation, please send us samples or drawing for further check.
And we warmly welcome friends from all over the world to visit our factories for business.
Send your Inquiry Details in the Below, Click "Contact Supplier" Now!
Click here back "HOME"
superior standardknowledge.
If you are interested in our cooperation, please send us samples or drawing for further check.
And we warmly welcome friends from all over the world to visit our factories for business.
Send your Inquiry Details in the Below, Click "Contact Supplier" Now!
Click here back "HOME"
