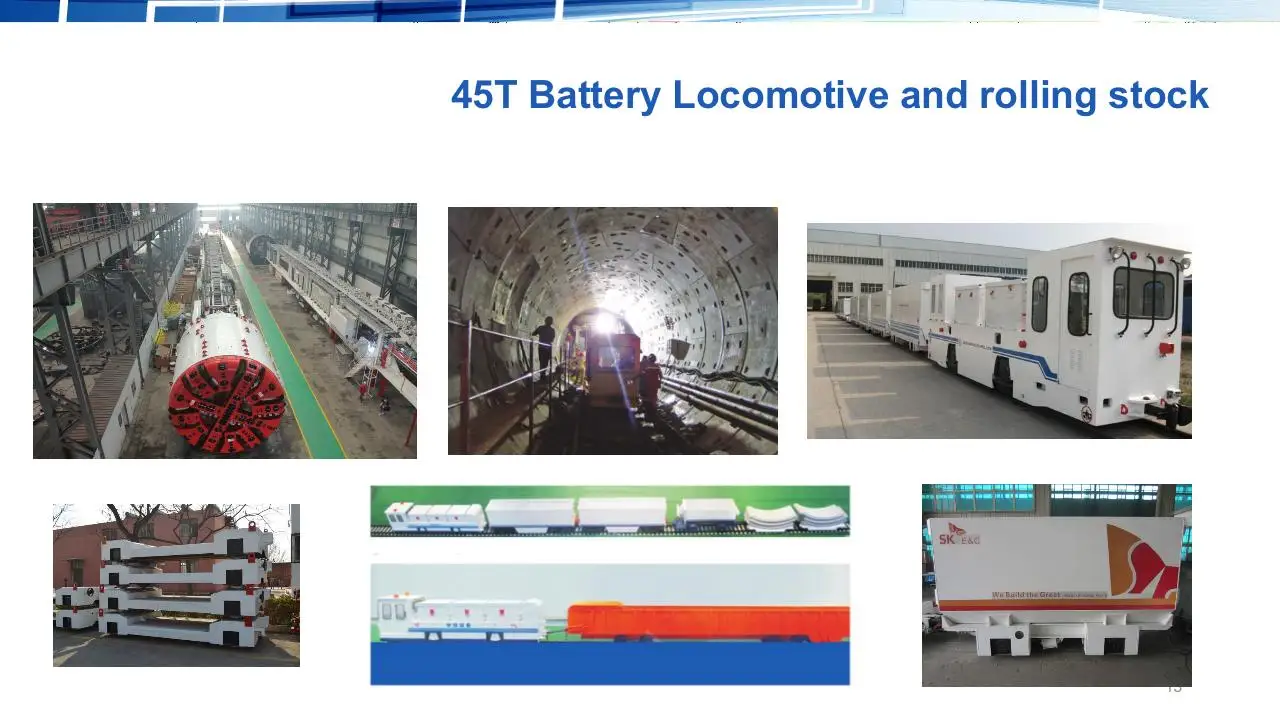

45ton battery locomotive
Model | CTY45-9/450 |
Weight | 45T |
Track Gauge | 900mm |
Wheel Base | 2600mm |
Minimum Turn Radius | 25m |
Wheel Diameter | Φ840mm |
Motor Power | 110*2KW |
Frequency Changer | NKJ-2*180/540 |
Storage Battery | 630Ah |
Max. Traction Force | 115kN |
Hourly Control Traction | 89kN |
Hourly Speed | 8.9km/h |
10‰ Rampway Tractable Load | 443t |
20‰ Rampway Tractable Load | 298t |
30‰ Rampway Tractable Load | 219t |
35‰ Rampway Tractable Load | 192t |
Dimensions(Length*Width*Height) | 8120(8720,anti-skid device)*1500*2400 |
Standard for sea transportation .

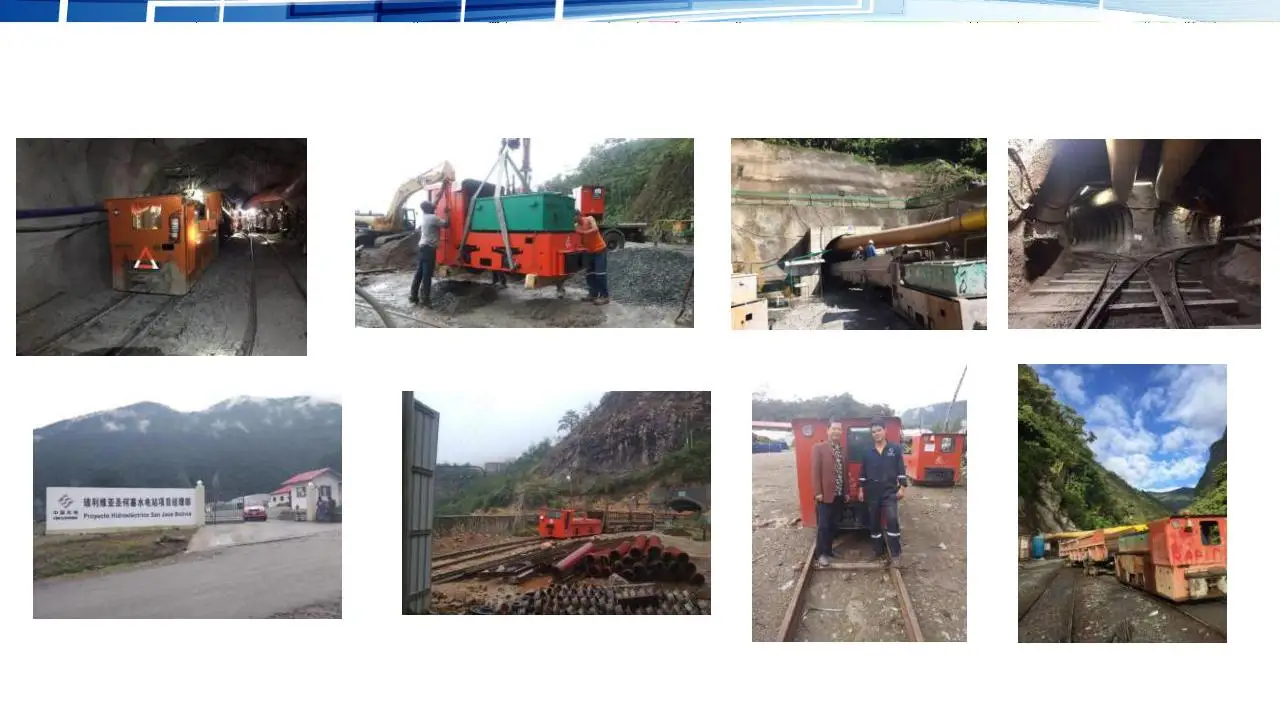

1.Xiangtan Electric Locomotive Factory is always providing underground tunneling transportation solutions.
2.As Locomotive manufacturer ,we are the only one factory which can not only produce locomotive but also can provide battery ,they can match our locomotive very well.
3.We can specially design and produce locomotives,rolling stocks according to meet our clients request.
4.A professional engineer team for before and after buying service, engineers can go to site to offer site service for provide training guidance and locos ,rolling stock commission .
