Product Description

OTSE panoramic home elevator（Backpack Type） is an elevator driven by a traction machine and a steel belt. The steel belt connects to the counterweight through the traction machine, ensureing the elevator to lift up and down steadily and safely. The advanced gearless machine can save up to 30% of energy and lower the noise to 52db, making the elevator recognized as an environment-friendly equipment.  If you'd like to choose an elevator that can satisfy your noble taste, OTSE JX series is a good choice.

Intellectual Control System

OTSE adopts the international integrated computer control system. This high-integrated intellectual control system enables a faster data processing and completes the elevator functions.

Door Operator System

OTSE combines elevator light curtain with vvvf(variable voltage variable frequency) door operator system, which guarantees passengers’ safety while opening or closing the door.

Features of Gearless Machine

1.Energy-saving: Compared to normal gearless machine, it can save 30% of energy.
2.Environmental-protection:no oil pollution; free-maintenance.
3.Low-noise: Its noise is around 52-58db, which is 8-10db lower than normal gearless machines.
4.Small Size: Its size is applicable to machine-roomless elevators.
5.High accuracy of speed control.

\t\t\t\t\t\t\t\t\tStandard Parameters \t\t\t\t\t\t\t

Parameters of panoramic home elevators with
1.automatic one side open;
2.manual open at B side, at A/C side.

\t
Technical Data for Automatic one side open of home elevator
\t
Load/
Number
\t
Speed
(m/s)
\t
Hoistway size W*D(mm)
\t
Car size
W*D*H
(mm)
\t
Door-open type
\t
Net door size
(mm)
\t
Overhead(mm)
\t
Travel height
(mm)
\t
Pit depth
(mm)
\t
250kg/3
\t
0.3
\t
1500*1350
\t
900*900
*2200
\t
Automatic one side open
\t
800*2000
\t
≥3200
\t
≤12000
\t
≥300
\t
0.4
\t
≥3200
\t
320kg/4
\t
0.3
\t
1600*1450
\t
1000*1000
*2200
\t
800*2000
\t
≥3200
\t
≤12000
\t
≥300
\t
0.4
\t
≥3200
\t
400kg/5
\t
0.3
\t
1650*1550
\t
1050*1100*2200
\t
800*2000
\t
≥3200
\t
≤12000
\t
≥300
\t
0.4
\t
≥3200
\t
Technical Data for Automatic one side open at B side of home elevator
\t
Load/
Number
\t
Speed
(m/s)
\t
Hoistway size W*D(mm)
\t
Car size
W*D*H
(mm)
\t
Door-open type
\t
Net door size
(mm)
\t
Overhead(mm)
\t
Travel height
(mm)
\t
Pit depth
(mm)
\t
250kg/3
\t
0.3
\t
1250*1500
\t
900*900
*2200
\t
Manual open
\t
750*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000
\t
320kg/4
\t
0.3
\t
1300*1600
\t
1000*1000
*2200
\t
800*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000
\t
400kg/5
\t
0.3
\t
1400*1650
\t
1100*1050
*2200
\t
900*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000
\t
Technical Data for Automatic one side open at A/C side of home elevator
\t
Load/
Number
\t
Speed
(m/s)
\t
Hoistway size W*D(mm)
\t
Car size
W*D*H
(mm)
\t
Door-open type
\t
Net door size
(mm)
\t
Overhead
(mm)
\t
Travel height
(mm)
\t
Pit depth
(mm)
\t
250kg/3
\t
0.3
\t
1500*1250
\t
900*900

*2200
\t
Manual open
\t
700*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000
\t
320kg/4
\t
0.3
\t
1600*1300
\t
1000*1000

*2200
\t
750*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000
\t
400kg/5
\t
0.3
\t
1650*1400
\t
1050*1100

*2200
\t
800*2000
\t
≥3000
\t
≤12000
\t
≥300
\t
0.4
\t
≥3000

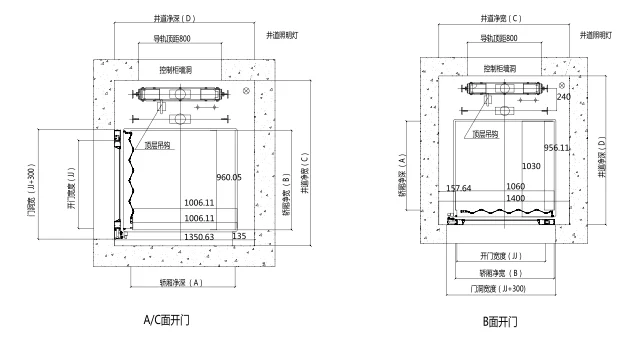

Construction plan of panoramic home elevators with
1.automatic one side open                                     2.manual open at B side                          3.manual open at A/C side

Detailed Images

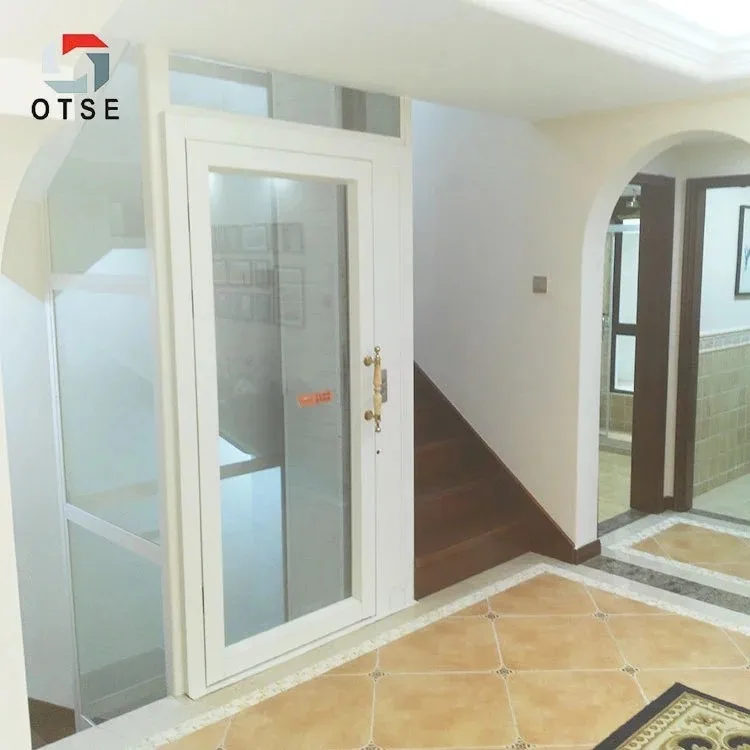

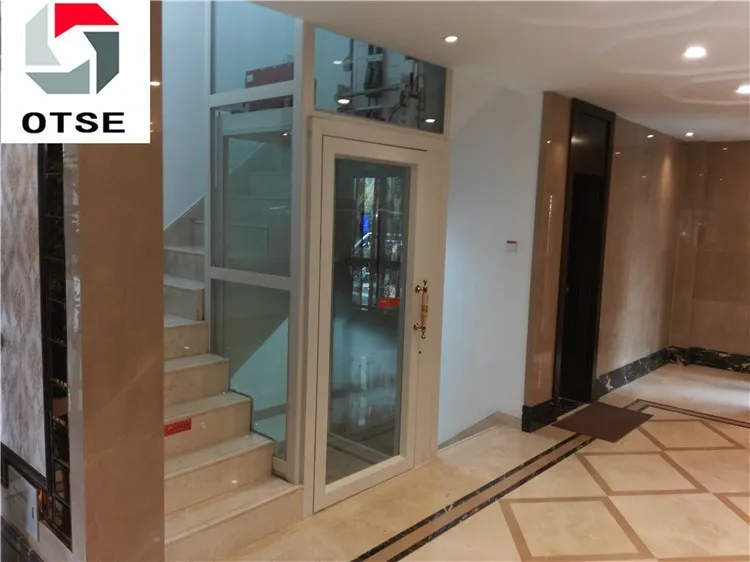

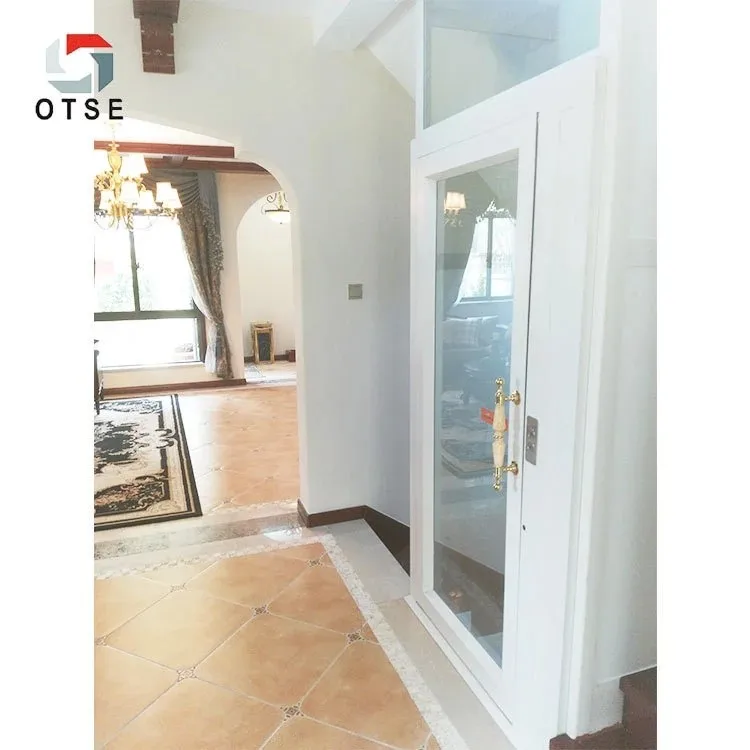

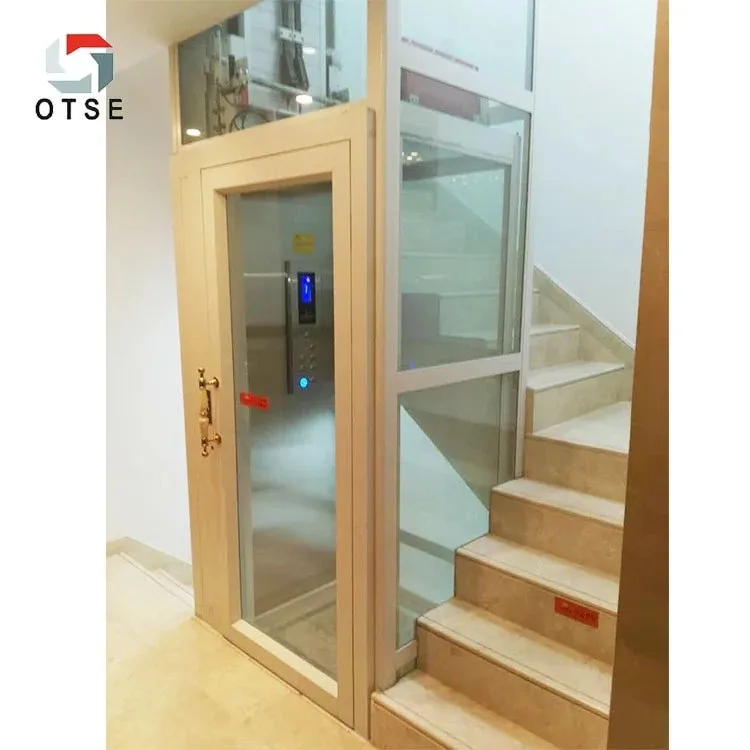

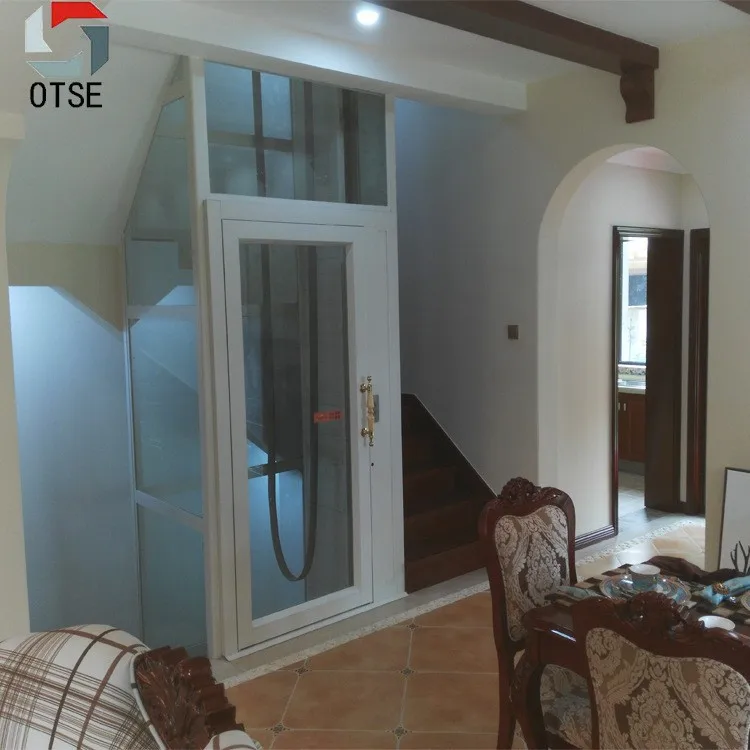

OTSE traction sightseeing elevator
Type: white aluminum alloy sightseeing elevator
Driven type: traction machine
Rear panel:mirror stainless steel
Ceiling:mirror stainless steel+LED light
Floor:PVC
Door: aluminum alloy frame+plexiglass
Door open type:manual open or automatic open


\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking and Delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFactory Profile \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Advantages \t\t\t\t\t\t\t

Rich experience

OTSE has been in this elevator trade for more than 10 years. Developed from a small factory to a professional manufacturer, OTSE has dealt with a lot of technique issues and has rich experience in elevator-manufacturing.

Competitive price

OTSE has a self-owned factory, which enables you to buy an elevator without other distributors. The low cost allows you to buy a high-quality elevator with a suitable price.

Professional team

• a skillful production team: manufacturing high quality elevators with high efficiency;

• a dedicated sales team:providing you specialized advice and after-sale services;

• a sophisticated technology group: the group members hold an elaborate and rigorous working attitude while designing the elevator that caters to your taste, ensuring there won’t be any mistake in the design.

Responsible attitude

OTSE holds the principle of high quality and high credibility, endeavoring to run a company with high reputation. OTSE’s elevators, including their producing and assembling process, are all under strict inspection. We also provide after-sale services to give you any help at any time as long as you’re in need.

\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

1.From which aspects should I consider before installing an elevator?

The space in the house:

If you decide to install an elevator but you don’t have enough space, you can’t choose the one like the traditional passenger elevator that may occupy a lot of space in your home.
If your house is very big, then you can choose any type of elevators.

The decoration style:

As a new part of your home, you should know which style will be coincide with your home’s decoration.

Maintenance:

If you don’t have much energy and time to maintain the elevator, please choose the one that is maintenance-free or doesn’t require frequent maintenance.


2.What is the necessary information should be provided for an exact quotation?

How many people load a time? What about the relative load capacity?

How many floors does the elevator travel and how many stops do you need?

E.g. 3 floors 3 stops or 3 floors 2 stops.

What’s the shaft size (width and depth)?

What’s the storey height?

An exact quotation can be provided as long as the above information is given to us.
