Светлый самозатягивающийся БЕСКЛЮЧЕВОЙ сверлильный патрон с размером 1-10 мм B12 1-13 B16 1-16 5-20 B22 и т.
- Категории: Приспособления для станка >>>
- Поставщик: Dezhou,Zhongyi,Industry,And,Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
light type self-tightening keyless drill chuck with size 1-10mm B12,1-13mm B16,1-16mm B16,5-20 B22 etc.
1.material:45# steel.
2.small volume, little weight,extremely safe and easy operation
3.used for various drill press,drill machine,milling machie,lathe,boring lathe and electric tool.
4.clamping cutting tool such as drill bit,center drill,deburring tool,etc
:

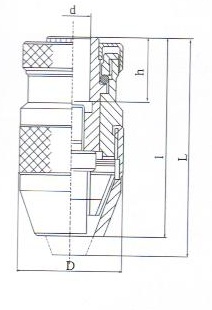

| no. | capacity(mm) | taper | d(mm) | h(mm) | D(mm) | L(mm) | l(mm) |
| J0106 | 0.5-6 | B10 B12 | 10.094 12.065 | 14.5 18.5 | Ø35 | 67 | 61 |
| J0206 | 1/64"-1/4" | JT0 JT1 | 6.350 9.754 | 11.112 16.669 | Ø35 | 67 | 61 |
| J0108 | 0.5-8 | B12 B16 | 12.065 15.733 | 18.5 24.0 | Ø42 | 86 | 78 |
| J0208 | 1/64"-5/16" | JT2 JT33 | 14.199 15.850 | 22.225 25.400 | Ø42 | 86 | 78 |
| J0110 | 1-10 | B12 B16 | 12.065 15.733 | 18.5 24.0 | Ø42 | 86 | 78 |
| J0210 | 1/32"-3/8" | JT2 JT33 | 14.199 15.850 | 22.225 25.400 | Ø42 | 86 | 78 |
| J0113 | 1-13 | B12 B16 | 12.065 15.733 | 18.5 24.0 | Ø44 | 97 | 88 |
| J0213 | 1/32"-1/2" | JT2 JT33
| 14.199 15.850
| 22.225 25.400
| Ø44 | 97 | 88 |
| J0116II |
3-16 | B16
| 15.733
| 24.0
| Ø48 | 102 | 92 |
| J0216II |
1/8"-5/8" | JT6
| 17.170 | 25.400
| Ø48 | 102 | 92 |
| J0116 | 3-16 | B18 | 17.780 | 32.0 | Ø48 | 108 | 98 |
| J0216 | 1/8"-5/8" | JT3 | 20.599 | 30.956 | Ø48 | 108 | 98 |
| J0120 | 5-20 | B22 | 21.3 | 30.5 | Ø53 | 115 | 103 |
| J0220 | 3/16"-3/4" | JT3 | 20.599 | 30.956 | Ø53 | 115 | 103 |
| no. | capacity(mm) | thread | h(mmm) | D(mm) | L(mm) | l(mm) |
| J0306 | 0.5-6 | M10x1 | 14 | Ø35 | 67 | 61 |
| 1/64"-1/4" | 3/8"-24UNF | |||||
| J0308 | 0.5-81/64"-5/16" | M10x1 | 14 | Ø42 | 86 | 78 |
| 3/8"-24UNF | ||||||
| 1/2"-20UNF | 16 | |||||
| M12x1.25 | ||||||
| J0310 | 1-101/32"-3/8" | M10x1 | 14 | Ø42 | 86 | 78 |
| 3/8"-24UNF | ||||||
| M12x1.25 | 16 | |||||
| 1/2"-20UNF | ||||||
| J0313 | 1-131/32"-1/2" | M10x1 | 14 | Ø44 | 90 | 81 |
| 3/8"-24UNF | ||||||
| M12x1.25 | 16 | |||||
| 1/2"-20UNF | ||||||
| J0316 | 3-161/8"-5/8" | M12x1.25 | 16 | Ø48 | 102 | 92 |
| 1/2"-20UNF | ||||||
| M16x1.5 | 18 | |||||
| 5/8"-16UNF |
