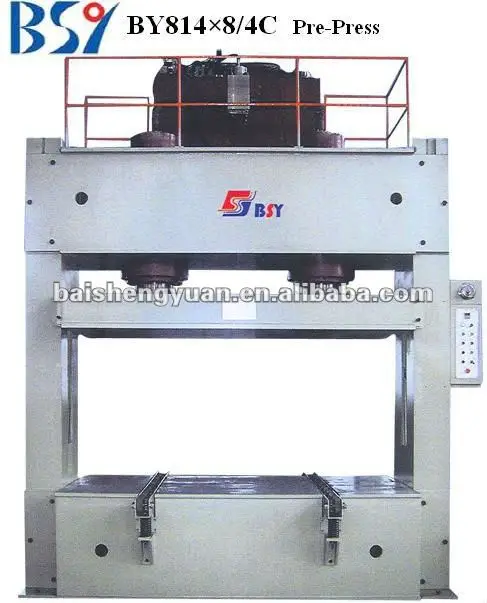

BY814 * 8/4C машина для производства фанеры/машина холодного
- Категории: Press >>>
- Поставщик: Shandong,BSY,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MODEL | BY814×8/4C | BY814×8/5B |
Nominal pressure (KN) | 4000 | 5000 |
Unit pressure of board surface (Mpa) | 1.3 | 1.3 |
Width of press board (mm) | 2700×1370 | 2700×1370 |
Max.working stroke (mm) | 1000 | 1000 |
Net opening (mm) | 300-1300 | 300-1300 |
Diameter and quantity of pressure cylinders (mm) | Φ 320/2 | Φ 360/2 |
Diameter and quantity of lift cylinders (mm) | Φ 80/2 | Φ 80/2 |
Feeding speed (m/min) | 6.78 | 6.78 |
Motor power kw) | 16.1 | 16.1 |
Overall dimensions (mm) | 3500×2400×4650 | 3500×2400×4750 |
Weight(kg) | 18000 | 18000 |
Why do you choose us:
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder , Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Band saw , sanding machine etc.

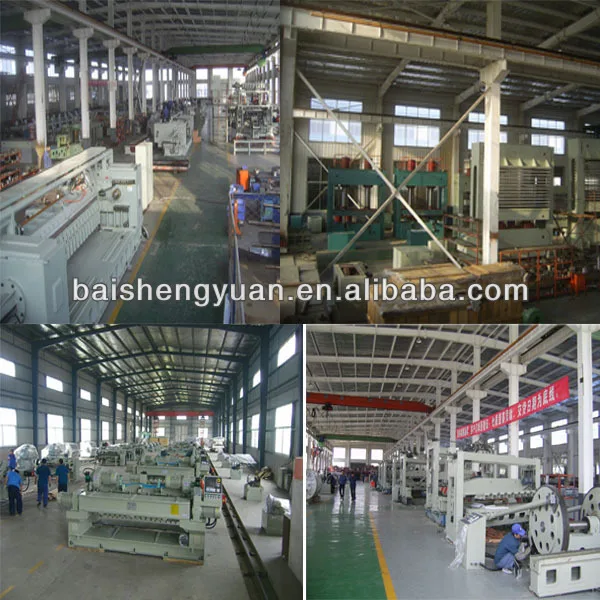

Workshop

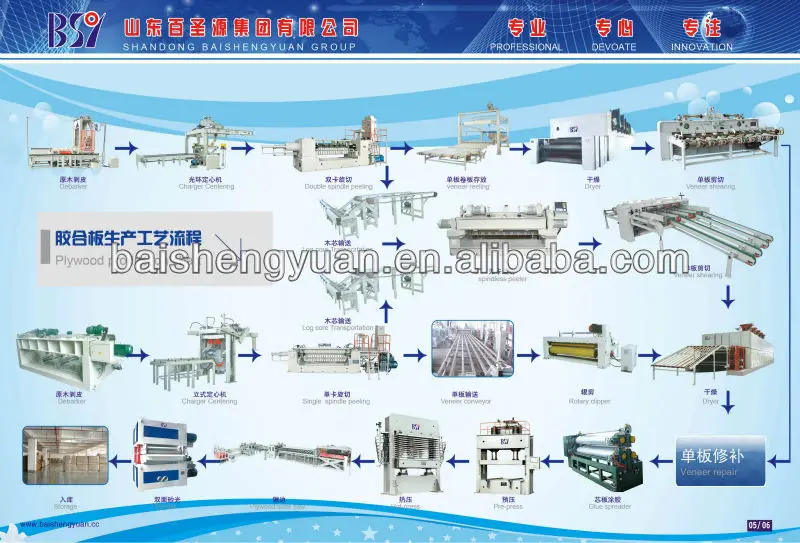

Plywood production chart
Certification
Contact us
