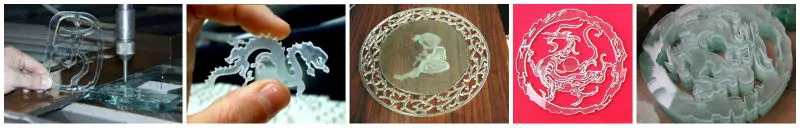

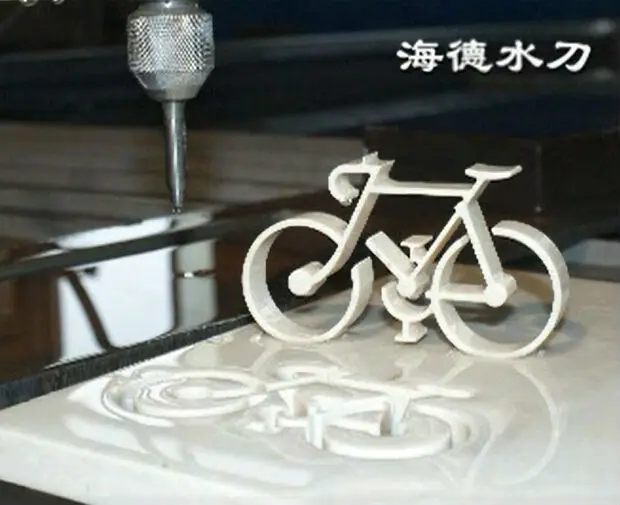

Машина для резки стекла струйной Струи Высокого Давления машина обработки

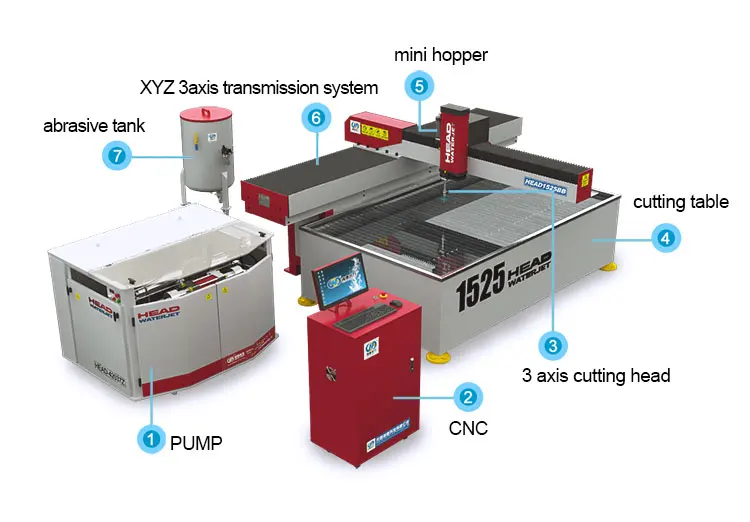

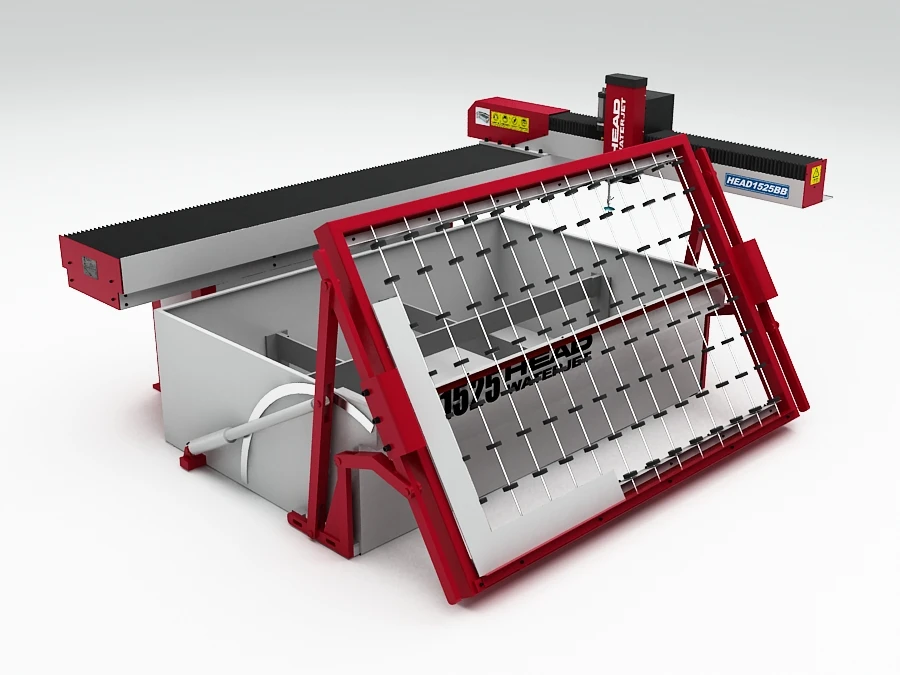

                                                                            Advantages of cutting table “HEAD”

1.Separate body between cutting table and load-bearing platform prevents interfering cutting accuracy from long-term stress variation to

load-bearing platform

2.X beam of cutting table applies the one-off extrusion forming aluminum alloy, light weight, strong steel, not deformed, is the most advanced technology in waterjet cutting machine

3.Cancelling dustproof cloth on X, Y, Z axis and hiding Y axis towline greatly improve the machine life and save the maintenance cost.

4.Motor and ball screw are directly connected by flexible coupling. It can absorb vibration energy reversible and with higher drive accuracy compared with other torsional rigid coupling.

5.Using high-quality international brand ball screw, linear guide transmission structure to ensure the moving speed and accuracy of the cutting head.

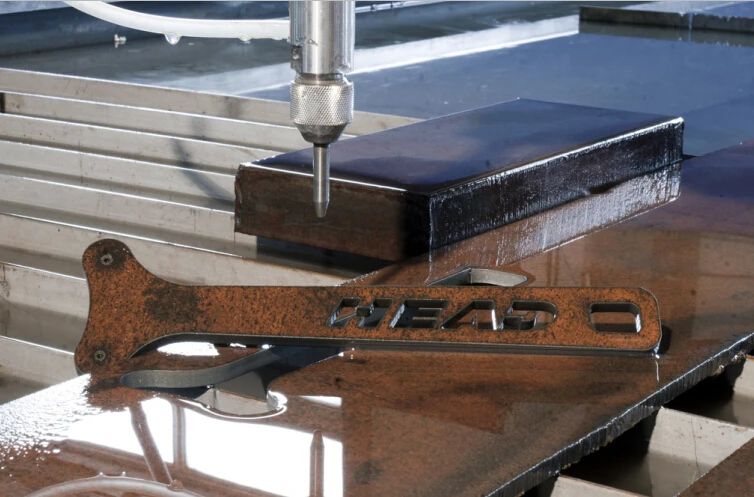

6.The cutting head is with casting structure and concrete structure. The metal parts have been specially processed to eliminate traces of deformation and to maintain long-term mechanical precision.

                                                                                       Mail technical parameter

Model

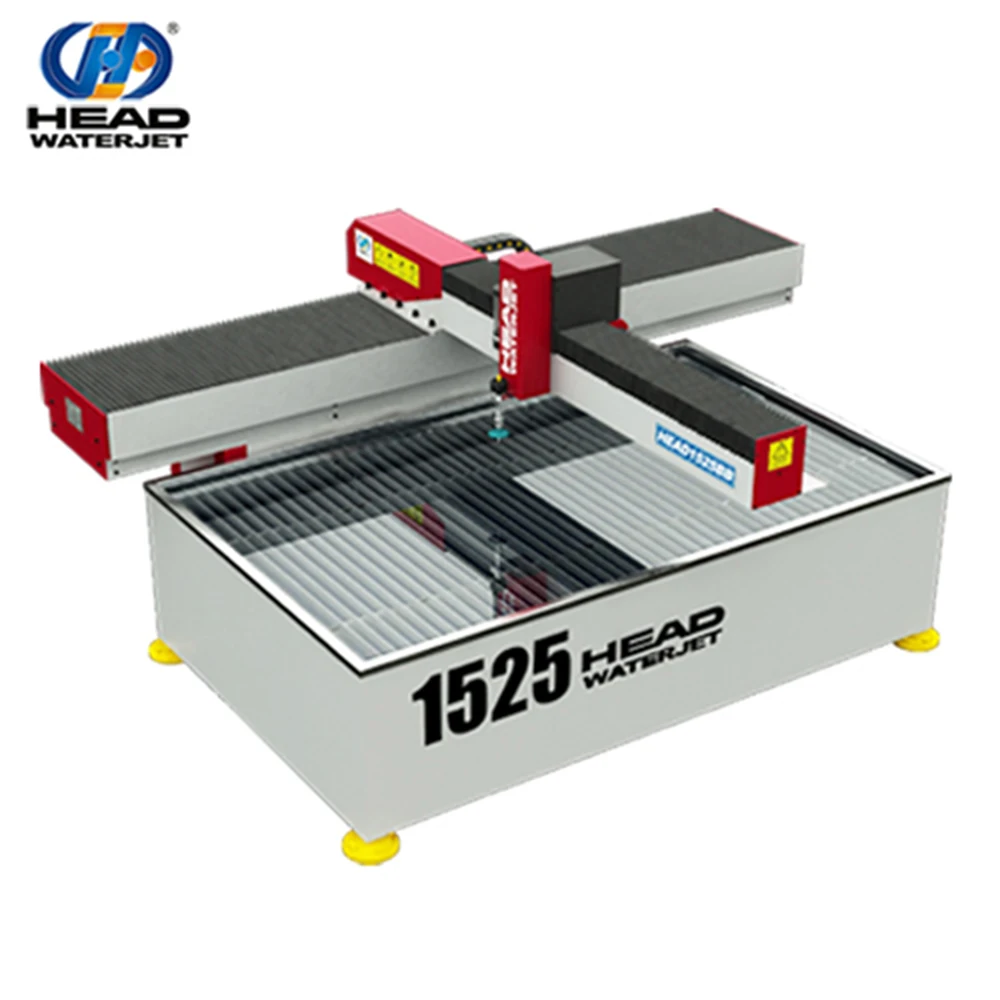

HEAD1525BB

Machine type

Cantilever style

Method of drive

Servo drive( drives and motors are Yaskawa brand from Japan)

Ball screw and linear guide

ABBA brand from Taiwan

Z-axis travel journey

150mm

Controlling accuracy

±0.01mm

Cutting accuracy

±0.1mm

Re-position accuracy

±0.02mm

Max traveling speed

6000mm/min

Max cutting thickness

150mm

Max diameter of orifice

0.33mm

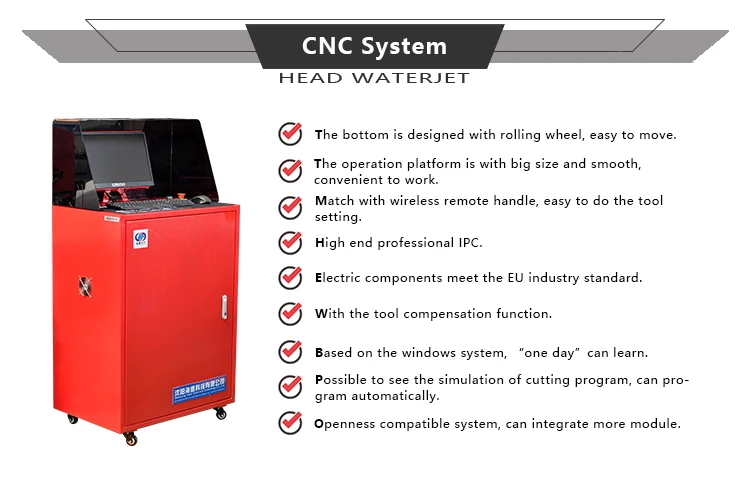

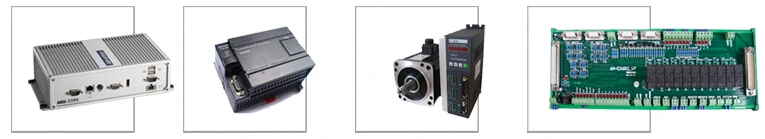

CNC system

Ncstudio ,Fagor

In addition Model HEAD1525BB,we can also   provide other type of wate jet cutting machines,and we can customized according tocustomer requirements

                                                                                      Structure type ( Bridge type)

HEAD2030BA

HEAD2040BA

HEAD2060BA

HEAD3020BA

HEAD3040BA

HEAD3060BA

HEAD4020BA

2000*3000mm

2000*4000mm

2000*6000mm

3000*2000mm

3000*4000mm

3000*6000mm

4000*2000mm

                                                                                   Structure type ( Cantilever   type)

HEAD1010BB

HEAD1020BB

HEAD1520BB

HEAD1525BB

HEAD1530BB

HEAD1540BB

HEAD1540BB-F

1000*1000mm

1000*2000mm

1500*2000mm

1500*2500mm

1500*3000mm

1500*4000mm

1500*4000mm

                                                              Advantages of intensifier pump

1.Imported from American Accustream company with advanced & reasonable structure and high stability.

2.Integrated heat exchanger, high heat exchange ratio and good effect, control the temperature of the hydraulic oil within the limit

3.Two-stage water filter(5um,1um,0.45um)minimizes the damage of impurities to high pressure seals, nozzles and other parts.

4.Two step-up water supply to make sure the pressure, automatic alarm and protection function when water is inadequate avoid the damage.

5.Multiple filter for outlet oil and return oil, pollution alarm, oil cooling and oil temperature alarming ensure the continuous operation.

6.Flexible connection between the main motor and pump eliminates eccentricity and absorbs vibration to ensure its long-term reliable operation.

7.Large capacity accumulator, assuring the system pressure much more stable, cutting efficiency much higher

                                                                   Mail technical parameter

Model

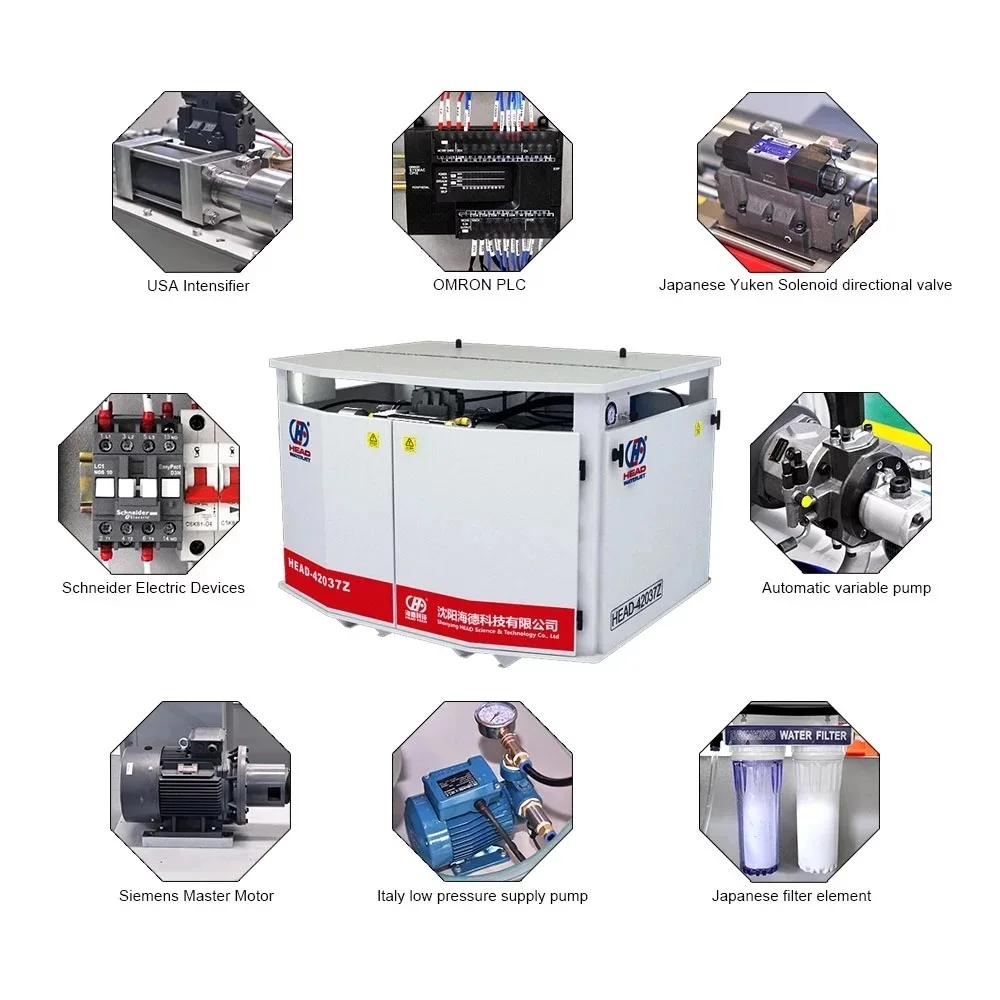

HEAD42037Z

Intensifier

Accustream USA

Method of Direction Regulation

Electronic

Cooling method

Plate type heat exchanger

Max cutting pressure

420MPa

Max oil pressure

21MPa

Max oil discharge

106L/min

Max water discharge

3.7L/min

Accumulator capacity

1.2L

Main motor power

37KW

Power supply

380V/50HZ 3-phase

Oil for hydraulic system

Anti-wear hydraulic oil:46#

Controlling method

PLC

Industry  screen

Showing working condition and error information
