Concrete Slab Cutter /Cutting saw
1) straight and smooth curf
2) easy to handle
3) high cutting efficiency

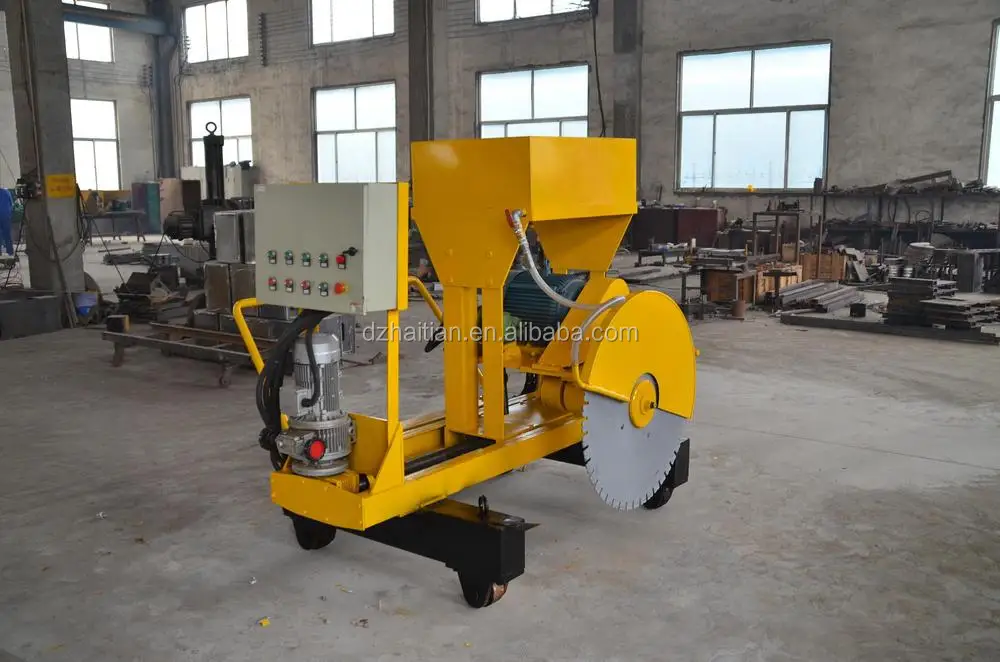

Cutting Machine HT500 Concrete Cutter
Model HT500 Concrete Cutting Machine is smartly built. It is handy to move and control. It can cut concrete products smoothly and quickly with its rotate speed: 2700r/min.
Haitian is an experienced factory to manufacture construction machines such as hollow concrete floor board forming machine, lightweight panel forming machine, cutting machine, concrete mixer etc. We can also adjust or design machines at the precise demand of the customers.
Configurations:
Type: HT500
Saw diameter: 500mm
Cutting thickness: 150mm
Cutting length: 600mm
Power: 5.5KW
Rotate Speed: 2700r/min
Capacity of water-box: 42L
Machine Dimension: 970*1210*1090mm
Machine Weight: 170kg
Concrete slab Cutting Machine
Model | Saw diameter (mm) | Cutting Thickness (mm) | Cutting Length (mm) | Power (kw) | Rotation speed (r/min) | Water box volume(L) |
HT400 | Φ400 | 120 | 600 | 4 | 2890 | 30 |
HT500 | Φ500 | 150 | 600 | 5.5 | 2700 | 42 |
HDT200-900 | Φ700 | 200 | 900 | 7.5 | 2000 | 52 |
HDT250-1200 | Φ700 | 250 | 1200 | 11 | 1440 | 100 |
HDT300-1200 | Φ900 | 300 | 1200 | 11 | 1440 | 100 |
HDT380-1200 | Φ1000 | 380 | 1200 | 15 | 1440 | 100 |
HT500 Concrete Cutter
