CA-3 Тип советский автоматический железнодорожного литья

Описание и отзывы

Характеристики

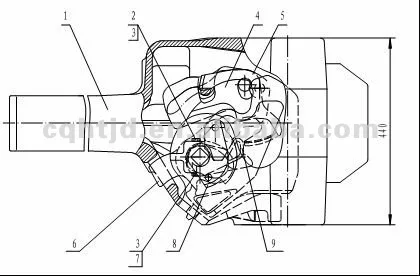

Sequence NO.	Code NO.	Quantity	Product Name	Material	Weight	Remark
1	HT/C-300B-01	1	coupler body	20Mn	182.2
2	HT/C-300H-01	1	bolt			M10×90×30
3	HT/C-300F-01	2	washer			φ10
4	HT/C-300L-01	1	lock holder	20Mn	4.5
5	HT/C-300L-02	1	Safety lock	32Cr06Mn	1.45
6	HT/C-300L-03	1	lock	20Mn	12.8
7	HT/C-300H-02	1	nut			M10
8	HT/C-300L-04	1	lock lift pin	20Mn	3.51
9	HT/C-300L-05	1	lock lift	20Mn	2

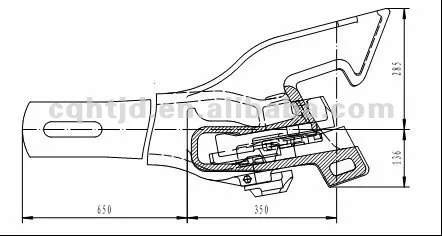

SA3 Complete  coupler according to the attached drawing and  following spec.
Weight: 210 kg

Material tensile stregth: 539 MPa

Static tension test: 2800 kN

Russian standard Gost

Competitive price and delivery time



1,SA-3 railway coupler and coupler yoke are used on 1520mm broad gauge railway vehicles. And about 5,000

tonnes heavy can be hauled.



2,SA-3 coupler is wildly used by former Soviet Union, and other countries. And the products we produced

have been exported to United States, England, Sweden, Australia, Russia, Japan, Pakistan, Thailand,

Vietnam and other countries.





3,The factory produces steel casting, iron casting for industry with 40 years history, and in producing SA-3

coupler for nearly 7 years reached to 4000 sets in total. It has a professional team in metallurgy, foundry, heat treatment, and mechanical design and manufacture etc..



4,The main production lines are two molding making lines of vapor replaced hardening(VRH) made in Western

Sinto of Japan; a gas impact molding line for iron-casting from Spain, and other producing and test facilities.



5, We have the ISO9001, TS16949 and Russian Gost quality management system certificates.

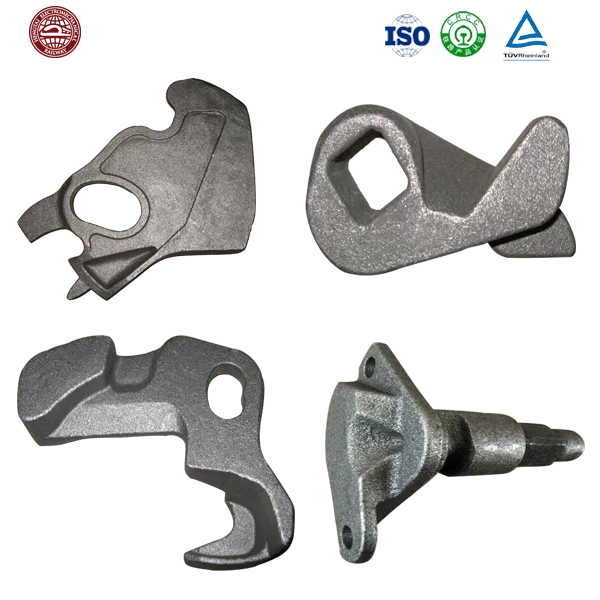

Besides of complete CA-3 coupler, we would like to supply its parts, such as lock, lock holder,

lock lifter, lock lifter pin, etc.

If you are interested and want to know details, please feel free to contact us.
