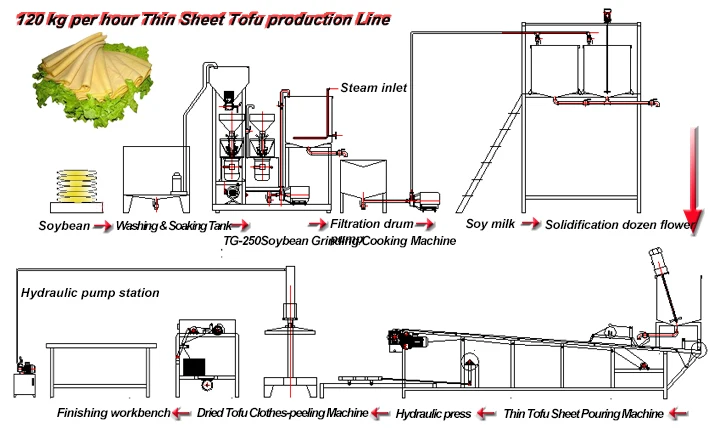

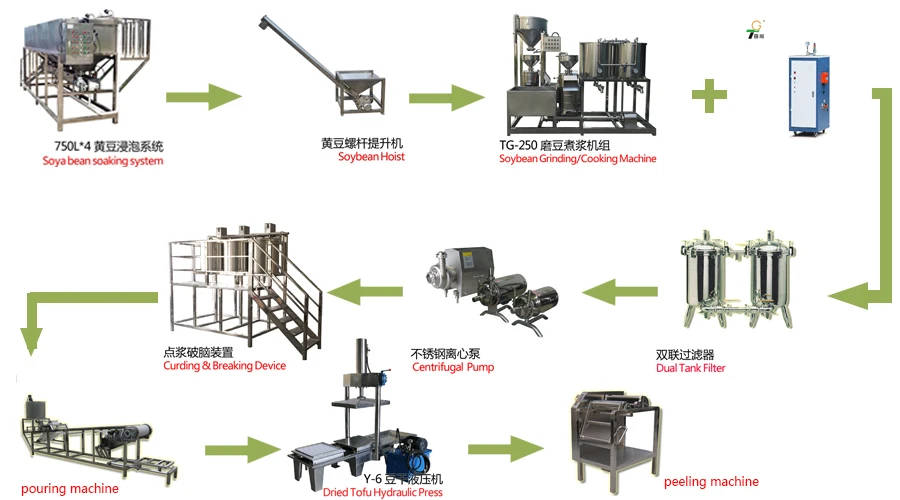

Industrial bean curd sheets/tofu skin making machine/tofu production line

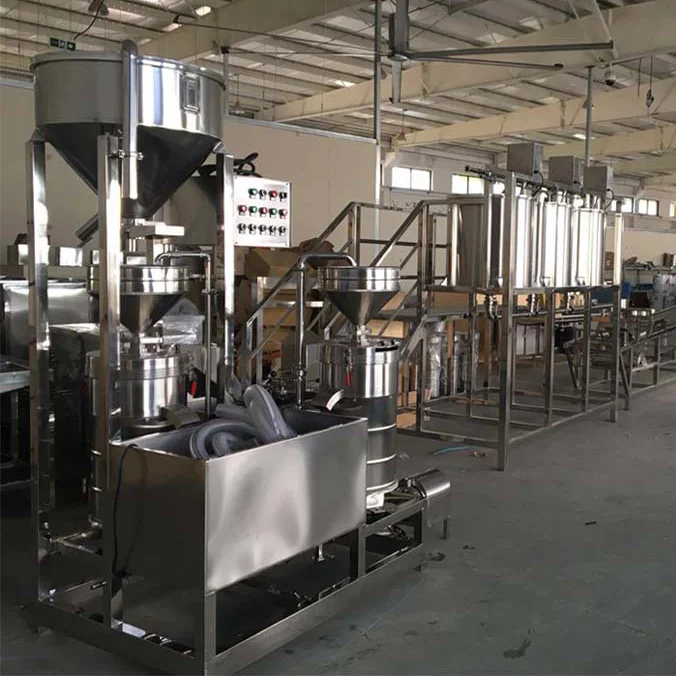

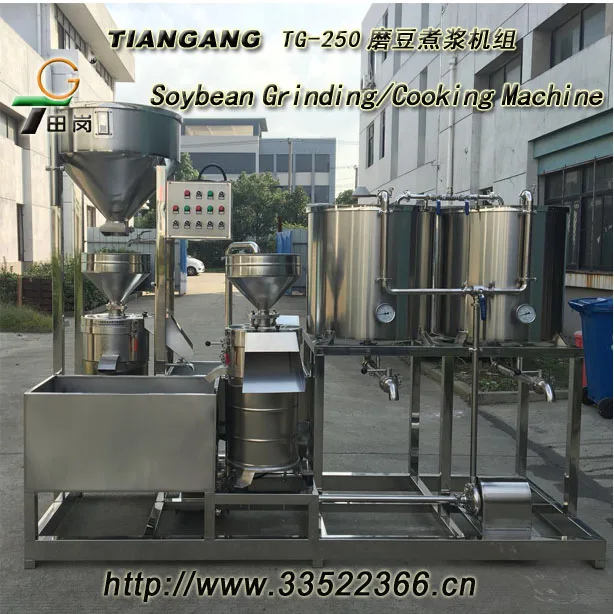

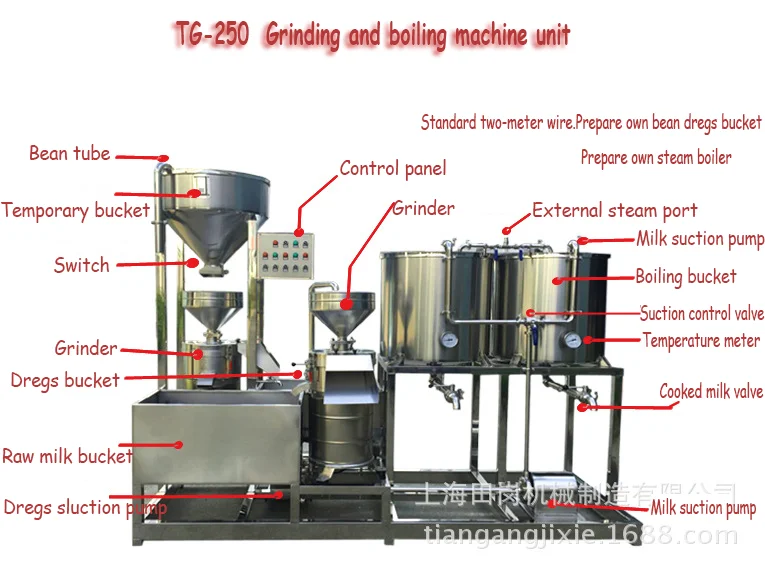

The grinder boiling machine unit is suitable for small bean processing plants. The machine is made of stainless steel, secondary grinding system, double barrel circulation cooking. It consists of two grinding control systems, such as a grinder, a soy milk pump, a dregs pump, a soy milk tank, a okara bucket, and a boil bucket. The pressure boiler is configured according to the user's needs, and the steam is externally connected. 1 ton of dried soybeans a day.
Technical Data | Voltage | Heating Power | Grinding Power | Pump Power | Boiling pan capacity | Weight | Size |
TG-250 | 380V 50Hz | External Boiler | 5KW +5KW | 750W+1500W | 250L*2 | 500Kg | 1400*1800*2250mm |
TG-150 | 220V 50Hz | External Boiler | 2200W +1.5KW | 370W+750W | 170L*2 | 300Kg | 1000*1200*1850mm |
TG-100 | 380V 50Hz | 18kw | 1500w | 120w | 110L | 200Kg | 650*2050*1550mm |
Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

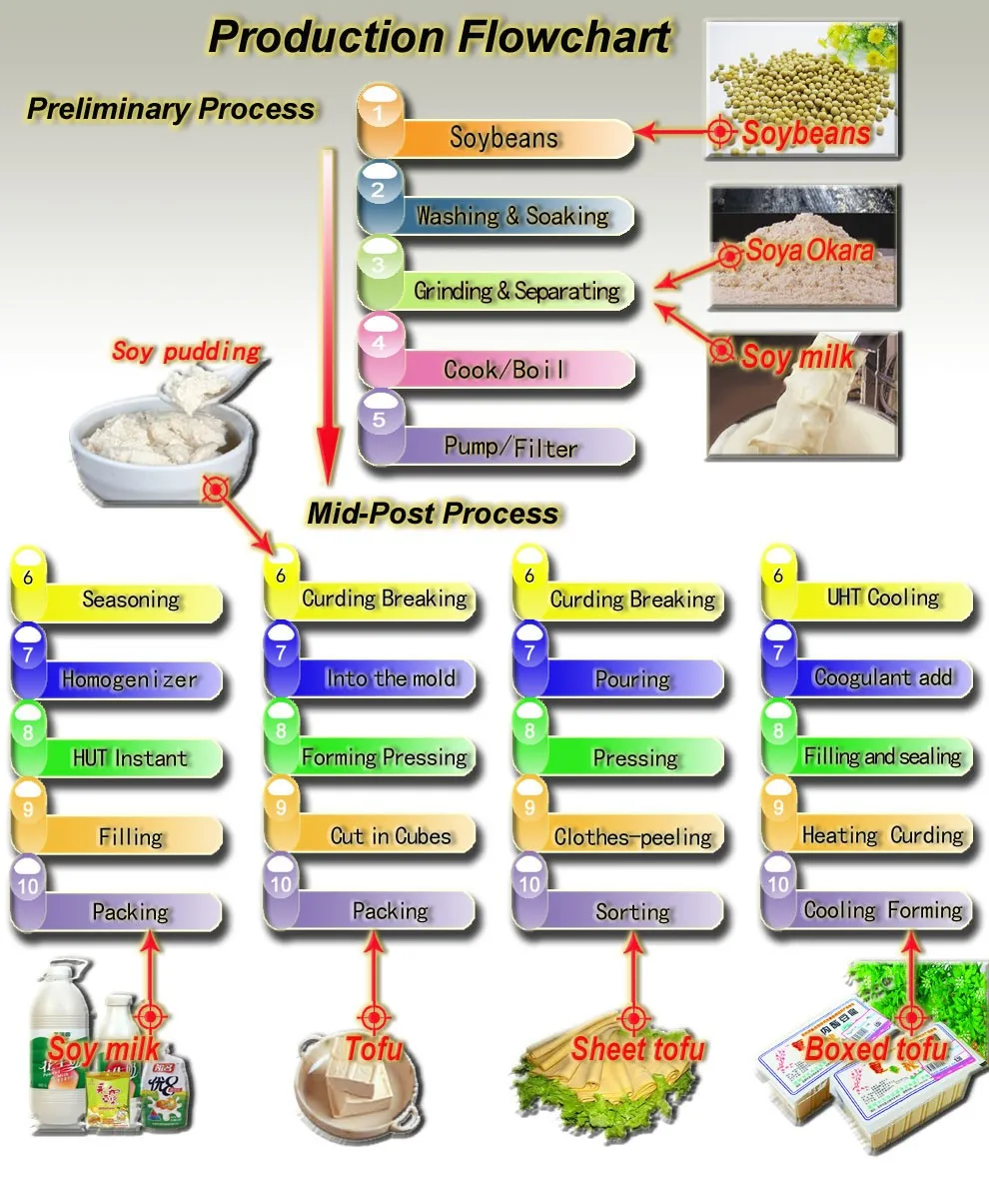

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.
We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
