Основное устройство цифровой конференц-системы SC3180

Описание и отзывы

Характеристики

Digital conference system Main Unit SC3180 SINGDEN







Description:
SINGDEN wired digital conference system main unit-SC3180 uses high power transformer, wide voltage input, and automatically adapt to variety of different voltage input in the world, and sufficient power, Standard conditions, a main unit can be installed 90 microphone unit;Main unit equipped with three of a video matrix, in the off-line condition, it still able to achieve the automatic camera tracking function; Built-in DSP audio processing module, In



conference system



the case of the bad condition, DSP module will be turned on to prevent howling to achieve the perfect sound. The Standard 2U housing for 19" rack mounting, Firm and reliable installation.







By using SINGDEN originated proprietary design, SINGDEN SC3180 Fully Digital Congress System revolutionizes conference systems technology by incorporating both the latest fully digital technologies. Furthermore, with perfect integration of SINGDEN Conference Sign-in System and Intelligent Central Control System, SC3180 takes the leadership in providing comprehensive and efficient digital conference system solutions. SINGDEN conference system is not only reliable quality, data security, simple operation, and easy system maintenance, etc., but also good scalability, and achieves a perfect seamless connection to central control system .System can accomplish digital voting system, video tracking system, digital discussion system, mainly for small and medium-sized meeting.







Characteristics:



•      System main unit support 90 discussion microphone, each cable up to 100 meters



•      Flexibly support video tracking system, digital discussion system



•      Built-in 3 into 1 video matrix, which can be directly connect 1~3 cameras.

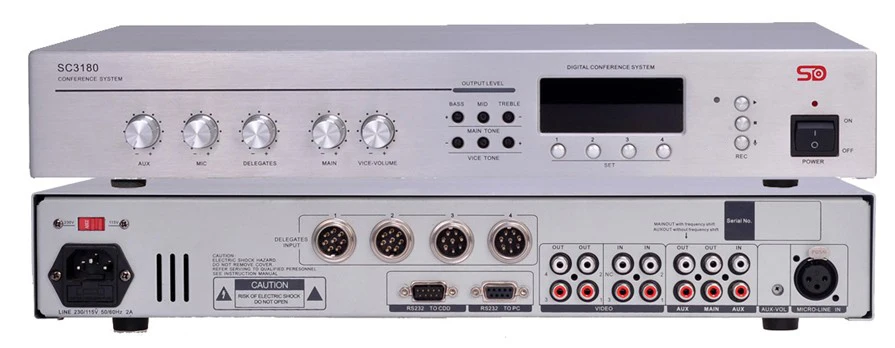

•      A variety of input and output interfaces, the main input deck input and front output, auxiliary output and audio output interface



•      Built-in DSP audio processing module, can prevent a limit screaming



•      100--230V AC power supply, inside machine adopts high-power ring transformer, supply enough work Rate



•      In addition, the main unit will supply power to discuss unit, the output voltage is 24 V DC, what a safe voltage range to ensure safety is.







Offline functionality:



•      Support for three cameras camera tracking;



•      1 to 6 microphones can be active at the same time;



•       Selectable mode: AUTO mode, FIFO mode;



•      Built-in DSP processor for acoustic feedback prevention•      Two independent medium and low sounds compensation, to achieve perfect sound.



Connected to the computer with the software, In addition to all of this, also has the following features:



 •      Conference management functions by the operator by clicking the conference unit icons approval or reject to speak.



OPEN Mode, APPLY mode, LIMIT mode



•      Video recording function. (Need to add audio and video capture card recording)



•      Speaking time limit can be preset for conference units



•      VIP microphone, Offline condition, system support 10 pcs VIP, VIP microphone is controlled by itself when we turn on another chairman unit microphone, they can’t affect each other.







Technical parameters:



Model SC3180	Power supply America, Japan: AC 110V~130V 60Hz Asia, Europe: AC 220V~240V 50Hz
Power Standard	<120W
Frequency response	20--25000Hz(+-3dB)
SNR	>80dB(A)
Dynamic range	>90dB
THD	80-20000Hz(3dB) Smaller than 0.1%AT1KHz
Channel crosstalk	>80dB
Display	128*64LCD LCD
Temperature/Humidity	-20~60°C/0-95%(waterproof prevent rain, dustproof, waterproof, salt fog)
Dimensions	482x350x66mm
Weight	4.5KG

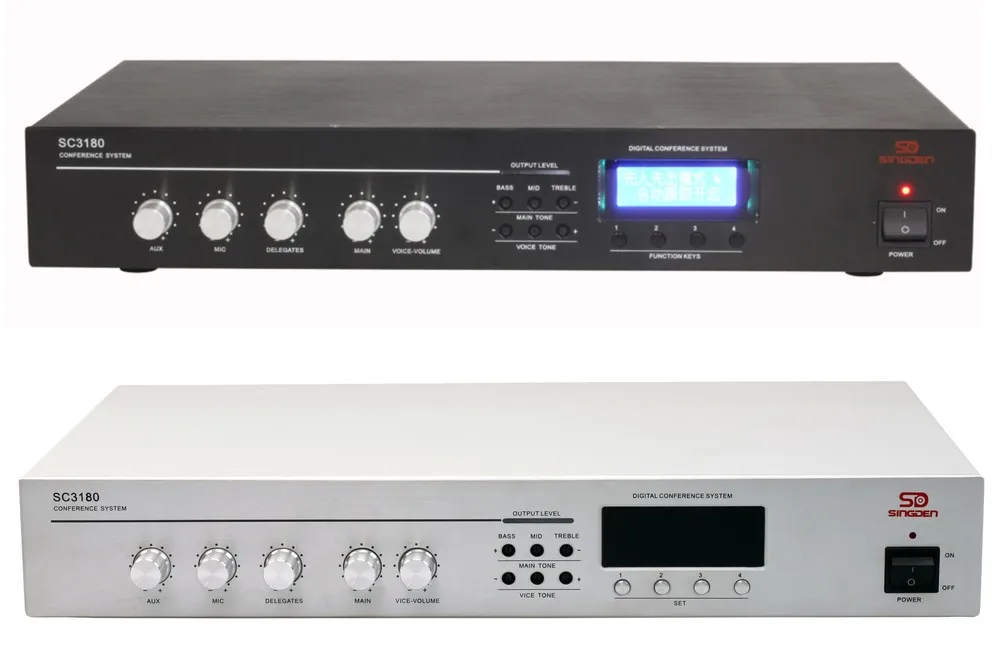

two colors for you choose

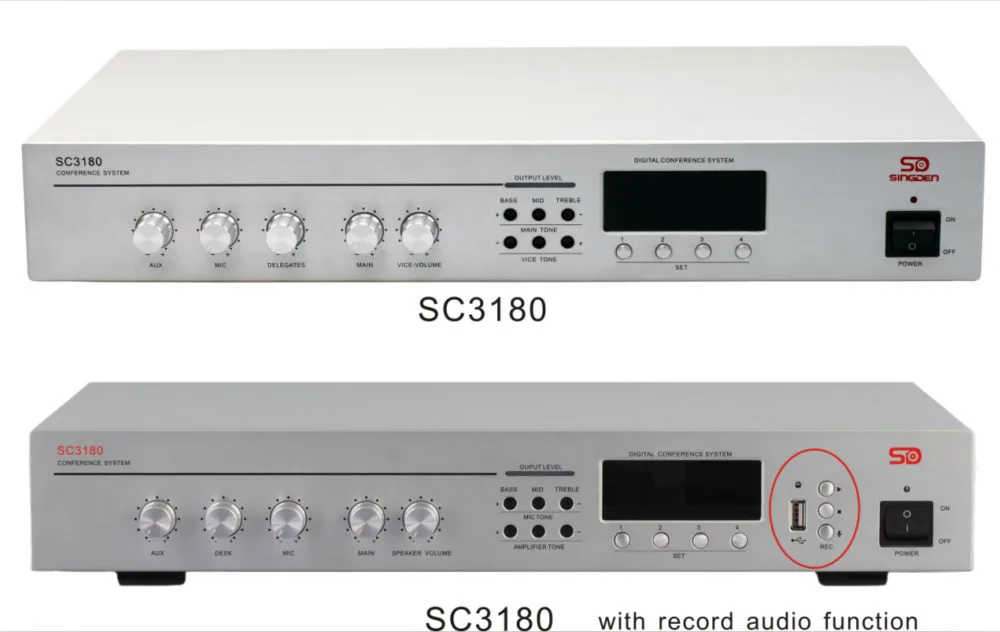

more function for you choose





Q&A



1. Q: Are you Manufacturer or Trading company?



  A: We are the manufacturer have more than 12 years experience







2.Q: Do you have any qualification certificate?



    Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.







3.Q: Can we visit your factory



 A: yes, warm welcome to visit our factory anytime,Our address as below for your reference



 Address:Wufansha industrial park,Nanhai district,Foshan,China







4.Q : What's your main products?



     Conference system and simultaneous interpretation system







5.Q: How many years of warranty of your products



  A: three years on system component parts and unlimited free technical support.







6. Q: If there is any problem about your products, should we have a refund or replacement.



  A: Don’t worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.



     If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.







6.Q: What is your delivery time?



     3-7 work days
