Product Description

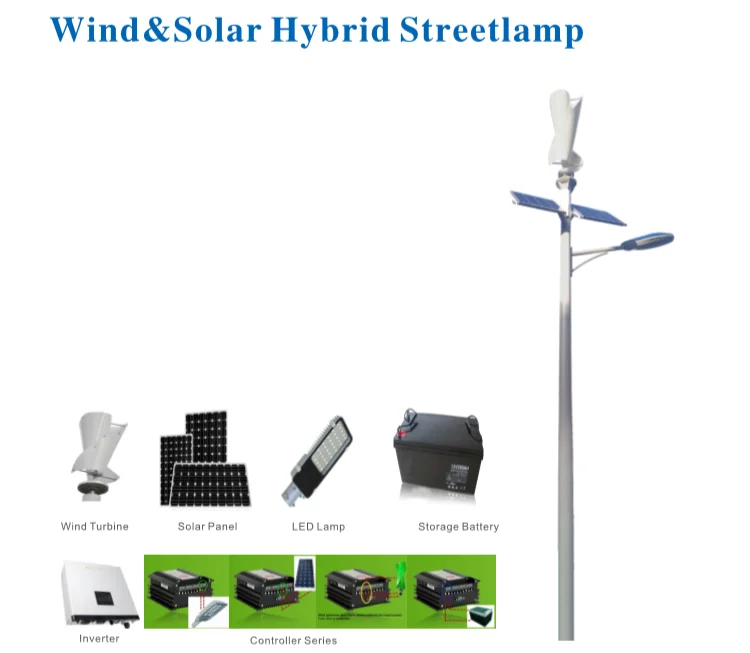

In regard to our Wind&solar hybrid system, new developed horizontal axis poly-magnetic ring Wind Turbine and integrated vertical
axis poly magnetic ring wind turbine.With lower startup wind speed, the application of poly magnetic ring enhances the utilization
rate of magnet and generating efficiency and increases generating capacity. We have perfect R&D and we can customize according to your request.
axis poly magnetic ring wind turbine.With lower startup wind speed, the application of poly magnetic ring enhances the utilization
rate of magnet and generating efficiency and increases generating capacity. We have perfect R&D and we can customize according to your request.
Specification
Model | SLT-60 |
Light source | 24V/60W |
Wind generator | 24V/100W |
Solar panel | 24V/200W |
Controller | 24V |
Lamp Pole | 6 m hot galvanized steel, surface with Powder Coating (include rag bolts,battery house,solar bracket and cables) |
IP rating | IP65 |
Working temperature | -40℃~ 65℃ |
Certification | CE,RoHS |
Model | SL-60 |
Rated Power | 60W |
LED Power | 60W |
Luminous Flux | ≥6600lm |
LED Efficiency | ≥110 lm/W |
Voltage (VDC) | 24V |
TYPE | Inside Patented with 3 years warranty |
Protection Grade | IP66 |
Fixture efficiency | >92% |
Life Time | 50,000h |
Color Temperature(CCT) | 5500-6500K |
Working Temperature(℃) | -40--60℃ |
Lampshade | Toughened Glass |
Lamp Body Material | Aluminum Alloy |
Size | 960L×376W×200H |
Weight | 9.0Kg |
Wind turbine | |
Model | WSC100 |
Rated power | 100W |
Maximum power | 150W |
Nominal voltage | 24V |
Start wind speed | 1.5m/s |
Rated wind speed | 10m/s |
Rated revolution | 180rpm |
Weight | 20kg |
Diameter | 520mm |
Height | 1.3m |
Blade number | 2 |
Blade material | CBF |
Generator | Maglev generator. |
Controller system | Electromagnetic/wind round lateralization. |
Speed way | Automatically adjust the windward angle. |
Solar panel | |
Maximum Power | 100W x 2 |
Optimum Power Voltage(Vmp) | 17.64 |
Optimum Operatige Current(Imp) | 3.41 |
Open Circuit Voltage(Voc) | 21.4 |
Short Circuit Current(Isc) | 3.77 |
Size of Module(mm) | 1100*610*5.5 |
Front Glass Thikness(mm) | 5 |
Temperature Coefficients of Isc(%)℃ | 0.065+/-0.015%/℃ |
Temperature Coefficients of Voc(%)℃ | -(2.23+/-0.1)mv/ ℃ |
Temperature Coefficients of Pm(%)℃ | -(0.5+-0.05)/℃ |
Temperature Coefficients of Im(%)℃ | +0.1/ ℃ |
Temperature Coefficients of Vm(%)℃ | -0.38 |
Temperature Range | -40°C to +85°C |
Tolerance Wattage(e.g.+/-5%) | ±5% |
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
Allowable Hail Load | steel ball fall down from 1m height |
Weight Per Piece(KG) | 5.4 |
Bypass Diode Rating(A) | 12 |
Cell Efficiency for 80W(%) | >16.85% |
Frame(Material Corners,etc.) | Alumnium |
Standard Test Conditions | AM1.5 1000W/sq.m 25 +/-2°C |
FF (%) | 70% |

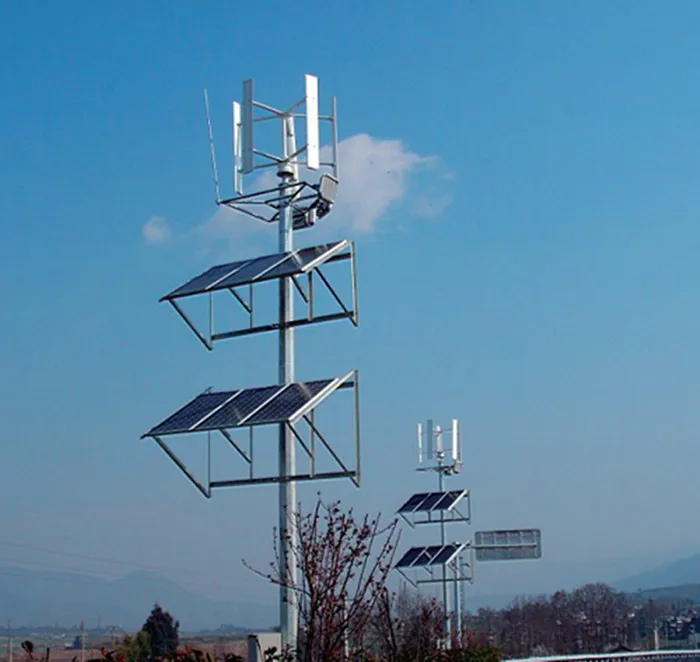

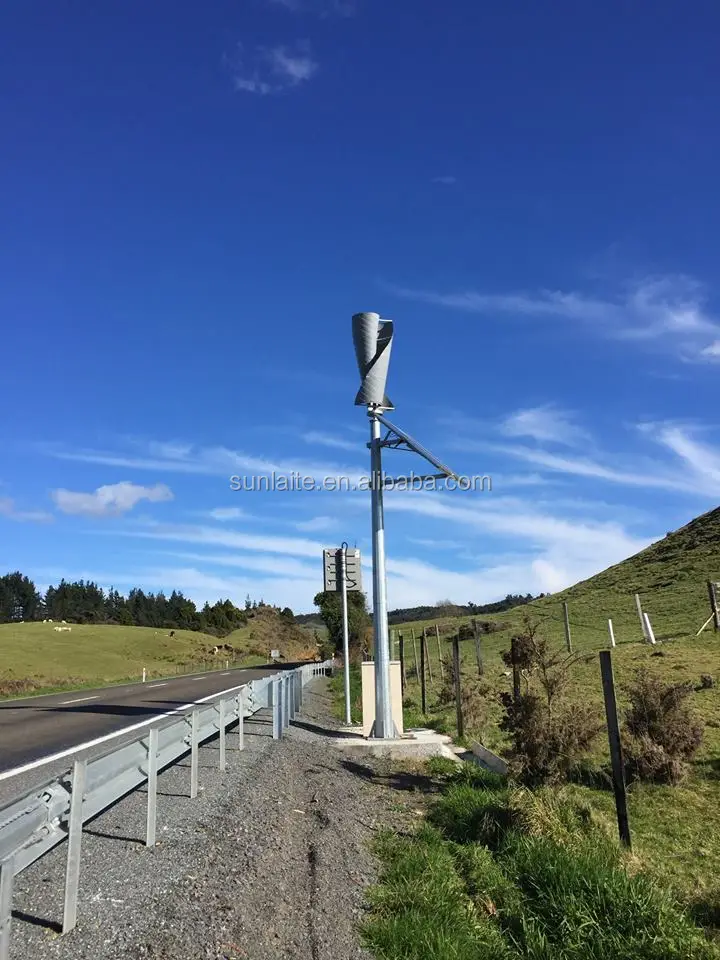

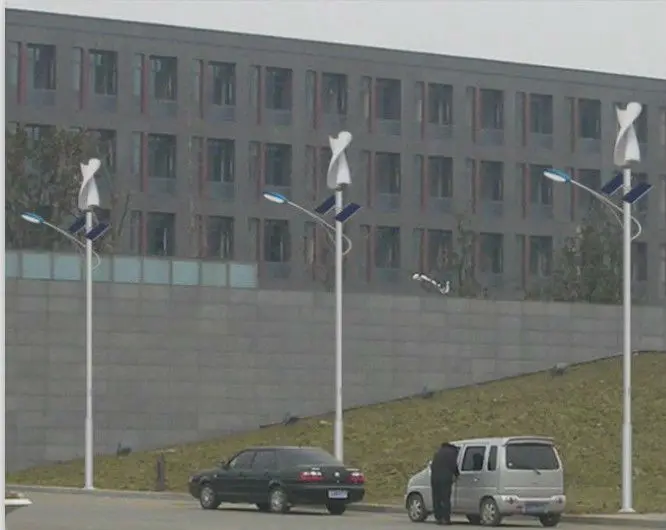

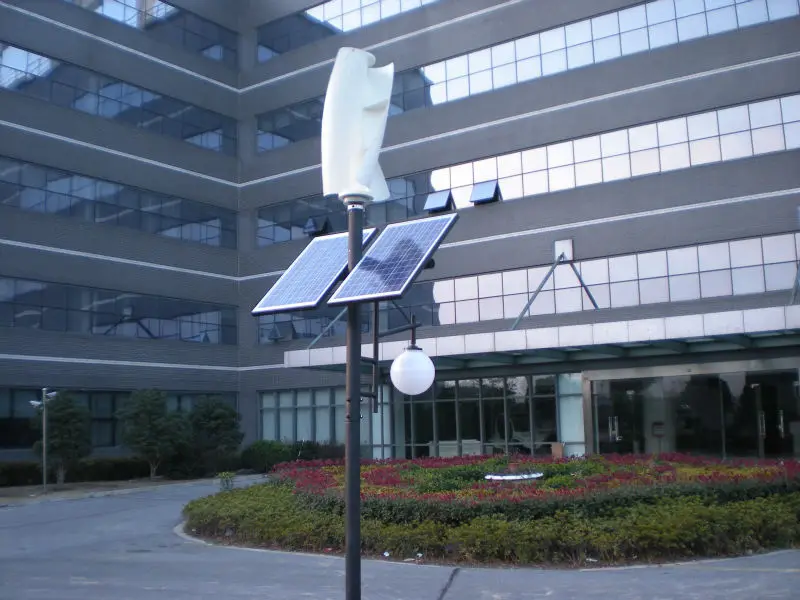

Customer Photos
