Резиновый пластиковый Банбери интенсивный тестомес смешивая

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

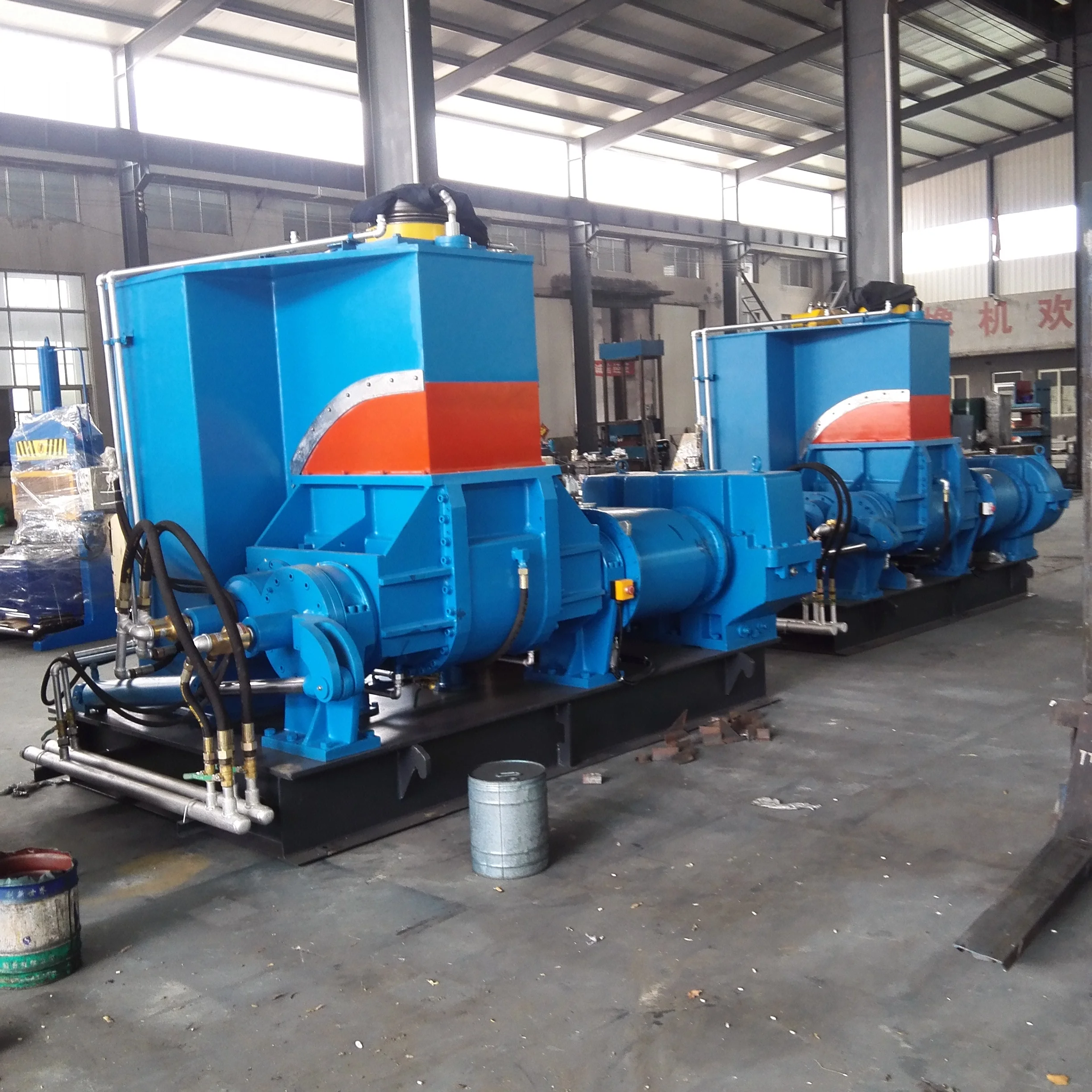

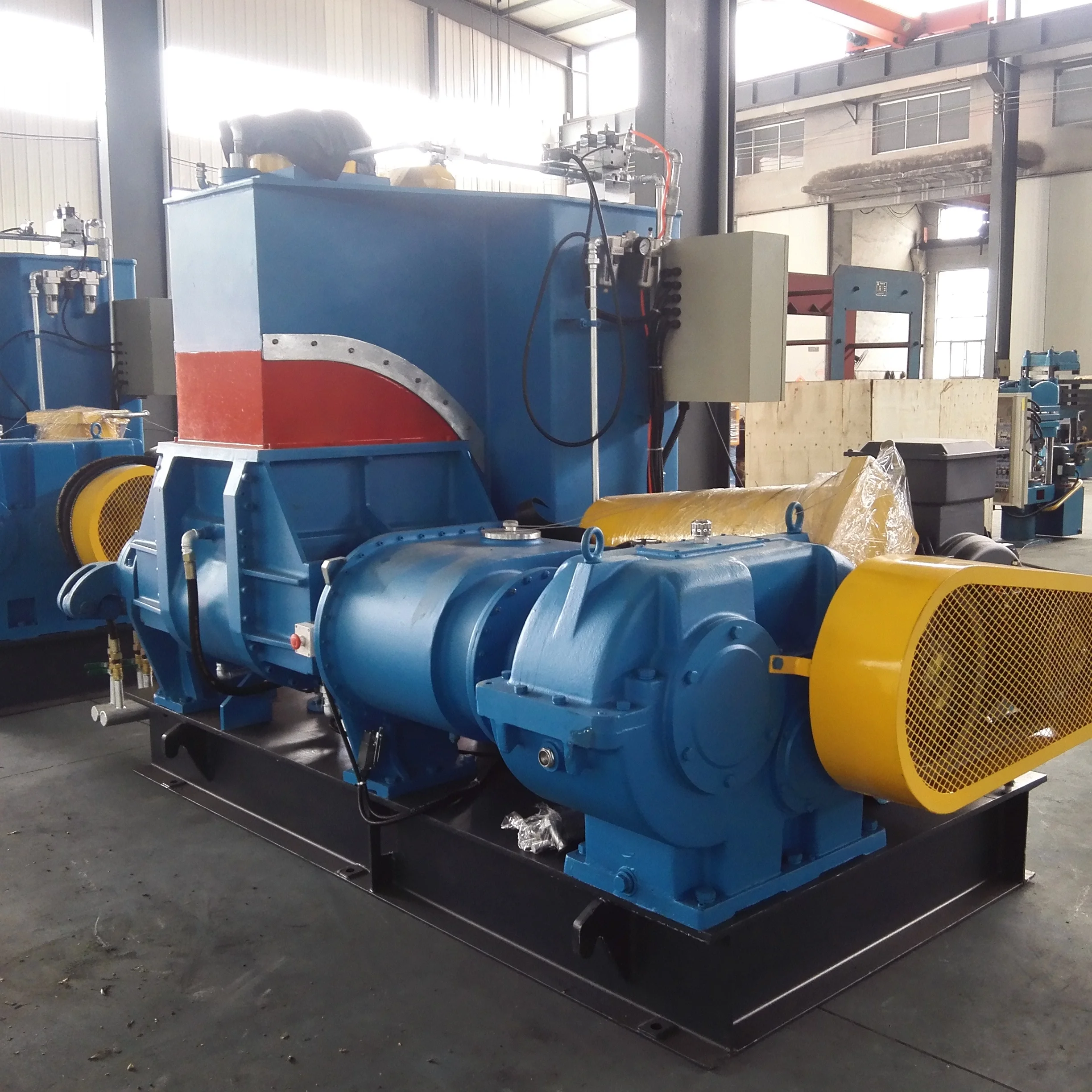

Rubber Plastic Banbury Intensive Kneader Mixing Machine

Banbury Mixer

As so far, it is the best machine for mixing of big quantity plastic and rubber material.

High pressure, large strength, high speed, and good temperature devices can be added to get a much better effectivity.

Main technical data

Molde/Item		X(S)N-3×32	X(S)N-5×32	X(S)N-10×32	X(S)N-20×32	X(S)N-25×32	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N- 110×30	X(S)N- 150×30
Total volume of mixing chamber	L	8	15	25	45	55	75	125	170	250	325
Working volume of mixing chamber	L	3	5	10	20	25	35	55	75	110	150
Driving motor power	kW	5.5	11	22	37	37	55	75	110	185	220
Tilting motor power	kW	0.55	1.1	1.1	1.5	1.5	2.2	2.2	3	5.5	11
Tilting angle	°	140	140	140	140	140	140	140	140	140	135
Rotational speed of the rotor (front /rear)	r/min	32/24.5	32/23.5	32/25	32/27	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air	MPa	0.5~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of compressed air	m³/min	≥0.3	≥0.5	≥0.5	≥0.7	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.0
Pressure of cooling water (rubber mixing )	MPa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.2~0.4
Pressure of heating steam (plastics mixing )	MPa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.4~0.8
