water closet spagless casting machine for sanitary ware wc

Model No: HX1029-spagless



1----Function



It mainly is applicable to the casting and forming of middle and top grade water closet.



2----Technical data:



--compression air pressure: more than 0.6Mpa

--slip supply pressure: 0.25-0.3Mpa

--slip temperature:30±2℃

-- total casting cycle: 3-4 hours

--Application of mould: min 4 sets

--Clamp method of mould: air bag+leading screw

--Opening of mould: three layers mould turning system

--Base unloading method: automatic

--Rim and tank is casted integrally by one time

--PLC control

--can be with mould dry and fan system

--overall size-- rim casting machine 2685*1700*4500mm

                       tank casting machine: 4300*1700*4500mm

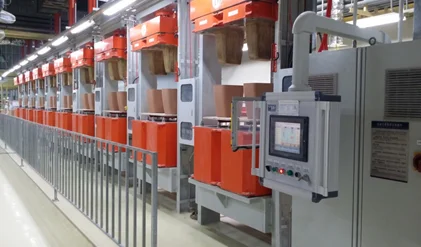

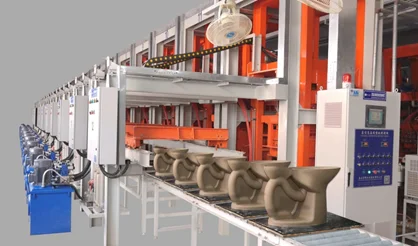

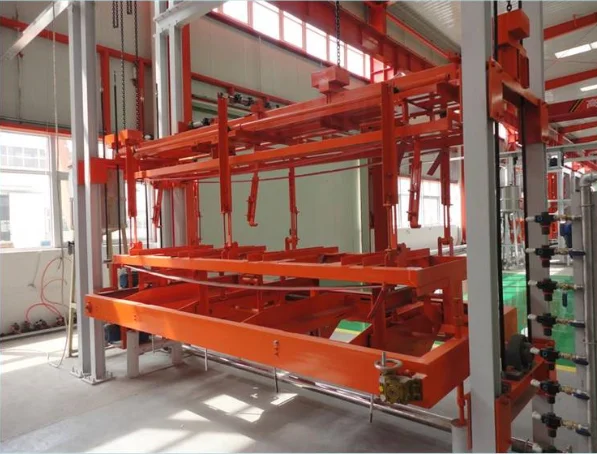

 Machine picture-running

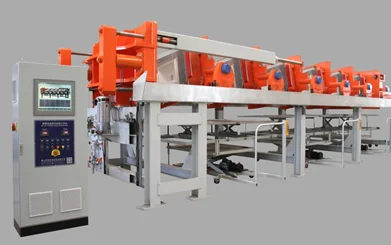

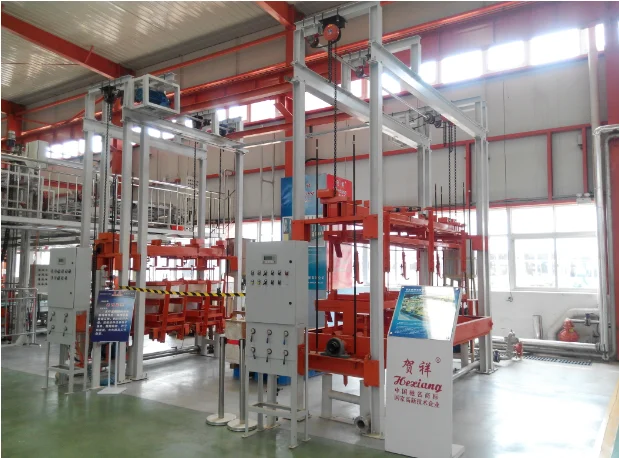

Machine picture-making







Others Machine -for sanitary ware



                   HPCM-ONE PIECE TOILET



                                  HPCM-CISTERN



     LOW PRESSRE CASTING-ONE PIECE TOILET

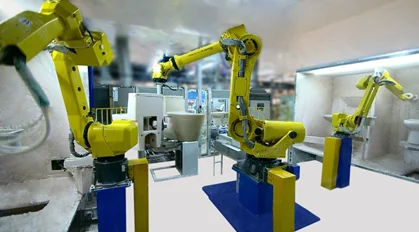

                        ROBOT GLAZING MACHINE
