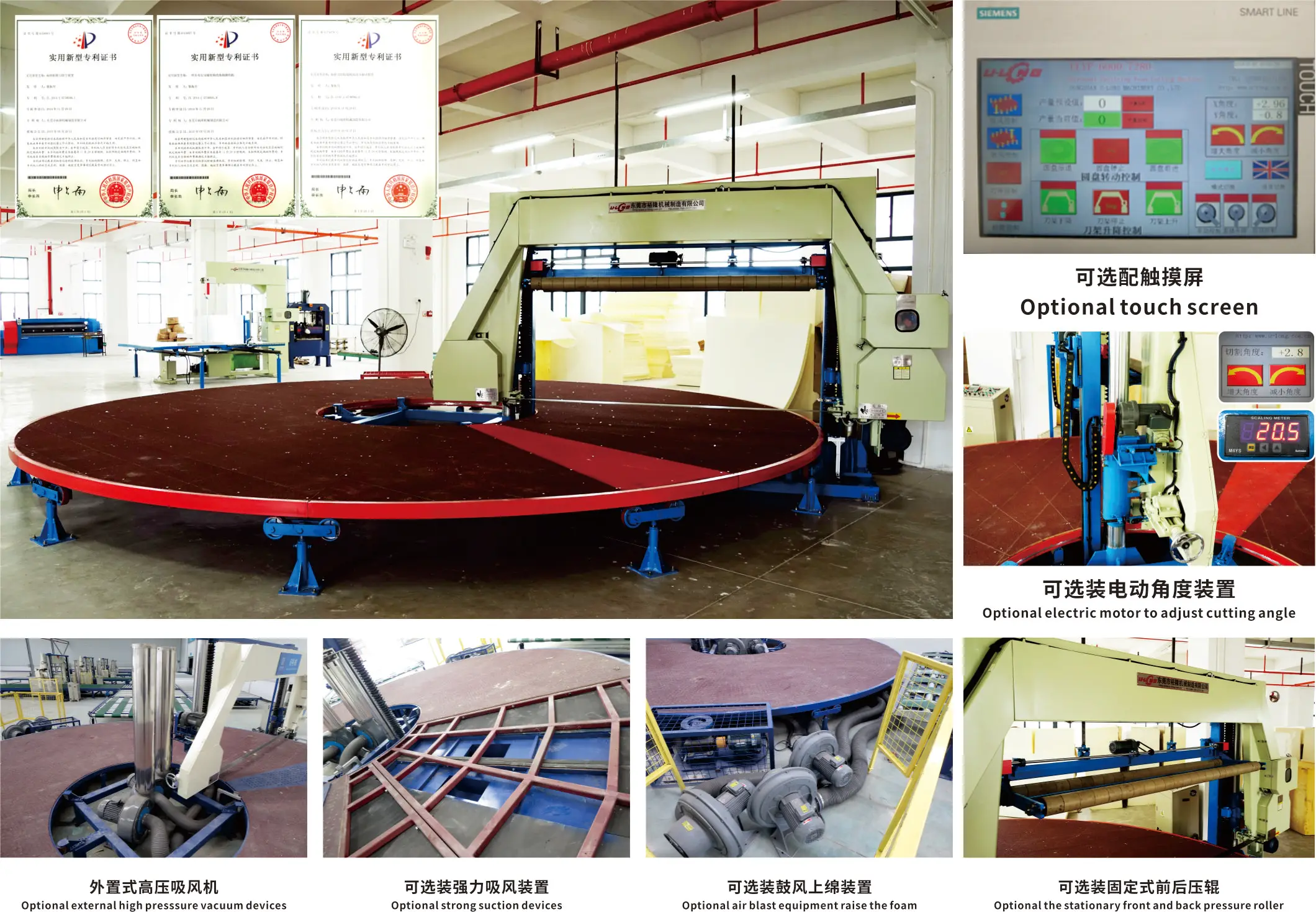

 Disk Horizontal Sponge Cutting Machine ULYP-6000/7280/10500









This  machine is mostly used for many quadrate foam continuously flatly slicing. And is fully automatic controled operation and the cutting is accurate,the operation is simple and the production efficiency is very high.This machine chooses with vacuum equipments,the rubber fixed more firmly,the effect of cutting is better.The humane designing can make it be more safter .This machine can choosing two kinds of blades for the better effect of cutting soft sponge.



Model	ULYP-6000	ULYP-7280	ULYP-10500
1.Cutting foam size	W1.5*L2*H1.2m(4pcs)	W1.5*L2*H1.2m(6pcs)	W1.5*L2*H1.2m(8pcs)
2.Cutting foam size max	W1.5*L2*H1.2m(4pcs)	W1.5*L3*H1.2m(3pcs)	W1.5*L4.5*H1.2m(3pcs)
3.Total power	8.92Kw	8.92Kw	11.92Kw
4.Worktable turning speed	0-3.5r/min	0-3.0r/min	0-2.0r/min
5.Blade length	8940mm	10000mm	10240mm
6.Worktable dia.(Ø)	6000mm	7280mm	10500mm
7.Cutting thickness	2-150mm	2-150mm	2-150mm
8.Machine weight	3300Kg	3500Kg	4500Kg
9.Machine external size	W6.9*L6*H2.4m	W7.9*L7*H2.4m	W11.5*L11*H2.4m
