Product Description

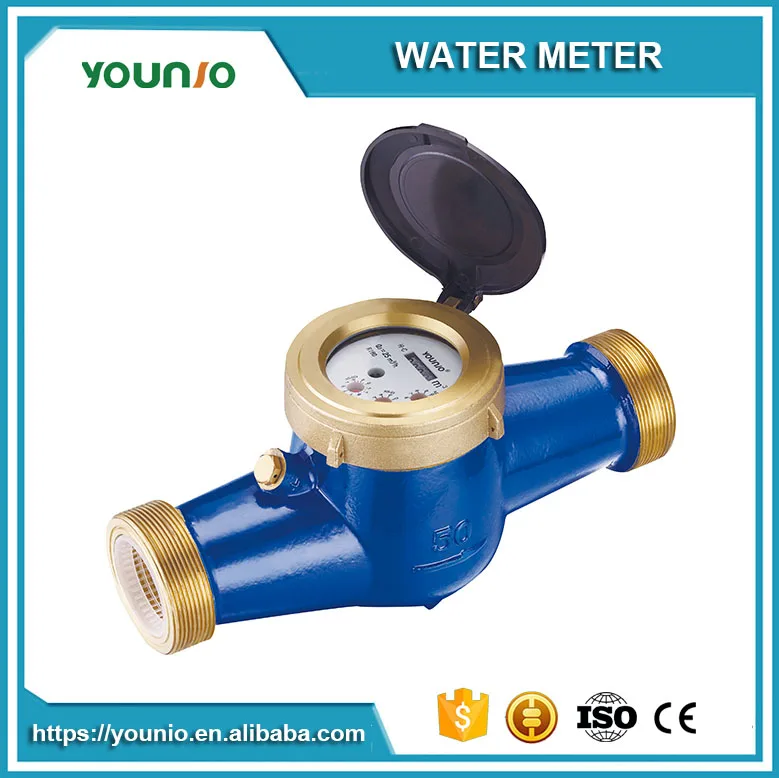

Younio Brass Body Multi Jet Water Meter ISO4064 Class C
Feature:
- Only the number wheels of the register are sealed with special liquid
- Keep the reading number clean reading for long time
- Available for cold water 0~30℃
- High measuring accuracy,low starting flow rate
- Long durability and elevated precision guaranteed.
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%

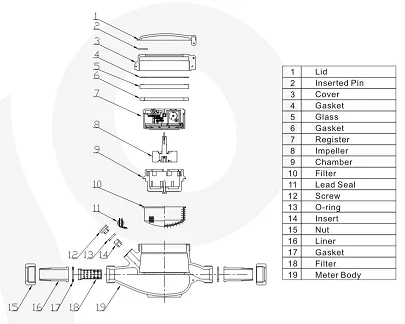

Dimension:

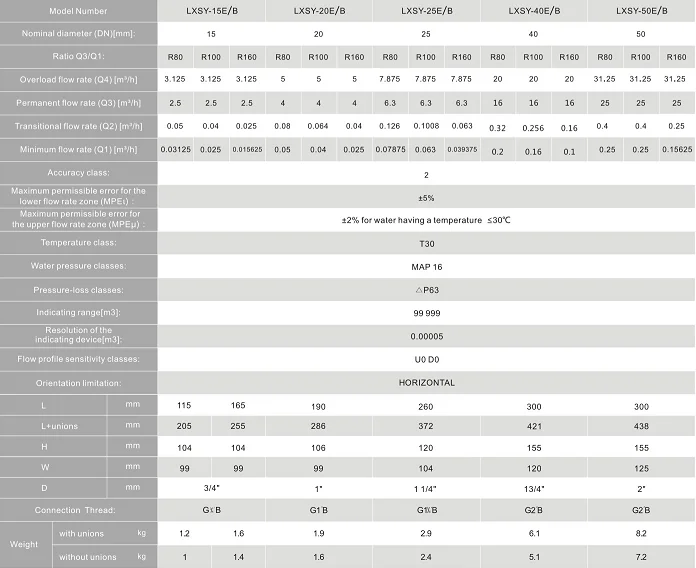

Technical Data:
| DN/Q | Q4=1.25Q3 | Q3 | R=Q3/Q1 | Q2=1.6 | Q1 | R=Q3/Q1 | Q2=1.6Q1 | Q1 |
| l/h | l/h | l/h | ||||||
| 15 | 3125 | 2500 | 80 | 50 | 31.25 | 100 | 40 | 25 |
| 20 | 5000 | 4000 | 80 | 80 | 50 | 100 | 64 | 40 |
| 25 | 7875 | 6300 | 80 | 126 | 78.75 | 100 | 100.8 | 63 |
| 32 | 12500 | 10000 | 80 | 200 | 125 | 100 | 160 | 100 |
| 40 | 20000 | 16000 | 80 | 320 | 200 | 100 | 256 | 160 |
| 50 | 31250 | 25000 | 80 | 400 | 250 | 100 | 250 | 156.25 |
Nominal size DN (mm) | Class of measurement | Overload flow-rate q s(m3/h) | Permanent flow-rate q p(m3/h) | Transitional flow-rate qt(l/h) | Minimun flow-rate qmin (l/h) |
| 15 | C | 3 | 1.5 | 120 | 30 |
| 20 | C | 5 | 2.5 | 200 | 50 |
| 25 | C | 7 | 3.5 | 280 | 70 |
| 32 | C | 12 | 6 | 480 | 120 |
| 40 | C | 20 | 10 | 800 | 200 |
| 50 | C | 30 | 15 | 3000 | 450 |
Overall dimensions and weight
| Type | Size (mm) | Length (mm) L | Width (mm) W | Height (mm) H | Connecting Thread D | Weight (kg) |
| LXSY-15E | 15 | 165 | 80 | 100 | G 3/4"B | 1.1 |
| LXSY-20E | 20 | 190 | 98 | 105 | G 1"B | 1.7 |
| LXSY-25E | 25 | 220 | 105 | 110 | G 1 1/4"B | 2.4 |
| LXSY-32E | 32 | 260 | 120 | 120 | G 1 1/2"B | 2.8 |
| LXSY-40E | 40 | 300 | 120 | 155 | G 2"B | 5.2 |
| LXSY-50E | 50 | 300 | 125 | 155 | G 2 1/2"B | 7.3 |
Our Exhibition
Company Information
Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,acce-ssories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupati-onal health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accou-nted for more than 85%
Packaging & Shipping
FAQ
Q.Are you the factory?
A.Yes.We are factory.YOUNIO WATER METER was established in 1983,specializes in producing all kinds of water meters.Our factory is located in Wenling Industrial Zone,Zhejiang,China.Welcome your visit to our factory.
Q.How to request a quotation from YOUNIO?
A.Simply call or send us E-mail with your purchase request. Be sure to include all requirements(like the type,size,weight ,package and so on) in your request for quote.
Q.What are your quality control procedures?
A.YOUNIO strictly get the control of quality,which begin with material purchase and carry through to the end of the production process by ISO9001.Before shipping,welcome the examination of goods.
Q.Are there any special requirements for OEM purchases?
A.Yes.We requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q.Do YOUNIO products come with a warranty?
A.Yes.We backs our products100%.Usually 3-5 years product life guarantee(except environment influence,like the chemical substance in water) ,and a generous 2 year warranty on all purchases that begins with the bill of loading.
