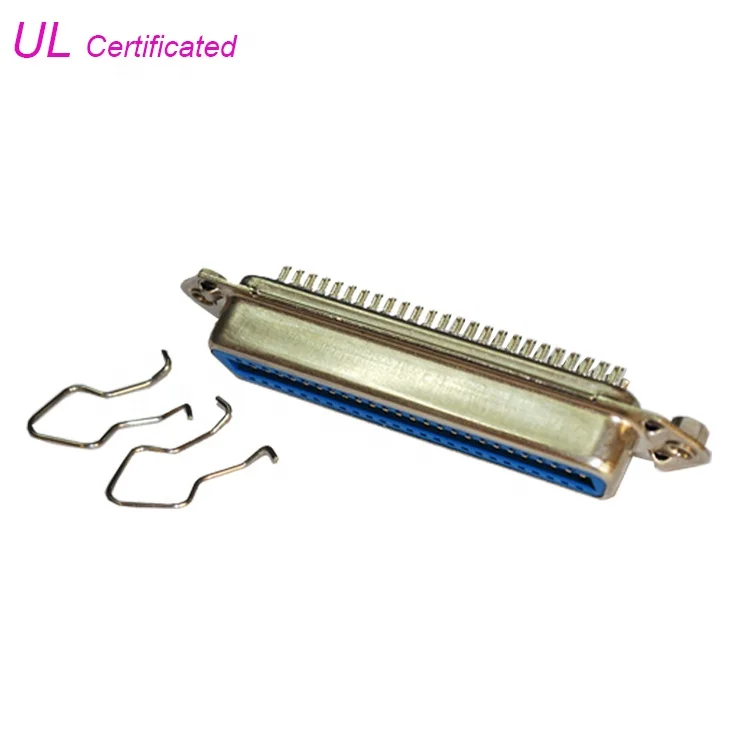

2.16mm Pitch 25pair 50pin 36pin Centronic Solder Connector, Female Receptacle DDK Socket Centronic Connector for Ribbon Cable
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
The Centronics 50pin connector is arranged in two rows of pins each with 25 contacts, it is most often used by older SCSI-1 devices (scanners, storage devices, etc.).The Centronics 36pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36pin connector is often used for parallel applications, especially for printers.
Why Choose Us
1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Product Description
Product features | |
1. Product Line: | Centronic Connector |
2. Product Name: | Solder Cup Connector |
3. Connector Gender: | Female |
4. Number of Position: | 14/24/36/50 pin |
5. Contact Material: | Brass |
6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
7. Insulation Material: | PBT |
8. Certification | UL certification |
9. Contact Type | Solder Cup |
10. Shell: | Nickel plated steel |
11. Mount | Cable Mount |
12. Pitch | 2.16mm |
Electrical Specifications | |
1. Current Rating: | 5Amp |
2. Voltage rating: | DC 1000v per minute |
3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
4. Operation Temperature: | -55°C to +105°C |
Application
1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
