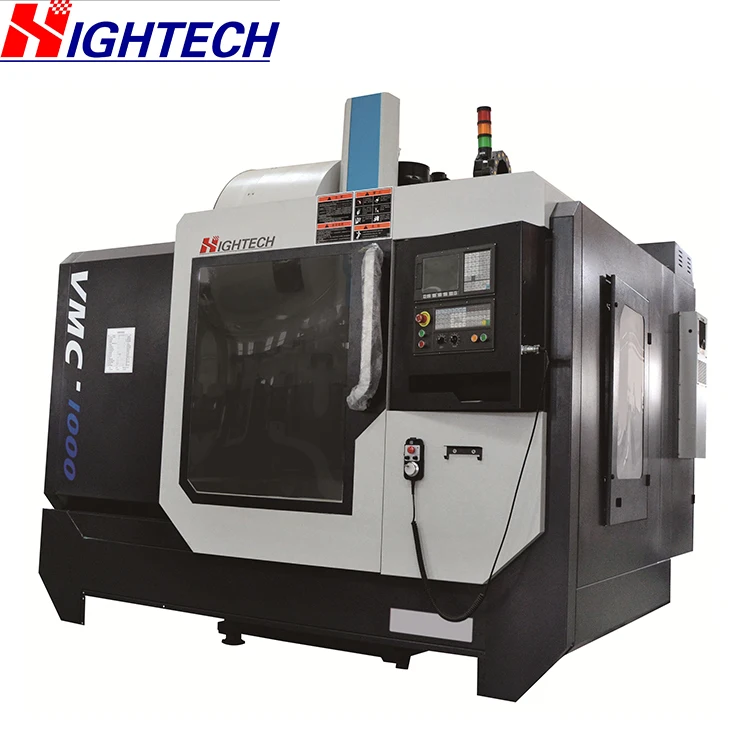

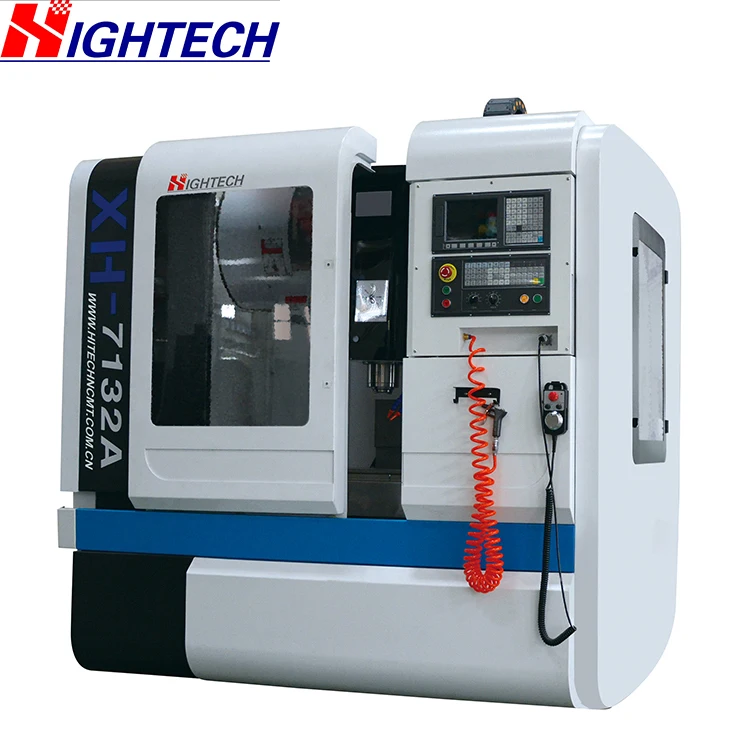

VMC machining center numerical control 3 axis vertical CNC center manufacturer VMC 4 axis NC machining center high configuration



1. Main Technial Parameter



Work table size (L×W)	520x1200 mm
X travel	880 mm
Y travel (two guide ways)	500 mm
Z travel	610 mm
Max loading of table	800 kg
Distance from spindle end to table top	250-860 mm
Number of T-type slot	5(18x100mm)
Spindle taper	BT No. 40
Magazine capacity	24
Max tool size	Dia.100x250 mm
Max tool weight	8 kg
Free-rate (x,y,z)	5-8000 mm/min
Max spindle speed	8000 rpm
Rapid traverse (x,y,z)	20000 mm/min
Spindle motor power	7.5/11 (30 minutes) kw
Positioning accuracy	X: 0.020 Y: 0.014 Z: 0.016 mm (JB/T8772.4-1998)
Repeated positioning accuracy	X: 0.012 Y: 0.008 Z: 0.010 mm (JB/T8772.4-1998)
Net weight of machine	6500kg
Overall dimensions (LxWxH)	2740x2640x2230 mm
Packing size	2—3 cases
Gross weight	8000 Kg













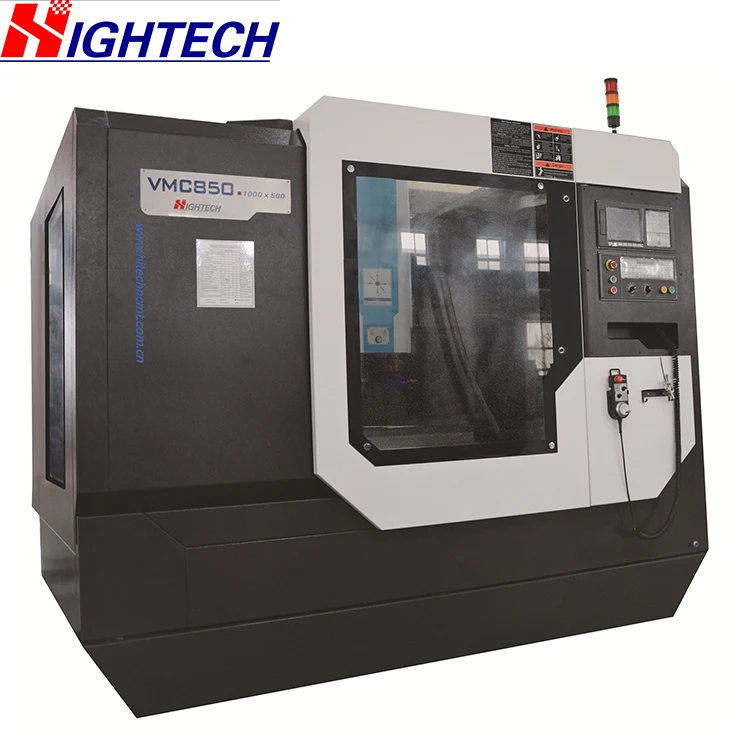

2. Brief introduction



1.Adopt single column, longitudinal bed, cross saddle, worktable without up and down and front-mount spindle box structure.



2.Equipped with tools-work pieces cooling system and corresponding pneumatic and hydraulic systems, furthermore adopt force cooling for spindle.



3.Adopt butterfly-type spring to clamp tools and release tool with air pressure. Utilize dry and clean compressed air source, air pressure mustn’t be lower than 0.5Mpa.



4.The spindle box adopts counterweight for balance.



5.Pneumatic system adopts imported components with reliable and stable quality.



6.Mechanical and electrical are in one structure. The electrical controlling section, CNC system, lubrication and cooling devices are mounted on the bed and column.



7.The electrical controlling unit is provided with a cooling unit.
