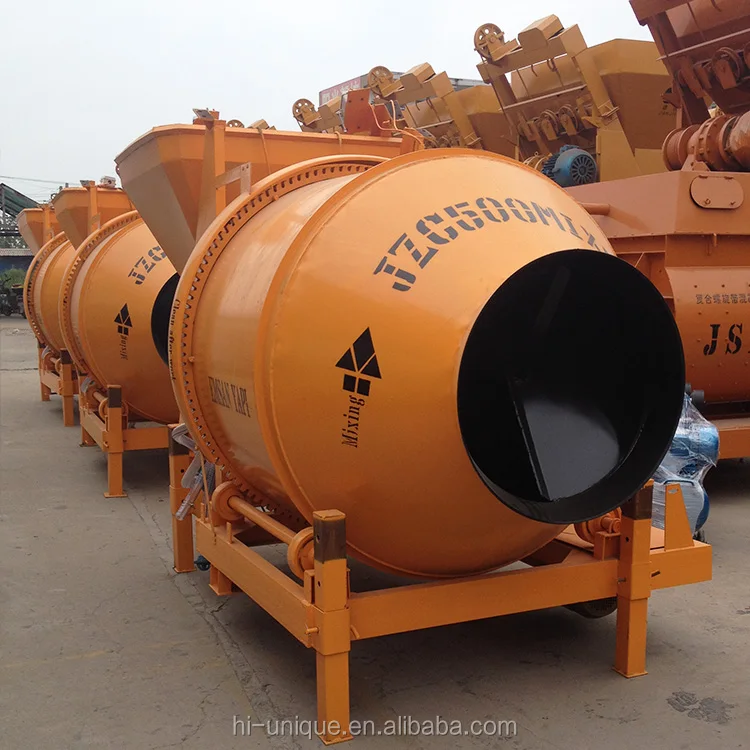

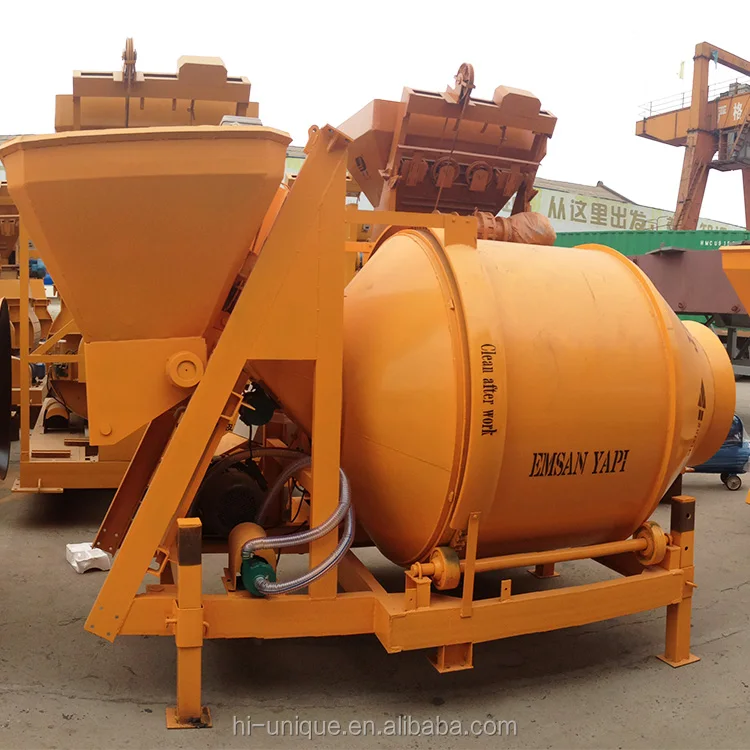

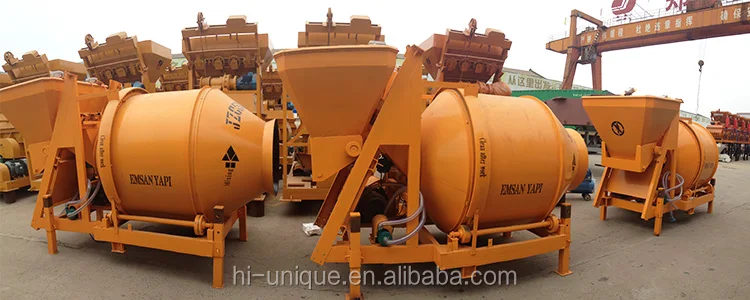

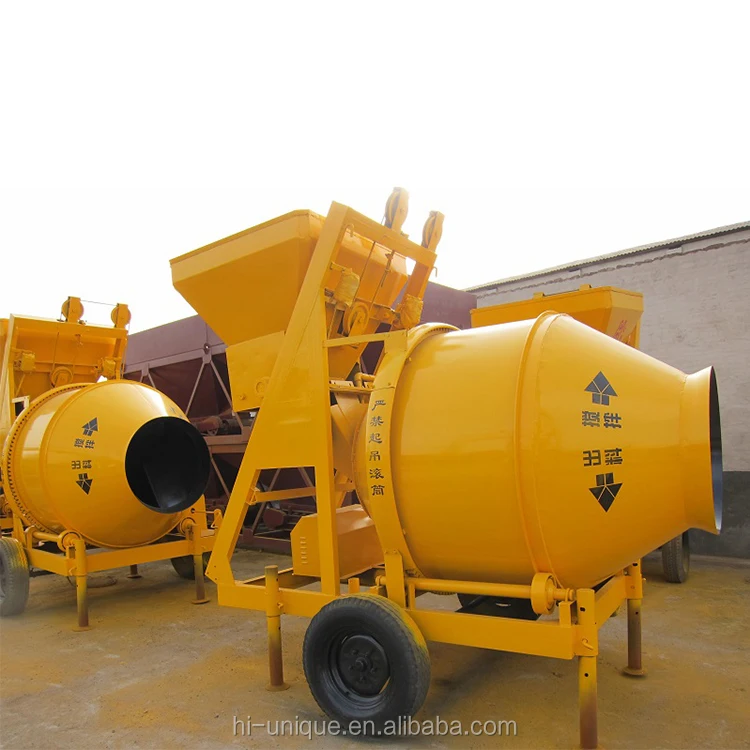

JZC500 Cement Mixing Container
Descriptions of JZC500 Cement Mixing Container :
JZC series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging.

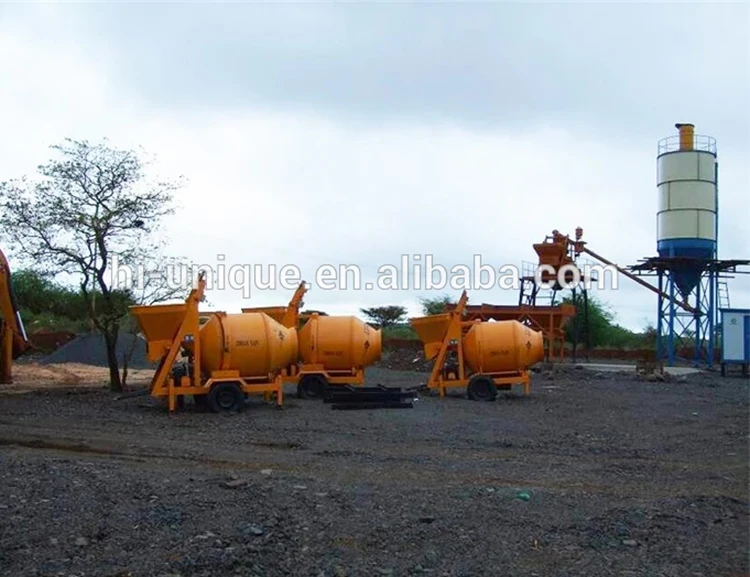

It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.
Technical Parameters of JZC500 Cement Mixing Container :
Model: JZC500
Discharge volume: 500L
Charging volume: 800L
Capacity: 18~20 m3/h
Aggregate sizes: ≤60mm
Rotating speed: 13 r/min
Max. drag speed: 20km/h
Mixing motor: 7.5kw
Lifting motor: 5.5kw
Pump motor: 0.55kw
Weight: 2400kg
Dimensions (L x W x H): 3500x2200x3200 mm
Technical Parameters of JZC, JZM Cement Mixing Container :
Model | JZC350 | JZC500 | JZM500 | JZM750 |
Discharge volume | 350L | 500L | 500L | 750L |
Charging volume | 560L | 800L | 800L | 1200L |
Capacity | 10~14 m3/h | 18~20 m3/h | 25~30 m3/h | 30~35 m3/h |
Aggregate sizes | ≤60m | ≤60mm | ≤70mm | ≤80mm |
Rotating speed | 14 r/min | 13 r/min | 13 r/min | 12.26 r/min |
Max. drag speed | 20km/h | 20km/h | / | / |
Mixing motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
Lifting motor | 4.5KW | 5.5kw | 5.5kw | 7.5kw |
Pump motor | 0.55kw | 0.55kw | 0.75kw | 0.75kw |
Weight | 1950kg | 2400kg | 3000kg | 4000kg |
Dimensions (L x W x H) | 2766x2140x3000 mm | 3500x2200x3200 mm | 5200x2065x3200 mm | 5650x2065x3535 mm |

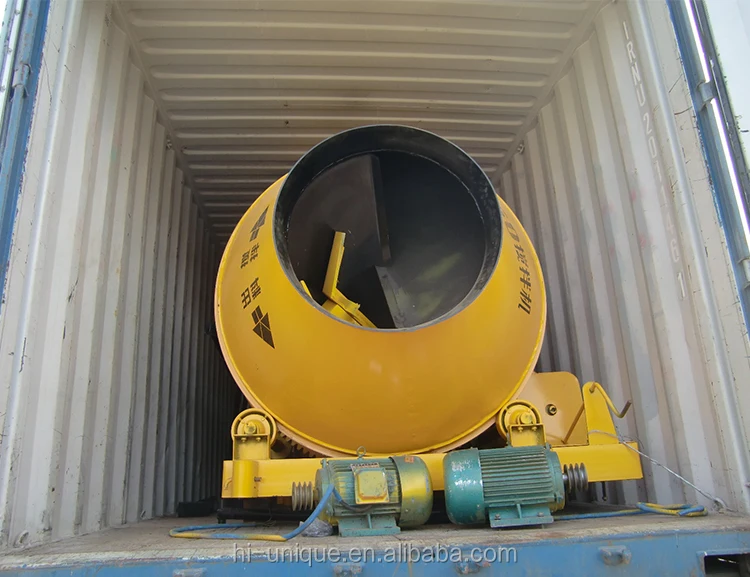

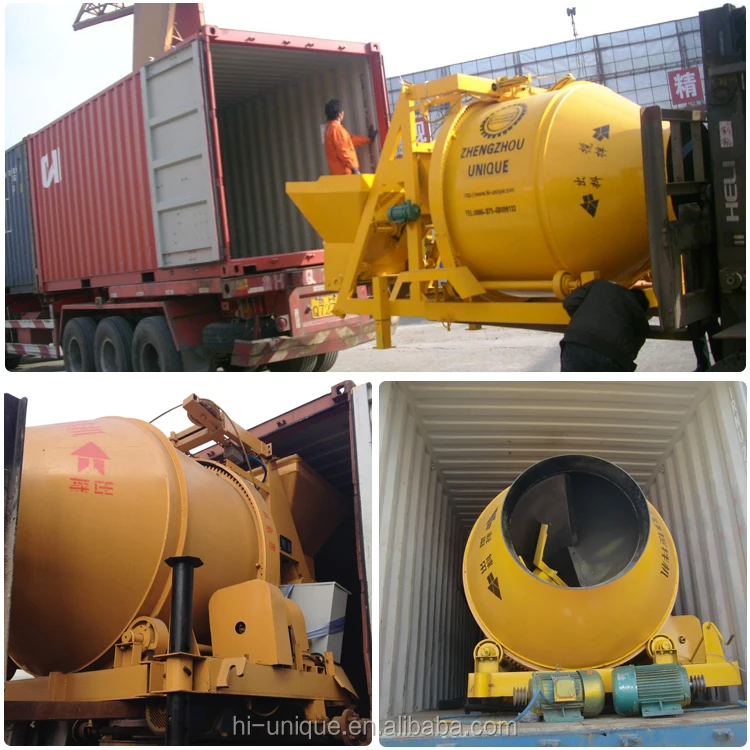

Packaging & Shipping

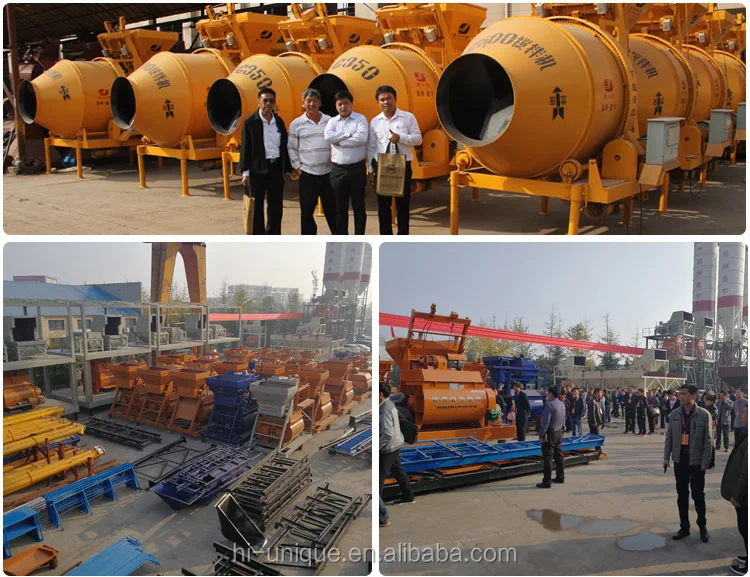

Company Information
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc…
For 40 years, UNQIUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
Our Services
UNIQUE has the 12 workshops to produce every part of concrete mixing plants and we can produce spare parts to delivery thern to you within 2 days.
UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: Do you have CE certificate for your concrete batching plant / concrete mixer?
A: Yes, we have. Both are our patent products, certificated by CE.
