Electrical PVC Trunking Wiring Systems



 1. Main Features

1) Impact strength: resistant to compression and impact, suitable to be buried in concrete

2) Non-conductive: good insulation, able to resist 25KV voltage, assuring a safe system.

3) Fire resistance: with self-extinguishing function

4) Corrosion Resistance: resistant to acids, bases and salts, assuring a lower maintenance cost and

   a longer performance life.

5) Smooth surface: small friction and high flow capacity to ensure the cables go through smoothly

6) Easy Installation: light weight, easy to cut, transport, bent and handle; easy connecting by solvent

    cement and threading joining without leakage

2.Specification



Following size is our current size, and custom size accepted.

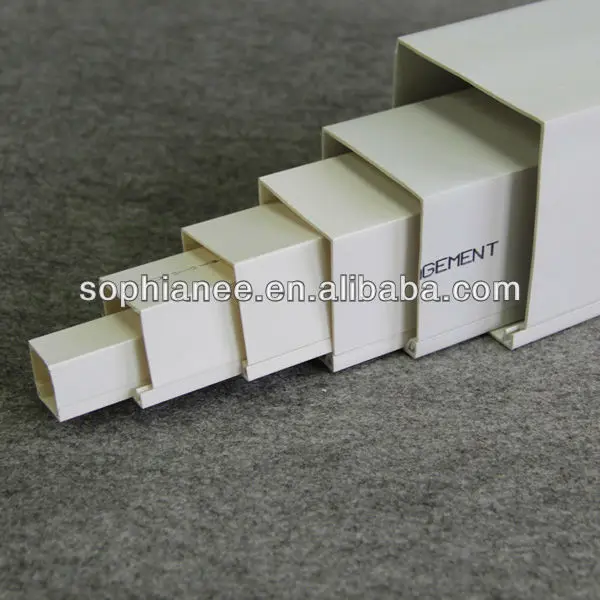

Plastic PVC Trunking Item & Picture	Siz(W*H) mm	Thickness(mm)
Plastic PVC Trunking	10x10 mm	0.60
	15x10 mm	0.55/0.80
	16x16 mm	0.58/0.63/0.80/1.00
	18x9mm	0.40
	20x10 mm	0.45/0.55/0.70
	20x12 mm	0.50/0.60/0.80
	23x13 mm	0.65/0.75
	24x14 mm	0.65/0.7
	25x16 mm	0.63/0.72/1.00
	25x25 mm	0.75/0.95
	30x15 mm	0.60/0.76
	39x19 mm	0.75/0.90
	40x16 mm	0.60/0.80/1.00
	40x25 mm	0.68/0.76/1.00/1.20
	40x30 mm	1.00/1.20
	40x40 mm	1.38
	50x25 mm	1.00
Square plastic PVC Trunking	50x50 mm	1.10/1.25
	59x22 mm	0.85/1.10
	60x30 mm	1.10
	60x40 mm	1.20/1.40
	60x60 mm	1.68
	75x50 mm	1.25
	75x75 mm	1.30/1.50
	80x40 mm	1.35
	80x50 mm	1.40/1.70
	99x27 mm	0.90/1.20
	100x40 mm	1.35/1.50
	100x50 mm	1.35/1.70
	100x60 mm	1.65/1.90
	100x75 mm	1.65/2.00
	100x100 mm	1.60/2.00
	100x150 mm	2.00
PVC ARC-Floor Trunking	35x10 mm	1.75
	50x15 mm	1.60
	70x20 mm	2.00

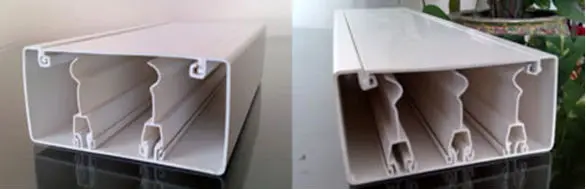

Special PVC Trunking	100x50 mm	1.35 (three spacers)
	100x50 mm	1.35 (four spacers)

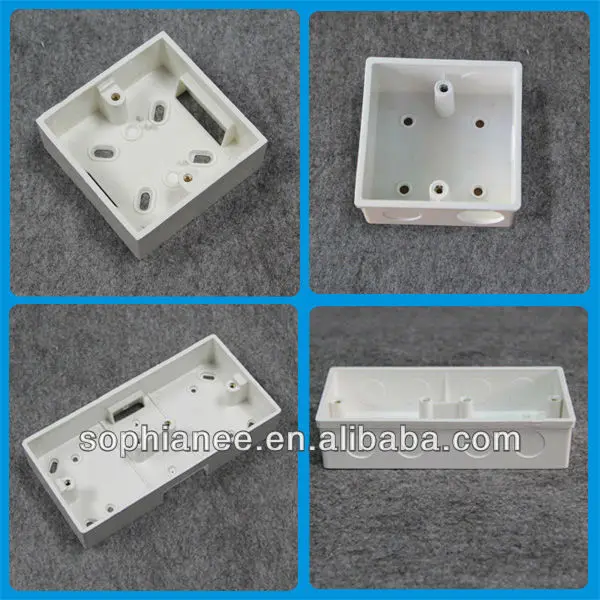

 3.PVC Trunking Fittings









4.Company Advantages

Machinery: More than 60 advanced Extrusion machine and 30 Injection machine with max 500T.

Experience: Over 30 years of experience in Thermoplastic Extrusion and Injection, such as running    temperature control and continuously formula optimization.

Quality Assurance: 24-hour Rigorous QC Team which is in line with ISO 9001 Certification;

Large-scaled Mould Workshop: with 4 senior mould designers and a team of experienced mould manufacturing technicians.

International Projects: Supply building and irrigation Projects in Asia, Africa, Middle East, Russia and other countries .
